Automatic Technology Syncro ATS-3 Benutzerhandbuch

1.0 USER OPERATING CONTROLS

Sectional Door Openers

Quick Operation Guide

05 06 07

03 04

08091011

Button Function

01 Close

02 Close indicator

03 Stop

04 Open

05 Open indicator

06 Mode

07 Status indicator

08 Battery status indicator

09 Remote status indicator

10 Adjustment indicator

11 Network indicator

Syncro & Tempo

TO DISENGAGE THE OPENER

2.0 MANUAL DOOR OPERATION

CAUTION: When the opener is manually

disengaged, the door is no longer

locked. To lock the door manually,

re-engage the opener after the door is

closed.

TO ENGAGE THE OPENER

CAUTION: Do not use the string handle

as a mechanism to open the door.

Failure to comply may cause serious

injury.

It is recommended to disengsgre the door with the

door in the closed position.

tip

DOOR

Pull towards, until you

hear a click Manually operate

door

DOOR

Pull away, until you

hear a click Press to test

Light StatusBattery

Solid OK

Flashing Replace

No light Replace

3.0 CODING A REMOTE CONTROL

STEP ONE

The opener can only be operated from remote

controllers that have been programmed into its

memory. Up to 64 remotes can be programmed.

Battery Type: 1 x CR2032.

WARNING!: The battery is hazardous and must

be kept out of reach of children. The battery can

cause severe of fatal injuries within 2 hours or less

if swallowed or placed inside any part of the body.

If you suspect the battery has be swallowed or

placed inside any part of the body, SEEK

IMMEDIATE medical attention.

STEP TWO

STEP THREE

Switch power on and

remove controls cover

till remote

LED lit

Press

repeatedly

HOLD

Opener flashes

& beeps

HOLD for 3 sec

RELEASE

Release both

buttons

STEP FOUR

OFF

STEP FIVE

Press to test

tip

Then replace controls cover

STEP ONE

4.0 CHANGING A BATTERY

HOLD

Check Light

Status Table

STEP TWO

tip

Use screwdriver

to remove scews

and open

STEP THREE

Use non-metallic

object to push

out.

STEP ONE STEP TWO

Take a pre-coded

remote and press the

button to duplicate

REMOTELY CODING A REMOTE CONTROL

Remotely coding works when you have a

pre-coded remote control and are in range of the

opener.

tip

Use a pen,

HOLD for 2 sec

the middle button

through the

coding hole

STEP THREE

Opener ashes & beeps

HOLD for 3 sec

RELEASE

Take new

remote

RELEASE

STEP FIVE

Press to test

Opener stops ashing &

beeping

(Syncro Only)

5.0 SMART PHONE CONTROL

BEFORE YOU START

STEP ONE STEP TWO

Download the ATA App

to your smartphone

STEP FOUR

Ensure limits are

set prior to connecting

to wifi

Remove controls cover &

Press repeatedly LED will turn PURPLE

(HOTSPOT ON)

STEP THREE

Open APP

and click START Set up new

Smart Hub in app

WARNING!: This device allows for operation of

the door when not in line-of-sight of the door and

opener. The door may operate unexpectedly,

therefore do not allow anything to stay in or near

the path of the door.

till network

LED is lit HOLD for 5 sec

Go to phone settings, then

WiFi and select

(ATA000000)

The home WiFi router

is within range of

opener

The Smart Phone Control works via your home’s WiFi network.

Initial set up involves linking your phone app and smart opener to

your home network.

STEP FIVE

Smart Hub connect

appears, ensure WiFi

network =

(ATA000000)

Network LED and

light will flash. Press Follow

instructions in the app

Network LED will turn Blue then

return controls cover

IssueRemedy

1 Normal operation (door is fully open)

4 Wireless PE battery is low Change PE Battery

7Standby battery is faulty

8 Door was obstructed

9 Motor overloaded or

stalled

6.0 TROUBLESHOOTING

PE is precenting door from

moving

Clear away any obstructions.

Test Door. If unable to move

the door and suspect beam is

faulty, enter Safety Beam

Emergency Close by pressing

and holding a pre-coded

transmitter button until the

door closes.

Main Light = Service / Warning Indicator:

Requirements for a service and user warnings are indicated after

operation by the main light repeatable flashing OFF a number of

times followed by a pause.

The below table identifies the issues and remedies

Not Available

Not Available -

Maintenance is due after

pre-set number of cycles.

Contact dealer to arrange

service.

Contact 1300 769 850 within

Australia for assistance.

Clear away any obstructions

and test door opens/closes

correctly. (if the door is

damaged, contact a door

professional)

Contact dealer to arrange a

door service.

Unit running on battery

power (Only available with

ATS-3)

Main light will flash (3) three

times at the start of the cycle to

indicate the opener is running

from battery backup and 10

flashes at the end of cycle.

Check power supply.

7.0 CARING FOR YOUR OPENER

Preventative servicing of your garage door and opener, is

important. Your garage door is made up of numerous moving parts

designed to lift and lower your door safely and efficiently.

Ongoing preventative servicing ensures that your door continues

to function within factory specifications, greatly reduces the risk of

failure and repair bills down the track and ensure you maintain

your Warranty.

Refer to your Owners Opener Handbook for your service schedule

available HERE.

Refer to the installation manual for monthly testing

procedures in Section 13 to ensure garage door is fit

for use available HERE.

tip

Online warranty details are available HERE.

8.0 NEED A SERVICE CALL?

If the opener needs a service please call the dealer who installed

the garage door opener (their contact details are usually on a

sticker on the back of your garage door).

For product assistance, general enquiry or

more information, please visit:

ata-aust.com.au

or call 1300 133 944.

Andere Handbücher für Syncro ATS-3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Automatic Technology Türöffnungssystem Handbücher

Automatic Technology

Automatic Technology Axess Pro Series 3000 Bedienungsanleitung

Automatic Technology

Automatic Technology DOMINATOR ShedMaster GDO-8V3 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-12Hir Benutzerhandbuch

Automatic Technology

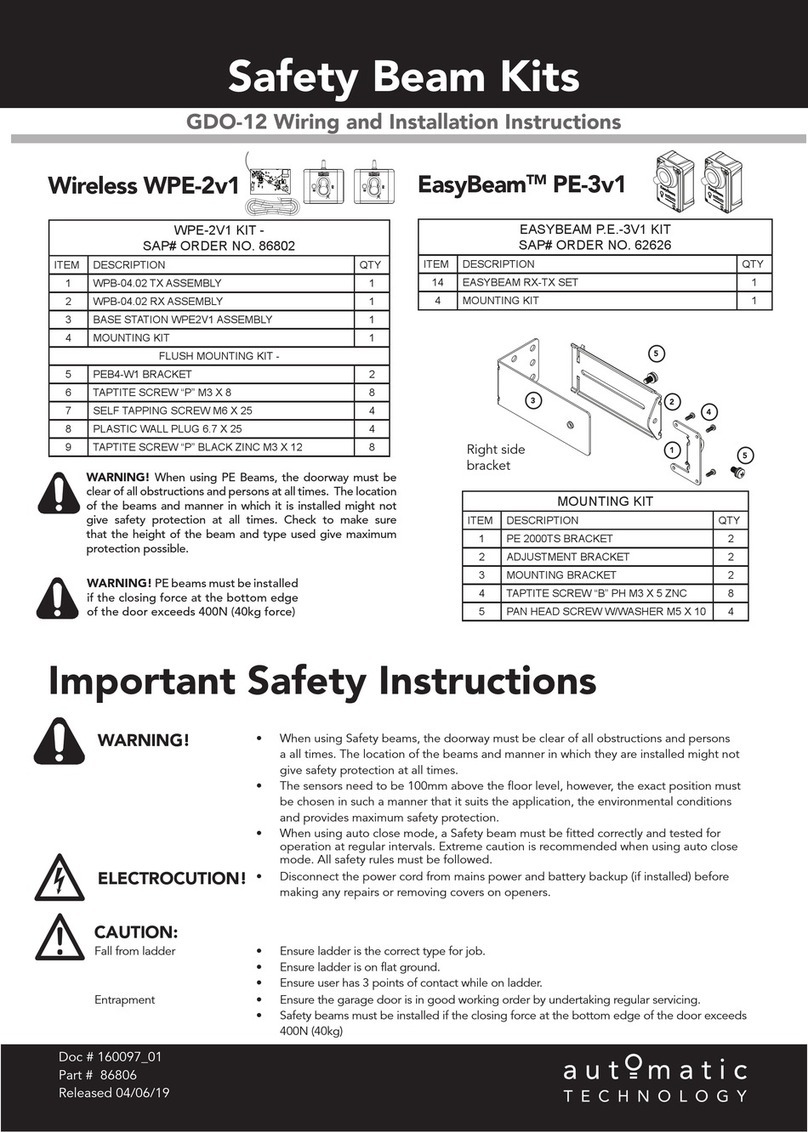

Automatic Technology HiRO GDO-12 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Benutzerhandbuch

Automatic Technology

Automatic Technology GDO-8 ShedMaster Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro 1505 Bedienungsanleitung

Automatic Technology

Automatic Technology TEMPO ATS-2V3 Bedienungsanleitung

Automatic Technology

Automatic Technology Dominator Tempo ATS-2AM Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-11 Ero Bedienungsanleitung

Automatic Technology

Automatic Technology DOMINATOR EasyRoller 14 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-12 HiRO GDO-12V1AM Bedienungsanleitung

Automatic Technology

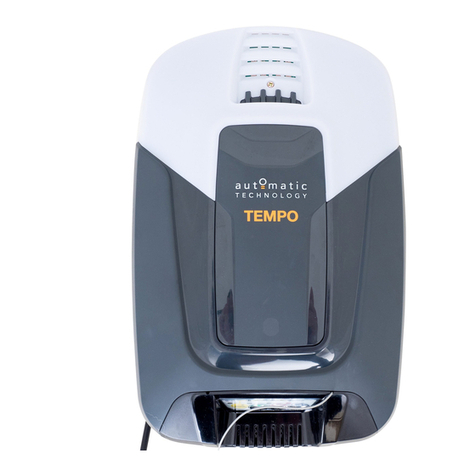

Automatic Technology TEMPO ATS-2 Bedienungsanleitung
