GDO-8V2 EasyRoller®II

INSTALLATION INSTRUCTIONS | OWNERS COPY

Weather Resistant Roll Up Door Opener

PN13240

2GDO-8V2 EasyRoller® II Owner Installation Instructions

WARNING: It is vital for the safety of persons to follow all

instructions.Failuretocomplywiththeinstallationinstructions

and the safety warnings may result in serious personal injury

and/or property and remote control opener damage. Please

save these instructions for future reference.

Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of

an Automatic Technology Australia Pty Ltd Roll Up Garage Door Opener. Automatic Technology Australia Pty Ltd hereby

further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any

person as a result whether directly or indirectly from failure to install the Automatic Technology

Australia Roll Up Garage Door Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-8V2 EasyRoller® II 3

Safety Warnings 4

Product Features 6

Operating Controls 8

Package Contents 10

Side Room Requirements 11

Fixing Weight Bar 11

Fitting Locking Bar Covers 11

Mounting The Opener 12

Fixing Curtain To Drum 13

Setting Limits Via Control Panel 13

Setting Limits Via Transmitter 14

Setting Obstruction Force Margin (ISS) 15

Re-Calculating Force Margin Sensitivity 15

Coding Transmitters 16

Deleting Transmitters 16

Locking the Control Panel 16

Connecting Photo Electric Beam 17

Connecting External Secure Light Module 17

Using Manual Release 17

Resetting Factory Defaults 17

Door Status Indicators 18

Buttons and Functions 18

Supplier/Installer Information 18

Factory Default Settings 19

Technical Speciﬁcations 19

Trouble Shooting Guide 20

Parts List 22

Warranty 23

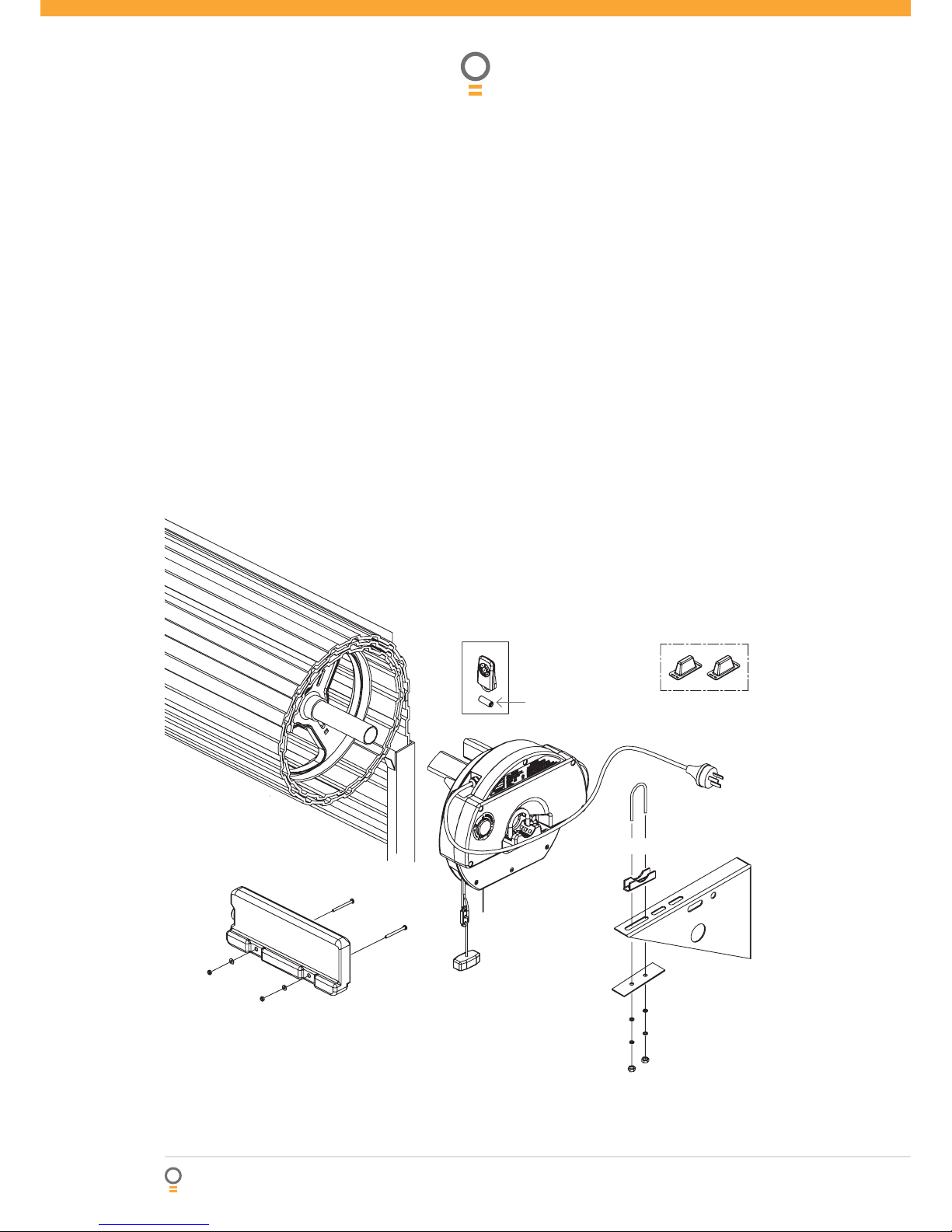

GDO-8v2 EasyRoller®II

Roll Up Garage Door Opener

4GDO-8V2 EasyRoller® II Owner Installation Instructions

FOR ADDITIONAL SAFETY protection we strongly recommend the ﬁtting of a

Photo Electric (P.E.) Beam. In most countries P.E. Beams are mandatory on all

garage doors ﬁtted with automatic openers. For a small additional outlay

Automatic Technology recommends that P.E. Beams be installed with the

EasyRoller® II ensuring additional safety and peace of mind.

DO NOT operate the EasyRoller® II unless the garage door is in full view and free

from objects such as cars and children/people. Make sure that the door has ﬁnished

moving before entering or leaving the garage.

DO NOT operate the EasyRoller® II when children/persons are near the

door. Children must be supervised near the garage door at all times when

the EasyRoller® II is in use. serious personal injury and/or property

damage can result from failure to follow this warning.

DO NOT allow children to operate the EasyRoller® II. Serious personal

injury and/or property damage can result from failure to follow this

warning.

Regularly check to make sure that the safety obstruction force

is working correctly, and is tested and set as per page 15 of this

Manual. Failure to follow this could result in serious personal

injury and/or property damage. This test must be repeated

at regular intervals and the necessary adjustments made

as required.

DO NOT disengage the EasyRoller® II to manual

operation with children/persons or any other objects

including motor vehicles within the doorway. Install

the wall switch or wall mounted transmitter in a

location where it is out of reach of children and

the garage door is visible.

WARNING: It is vital for the safety of persons to follow

all instructions. Failure to comply with the following

Safety Rules may result in serious personal injury

and/or property damage.

Important safety instructions

Owner Installation Instructions GDO-8V2 EasyRoller® II 5

The EasyRoller® II is not intended for use by young children or inﬁrm persons without adequate supervision.

Children should be supervised to ensure they do not play with the remote transmitters or the EasyRoller® II.

Keep hands and loose clothing clear of the door and EasyRoller® II at all times.

The unit is rated to IP24, however, it should be installed so that it is protected from the elements. Where

possible it should not be exposed to water or rain. It is not to be immersed in water or sprayed directly

by a hose or other water carrying device.

The garage door must be well balanced. Sticking or binding doors must be repaired by a qualiﬁed

garage door installer prior to installation of the EasyRoller® II.

Frequently examine the installation, in particular cables, springs and mountings for signs of

wear, damage or imbalance. DO NOT use if repair or adjustment is needed since a fault in

the installation or an incorrectly balanced door may cause injury. DO NOT attempt to repair

the door yourself as hardware is under extreme tension.

Remove or disengage all garage door locks and mechanisms prior to installation of

the EasyRoller® II.

Connect the EasyRoller® II to a properly earthed general purpose 240V mains

power outlet installed by a qualiﬁed electrical contractor. The outlet (and

EasyRoller® II) must be positioned so that it is easily accessible.

Disconnect the power cord from mains power before making any repairs

or removing covers. Only experienced service personnel should remove

covers from the EasyRoller® II.

In order for the EasyRoller® II to sense an object obstructing the

door way, some force must be exerted on the object. As a result

the object, door and/or person may suffer damage or injury.

If the power supply cord is damaged, it must be replaced by

an Automatic Technology service agent or suitably qualiﬁed

person.

Make sure that the door is fully open before

driving in or out of the garage and fully closed

before leaving the driveway.

Make sure that remote controls are

kept out of reach of children.

Important safety instructions

6GDO-8V2 EasyRoller® II Owner Installation Instructions

Operation

To open or close the door simply press a button on a SecuraCode® handheld

transmitter, a wall mounted transmitter, or optional wall switch for two seconds.

During open and close cycles the door can be stopped by pressing the button

again. The next actuation will move the reverse the door’s direction.

SecuraCode® Code Hopping Technology

Every time a SecuraCode® transmitter is used a new security code is generated

from over 4.29 billion possible code combinations. This greatly enhances the

security of the system and makes “code grabbing” a thing of the past!

Security code store

The GDO-8v2 EasyRoller® II Garage Door Opener uses evolutionary technology to

securely store eight (8) different transmitters in its memory.

Weatherproof design

The opener’s control board is housed in a weather-proof enclosure rated to IP24. This

offers protection from rain and the elements. PLEASE NOTE - the unit should not be

sprayed by a hose or any other water carrying device.

ALPS (Automatic Limits Positioning System)

The ALPS system automatically calculates the door’s travel limits and stores it in memory. If the door is

moved manually within the travel limits during a power failure, the ALPS will recognise this once the power

is restored and stop at the correct limit position if the door is activated. During installation the hand held

transmitter can be programmed to set the door limits positions.

ISS (Intelligent Safety Obstruction System)

While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it will

automatically reverse. The amount of force the door should encounter before reversing is automatically

adjusted by the doors control system during the initialisation of the automatic door opener. The door will

also stop if restricted whilst opening. The Safety Obstruction Force should be checked at least once a month.

See pahe 15 of this manual for instructions.

Features

Thank you for purchasing the Automatic Technology

EasyRoller® II Automatic Garage Door Opener.

operating continuous curtain roll up doors, the

EasyRoller® will provide years of smart, simple

& secure convenience to your home.

Owner Installation Instructions GDO-8V2 EasyRoller® II 7

Lockable control panel

The control panel can be locked and disabled to prevent tampering. This is

useful if the opener is to be mounted on an exposed carport or a perimeter

door. Locking the control panel will prevent operating the door via the Operate

button, reproﬁling the door, clearing limits, clearing transmitters, changing force

margins, and coding transmitters.

Overload indicator

When the maximum opening and closing capacity of the opener is exceeded an

audible beeper will sound to indicate that an overload has occurred.

Photo Electric (P.E.) beam (optional)

The opener has an input for a P.E. beam to be connected for extra safety protection

Secure Light Module (optional)

external secure light module is available to connect to the gdo8 opener

light stays on for approximatly four minutes after the operation of opener

Manual operation

The opener is equipped with a unique patented manual disengaging device. If the power to the

opener is disrupted for any reason the door can be put into manual mode by pulling down on the

string handle, then releasing. This will allow you to manually open or close the door. When power is

restored, by pulling down on the string handle and releasing, the opener is put back into automatic mode.

Security lock for manual release handle (optional)

For added security the manual release handle can be locked out or disabled. This is ideal if the opener is to

be mounted on a perimeter door in an exposed carport.

8GDO-8V2 EasyRoller® II Owner Installation Instructions

Operating controls

Prog input is used for the connection of the Automatic Technology PG-3 Universal Programmer for the

purpose of editing control and receiver functions.

P.E.ShuntTheshunthas tobe removedwhen connectinga PhotoElectric (P.E.)Beam. NOTE:THE P.E.Shunt

must not be removed otherwise the opener will not function correctly. Remove only when a P.E. beam is to

be connected.

Status LED (yellow) indicates when the datum adjustment screw has reached correct position.

Datum Adjust Screw Used to set mid-point of door travel during limits set up.

Door Code button (blue) is used for storing or erasing the transmitter button you wish to use to command

the door to open, stop or close.

Coding LED (red) light indicates whether a code is being stored or when a transmitter button is

pressed.

Set button (orange) is used during the installation phase together with the Plus and Minus buttons to set

the door limit positions. The Set button is also used to re-initialise the Opener.

Operate button (blue) is used during installation to test the open, stop and close cycles for the opener.

The opener has to be initialised by the Set button before the OPERATE button becomes operable.

Force Margin Set The obstruction force pressure is set automatically by the opener during installation.

The pressure can be adjusted manually using the Force Margin Set button (White). Pressing the force

margin set button and open or close button will increase or decrease the amount of force. The Force

Margin Set is only ever used if other environmental factors (wind, etc.) affect the operations of the door/

opener.

Plus button (green - for limits setting and force margin) can be used during installation to set the open

limit position. Pressing this button will move the door in the open direction. Movement stops when the

button is released. NOTE: The open safety obstruction detection is inoperable whenever the Close Drive

button is used to move door. This button is disabled after initialisation. This button is also used to increase

the force margin sensitivity.

Open Limit LED (green) theled is very helpful during installation. It illuminates and ﬂashes when the

door is opening and remains steady on when the open limit position has been reached.

Minus button (red - for limits setting and force margin) can be used during installation to set the close

limit position. Pressing this button will move the door in the close direction. Movement stops when the

button is released. NOTE: The close safety obstruction detection is inoperable whenever the Close Drive

button is used to move door. This button is disabled after initialisation. This button is also used to decrease

the force margin sensitivity.

Close Limit LED (red) the led is very helpful during installation. It illuminates and ﬂashes when the door

is closing and remains steady on when the close limit position has been reached.

Engage/Disengagement Cord is used to switch the door into manual mode especially in case of a

power failure. The length of the string is also adjustable.

Security Lock for Manual Release (where ﬁtted) prevents the manual release handle being pulled

to disengage the opener into manual mode.

Owner Installation Instructions GDO-8V2 EasyRoller® II 9

07 08 09 10

Operating controls

10 GDO-8V2 EasyRoller® II Owner Installation Instructions

Package contents

GDO-8 Easyroller® drive unit 1

PTX-4 SecuraCode® keyring transmitter 1

Alkaline battery A23 12V 1

Weight bar (not included in some models) 1

Pan head screw M4x50mm (not included in some models) 2

Nilock hex nut M4 (not included in some models) 2

Flat washer I.D. 3

16 x ½ (not included in some models) 2

Locking bar covers 2

Installation manual 1

Pan head screw M4x50

Securacode PTX-4

Alkaline

battery A23 12V Locking bar covers

Saddle*

Drive unit

Weight bar

Door drum*

Hex nut Nilock nut M4

Washer 3

x ½

Reinforcement plate*

Flat washer*

Spring washer*

Nuts

Bracket*

*Not included

Inhaltsverzeichnis

Andere Automatic Technology Garagentoröffner Handbücher

Automatic Technology

Automatic Technology SecuraLift GDO-7V1 Kurzanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Bedienungsanleitung

Automatic Technology

Automatic Technology NeoSlider TrioCode 128 NES-500 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-8 Shed Master Bedienungsanleitung

Automatic Technology

Automatic Technology SECURALIFT Kurzanleitung

Automatic Technology

Automatic Technology GDO-6v4 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology Syncro ATS-3 Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift Rhino Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-11 Ero Bedienungsanleitung

Automatic Technology

Automatic Technology Smart Phone Control Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-10v1 Toro Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-4 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology Hiro GDO-12V1 Bedienungsanleitung

Automatic Technology

Automatic Technology Dominator AM800 Bedienungsanleitung

Automatic Technology

Automatic Technology HiRO GDO-12 Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro Series 1101 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-10v1Toro Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-8v1 EasyRoller II Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-9v3 Bedienungsanleitung

Automatic Technology

Automatic Technology PA1000V1 Bedienungsanleitung

Beliebte Garagentoröffner Handbücher anderer Marken

Dorma

Dorma ES 90 Bedienungsanleitung

Garaga

Garaga SECURITY+ 3265GCM 1HP Bedienungsanleitung

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Bedienungsanleitung

Chase Doors

Chase Doors DuraShield Bedienungsanleitung

CSI

CSI Classic Bedienungsanleitung

HATO

HATO 120 Bedienungsanleitung

Chamberlain

Chamberlain Elite 3575S Bedienungsanleitung

Richmond

Richmond GTR156 Bedienungsanleitung

Raynor

Raynor 1280RGD Bedienungsanleitung

CAME

CAME F4000 Series Bedienungsanleitung

B&D

B&D Controll-A-Door 5 Bedienungsanleitung

BFT

BFT PRV AA SL Bedienungsanleitung

Craftsman

Craftsman 139.53924 Bedienungsanleitung

Chamberlain

Chamberlain MyQ 940ESTD Bedienungsanleitung

Westfalia

Westfalia 19 36 07 Bedienungsanleitung

Chamberlain

Chamberlain HD520EVP Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung

Chamberlain

Chamberlain 8355 - 1/2 hp Bedienungsanleitung
