SecuraLift®Trio

INSTALLATION INSTRUCTIONS | OWNER’S COPY

DC Overhead Garage Door Opener

2SecuraLift® Trio Overhead Garage Door Opener Owner Installation Instructions

WARNING: It is vital for the safety of all persons to follow

these instructions. Failure to comply with the installation

instructions and safety warnings may result in serious

personal injury and/or property damage.

Please save these instructions for future reference.

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an

Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technology (Australia) Pty Ltd hereby further

expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a

result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Garage Door Opener

in accordance with these installation instructions.

Owner Installation Instructions SecuraLift® Trio Overhead Garage Door Opener 3

SecuraLift® Trio

Overhead Garage Door Opener

Important Safety Instructions 04

Features 06

Operating Controls 08

Kit Contents 10

Installation 12

C-Rail Assembly 12

Determine Door Type 14

Mounting on a Track Type Door 15

Mounting on a Non-Track Type Door 16

Mounting Door Bracket & Arms 17

Setting Travel Limits 18

Testing Safety Obstruction Force 19

Coding Transmitters 20

Door 20

Courtesy Light 20

Vacation Mode 21

Auxiliary Output 21

Pet (Pedestrian) Mode 22

Erasing Transmitter Codes 22

Mounting Wall Transmitter 22

Battery Back Up Installation 23

Accessories 24

P.E. Beams 24

Electric Key Switch 24

Remote Aerial 25

Terminal Block 25

Troubleshooting Guide 26

Default Settings & Speciﬁcations 27

Parameters 28

Maintenance 30

Parts List 32

Warranty 34

4SecuraLift® Trio Overhead Garage Door Opener Owner Installation Instructions

CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be

installed. This accessory allows manual operation of the garage door from outside in the event of a

power failure.

For additional protection we strongly recommend ﬁtting of Photo Electric (P.E.) Beams.

In most countries P.E. Beams are mandatory on all automated garage doors. For a small

additional outlay Automatic Technology recommends that P.E. Beams be installed with the SecuraLift®

Trio Overhead Garage Door Opener.

DO NOT operate the SecuraLift® Trio Overhead Garage Door Opener unless the garage door is

in full view and free from objects such as cars and children/people. Make sure that the door has

ﬁnished moving before entering or leaving the garage.

DO NOT operate the SecuraLift® Trio Overhead Garage Door Opener when persons are

in or near the doorway. Children near an moving garage door must be supervised at all

times. Serious personal injury and/or property damage can result from failure to follow

this warning.

DO NOT allow children to operate the garage door opener. Serious personal injury

and/or property damage can result from failure to follow this warning.

Regularly check that the safety obstruction force is tested and set as per page

19 of this manual. Failure to follow this could result in serious personal injury

and/or property damage. This must be repeated at regular intervals and

adjustments made as required.

DO NOT disengage the SecuraLift® Trio Overhead Garage Door

Opener to manual operation with persons or any other objects,

including motor vehicles, within the doorway.

The SecuraLift® Trio Overhead Garage Door Opener is not

intended for use by young children or inﬁrm persons. Children

should be supervised to ensure that they do not play with the

remote transmitters or the opener.

Keep hands and loose clothing clear at all times.

The unit should be installed so that it is protected from

the elements. It should not be exposed to water or

rain, immersed in water or sprayed directly by a

hose or other water carrying device.

WARNING: It is vital for the safety of all persons to follow

these instructions. Failure to comply with the following

safety rules may result in serious personal injury and/or

property damage.

Important Safety Instructions

Owner Installation Instructions SecuraLift® Trio Overhead Garage Door Opener 5

The garage door must be well balanced. Sticking or binding doors must be repaired by a qualiﬁed garage door

installer prior to installation of the SecuraLift® Trio Overhead Garage Door Opener.

Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage or

imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an incorrectly

balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware is under extreme

tension.

Remove or disengage all garage door locks and mechanisms prior to installation of

the opener.

Connect the SecuraLift® Trio Overhead Garage Door Opener to a properly earthed general

purpose 240V mains power outlet installed by a qualiﬁed electrical contractor.

Disconnect the power cord from mains power before making any repairs or removing

covers. Only experienced service personnel should remove covers from the SecuraLift®

Trio Overhead Garage Door Opener.

When using auto-close mode, a P.E. Beam must be ﬁtted correctly and tested for

operation at regular intervals. Extreme caution is recommended when using auto-

close mode. All safety rules must be followed - see page 24 for full details.

In order for the SecuraLift® Trio Overhead Garage Door Opener to sense an

object obstructing the doorway, some force must be exerted. As a result the

object, door and/or person may suffer damage or injury.

If the power supply cord is damaged, it must be replaced by an Automatic

Technology service agent.

Make sure that the door is fully open before driving in or out of the

garage and fully closed before leaving the driveway.

Make sure that remote controls are kept out of reach of

children.

Install the wall mounted transmitter in a location where it is

out of reach of children and the garage door is visible.

Important Safety Instructions

6SecuraLift® Trio Overhead Garage Door Opener Owner Installation Instructions

Operation

To open or close the door simply press a button on a TrioCode™ handheld

transmitter, or optional wall switch for two seconds. During open and close cycles

the door can be stopped by pressing the button again. The next actuation will

move the reverse the door’s direction.

TrioCode™ Code Hopping Technology

Every time a TrioCode™ transmitter is used a new security code is generated from

over 4.29 billion possibilities. This greatly enhances the security of the system and

makes “code grabbing” a thing of the past.

These transmitters also overcome interference issues by simultaneously sending a

signal over three slightly different frequencies. Even if two of the three signals are

jammed, the third will communicate with the opener.

ALPS (Automatic Limits Positioning System)

ALPS does away with manual adjustment of the door’s limits position using mechanical

parts, such as cams and microswitches.

ISS (Intelligent Safety obstruction System)

While the opener is performing a close cycle, should the door hit an obstacle or be restricted

in some manner, it will automatically reverse. The amount of force the door should encounter

before reversing is automatically adjusted during the initial installation of the automatic door

opener. The door will also stop if restricted whilst opening. The safety obstruction force should be

checked at least once a month. See page 19 for instructions.

Security Code Store

The SecuraLift® Trio Overhead Garage Door Opener will store up to 14 different transmitters codes.

Overload Indicator

When the maximum opening and closing force capacity of the SecuraLift® Trio Overhead Garage Door

Opener is exceeded an audible beeper will sound to indicate that an overload has occurred.

Features

Thank you for purchasing the SecuraLift® Trio

Overhead Garage Door Opener. Designed to suit

sectional, overhead and one piece tilt up doors, the

components and materials used ensure this opener

will provide years of smart, simple and secure

operation. Listed below are just some of the

many world leading features:

Owner Installation Instructions SecuraLift® Trio Overhead Garage Door Opener 7

LED Courtesy Light

The SecuraLift® Trio Overhead Garage Door Opener’s courtesy light illuminates automatically

whenever the door is activated. The light can also be switched on and off without operating

the door by pressing the button on any transmitter which has been coded to operate the

light. The light will stay on for approximately three minutes then switch off. These LED

lights have a super long life and virtually never require replacement.

Battery Back Up (optional)

The SecuraLift® Trio Overhead Garage Door Opener can be ﬁtted with a battery

back up kit, allowing continued operation in the event of a power outage

NOTE: If the garage door is the only entrance to the garage and a Battery Back

Up kit is not ﬁtted to the SecuraLift® Trio Overhead Garage Door Opener a keyed

cable release should be ﬁtted to the exterior of the garage.

Vacation Mode

A transmitter can be coded to block out all other transmitters that have been

programmed into the opener’s memory. Vacation mode is ideal for homes with

non-permanent tenancy or when the door is to be left idle for long periods of

time.

Pet (Pedestrian) Mode

A transmitter can be programmed to open the door partially so that the family pet can

enter and exit the garage at any time.

Auto-Close Mode

The opener can be programmed to automatically close after an open cycle. It is compulsory

to install P.E. Beams if this mode is selected, otherwise the door may cause personal injury or

damage to property.

Photo Electric (P.E.) Beams (optional)

The opener has an input for a Photo Electric (P.E.) Beam to be connected for extra protection and use of the

auto-close mode.

Manual Operation

The opener is equipped with a unique manual disengaging device. If power to the SecuraLift® Trio Overhead

Garage Door Opener is disrupted for any reason, the door can be put into manual mode by pulling down on the

string handle on an angle towards the door. This will allow you to manually open or close the door. To re-engage

pull the string handle away from the door.

8SecuraLift® Trio Overhead Garage Door Opener Owner Installation Instructions

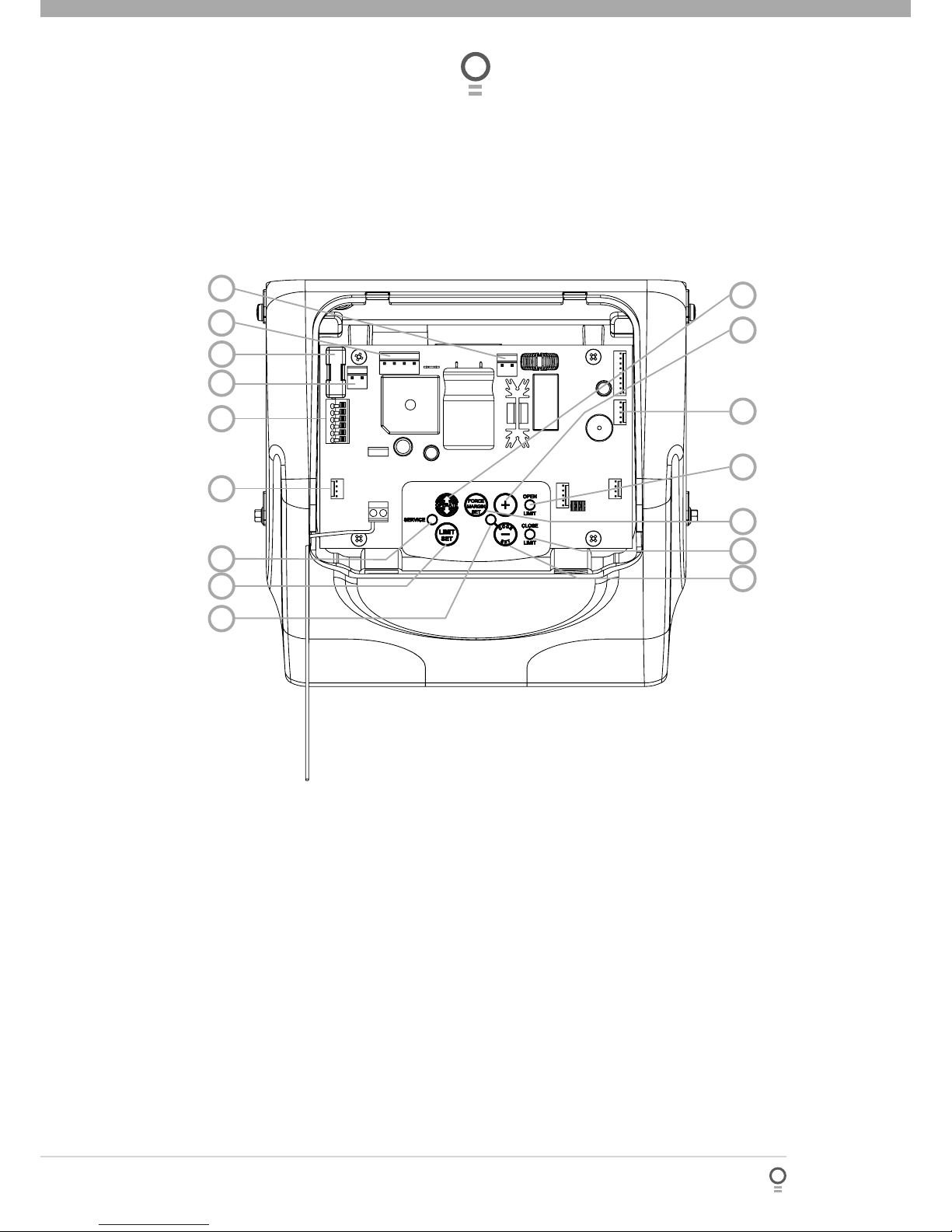

Operating Controls

Terminal is used to connect Va.c. power to the

control board.

10 Amp fuse to protect the electronic circuit

board.

SBY-3 Battery Charger connection to attach

a Battery Back Up kit.

24Vd.c. Motor Connection.

OPERATE button (Blue) is used during

installation to test the open, stop and close

cycles for the opener. The opener has to be

initialised by the LIMIT SET button to make the

OPERATE button operable. The OPERATE

button also can be used in lieu of a transmitter

to activate the opener.

PLUS (+) button (Green) is used during

installation to set the open limit position.

Pressing and holding this button will move the

door in the open direction. Movement stops

when the button is released.

NOTE: The safety obstruction system is

inoperable whenever the PLUS (+) button is

used to move the door.

PROG INPUT is used to connect the PG-3

Universal Handheld Programmer to edit control

and receiver functions.

OPEN LIMIT LED (Green) is used during

installation to help set the open limit position. It

also illuminates and ﬂashes as the door opens,

and remains on when the open limit position

has been reached.

FORCE MARGIN SET button. The

obstruction force margin is set automatically

during installation. The margin can be adjusted

manually using the FORCE MARGIN SET

button (White). Holding the FORCE MARGIN

SET button and pressing PLUS (+) or MINUS (-)

buttons will increase or decrease the amount of

force. The FORCE MARGIN SET button should

only be used if environmental factors, such as

high winds, affect the door’s operation.

CLOSE LIMIT LED (Red) is used during

installation to set the close limit position. It also

illuminates and ﬂashes as the door closes, and

remains on when the close limit position has

been reached.

MINUS (-) button (Red) is used during installation to set

the close limit position. Pressing and holding this button

will move the door in the close direction. Movement

stops when the button is released. This button is also

used for storing or erasing the transmitter button you

wish to use to command the door to open, stop or

close.

NOTE: The safety obstruction system is inoperable

whenever the MINUS (-) button is used to move the

door.

CODE SET LED (Red) ﬂashes when a transmitter button

is stored.

LIMIT SET button (Blue) is used during installation,

together with the PLUS (+) and MINUS (-) buttons, to set

the door limit positions. The LIMIT SET button is also

used to re-initialise the opener.

SERVICE LED (Yellow) indicates when the opener

requires service or repairs.

Courtesy Light LED Module connects the 24V LED

lighting modules.

Terminal Block:

30V PWR - Used to power devices such as P.E.

Beams and external receiver (100

milliamp max).

P.E - Input to connect to P.E. Beams.

P.E 0V - 0 volt connection for P.E. Beams.

GND - Common -ve ground for accessories

OPERATE - Used for the connection of a wired

switch (momentary contact). This

switch can then be used to open,

stop or close the door. Install the

wall switch in a location where the

switch is out of reach of children and

the garage door is visible.

AUX OUT - This function allows the opener to

operate other devices such as

external lights, or an alarm system.

Owner Installation Instructions SecuraLift® Trio Overhead Garage Door Opener 9

Operating Controls

04 05

10 SecuraLift® Trio Overhead Garage Door Opener Owner Installation Instructions

Kit Contents

Drive Unit

1 x SecuraLift® Trio drive unit (Fig. 01)

1 x Transmitter pack (Fig. 01)

(Pack includes two keyring transmitters and batteries)

1 x Wall mount transmitter with battery (Fig. 01)

2 x Door attachment arms (Fig. 01)

1 x Accessory and hardware pack (Fig. 01)

1 x Manual Disengage Cord (Fig. 01)

1 x Installation Manual

Single Piece Track With Pre-Assembled

Chain

NOTE: The chain in one piece rail has been tensioned by

the factory. Do not adjust the tension of the chain.

IMPORTANT NOTE: If a modiﬁcation to the length of the

track is required, the adjustment must be made from the

drive unit end only.

Single Piece Track With

Pre-Assembled Timing Belt

Note: The timing belt in one piece rail has been

tensioned by the factory. Do not adjust the tension of

the timing belt.

IMPORTANT NOTE: If modiﬁcation to the track length

is required, adjustment must be made only from drive

unit end only.

PLUS

ﬁg

Inhaltsverzeichnis

Andere Automatic Technology Garagentoröffner Handbücher

Automatic Technology

Automatic Technology Axess Pro Series 1101 Bedienungsanleitung

Automatic Technology

Automatic Technology Toro GDO-10V2L2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-2 SecuraLife Bedienungsanleitung

Automatic Technology

Automatic Technology NeoSlider TrioCode 128 NES-500 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-8V2 EasyRoller II Bedienungsanleitung

Automatic Technology

Automatic Technology iOpener RD40 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-11V3 Ero Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 v2 Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-9v3 Bedienungsanleitung

Automatic Technology

Automatic Technology Smart Phone Control Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9 ENDURO GEN2 Planungshandbuch

Automatic Technology

Automatic Technology GDO-11 Ero Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-10v1Toro Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6v4 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-10V3L2 Toro Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-4 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology Toro GDO-10v2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift Rhino Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-7V1 Kurzanleitung

Automatic Technology

Automatic Technology Dominator AM800 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Beliebte Garagentoröffner Handbücher anderer Marken

Dorma

Dorma ES 90 Bedienungsanleitung

Garaga

Garaga SECURITY+ 3265GCM 1HP Bedienungsanleitung

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Bedienungsanleitung

Chase Doors

Chase Doors DuraShield Bedienungsanleitung

CSI

CSI Classic Bedienungsanleitung

HATO

HATO 120 Bedienungsanleitung

Chamberlain

Chamberlain Elite 3575S Bedienungsanleitung

Richmond

Richmond GTR156 Bedienungsanleitung

Raynor

Raynor 1280RGD Bedienungsanleitung

CAME

CAME F4000 Series Bedienungsanleitung

B&D

B&D Controll-A-Door 5 Bedienungsanleitung

BFT

BFT PRV AA SL Bedienungsanleitung

Craftsman

Craftsman 139.53924 Bedienungsanleitung

Chamberlain

Chamberlain MyQ 940ESTD Bedienungsanleitung

Westfalia

Westfalia 19 36 07 Bedienungsanleitung

Chamberlain

Chamberlain HD520EVP Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung

Chamberlain

Chamberlain 8355 - 1/2 hp Bedienungsanleitung
