Home Owner’s Manual

Doc #: 160024_00

Part #: 13371

28/08/2013

GDO-6 EasyRoller®

Weather Resistant Roll Up Door Opener

GDO-8 Shed Master®

GDO-8 ShedMaster®Home Owner’s Manual

Table of Contents

1. Safety Rules 3

2. Features 4

3. Specifications 5

4. Operating your door 6

5. User Operating Controls 7

6. Manual Release

Security 8

6.1 Manual Door Operation 8

6.2 Emergency Evacuations 8

6.3 Power Failure 8

6.4 Re-Engaging the Opener 8

6.5 Security - Inbuilt Locking Facility 8

6.6 Locking the Control Panel 8

7. Safety Testing 9

7.1 Test the Close Cycle 9

7.2 Testing the Open Cycle 9

7.3 Test the Manual Door Operation 9

8. Coding Transmitters 10

8.1 Setting the Transmitter Operate the Door 10

8.2 Setting the Transmitter to Operate Vacation Mode 10

8.3 To Erase Programmed Codes 11

8.4 Remotely Coding Transmitters 11

9. Troubleshooting Guide 12

10. Maintenance 14

10.1 Door Maintenance 14

10.2 Lubrication (every 3 - 6 months) 14

10.3 Door Service and Repair 14

10.4 Opener Maintenance 15

10.5 Removing the Battery From the Transmitter 15

11. Warranty 16

12. Optional Accessories 18

13. Service Schedule 19

GDO-8 ShedMaster®Home Owner’s Manual

Table of Contents

1. Safety Rules

Please read these important safety rules

This automatic garage door opener is designed and tested to offer safe service provided it is

installed and operated in strict accordance with the following safety rules. Failure to comply with

the following instructions may result in death, serious personal injury or property damage.

WARNING! • When operating the manual release while the door is open, the

door may fall rapidly due to weak or broken springs, or due to being

improperly balanced.

• Do not disengage the opener to manual operation with children/

persons or any objects including motor vehicles within the doorway.

• If the door is closing and does not re-open when obstructed,

discontinue use. Do not use a door with faulty obstruction sensing.

ELECTROCUTION! • Place opener in protected area so that it does not get wet.

• Do not spray with water .

• Do not open the protective covers.

• Do not operate opener if power cord is damaged.

CAUTION:

Emergency access • If your garage has no pedestrian entrance door, an emergency

access device should be installed. This accessory allows manual

operation of the garage door from outside in case of power failure.

Entrapment under

operating door

• Watch the moving door and keep people away until the door is

completely opened or closed. Do not operate door when persons

are near the door.

• Do not allow children to play with door controls or transmitters.

• Regularly conduct Open and Close cycle testing.

• Ensure the garage door is in good working order by undertaking

regular servicing.

• Wall transmitters should be installed in a location where the garage

door is visible, but out of the reach of children at a height of at

least 1.5m.

• Install Safety Beams (recommended).

Fall from Ladder • Ensure ladder is the correct type for the job.

• Ensure ladder is on flat ground.

• Ensure user has 3 points of contact while on ladder.

Entanglement in or

laceration from

moving door

• Keep hands and loose clothing clear of door and guides at all times.

• Keep hands clear of moving door as sharp edges can cause cuts or

lacerations.

DO NOT DO IT

YOURSELF

• Keep the garage door balanced. Sticking or binding doors must be

repaired. Garage doors, door springs, brackets and their hardware

are under extreme tension and can cause serious personal injury.

Do not attempt any garage door adjustment. Do not use if repair or

adjustment is needed. Call for a professional garage door service.

DIY

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be

implied by laws as conditions or warranties of purchase of a Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technolofy (Australia) Pty Ltd hereby further

expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the

Automatic Technology ( Australia) Pty Ltd Garage Door Opener in accordance with the installation instructions.

GDO-8 ShedMaster®Home Owner’s Manual

Warranty

Two (2) year/5,000 cycles full parts and labour

warranty on motor, electronics and mechanical

components of the opener when installed by an

Automatic Technology Dealer.

TrioCodeTM128 Technology

Only transmitters with the TrioCodeTM128

Technology can operate with the latest Openers,

reducing the chance of interference from other radio

frequency sources. TrioCodeTM128 transmitters

have the ability to code into earlier model openers.

Code Hopping Technology

Every time a transmitter is used a new security code

is generated from over 100 billion possible code

combinations. This greatly enhances the security of

the system and makes “code grabbing” a thing of

the past!

Multi-Channel Transmitter

Multi-channel transmitters allow you to operate

other devices such as an adjoining garage door or

automated gate from the same handy unit.

Weatherproof Design

The opener’s control board is housed in a

weather-proof enclosure rated to IP24. This

offers protection from rain and the elements.

NOTE: the unit should not be sprayed by a hose or

any other water carrying device.

S-ALPS (Semi Automatic Limits Positioning

System)

The S-ALPS system does away with manual

adjustment of the door’s limits position using

mechanical parts, such as cams and microswitches.

During installation the handheld transmitter can be

programmed to set the limits positions.

Overload Indicator

When the maximum opening and closing capacity

of the opener is exceeded an audible beeper will

sound to indicate that an overload has occurred.

ISS (Intelligent Safety Obstruction System)

While the door is performing a close cycle, should

it hit an obstacle or be restricted in some manner, it

will automatically reverse. The amount of force

the door should encounter before reversing

is automatically adjusted by the doors control

system during the initialisation of the automatic

door opener.

Lockable Control Panel

The control panel can be locked and disabled

to prevent tampering. This is useful if the

opener is to be mounted on an exposed carport

or a perimeter door. Locking the control panel

will prevent operating the door via the Operate

button, re-profiling the door, clearing limits,

clearing transmitters, changing force margins,

and coding transmitters.

Safety Beam (optional)

The opener has an input for a Safety beam to

be connected for extra safety protection.

Manual Operation

The opener is equipped with a unique patented

manual disengaging device. If the power to the

opener is disrupted for any reason, the door

can be put into manual mode by pulling down

on the string handle, then releasing. This will

allow you to manually open or close the door.

Security Lock For Manual Release

Handle (optional)

For added security the manual release handle

can be locked out or disabled. This is ideal if the

opener is to be mounted on a perimeter door in

an exposed carport.

Vacation Mode

A transmitter can be programmed to disable

the garage door opener radio receiver. This is

ideal if the door is to be left idle for prolonged

periods. (Refer to 8.2 for information)

2. Features

GDO-8 ShedMaster®Home Owner’s Manual

3. Specifications

Technical Specifications

Power supply 220Va.c 50 Hz

Maximum door opening:

Width:

Height:

Weight:

5500mm (16.5m2)

2700mm

100kg

Minimum sideroom 40mm

Lift force 450N (45kg)

Nominal force 120N (12kg)

Receiver type UHF 433.92 MHz. AM Receiver

Receiver code storage capacity 8 x 4 button TrioCodeTM128 transmitter

Transmitter frequency TrioCodeTM128 Technology

Coding type Code Hopping

Number of code combinations Over 100 billion random codes

Code generation Non-linear encryption algorithm

Transmitter battery CR2032 (3 Volts)

Courtesy light Light Module (Optional)

Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind

puts extra pressure on the door and tracks which may in turn intermittently trigger the safety obstruction

detection system.

GDO-8 ShedMaster®Home Owner’s Manual

Fig. 4.1

Transmitter

•To operate the opener, press the programmed

transmitter button until your door begins to move

(usually 2 seconds). Make sure you can see the

door when you use the transmitter.

•If you are in a vehicle you should aim the

transmitter through your windscreen (Fig. 4.1).

•Check that the door is fully closed before you

drive away.

•If you press the transmitter whilst the door is

moving the door will stop. The next press of the

transmitter will move the door in the opposite

direction.

The transmitter may also be programmed to operate

the following feature (Refer to Section 8 for full

details):

•Put the garage door opener into “Vacation Mode”

where it will not respond to any transmitters.

NOTE: Additional transmitters may be purchased at

any time.

CAUTION: Activate the opener only

when the door is in full view, free of

obstructions and with the opener

properly adjusted. No one should enter

or leave the garage while the door is in

motion. Do not allow children to play

with or near the door.

ELECTROCUTION! This opener is a

mains voltage plug-in domestic appliance

and there are no user serviceable parts

inside this opener.

For maximum efficiency of your opener, your garage

door must be in good operating condition.

An annual service of your garage door by a Dealer is

recommended.

4. Operating your door

GDO-8 ShedMaster®Home Owner’s Manual

Door Status Indicators OPEN LED (green) CLOSE LED (red) Beeper

Open On

Close On

Opening Flashing

Closing Flashing

Door travel stopped Flashing Flashing

Door obstructed when opening Flashing Beeps while door is

moving

Door obstructed when closing Flashing Beeps while door is

moving

Opener overloaded Alternating flashes Alternating flashes

Mains power interrupted Rapid flashes

5. User Operating Controls

Button (Fig 5.1) Function

1. OPERATE Opens/stops/closes the door

2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is

pressed

3. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation

4. OPEN LED (Green) Illuminates and flashes as the door opens and remains on when the open

limit position has been reached.

5. DOOR STATUS LED (Yellow) Illuminates when Service is due.

6. CLOSE LED (Red) Illuminates and flashes as the door opens closes, and remains on when the

close limit position has been reached.

Fig. 5.1

05 06

GDO-8 ShedMaster®Home Owner’s Manual

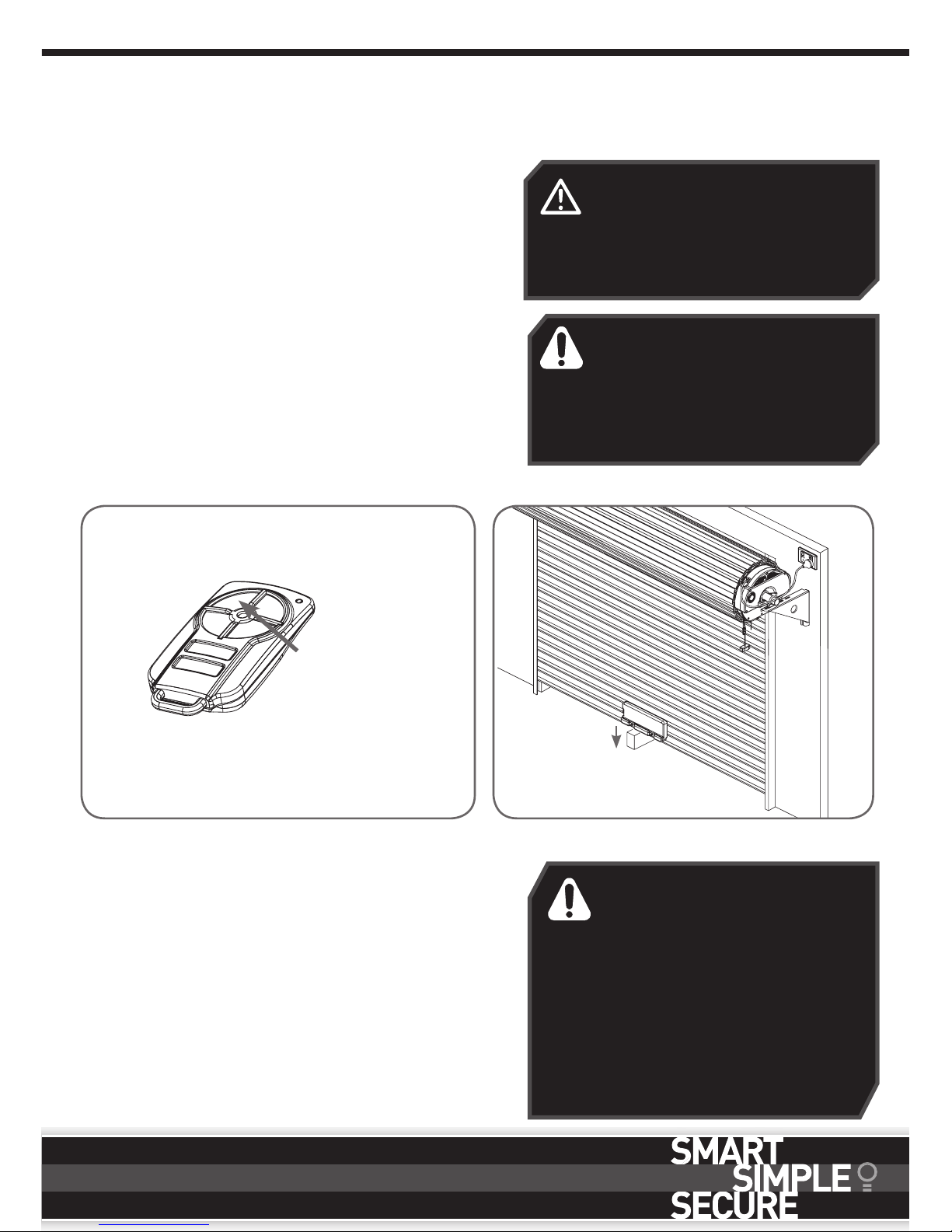

6. Manual Release

Security

TO DISENGAGE:

PULL HANDLE DOWN

& RELEASE

TO RE-ENGAGE:

REPEAT ACTION

PULL

HANDLE

Fig. 6.1

WARNING! When operating the

manual release (while the door is

open) the door may fall rapidly due

to weak or broken springs, or due to

being improperly balanced.

Do not disengage the opener to

manual operation with children/

persons or any objects including

motor vehicles within the doorway.

CAUTION: When the opener is

manually disengaged, the door is

no longer locked. To lock the door

manually, either use a locking device

or re-engage the opener after the

door is closed.

6.1 Manual Door Operation

To disengage the opener from the door (preferably

with the door in the closed position), pull down on

the string handle (Fig 6.1). This will allow you to

manually open or close the door. To re-engage the

opener refer to 6.4 Re-Engaging the Opener.

6.2 Emergency Evacuations

In emergencies the garage door can be disengaged

from the opener, via the manual release cord and

the door opened manually. The manual release cord

should be a maximum of 1.8m from the ground. The

cord can be adjusted for special considerations.

6.3 Power Failure

When there is a power failure, the opener will be

unable to automatically open or close your garage

door. To use your door whilst there is no power you

will need to disengage the opener and use the door

manually – see 6.1 Manual Door Operation.

6.4 Re-Engaging the Opener

When the door has been disengaged from the

opener, before re-engaging, ensure that the door

has not been locked by a locking device (preferably

by lifting the door open to waist height). Re-engage

the opener (Fig 6.1) and then press the transmitter

button. The door will operate as normal.

6.5 Security - Inbuilt Locking Facility

DO NOT lock your door when your opener is

engaged as it has inbuilt locking facility. With the

opener engaged your door will be locked whether

the power is on or off. For added security the manual

release handle can be locked out via the security lock

on the opener.

6.6 Locking the Control Panel

To lock or disable the control panel a transmitter

button must be coded to operate the door.

a. Press and hold coded button of the transmitter

to operate the door and Plus (+) button on the

opener together until you hear a beep (approx.

four (4) seconds).

b. Release both buttons.

c. The control panel should now be locked. Press the

operate button on the opener to confirm the door

does not move.

To unlock the control panel repeat the above steps.

GDO-8 ShedMaster®Home Owner’s Manual

6. Manual Release

Security

7. Safety Testing

7.1 Test the Close Cycle

a. Press the transmitter to open the door. (Fig 7.1)

b. Place a piece of timber approximately 40mm high on

the floor directly under the door (Fig 7.2).

c. Press the programmed transmitter to close door.

d. The door should strike the object and re-open.

7.2 Testing the Open Cycle

a. Press the transmitter to close the door (Fig. 7.1).

b. Press again to open the door.

c. When the door reaches approximately half way,

firmly grab the door’s bottom rail - the door should

stop.

If the door does not reverse readily when closing, or

stop when opening, put the door into manual and

contact your installer immediately for a door service.

CAUTION: Take care when

completing a safety test. Failure

to follow this warning can result

in serious personal injury and/or

property damage.

40mm

WARNING! If the door is closing

and is unable to re-open when

obstructed, discontinue use.

Do not use a door with faulty

obstruction sensing. Contact your

door professional for support.

Fig. 7.2

7.3 Test the Manual Door Operation

Periodically disengage the opener (Section 6.1)

and manually operate the door. The door must be

smooth to operate by hand. The force required on

the bottom rail should not exceed 15 kg.

Select the button on

the transmitter that has

been programmed to

operate the door.

If transmitter is not programmed,

Refer to Section 8 to program

transmitter.

Fig. 7.1

WARNING! Please test the

manual release mechanism to

ensure that the manual release

is easy to operate. No more than

15 kg of force should be required

to disengage the door using the

manual release cord. If excessive

force is required contact your

door professional immediately

and ask them to reset the close

limit position.

GDO-8 ShedMaster®Home Owner’s Manual

8. Coding Transmitters

Press and hold the

DOOR CODE button

Select one of the

four buttons on key

transmitter you wish

to use to control the

door.

Fig. 8.1

8.1 Setting the Transmitter Operate the Door

The opener can only operate from transmitters that have

been programmed into its receiver. The receiver needs

to learn the codes of any transmitter that will be used

with the operator.

a. Ensure the opener is turned on.

b. Press and hold the DOOR CODE button. The DOOR

CODE LED will illuminate and beep to indicate the

opener is in Code Learn mode. (Fig. 8.1).

c. Press and hold the transmitter button that you want

to control the door for two (2) seconds, pause for two

(2) seconds, then press the same button again for two

(2) seconds and release.

d. Release the DOOR CODE button.

e. The transmitter is now coded to operate the

door - press the button to test.

8.2 Setting the Transmitter to Operate

Vacation Mode

The opener can be programmed into a “Vacation

Mode” where the opener will not respond to any

transmitter except one preprogrammed unit.

a. Briefly press the DOOR CODE button once, then

press it again and hold (will beep two times on

second press (Fig. 8.2).

b. Press one of the four (4) buttons on the transmitter

for two (2) seconds, pause for two (2) seconds, then

press the same button again for two (2) seconds.

c. Release DOOR CODE button.

d. Press and hold the transmitter button for six (6)

seconds to activate Vacation Mode. The door code

LED will stay lit while Vacation Mode is active.

e. To deactivate Vacation Mode, press the same

transmitter button for two seconds.

Press DOOR

CODE button

twice.

Select one of the

four buttons (not

programmed yet )

you wish to use to

control the Vacation

Mode

Fig. 8.2

IMPORTANT NOTE: Only TrioCodeTM128

Technology Transmitters are compatible

with this GDO-8V3 product.

Andere Handbücher für GDO-8 Shed Master

Inhaltsverzeichnis

Andere Automatic Technology Garagentoröffner Handbücher

Automatic Technology

Automatic Technology GDO-8V2 EasyRoller II Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro Series Bedienungsanleitung

Automatic Technology

Automatic Technology Toro GDO-10v2 Bedienungsanleitung

Automatic Technology

Automatic Technology AM-808 Bedienungsanleitung

Automatic Technology

Automatic Technology Hiro GDO-12V1 Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro Series 1101 Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-9v3 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-4 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology NeoSlider TrioCode 128 NES-500 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-11V3 Ero Bedienungsanleitung

Automatic Technology

Automatic Technology iOpener RD40 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology Syncro ATS-3 Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro Series 1101 Kurzanleitung

Automatic Technology

Automatic Technology PA1000V1 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-11v1 Ero Kurzanleitung

Automatic Technology

Automatic Technology SecuraLift Rhino Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 SecuraLift Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology Toro GDO-10V2L2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology ATS Series Bedienungsanleitung

Beliebte Garagentoröffner Handbücher anderer Marken

Dorma

Dorma ES 90 Bedienungsanleitung

Garaga

Garaga SECURITY+ 3265GCM 1HP Bedienungsanleitung

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Bedienungsanleitung

Chase Doors

Chase Doors DuraShield Bedienungsanleitung

CSI

CSI Classic Bedienungsanleitung

HATO

HATO 120 Bedienungsanleitung

Chamberlain

Chamberlain Elite 3575S Bedienungsanleitung

Richmond

Richmond GTR156 Bedienungsanleitung

Raynor

Raynor 1280RGD Bedienungsanleitung

CAME

CAME F4000 Series Bedienungsanleitung

B&D

B&D Controll-A-Door 5 Bedienungsanleitung

BFT

BFT PRV AA SL Bedienungsanleitung

Craftsman

Craftsman 139.53924 Bedienungsanleitung

Chamberlain

Chamberlain MyQ 940ESTD Bedienungsanleitung

Westfalia

Westfalia 19 36 07 Bedienungsanleitung

Chamberlain

Chamberlain HD520EVP Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung

Chamberlain

Chamberlain 8355 - 1/2 hp Bedienungsanleitung
