QUICK TEST
TRIGGER REPORT BACK
PROGRAMMING NEW REMOTE CONTROLS
FITTING THE SECURITY HOUSING
To enter quick test, enter the Program Code, 1,2,3. The arming time
and the siren time are shortened to facilitate quick and easy testing.
Hi-jack time remains the same. To exit quick test, do not trigger the
alarm for a period of two minutes and the unit will exit automatically.
Alternatively, select any programmable feature.
In the event of a false alarm complaint from a customer, the cause
can be accessed using the Trigger Report Back feature. To access
this information, enter the program code, 1,2,3, followed by the
code 1,1. The LED begins to flash a number of times to indicate
the cause of the alarm.
These flashes are as follows:
1 Flash :Movement Sensor (Ultrasonic or WPIR)
2 Flashes : WPIR Zone (When allocated to its own zone)
3 Flashes :
4 Flashes :Ignition
The trigger information is cleared once the alarm has been turned
on and off 10 times without triggering.
The unit has the ability to learn up to 6 remotes. To program, refer to
the 5 digit user code supplied with the unit or the code attached to
the control module and proceed as follows:
a. Enter each digit of the code using the flashing LED and ignition
switch. After entering the last digit, the LED will flash rapidly for 2
seconds.
b. Enter the two digit code 1, 1. The LED will flash rapidly for two
seconds.
c. Transmit with the new remote for approximately half a second,
pausing for half a second between each transmission, until the
LED flashes rapidly indicating that the remote is now
programmed. Further remotes may now also be programmed.
d. Note that if a seventh transmitter is programmed into the alarm
system it will override the first code learnt. To remove all
transmitters, fill the 6 memory spaces with 6 new transmitters, or
a single transmitter 6 times.
e. To exit program mode, either wait for 10 seconds without
transmitting or switch the ignition off.
Once the installation is complete and fully tested
the security cover can be fitted. Ensure that
the slide in the security housing is not fitted
and route all the wires, with the exception
off the LED and MOVEMENT SENSOR
wires, through the slot and fit the slide.
Attach the security housing to the
main casing using the screws
provided and insert the
anti-tamper Screw caps.
Panic
5 Flashes :Negative / Hijack Door
6 Flashes : Positive Door / Hotwire
7 Flashes : Boot
8 Flashes : Bonnet
The unit has the ability to learn up to 6 WPIR’s.
To program, refer to the 5 digit user code
supplied with the unit or the code attached
to the control module and proceed as follows:
a. Enter each digit of the code using the flashing LED and ignition
switch. After entering the last digit, the LED will flash rapidly for 2
seconds.
b. Enter the two digit code 3, 3. The LED will flash rapidly for two
seconds.
c. Within 8 seconds press the button on the WPIR. The LED will turn
on, and a barp will be heard indicating that the WPIR has been
detected. Within 5 seconds, the WPIR needs to be confirmed
into a zone by either pressing the “Arm/Lock”or any other button.
(“Arm/Lock”will program the WPIR to operate in conjunction with
the movement sensor in its zone) (Any other button will program
the WPIR to operate independently in its own zone). Once done
the LED will turn off and a barp will be heard to confirm the WPIR
has been successfully programmed.
d. Note that if no button is pressed within the given 5 seconds the
detected WPIR will be ignored and you will have a further 5
seconds in which to press a button on another WPIR and once
detected you may confirm it as above.
e. To exit program mode, either wait for 10 seconds or switch the
ignition off.
PROGRAMMING NEW WPIR’S
HAZARD PULSE
To check that the ‘Hazard Pulse’mode is suitable for a particular car,
access the back of the vehicle’s hazard light switch and momentarily
connect a ground (via a 5Amp fuse) to the switched side. The hazard
lights should start flashing and will continue to flash until the ground
wire is connected again to the same point on the switch. If the test is
satisfactory, enable ‘hazard’while programming (Table 1 option 8.9)
and connect the yellow wire from the alarm to the switched side of the
hazard light switch. If central locking drives hazards, connect “Yellow
Indicator wires”to park lights.
.....
.....
.....
.....
.....
.....
.....
......
.....
.....
....
....
....
....
....
....
....
....
....
....
....
....
....
....
....
DPFK 457/520 PAGE
3 OF 4
Note : The hijack cancel switch must be fitted as an emergency
override even if the hijack option is not selected.

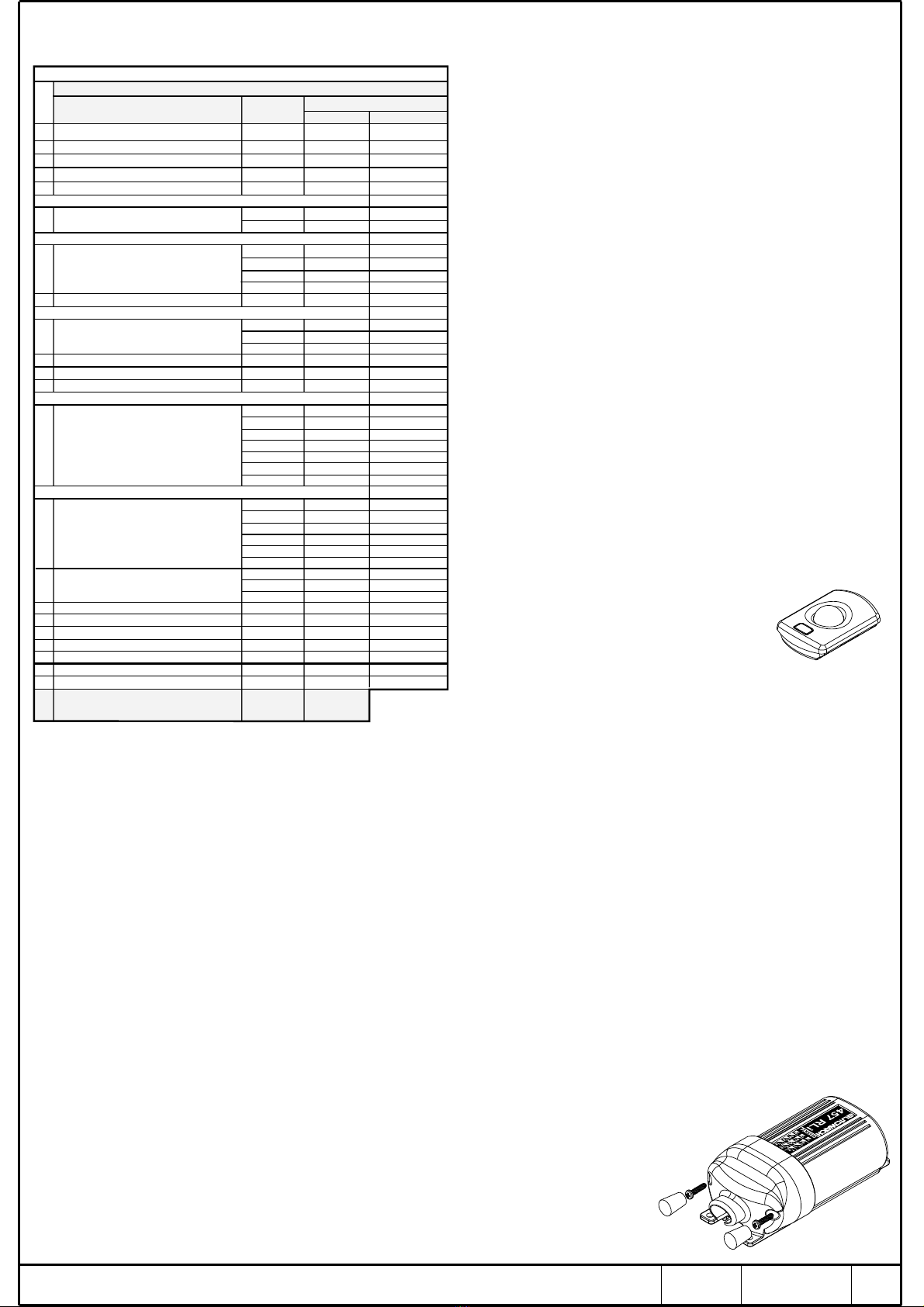

457 RLi FEATURE SELECTION TABLE
NOTE : THE PROGRAMMING SELECTION CODES WHERE APPLICABLE
ARE THE SAME AS THE 446RLi BUT DIFFER FROM THE 436RLi.
OPTION
FEATURE
Trigger Report back (See 11.0)
Hijack - Selection (See 4.0)
Hijack Time Selection (See 4.0)
Unlock with Ignition
Lock with Ignition
Window / Pager (See 5.0)
Interior / Dome Light
5,2
5,3
5,8
6,1
6,2
6,3
6,4
6,5
6,6
6,1
6,2
6,3
6,4
6,5
6,6
7,1
7,2
7,3
Horn Pulsed / Non Pulsed (BBU)
Arm/disarm pulses on/off
Arm/disarm pulses 7ms duration
Arm/disarm pulses 14ms duration
Arm/disarm pulses 21ms duration
Arm/disarm pulses 30ms duration
Arm/disarm pulses 45ms duration
Arm/disarm tones on/off
Horn Speaker
Horn Speaker
Neodymium Siren tone 1
Neodymium Siren tone 2
Neodymium Siren tone 3
5,4
Double Unlock Pulse (See 1.6)
Selective Unlock - Type 1 (See 1.6)
Window 10 second wind time
Double Lock Pulse (See 1.6)
Selective Unlock - Type 2 (See 1.6)
Window 45 second wind time
Selective Unlock Inhibit (See 1.6)
Window 120 second wind time
Selective Unlock / Neg. Out when armed
Enter the program code 1,2,3 followed by the Feature Selection Code
Auto Arming alarm (See 7.0)
Lock when Auto Arming or Auto Rearming
Trunk / Turbo Run On (See 6.0)
Turbo Run On Time (See 6.0)
Early Warning (See 2.1)
Positive Door Input
Brake Input
Hotwire Input
}
Only one of
these may be
selected
Horn Speaker / Siren (See 8.0)
Central locking time 0.3/3.0 sec
Reset (Revert to Factory Setting)
FACTORY SETTINGS HIGHLIGHTED WITH A IN THE TABLE ABOVE.
*
*
NOTE : A ZERO IS REPRESENTED BY TEN FLASHES
TABLE 1
8,8
8,9
Door open audible warning
Hazard Pulse
FEATURE
SELECTION
CODE
INDICATION
ONE BEEP
OFF
45 SECS
OFF
OFF
OFF
OFF
OFF
Non Pulsed
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Neg. Out
ON
90 SECS
ON
ON
ON
ON
ON
Pulsed
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
Selective
LED FLASHES
RAPIDLY - 2 SECS SWITCH IGNITION
OFF TO CLEAR
TWO BEEPS
1,1
2,2
2,4
3,3
3,4
WINDOWPAGER
5,1
OFFON
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
3,6
4,1
5,2
3,7
4,2
5,3
5,8
6,1
6,2
6,3
6,4
6,5
6,6
6,1
6,2
6,3
6,4
6,5
6,6
7,1
7,2
7,3
4,3
5,4
4,4
0.3 sec 3.0 sec
LED FLASHES
RAPIDLY FOR
2 SECONDS
5,5
9,9
0,0
180sec60sec
TRUNK
TURBO
OFF
OFF
OFF
ON
ON
ON
7,7
OFFON
OFFON
SPEAKER HORN
*
*
*
*
*
*
*
*
*
*
5,9
5,7
8,7
8,5
8,3
OFF
OFF
ON
ON
8,8
8,9
*
1,1
2,2
2,4
3,3
3,4
3,6
4,1
5,1
3,7
4,2
4,3
4,4
5,5
5,7
5,9
7,7
8,3
8,5
8,7
9,9
0,0
A. If Selective Unlock is not used:
B. If Neg. Out when Armed is not used: (See wiring diagram for explanation)
C. If Pager is not used, the following window options may be selected:
D. If Horn is selected:
E. If Speaker is selected:
5.0
6.0
7.0
8.0
9.0
PAGER & TRACKING OUTPUT. (SEE 3.0 & TABLE 1 note 5.1)
TURBO RUN ON MODE (SEE 3.0 & TABLE 1)
Note that this option is not available if the window winding option is
required. The output is a low current output that can be connected to
a pager or a tracking unit. It will switch to ground:
i) Five seconds after the alarm is triggered.
ii) If the hotwire input is switched to 12 volts while the vehicle is
immobilised.
iii) the end of the hijack sequence.
When selecting this option trunk release will be disabled. Use the
Blue/Grey wire to energise the relay(s) to feed power to the ignition
circuits required to keep the vehicle running after the vehicle is
turned off. The feed-points should be identified after fitting the
immobilisation. The default run-on time is 180 seconds but this can
be altered to 60 seconds using the program option - see Table 1 -
Option 5.7.
Five seconds after
The factory default is to auto rearm but auto arming can be selected.
The doors can be programmed to lock when auto arming or auto
rearming. Consult with the owner before selecting this option as it
can result in the keys being locked in the vehicle!
A siren can be used in place of a horn speaker. In this case the output
will switch low for the duration that the siren sounds. Do not connect
a horn speaker if the siren option has been selected as the speaker
and/or the alarm unit will be damaged.
The interior light switching circuit is connected to the negative door
wire (pink label marked “doors”). The light will fade on and off. The
dome light automatically coming on, can be deselected - See table 1
Option 8.3.
NOTE : If the vehicle has positive door switching this feature can still
be wired using an additional relay but without the fade facility. (SEE
WIRING DIAGRAM PAGE 1)
AUTO ARMING/AUTO REARMING (SEE 3.0 & TABLE 1 note 8.5)
SIREN/SPEAKER
INTERIOR LIGHT
.. ..
.. .
.......
..
10
11
12
13
14
15

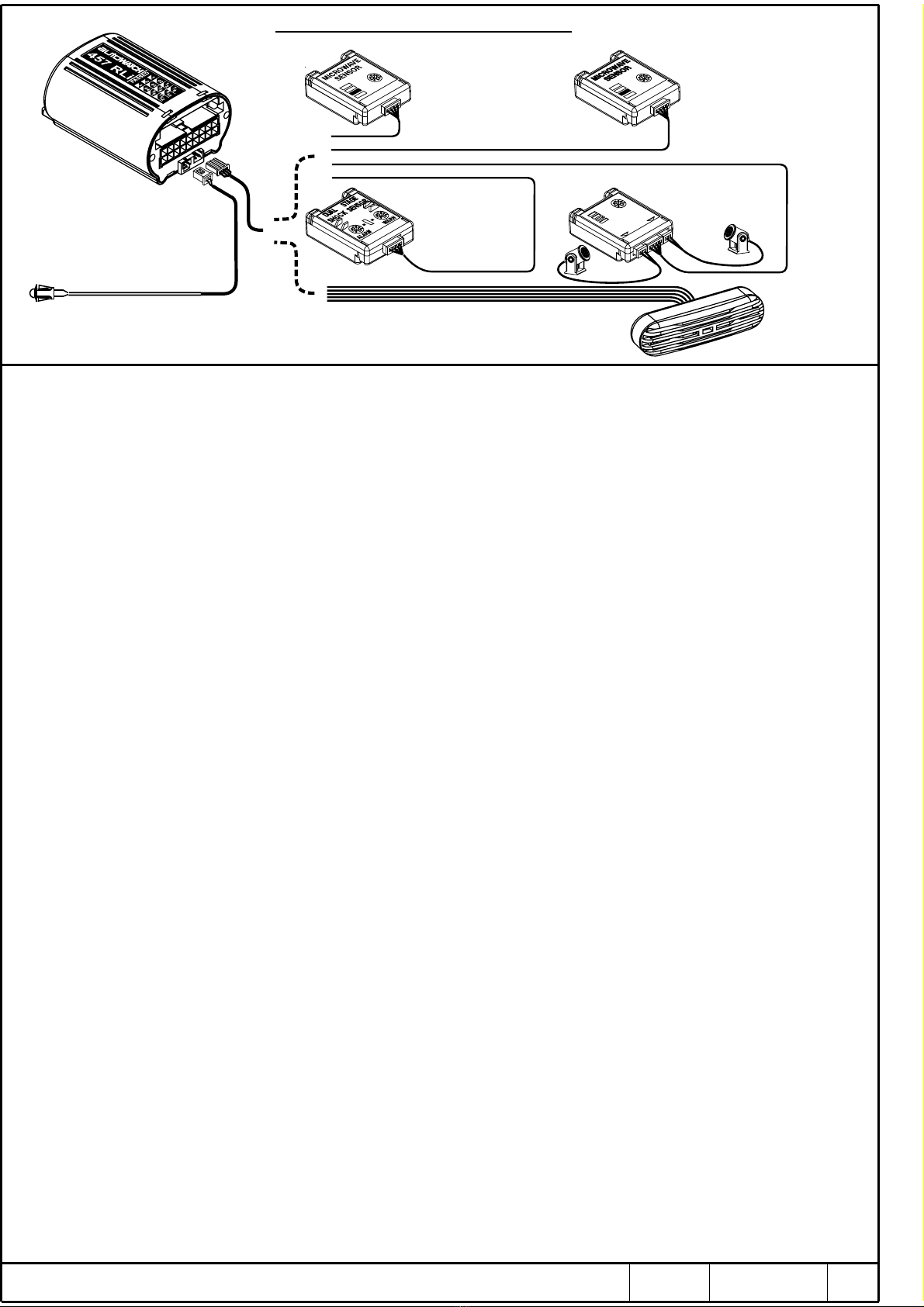

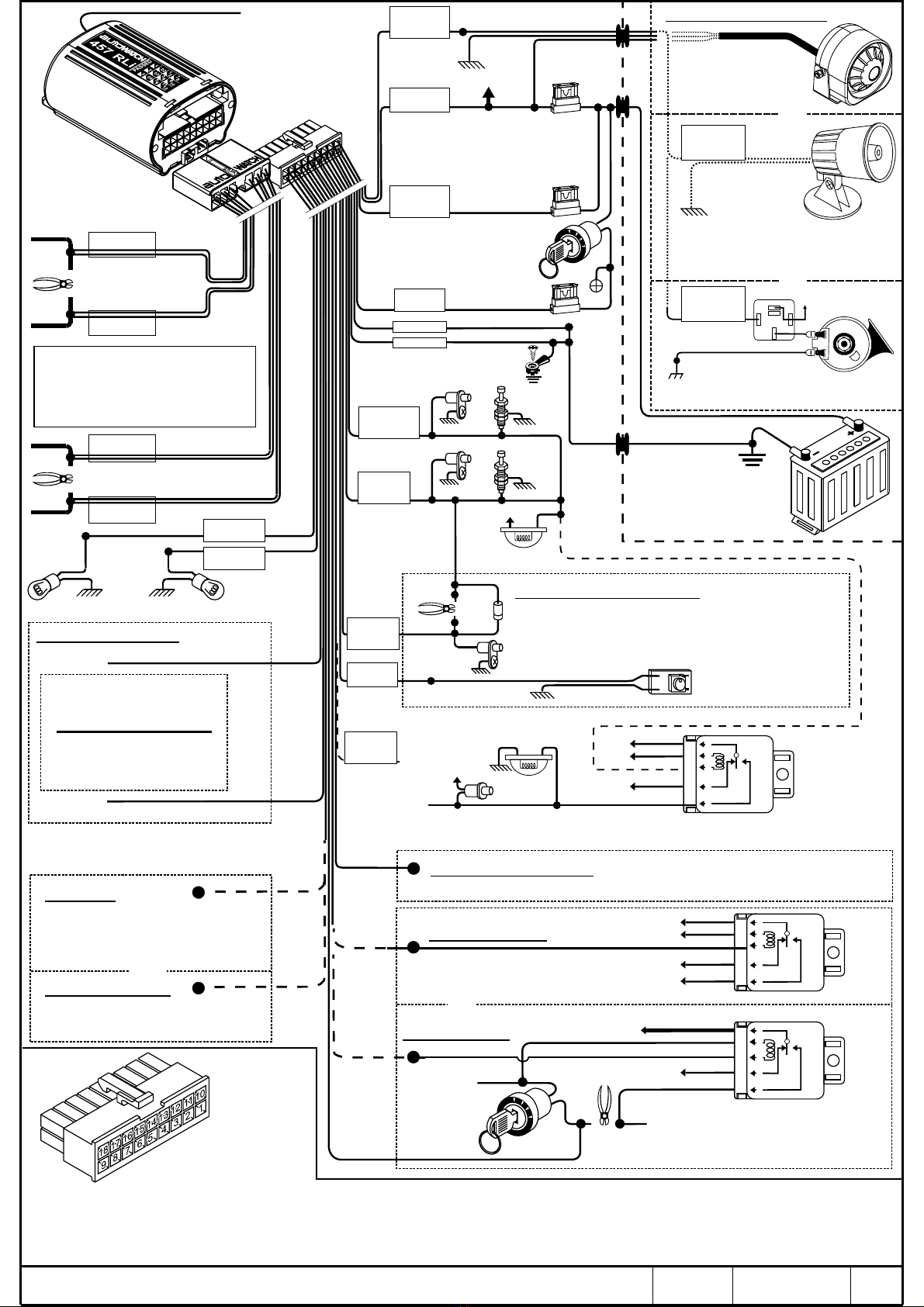

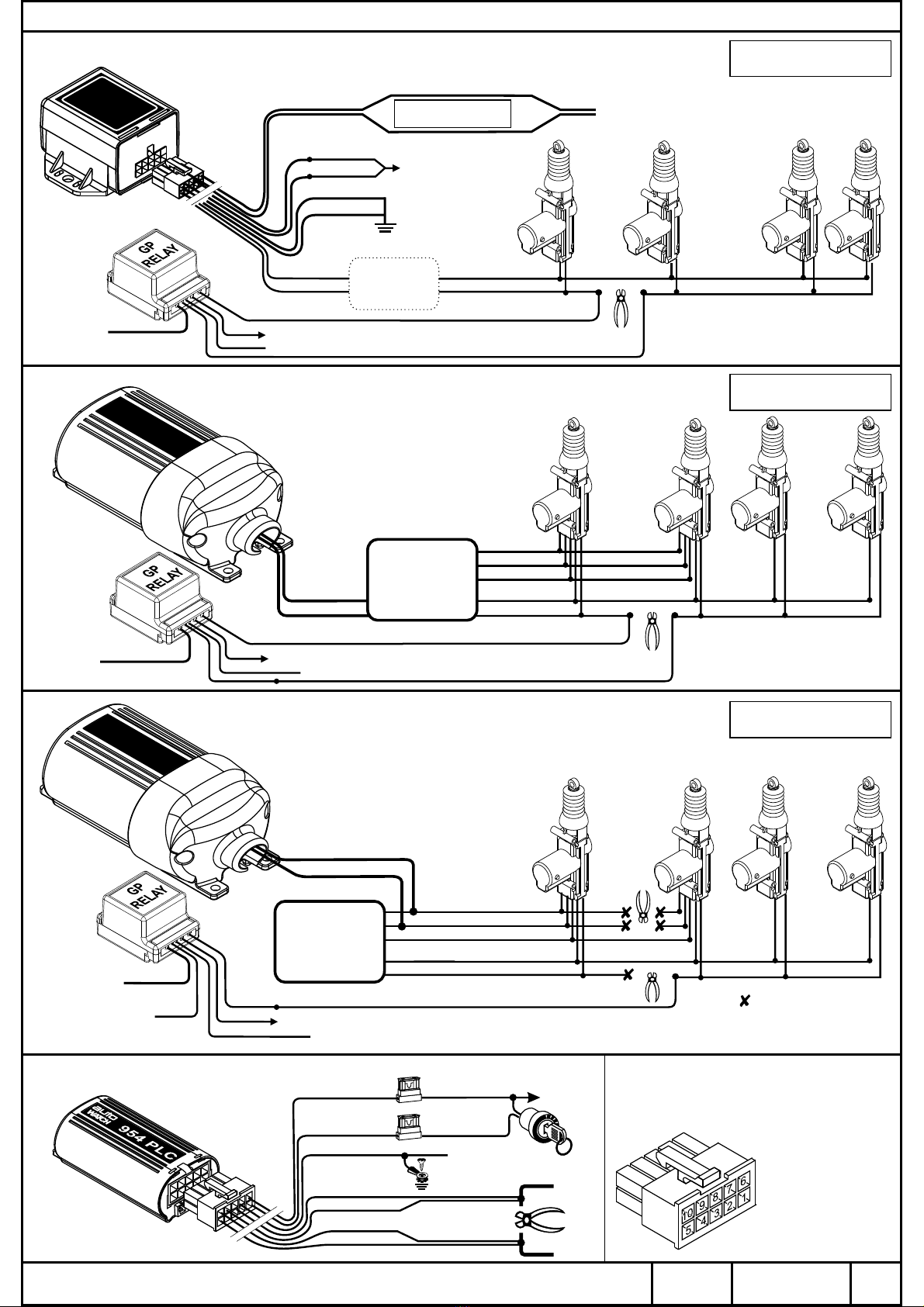

AUTOWATCH 457 Rli ALARM/IMMOBILISER WIRING DIAGRAM
REV. 3
28/06/07
