Avenview C-HDM-VGA Bedienungsanleitung

www.avenview.com

HDMI/DVI Down Converter to

VGA with Stereo Audio

Model #: C-HDM-VGA

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 4

1.7 Parts Required ....................................................................................................................... 5

1.8 Panel Description................................................................................................................... 6

1.1 Installation Hardware ............................................................................................................ 7

1.2 General Troubleshooting ....................................................................................................... 7

Section 2: Specifications......................................................................................................................... 7

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-HDM-VGA converter has been tested for conformance to safety regulations and requirements, and has

been certified for international use. However, like all electronic equipment’s, the C-HDM-VGA should be used

with care. Read the following safety instructions to protect yourself from possible injury and to minimize the

risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-HDM-VGA Down converts your High Definition (HDMI Digital signal)/DVI to an Analog Signal with

Stereo audio VGA Converter. It is a perfect solution for connecting video cards (desktop or laptop) or

consumer electronics devices such as game consoles or home theater receivers that offer an HDMI port to a

VGA display or computer monitor.

This unit is conversion between video formats but not convert the input/output video resolutions

Resolution pass-through converter

Audio output format: 2 channel LPCM (LINEAR PULSE-CODE MODULATION)

HDMI Input bandwidth: Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)

Compatible with DVI with DVI-HDMI cable or adapter

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-HDM-VGA x 1

-Wall Adapter DC 5V/2A x1

-User’s Manual x1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the Component and HDMI. It can cause malfunction.

www.avenview.com

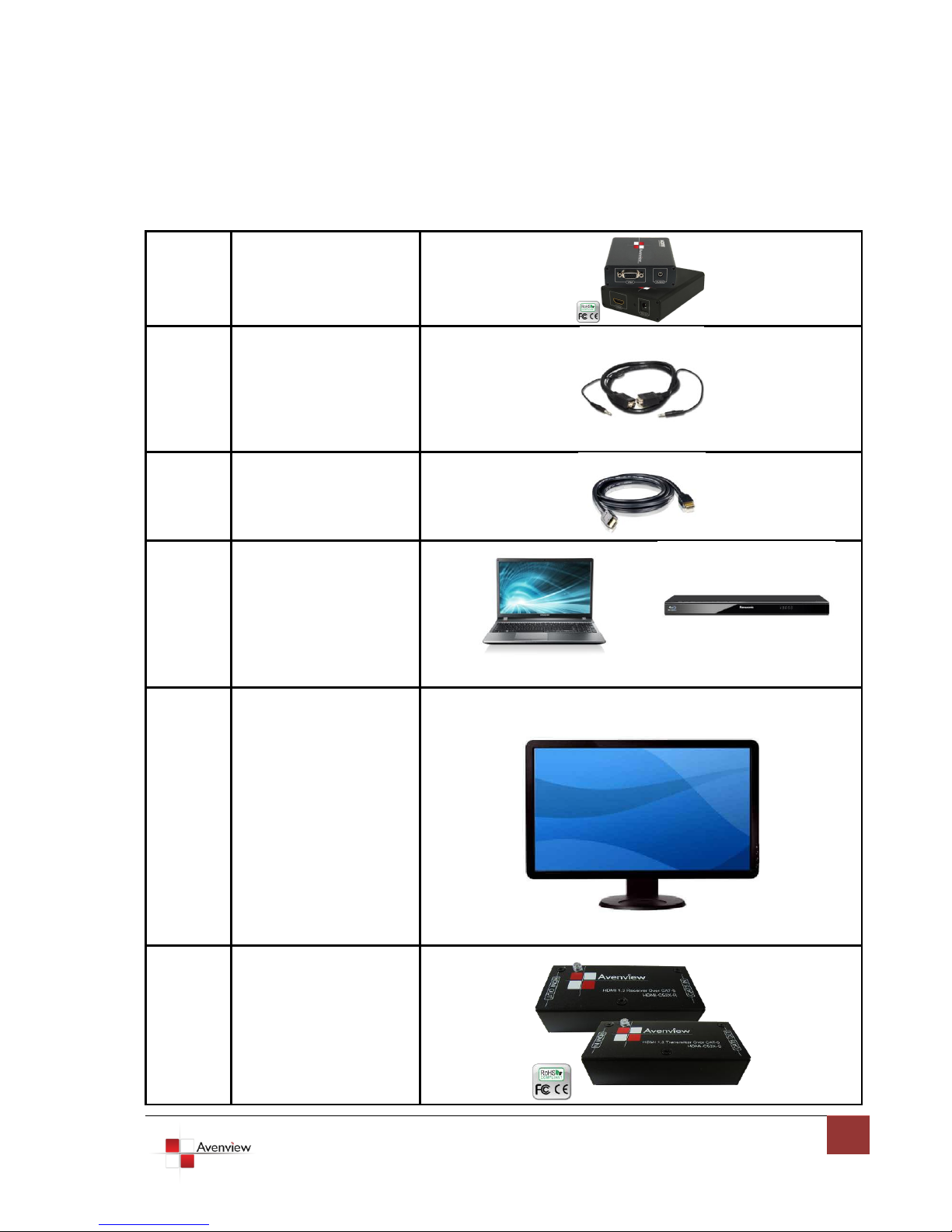

1.7 Parts Required

C-CVID-HDM

COMPONENT CABLE

OUTPUT

HDMI CABLE

INPUT

HDMI

Source

LCD

VGA MONITOR

Optional

HDMI EXTENDER

HDM-C53X-SET

Can be added to the

solution

www.avenview.com

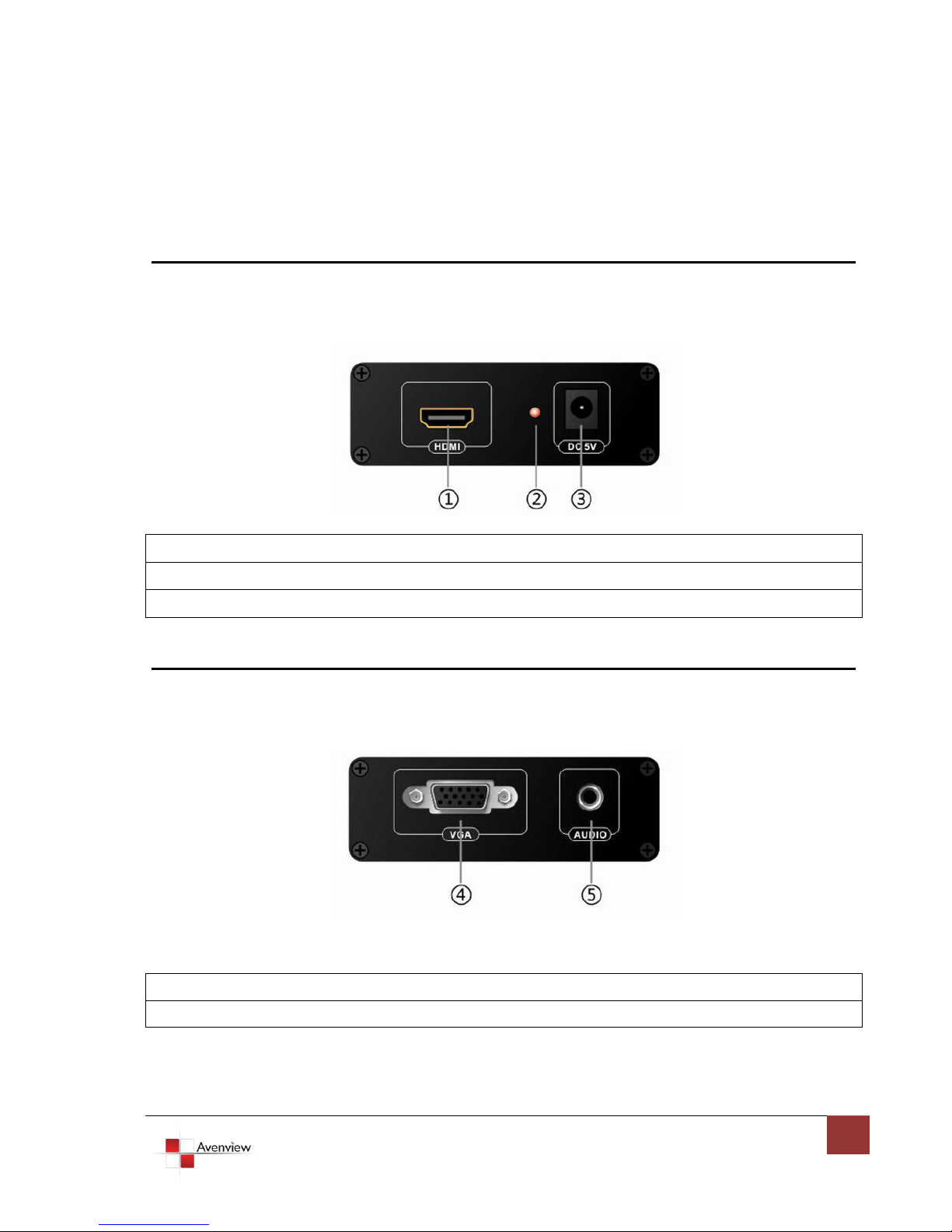

1.8 Panel Description

1. FRONT PANEL

1: HDMI IN:Connect to a HDMI source with HDMI M-M Cable

2: LED INDICATOR: Power LED when powered it activates

3: POWER: +5V DC: Power Connector

2. REAR PANEL

4: VGA OUT: VGA 15 PIN FEMALE CONNECTORS

5: AUDIO OUT: 3.5mm STEREO AUDIO JACK

www.avenview.com

1.1 Installation Hardware

1. Power On source such as Apple TV,HD Camera or HD Gaming System

2. Connect your C-HDM-VGA to source device with Male to Male HDMI to HDMI

3. Connect Output of C-HDM-VGA with VGA cable with 3.5mm Audio Jack.

4. Connect other end of VGA cable to LCD Monitor with VGA INPUT

1.2 General Troubleshooting

Problem

Possible Solution

No image output

Check the Power Connections

Image is not as clear

Please ensure cables are properly inserted

Video –No Sound

Please ensure the VGA and 3.5mm connections are secure.

Section 2: Specifications

Item

Description

Units

C-HDM-VGA

Unit Description

HDMI Down Converter to VGA

VGA Resolutions

640*480@60Hz,720*576@50Hz,1280*720@50/60Hz,1920*1080@50/60Hz,

800*600@60Hz,1024*768@60Hz

Supported HDMI

Resolution

480P@60Hz,576P@50Hz,720P@50/60Hz,1080i@50/60Hz,1080P@50/60Hz,

800*600@60Hz,1024*768@60Hz

Video Detection

Automatic video detection

Input

1 x HDMI

Output

1 X VGA

HDMI Connector

Type A (19 pin female)

VGA/ Audio

15 PIN FEMALE +3.5 MM AUDIO

Dimensions (L x W x H)

3” x 2” x 1”

Power Supply

DC 5V/2A

Power Consumption

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
