Avenview C-HDSDI-HDMI Bedienungsanleitung

www.avenview.com

HD/SD-SDI to HDMI / DVI /

Component / RGBHV Converter

User’s Guide

Models

C-HDSDI-HDMI

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 5

1.7 Panel Description................................................................................................................... 5

1.8 DIP Switch Configuration ....................................................................................................... 6

1.9 General Troubleshooting ....................................................................................................... 7

Section 2: Specifications......................................................................................................................... 7

2.1 Format Specifications ............................................................................................................ 7

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-HDSDI-HDMI, HD/SD-SDI to HDMI / DVI / Component / Composite / RGVHV converter has been tested

for conformance to safety regulations and requirements, and has been certified for international use.

However, like all electronic equipments, the C-HDSDI-HDMI should be used with care. Read the following

safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-HDSDI-HDMI provides high quality 12-bit conversion between SDI digital video input and HDMI /

DVI digital video output or Component / Composite (CVBS) / RGBHV analog video outputs. Also, with an extra

DVI output through HDMI type A connector, users can have high definition video transmission path without

analog conversion distortion. The C-HDSDI-HDMI supports both SD-SDI and HD-SDI formats (SMPTE 259M,

SMPTE 292M), and also features 2 equalized SDI loop outputs.

-Supported HD Formats: 1080i @50/59.94/60Hz, 1035i @50/59.94/60Hz, 720p @50/59.94/60Hz

-Supports SD Formats: NTSC @ 59.94Hz, PAL @ 50 Hz

-Excellent quality 12-bit A/D conversion

-Default SDI / Component / DVI Patterns

-Auto HD/SD-SDI detection

-SD Output: HDMI (video only) / DVI / Component

-HD Output: HDMI (video only) / DVI / Component / RGB

-Equipped with 2 extra equalized loop outs

-External DIP switch configuration

-Easy installation

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-HDSDI-HDMI x 1

-Power Adapter (+5VDC, 4A) x1

-VGA to Component Adapter x1

-HDMI to DVI Adapter x1

-User’s Manual x1

www.avenview.com

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

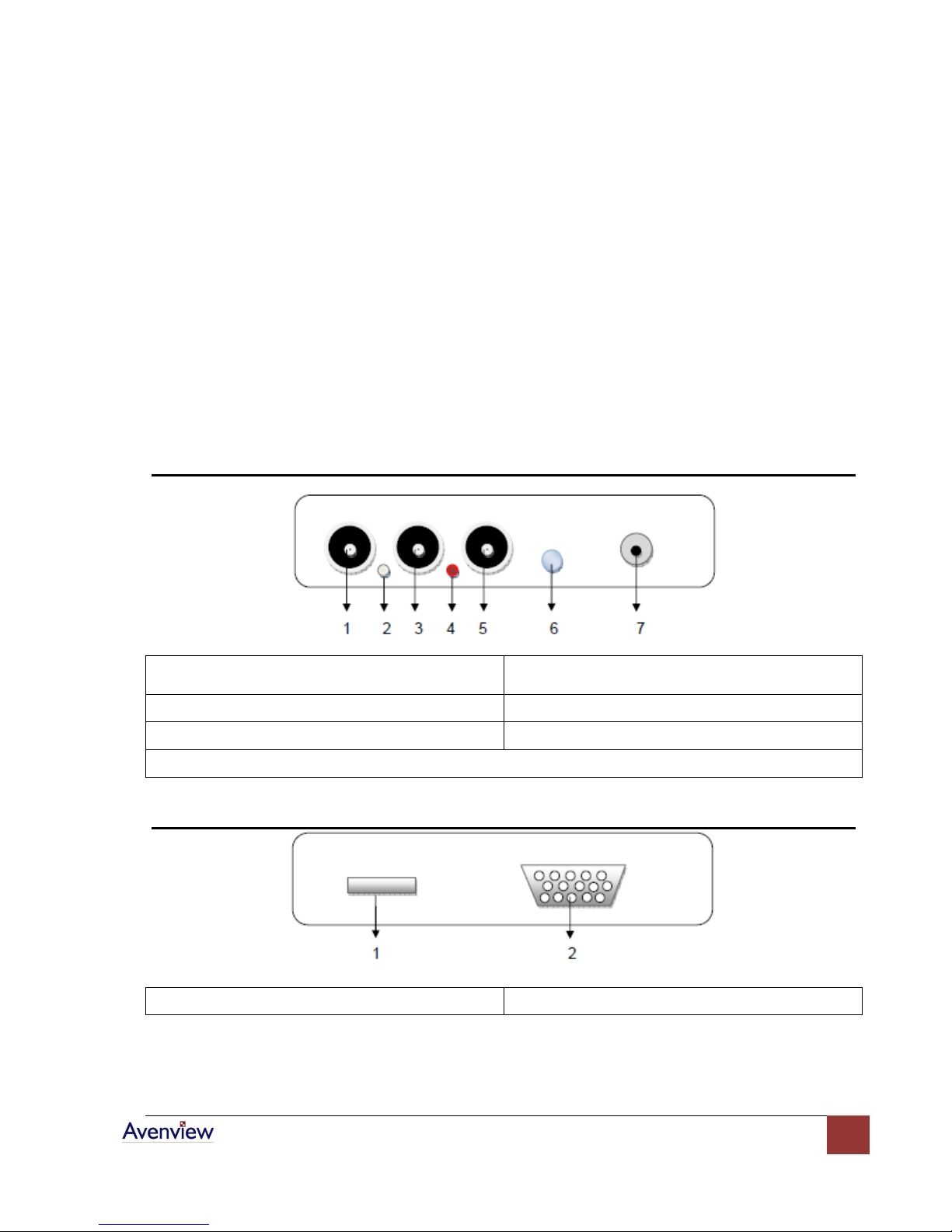

1.7 Panel Description

FRONT PANEL

1. HD/SD-SDI Input

2. HD/SD Bi-Color LED

(Green = HD, Orange = SD)

3. HD/SD-SDI Output 1

4. Power indicator

5. HD/SD-SDI Output 2

6. IR Receiver (reserved)

7. Power Connector

REAR PANEL

1. HDMI Output

2. Component / RGB Output

www.avenview.com

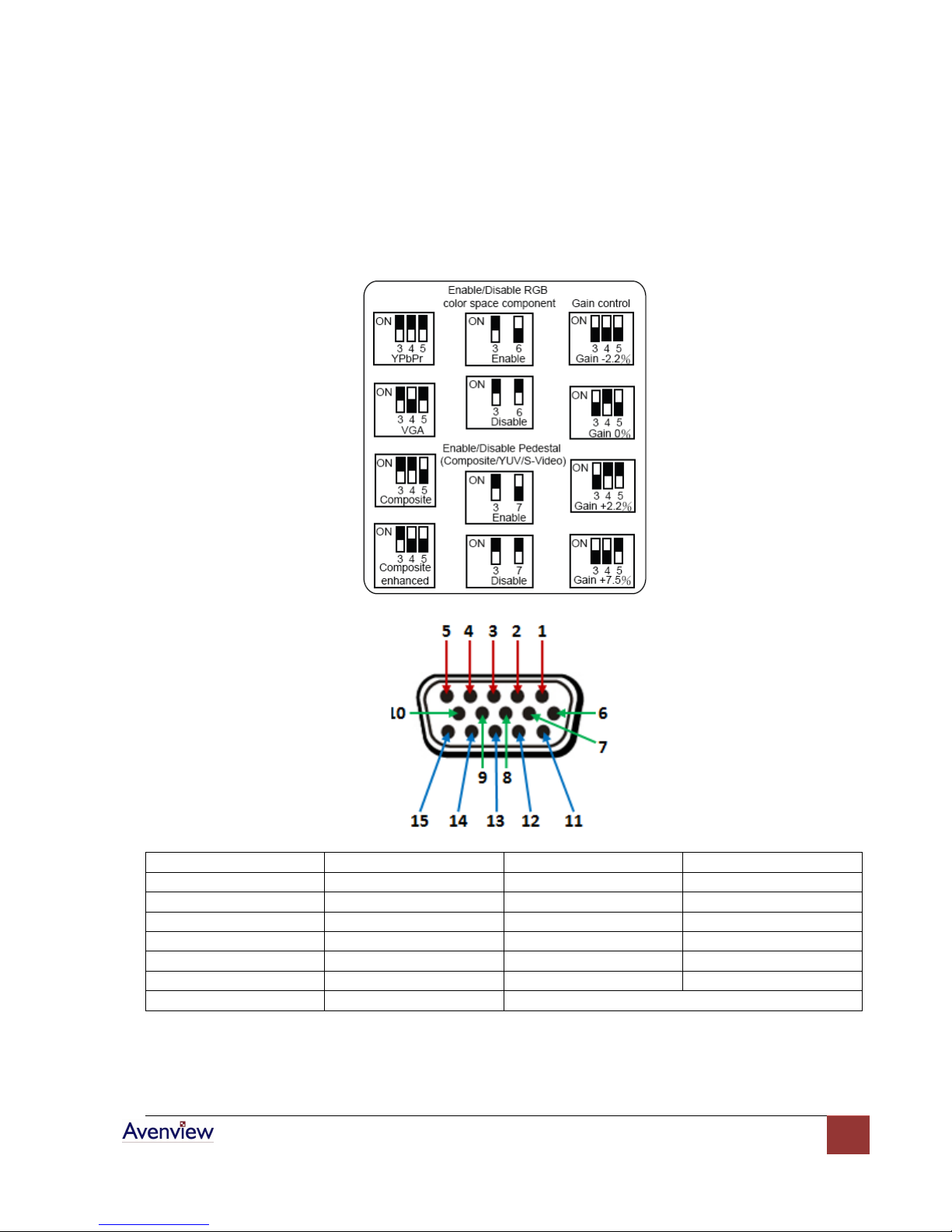

1.8 DIP Switch Configuration

8 Pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit.

Output formats, video patterns, SD pedestal, SD Wide, PAL mode, Component / RGB, SD Component or SD

Composite, YC ON/OFF etc.

Pin 1

Pr / Red

Pin 2

Y / Green / Composite

Pin 3

Pb / Blue

Pin 4

Ground

Pin 5

Ground

Pin 6

Ground

Pin 7

Ground

Pin 8

Ground

Pin 9

+5V

Pin 10

Ground

Pin 11

Ground

Pin 12

Reserved

Pin 13

Horizontal SYNC

Pin 14

Vertical SYNC

Pin 15

Reserved

www.avenview.com

1.9 General Troubleshooting

Problem

Possible Solution

No Image

Check if connection to the source and the display are correct.

Screen Defects Appear

Check the cable connections

Section 2: Specifications

Item

Description

Video Bandwidth

270 Mbps, 1.485 / 1.001 Gbps

Input Signal

HD/SD-SDI (SMPTE 259M, SMPTE 292M, SMPTE 296M)

Output Signal

HDMI (video only) / DVI 1.1 / Component / RGBHV

Input Transmission

Range

150 meter (500 feet) at HD-SDI

Loop Output

2 equalized SDI

Power Supply

5V DC, 4Amp

Dimension (L x W x H)

4.7” x 4.3” x 1”

Weight

420g (15oz)

Environmental

Operation

0˚to 50˚C Degree

2.1 Format Specifications

HD Input

Component Out

525p @ 59.94Hz

SMPTE 293M, ITU-BT.1358

625p @ 50Hz

IT-BT.1358

720p @ 50Hz

SMPTE 296M-3

√

720p @ 60 / 59.94 Hz

SMPTE 296M-1,2

√

1080i @ 25Hz

SMPTE 274M-6

√

1080i @ 30 / 29.97Hz

SMPTE 274M-4,5

√

1080p @ 24 / 23.98Hz

SMPTE 274M-10,11

√

1080p @ 25Hz

SMPTE 274M-9

√

1080p @ 30 / 29.97Hz

SMPTE 274M-7,8

√

SD Input

NTSC

√

PAL B, D, G, H, I

√

www.avenview.com

HD Output

DVI / HDMI Out

525p @ 59.94Hz

SMPTE 293M, ITU-BT.1358

625p @ 50Hz

IT-BT.1358

720p @ 50Hz

SMPTE 296M-3

√

720p @ 60 / 59.94 Hz

SMPTE 296M-1,2

√

1080i @ 25Hz

SMPTE 274M-6

√

1080i @ 30 / 29.97Hz

SMPTE 274M-4,5

√

1080p @ 24 / 23.98Hz

SMPTE 274M-10,11

√

1080p @ 25Hz

SMPTE 274M-9

√

1080p @ 30 / 29.97Hz

SMPTE 274M-7,8

√

SD Output

NTSC

√

PAL B, D, G, H, I

√

HD Input

VGA Out

525p @ 59.94Hz

SMPTE 293M, ITU-BT.1358

625p @ 50Hz

IT-BT.1358

720p @ 50Hz

SMPTE 296M-3

√

720p @ 60 / 59.94 Hz

SMPTE 296M-1,2

√

1080i @ 25Hz

SMPTE 274M-6

1080i @ 30 / 29.97Hz

SMPTE 274M-4,5

1080p @ 24 / 23.98Hz

SMPTE 274M-10,11

1080p @ 25Hz

SMPTE 274M-9

1080p @ 30 / 29.97Hz

SMPTE 274M-7,8

SD Input

NTSC

PAL B, D, G, H, I

HD Output

Composite Out

525p @ 59.94Hz

SMPTE 293M, ITU-BT.1358

625p @ 50Hz

IT-BT.1358

720p @ 50Hz

SMPTE 296M-3

720p @ 60 / 59.94 Hz

SMPTE 296M-1,2

1080i @ 25Hz

SMPTE 274M-6

1080i @ 30 / 29.97Hz

SMPTE 274M-4,5

1080p @ 24 / 23.98Hz

SMPTE 274M-10,11

1080p @ 25Hz

SMPTE 274M-9

1080p @ 30 / 29.97Hz

SMPTE 274M-7,8

SD Output

NTSC

√

PAL B, D, G, H, I

√

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
