AVer VB342+ Bedienungsanleitung



VB342+

Conference Camera

Quick Start Guide



FEDERAL COMMUNICATIONS COMMISSION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

CAUTION

- Risk of explosion if battery is replaced by an incorrect type.

- Dispose of used batteries in a safe and proper manner.

More Help

For FAQs, technical support, software and user manual download, please visit: www.aver.com

Contact Information

AVer Information Inc.

www.aver.com

8F, No.157, Da-An Rd., Tucheng Dist., New Taipei City, Taiwan

Tel: +886-2-2269-8535

AVer Information Inc. Europe B.V.

Westblaak 140, 3012KM, Rotterdam, Netherland

Tel: +31(0)10 7600 550

Technical support: EU.RMA@aver.com

Package Contents

VB342+ unit Remote

controller

Power Adaptor

Power cord* USB Cable

USB type-A to type-c

adapter Wall mount bracket Screws(x4)

for wall mount

Screws(x2)

for TV mount

Mount rubbers(x

2) for TV Mount AAA Batteries Quick Guide Warranty card

*The power cord will vary depending on the standard power outlet of the country where it is sold.

Overview

(1)(2) (2)

(3)

(4) (7)

(5) (8)

(6)

(9)



(10)(11)

(12)(13)

(14)(15)



(1) Camera (6) Power (11) MIC Input

(2) IR sensor (7) Preset Hot key (12) Phone In port

(3) Mute (8) Bluetooth/Phone in button (13) RS232

(4) Volume + (9) Reset (14) USB port(to PC)

(5) Volume - (10) HDMI Out (15) DC 12V Power Jack

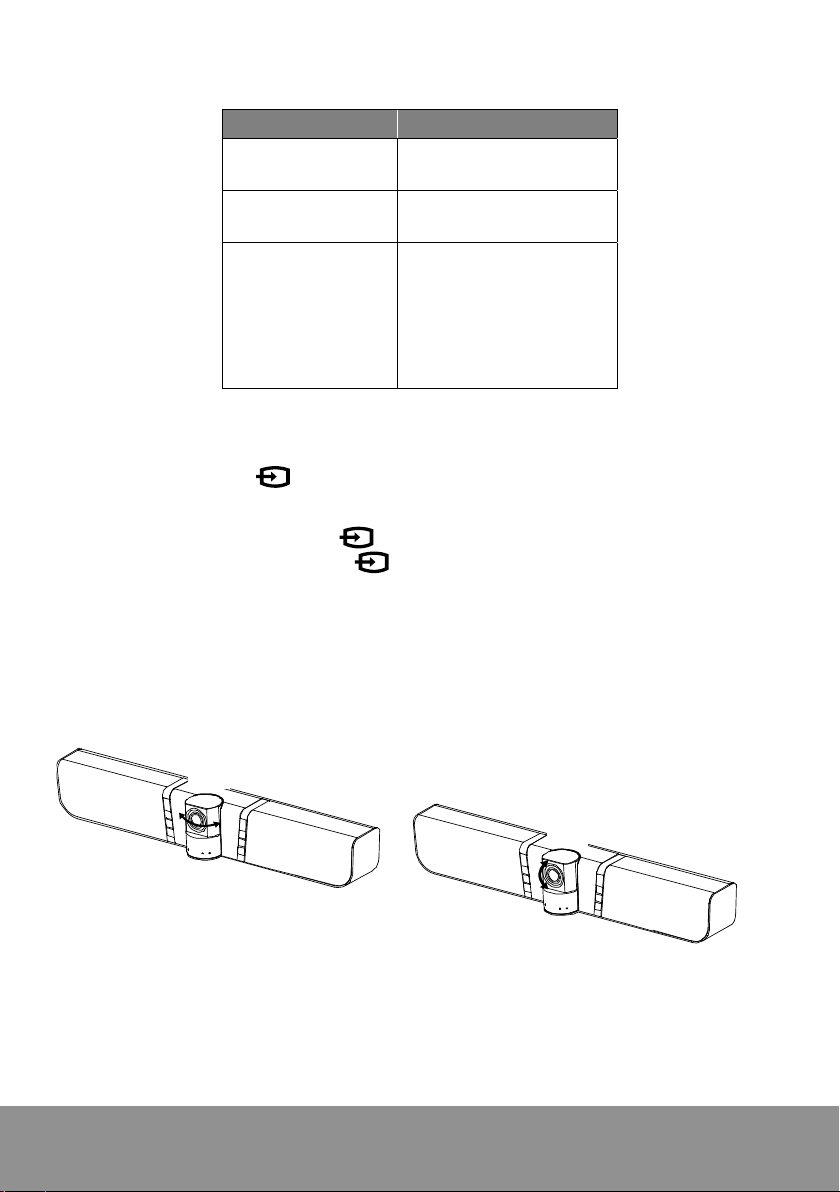

LED Status

Button LED Status

Power ON: Blue

OFF: Red

Mute Mute: Red

Un-Mute: Blue

Bluetooth/Phone in

Bluetooth:

Pairing: Flash blue

Pairing success: solid blue

Phone in:

On: solid purple

Off: No light

Bluetooth/Phone in Mode

Enable Bluetooth: press to enable and pairing.

Enable Phone in

1. In off status, press two (2) times of button to enable.

2. In Bluetooth mode, press one time of button.

Turn off all modes

1. In Phone in mode, press one (1) time to turn off.

2. In Bluetooth mode, press two (2) times to turn off.

Pan and Tilt

±35°

±15°

Installation

1. Connect VB342+ to laptop with provided USB cable. If you like to use type-C connector

on newer PC, connect your adapter to USB cable, and then connect type-C side of

adapter to PC. For 4K output, please use USB 3.0 cable.

Laptop

USB 2.0

USB 3.0

USB type-A to

type-C adapter

USB port

2. Connect the TV/HDMI monitor to VB342+ and connect the power to wall outlet and

VB342+. Set the VB342+ as primary camera, speakerphone, and microphone in your app.

USB cable

TV/Monitor

HDMI cable

(not inculded)

Power cable



ADisplaylink driver is required for connection.

Please install AVer PTZApp on your laptop and run the

AVer PTZApp. In AVer PTZApp, select “Diagnotics

Utility” > “Install Displaylink”. Follow the on-screen

instruction to complete the installation.

[Note] Maximum output is1080p resolution.

Wall Mount Installation

500.0m

28.5mm









Extended Microphone Connection

[Note] There are two lengths of cables -- 10m and 20m.

This side up.

Bluetooth Connection

Let your devices (ex: cell phone, PADs) to connect to VB342+ via Bluetooth connection and use it as a

hands free speakerphone.

1. Power on VB342+.

2. Turn on the Bluetooth function on your device.

3. Press button on VB342+ to enable Bluetooth mode.

4. The button will start to flash in blue and system voice says “Pairing” and start pairing with

your device.

5. On your device, select “AVer VB342+” to connect with.

6. When pairing is successful, the button is in solid blue and system voice says “Your device

is connected”.

7. Or, user can do Bluetooth pairing manually from AVer

PTZApp. Run the AVer PTZApp and select “PTZ” >

“Bluetooth Pairing”. The button on the

VB342+ will start to flash in blue and system voice

says “Pairing”. Then, select “AVer VB342+” on your

device to connect.

When pairing is successful, the button is in

solid blue and system voice says “Your device is

connected”.

8. Also, press on remote can starting Bluetooth

pairing. The button on the VB342+ will start to flash in blue and system voice says

“Pairing”. Then, select “AVer VB342+” on your device to connect. When pairing is successful, the

button on the VB342+ is in solid blue and system voice says “Your device is connected”.

[Note]

a. The VB342+ will memorize the device that has paired and connect automatically next time.

b. The VB342+ doesn’t support for wireless speakerphone connection.

Making a Video Call

A computer and TV/monitor are required to use this device.

Step 1: Open your video collaboration application such as SkypeTM, Skype for Business, Google

HangoutsTM, ZoomTM, WebExTM, Adobe ConnectTM,WebRTC.

Step 2: Set the VB342+ as your primary camera, microphone and speaker devices in your application

(Please consult your application setup guide for details.).

Step 3: Ready to make a video call.

For advanced setting and firmware update, please download AVer PT Z App from www.aver.com.

Remote Controller

Camera select

Camera Directional

control

Bluetooth/Phone in

SmartFraming

Zoom In/Out

Preset

Call/Answer*

Brightness -

Enter**

Mute/Un-mute

VolumeUp/Down

PresetHotkey

PresetPosition

Handup*

Brightness+



*Function requires AVer PTZApp

**Not support for VB342+

1: If you only have one camera and don’t need to do any setting, the default is camera 1. If you press

camera 2 or 3 on the remote control, you will find your remote can’t control your camera. In this case,

please press camera 1 on your remoter again.

2: Press for 1 second can switch the Smart framing function between auto and manual

Press and hold the number button “ ” can turn on or off the WDR function.

AAA Batteries (required)



How to Use Smart Frame

and Audio Tracking Function

1. Run the AVer PTZApp on your laptop/PC which is connected with VB342+.

2. Select “Settings” > “Tracking mode”. Then select the function from drop-down list.

Tip: Move the mouse to “?” icon can see the functions’ description.

Manual frame/Auto frame: FOV (field of view) adjustment to fit all participants. Enable manual or

auto smart frame function.

Off: Turn off all function included the hotkey on remote controller.

!To trigger the audio tracking, the presenter needs to speak over 3 seconds.

Audio Tracking:Pans/tilts until speaker is centered before zooming in. To use when single

presenter speaking, movement around the room. Not suitable for multiple speakers in the same

room.

[Hotkey] Press button on remote controller for 1 second to enable Audio Tracking function.

Audio Frame: Camera won’t Pans/tilts but shows the speaker in view and zoom in. To use when

Multiple participants in meeting.

[Hotkey] Press button on remote controller for 1 second to enable Audio frame function.

Audio Preset Tracking: Pans to speaker based on presets. To use when Presentation with

multiple speakers.

[Hotkey] Press button on remote controller for 1 second to enable Audio Preset Tracking

function.

! In tracking mode, the preset cannot be set. Please setup the preset in “Manual Frame” or “Off”

mode.

P/N: 300AU320-EDH
