Avery Dennison Monarch 9485 Bedienungsanleitung
All specifications are subject to change without notice
USER MANUAL
TC9485UM Rev. AE 04/14
1
Table of Contents
1.
Unpacking
2
2. Product overview 3
3. Installation & Usage 4
3-1. Display 4
3-2. Installing the Battery 5
3-3. Removing the Battery 6
3-4. Charging the Battery 7
3-5. Installing Belt Clip 8
3-6. Stock Installation 9
3-7. Peel Mode 10
3-8. Shoulder Strap Installation 11
3-9. Diagnostic Test 12
4. Peripherals Connection 14
4-1. Wireless Communication 14
4-2. Interface Cable Connection 15
5. Printer Cleaning 16
5-1. PrintHead Cleaning 16
5-2. Platen Roller Cleaning 17
6. Pritner Specication 18
6-1. Specication 18
7. CPCL Command Compatibilit
y
20
8. ZPL Command Compatibilit
y
23
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION
23
1. Unpacking
Stock
Shoulder Strap
SHOULDER
STRAP RING
Printer Battery Belt Clip
Recharger
Optional
Standard
2. Product overview
CHARGER
CONNECTOR
COVER OPEN
BUTTON
Front
Bottom
CD
USB Cable
Quick Reference
Serial cable
PEELER BODY
PEELER WING
BATTERY
DOOR
BELT CLIP
CONNECTOR
SERIAL
USB
DISPLAY
45
Button Name function
Paper Feed/
Down button
Advances the supply. Clears error message.
Moves down through menu options.
Enter button
Selects the highlighted menu option.
Up button
Moves up through menu options.
Power button
Turns the printer on and o. Press to turn power
on. Press for three seconds to turn power o.
Wakes the printer from sleep mode.
3-2. Installing the Battery
NOTE
NOTE
3-1. Display
3. Setting Up the Product
Remove the battery door. Insert the battery as shown.
1
2
Replace the battery door.
You must fully charge the battery when you receive the printer.
Batteries can be charged in the printer or in an optional external cradle
1. The battery status LEDs indicate amount of power remaining. Actual run-time
remaining depends on factors such as the contents of output,
distance to computer, etc.
2. When the battery level is very low, high density printing can result in the printer
switching o during printing resulting in possible loss of data.
67
3-4. Charging the Battery
1. Turn o the printer.
2. Be sure that the AC plug is correct.
If AC plug is wrong, change the plug to the correct one.
3. Open the DC jack by pulling on the rubber cover and insert DC jack into
the printer.
4. Plug the AC plug into an electrical outlet.
5. The charge indicator LED (located on the AC charger as shown) shows red
or green according to the status.
3-3. Removing the Battery
3-4-1 The status of lamp in charging
Status charging charging complete
Charging Lamp Red
Green
Remove the battery door. Lift out the battery.
②
①
LED
If there is trouble while charging the battery, the charge indicator LED blinks green.
Try unplugging and reconnecting charger, charging should resume.
Charging is complete when the LED changes to solid green.
NOTE
89
Use two hands to close the cover until it
clicks into place. Press the feed button.
The belt clip is included with the printer but is not required to be used or installed!
3-5. Belt clip Usage
Insert screw into belt clip.
Tighten the screw with driver as shown.
1
2
NOTE

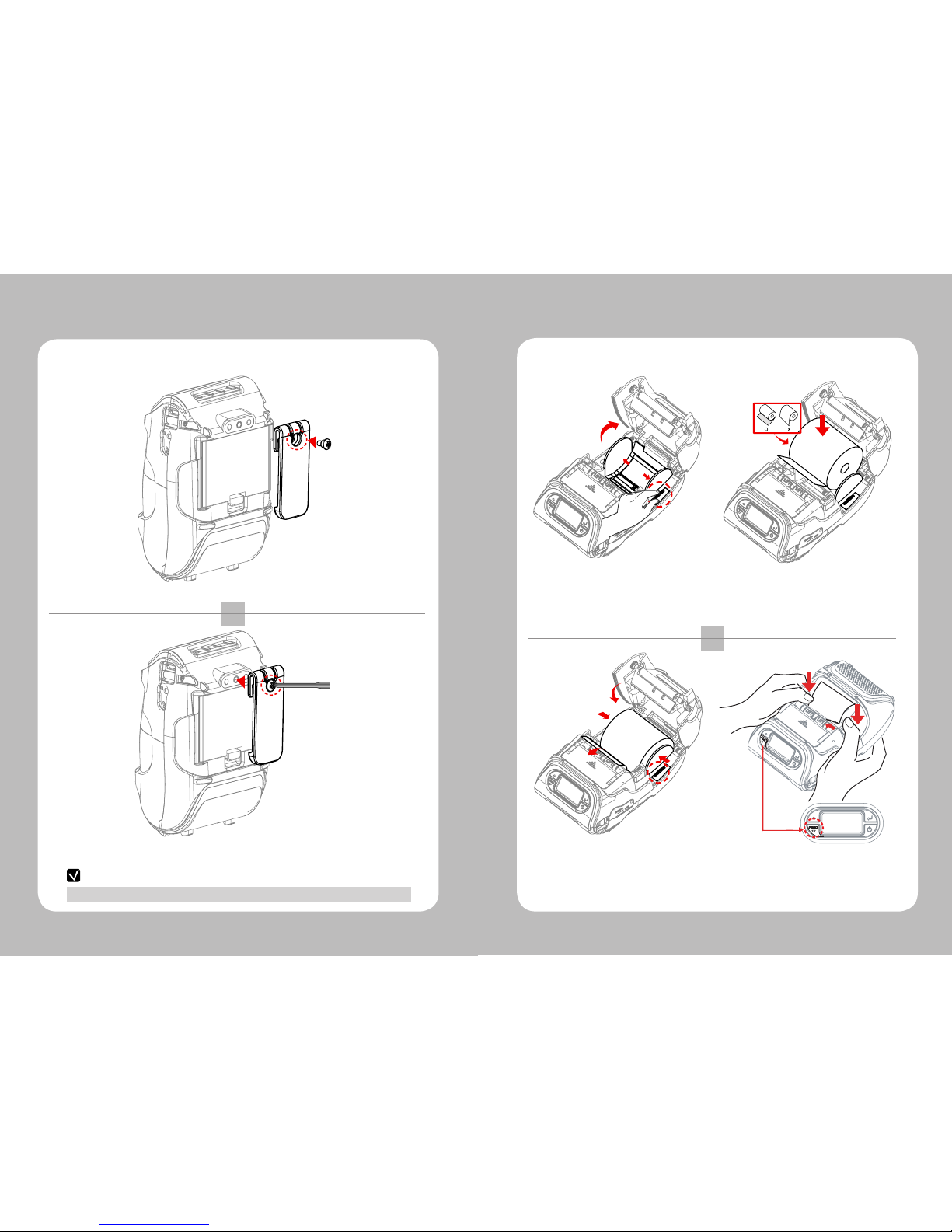

3-6. Stock Installation
1 2
34
Put the stock in so it unrolls from the
bottom. Remove the stock core when
it is empty. Pull a short length of stock
out of the printer.
Open the Paper cover by pressing the
Open button and set the width of paper
guide by turning the knob with nger.
Adjust the width of paper guide if
needed.
10 11
3-7. Peel Mode
1 2
1 2
With a roll of stock installed, slide the
peeler body towards the back of the
printer.
Lift the peeler wing and slide the peeler
body towards the front of the printer.
Press the feed button.
Push the peeler body until you see two
complete triangles. Press the feed button.
Peel Mode
Non-Peel Mode
Insert the strap into the hook of the printer.
Place the end of the strap into
the hook of shoulder strap.
After pulling out the end of the
strap tightly, put it into the clip
to be fastened.
Optional
1
32
3-8. Shoulder Strap Installation
12 13
3-9. Diagnostic Test
1 2
3
NOTE
Turn o the printer.
The information label prints.
Press and hold the feed
button and power button.
1. For Hex Dump mode, do steps 1-2 then
press the feed button.
2. After printing ASCII pattern,
the diagnostic test is complete.
3. If the feed button is not pressed to go to
Hex Dump mode, the printer exits
diagnostics after three seconds.
The sample of self test printout
Upon initial installation or for troubleshooting, you can run the diagnostic test to get
information about:
Firmware version, emulation, codepage, sensor settings, interface settings, etc.
If no issues are found with diagnostic test, examine other devices and software.
The diagnostic test is working independent of devices and software.
●Do not overheat the motor
To prevent the motor from overheating, stop the printer for at least 30 seconds
after continuously printing 1.5 meters.
14 15
4. Peripherals Connection
This product can communicate with other devices using Bluetooth, WiFi
(802.11b/g), or a USB/Serial cable.
1. Printer can connect to a PDA or PC for wireless communication.
2. Your PC must support Bluetooth or WiFi (802.11b/g) to connect to the printer.
4-1. Wireless Communication
NOTE
Refer to the System Administrator Guide for more information.
4-2. Interface Cable Connection
1. Connect the USB or Serial cable to the cable connector on the printer.
2. Connect the interface cable into the USB or Serial port of the device
(PDA, PC, etc.)
NOTE
Use only the cables oered by the printer manufacturer.
Serial
USB
16 17
5-1. PrintHead Cleaning
5. Printer cleaning
If the interior of the printer is dusty, printing quality can be lowered.
In this case, follow the instructions below to clean the printer.
NOTE
1. Make sure to turn the printer power o prior to cleaning
2. The printhead can become very hot during printing; allow the printer
approximately 10 minutes to cool before cleaning.
3. Do not touch the printhead, it can be damaged by static electricity.
4. Take care not to allow the print head to become scratched and /or
damaged in any way.
1. Use an applicator swab moistened with an isopropyl alcohol to clean
the print head and remove any dust.
2. Once cleaning is complete, allow the printer to dry then install the
stock and close the cover.
PrintHead
5-2. Platen Roller Cleaning
1.Clean the platen roller with a clean soft cloth moistened with isopropyl
alcohol or a cleaning pen.
2. Turn the platen roller with your nger to clean the entire surface.
Platen Roller
