Avision 300500001 Bedienungsanleitung

High Speed Document

Scanner

User's Manual

Regulatory model: 300500001/300500002

FCC Radio Frequency Interference Statement

This equipment has been tested and found to

comply with the limits for a class B digital device,

pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communication. However,

there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and

receiver.

* Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modifications not expressly

approved by the manufacture of this device could void the

user's authority to operate the equipment.

Table of Contents

1. INTRODUCTION..............................................................1-1

2. INSTALLATION................................................................2-1

2.1 UNLOCKING THE SHIPPING SWITCH.............................2-1

2.1.1 UNLOCKING THE SCANNER.....................2-2

2.1.2 LOCKING THE SHIPPING SWITCH.........2-3

2.2 SCSI ID.....................................................................2-4

2.3 USB INTERFACE..........................................................2-6

2.4 ADF PAPER CHUTE......................................................2-6

2.5 ADF OUTPUT TRAY .....................................................2-7

2.6 DOCUMENT LOADING...................................................2-8

2.7 ADF SCANNING ..........................................................2-9

2.8 CONNECTING THE CABLE...........................................2-10

3. REQUIREMENTS & SOFTWARE INSTALLATION .3-1

3.1 SCANNER DRIVER INSTALLATION.................................3-1

3.2 SCANNING WITH IMAGE EDITING SOFTWARE...............3-1

3.2.1 A GLANCE OF THE SCANNER

PROPERTIES DIALOG BOX ....................................3-3

4. USING THE SCANNER PROPERTIES DIALOG BOX..

...............................................................................................4-1

4.1 BUTTONS ON THE SCANNER PROPERTIES DIALOG BOX4-2

4.2 THE IMAGE TAB...........................................................4-4

4.2.1 THE IMAGE SELECTION BOX ..................4-5

4.2.2 OTHER IMAGE OPTIONS ..........................4-7

4.2.3 SCANNING COLOR IMAGES...................4-14

4.2.4 SCANNING GRAYSCALE IMAGES .........4-14

4.2.5 SCANNING B&W IMAGES.......................4-14

4.3 THE COMPRESSION TAB ............................................4-15

4.4 THE COLOR DROPOUT TAB........................................4-17

4.4.1 COLOR DROPOUT SELECTION..............4-17

4.4.2 OTHER COLOR DROPOUT OPTIONS ....4-18

4.5 THE PAPER TAB.........................................................4-20

4.5.1 CROPPING.................................................4-21

4.5.2 OTHER PAPER SELECTION.....................4-24

4.6 THE OPTIONS TAB.....................................................4-28

4.7 THE SETTING TAB .....................................................4-34

4.8 THE INFORMATION TAB .............................................4-36

5. ISIS INTERFACE OPERATION ...................................5-1

6. MAINTAINENCE ..............................................................6-1

6.1 CLEANING THE ADF ....................................................6-1

6.2 CLEANING THE GLASS .................................................6-3

6.3 REPLACING THE ADF SNAP-IN PAD MODULE ................6-4

6.4 REPLACING THE ADF PAPER FEED ROLLER..................6-6

7. TROUBLE SHOOTING ....................................................7-1

7.1 QUESTION AND ANSWER .............................................7-1

7.2 PAPER JAM IN THE ADF...............................................7-5

8. TECHNICAL SERVICE....................................................8-1

9. SPECIFICATIONS ...........................................................9-1

Index................................................................................................a

1-1

1. INTRODUCTION

Congratulations on your purchase of the document scanner.

Before you install and operate the scanner, please take a

few minutes to read through this manual. It provides you

with the proper instructions on how to unpack, install,

operate and maintain the scanner.

Figure 1-1 shows how the scanner is packed. You can

check all items against your “checklist”, included with

your scanner.

1-2

S/N LABEL

SCANNER

E-2

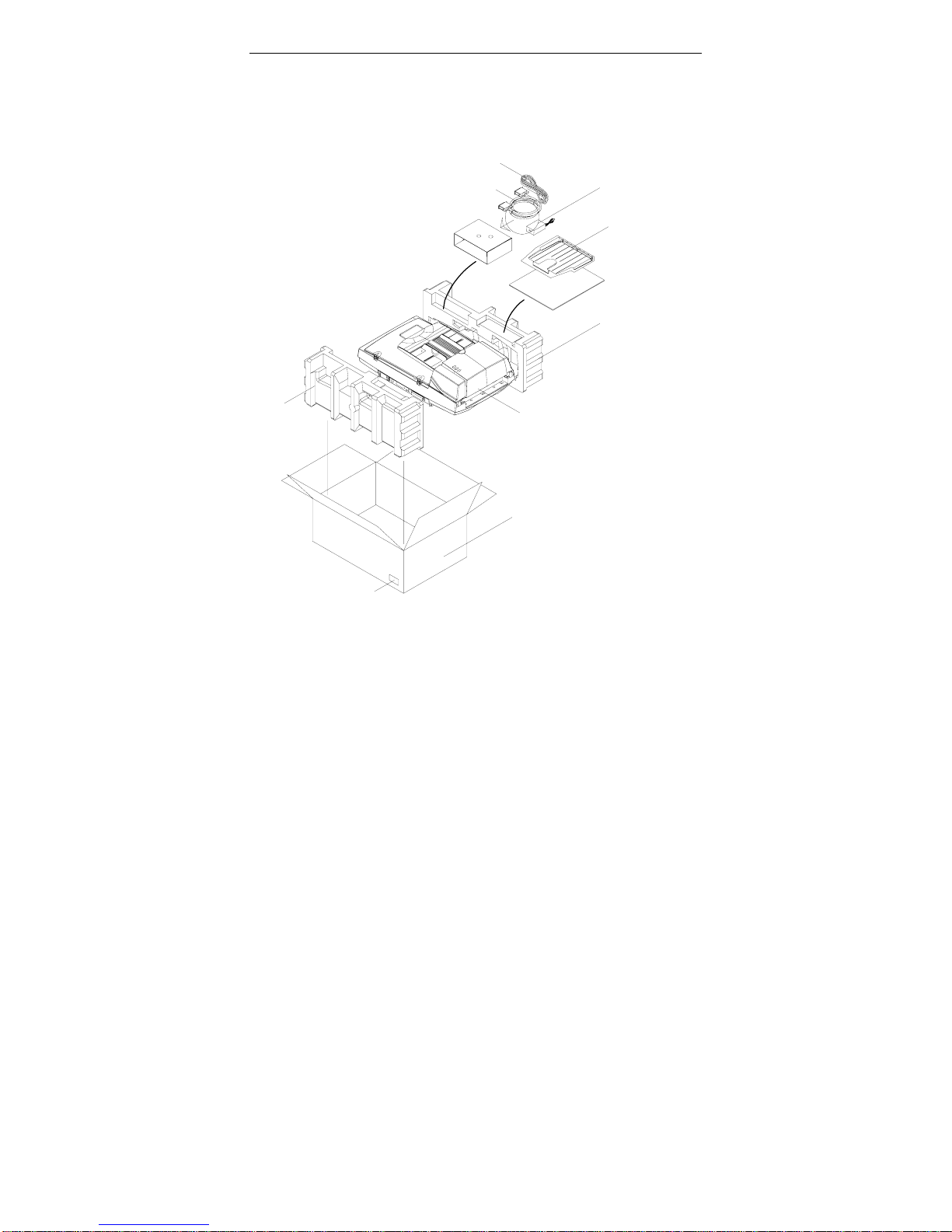

Figure 1-1 Scanner Packing

SCSI Cable

Output

er Tra

Scanne

Carton

EPS

Foam

EPS

Foam

Adapter

Power Cord

2-1

2. INSTALLATION

Please unpack the scanner carefully, and check the contents

against the checklist. If any items are missing or

damaged, please contact your authorized local dealer

immediately.

Precautions

•Keep the scanner out of direct sunlight. Direct

exposure to the sun or excessive heat may cause

damage to the unit.

•Do not install the scanner in a humid or dusty place.

•Use only the AC adapter (HEG42-240200-7L by

Hitron) included with the machine. Using other AC

adapters may damage the machine and void the

warranty.

•Place the scanner securely on an even, flat surface.

Tilted or uneven surfaces may cause mechanical or

paper-feeding problems.

•Retain the scanner box and packing materials for

shipping purposes.

2.1 UNLOCKING THE SHIPPING SWITCH

The scanner has a shipping switch that locks the carrier

mechanism for transportation purposes. This switch must

be unlocked before using the scanner.

Before proceeding, turn the power off, disconnect all cables

and follow the instructions below to unlock the shipping

switch.

2-2

2.1.1 UNLOCKING THE SCANNER

i). Carefully place the scanner in an upright

position on its front.

ii). Unlock the scanner by moving the lock switch beneath

the scanner to the “Unlock” position (See Figure 2-1).

iii). Gently place the scanner back to its normal position.

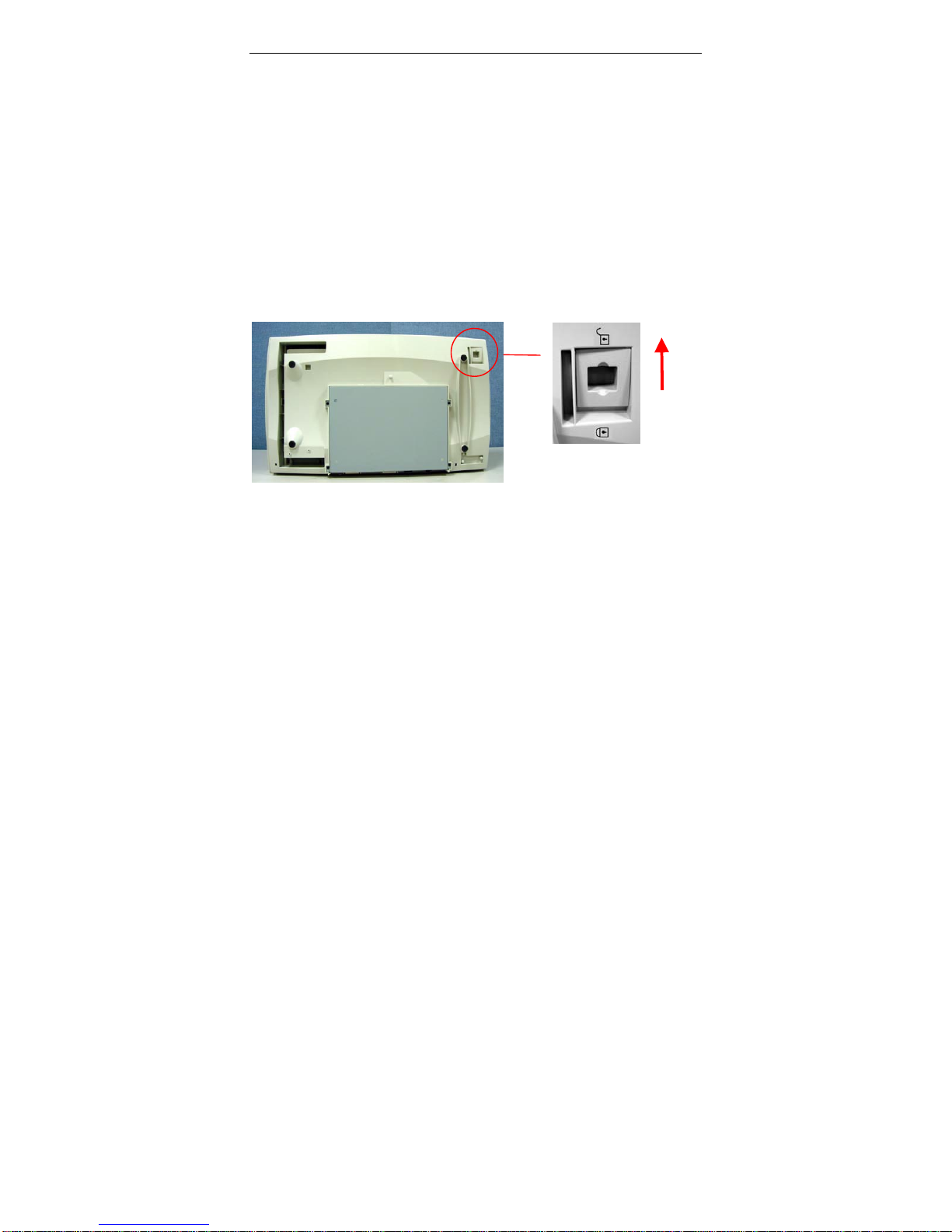

Figure 2-1 Unlocking the Shipping Switch

2-3

2.1.2 LOCKING THE SHIPPING SWITCH

Whenever you need to move the scanner to a new location

it is advisable to lock the shipping switch to avoid causing

damage to the scanners’ internal mechanism. Please follow

the instructions below to lock the shipping switch.

1). Turn off the scanner.

2). Lift the Document cover to reveal the flatbed glass and

scanning unit.

3). Turn on the scanner.

4). Turn off the scanner again while the scanning unit

moved to the end for a few seconds.

5). Place your scanner in an upright position on its front

side.

6). Lock your scanner by moving the lock switch to the

"Locked position".

7). Place the scanner back to its normal position.

2-4

2.2 SCSI ID

When you have several devices on a SCSI chain, you may

need to adjust the SCSI ID selector setting located on the

back of the scanner. This setting assigns a specific "device

ID" to the scanner. If the assignment conflicts with an

existing SCSI device, please select a new ID. (See Figure 2-

Note: The factory setting for scanner is ID 6. Usually, ID 0

is assigned to an internal hard disk drive, and ID 7, ID 8 ,and

ID 9 are not in actual use.

Using a suitable tool, turn the selector switch until the arrow

points to the desired ID number.

2.3 Setting SCSI Terminator

The scanner is equipped with a built-in terminator switch on

the rear of the scanner. (See Figure 2-2). The scanner is

equipped with a built-in terminator switch on the rear of the

scanner. Turn the terminator switch on if the scanner is to be

connected to the computer as the only or the last SCSI

device. Turn the terminator switch off if the scanner is to be

located between the computer and the other SCSI device.
