Avision MiWand 2 Lite Bedienungsanleitung

Hand-Held Scanner

User’s Manual

Regulatory model: HF-1408B

Avision Inc.

manual-en-250-0859-E-miwand2lite-v100

Trademarks

Microsoft is a U.S. registered trademark of Microsoft Corporation.

Windows, Windows XP, Windows Vista, Windows 7, and Windows 8 are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

IBM, IBM PC are registered trademarks of International Business Machines Corp.

Other brands and product names herein are trademarks or registered trademarks of their

respective holders.

stored in a retrieval system, or translated into any language or computer language, in any

form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise, without the prior written permission of Avision Inc.

Material scanned by this product may be protected by governmental laws and other

regulations, such as copyright laws, the customer is solely responsible for complying with all

such laws and regulations.

Warranty

The information contained in this document is subject to change without notice.

Avision makes no warranty of any kind with regard to this material, including, but not

limited to, the implied warranties of fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this material.

Disposal of Waste Equipment by Users in Private Union

This symbol on the product or on its packaging indicates that the product can not be

disposed of with your other household waste. Instead it should be sent to appropriate

facilities for recovery and recycling in an effort to protect human health and the

environment. Fore more information about where you can drop off your waste equipment

for recycling, please contact your local city office, your household waste disposal service or

the shop where you purchased the product.

User’s Manual

FCC Radio Frequency Interference Statement

This product has been tested and found to comply with the limits for a class B digital

device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation. The FCC Class B limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult your point of purchase or service representative for additional suggestions.

European Union Regulatory Notice

Products bearing the CE marking comply with the following EU Directives:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

Restriction of the use of certain hazardous substances (RoHS) Directive 2011/65/EU

This product satisfies the Class B limits of EN55022, EN55024, safety requirements of EN

60950 and ROHS requirements of EN50581.

*This machine is certified as Class 1 LED product. This means that this machine does not

produce hazardous laser radiation.

iii

Table of Contents

1. Overview ........................................................................... 1-1

1.1 Introduction.................................................................................... 1-1

1.2 Package Contents............................................................................ 1-1

1.3 Top View ........................................................................................ 1-2

1.4 Rear View....................................................................................... 1-3

1.5 Bottom View ................................................................................... 1-3

1.6 Scanner Indicator Light .................................................................... 1-4

1.7 LCD Display .................................................................................... 1-5

2. Installation........................................................................ 2-1

2.1 Precautions..................................................................................... 2-1

2.2 Install the Batteries (not included) ..................................................... 2-1

2.3 Install micro SDTM Card (not included) ................................................ 2-2

3. Operation........................................................................... 3-1

3.1 Suitable and Unsuitable Original Types ............................................... 3-1

3.2 Turn on the Scanner ........................................................................ 3-1

3.3 Choose Your Desired Scan Settings .................................................... 3-1

3.4 Start Wand Scanning (Hand-Held)...................................................... 3-2

3.5 View or Download the Scanned Images (Windows)............................... 3-3

3.5.1 Computer System Requirements for USB Connection.................3-4

3.5.2 After Successful Connection ...................................................3-4

3.5.3 Safely Disconnect Scanner/micro SD Card From PC ...................3-4

3.6 View or Download Images with iPad ................................................... 3-5

4. Maintenance ...................................................................... 4-1

4.1 Calibrate the Scanner....................................................................... 4-1

4.2 Clean the Rollers and Glass............................................................... 4-2

5. Troubleshooting................................................................. 5-1

5.1 Error Messages................................................................................ 5-1

5.2 Frequently asked questions and answers............................................. 5-2

5.3 Technical Service............................................................................. 5-5

6. Specifications .................................................................... 6-1

User’s Manual

1. Overview

1.1 Introduction

Congratulations on your purchase of the portable handheld scanner. With this scanner, you

can scan and store your photos or documents directly to a micro SDTM card without any

computer. Simply turn on the scanner, press the Power/Scan button to start and slide the

scanner on the surface of your document and press the Power/Scan button again to stop.

The scanned image is stored into your micro SD card.

Before you install and operate the product, please take a few minutes to read through this

manual. It provides proper instructions for you to install, operate and maintain the

product. The following figure indicates the package contents. Please check all the items

against your checklist. If you do not receive all the items, please contact your authorized

local dealer immediately.

1.2 Package Contents

Scanner

Carry Bag

Online Registration Notice

Quick Start Guide

USB Cable

Calibration Sheet

Note:

Retain the scanner box and packing materials in case you may use them for

shipping purposes.

Please register the product on our web site at http://www.avision.com to have

complete support.

1-1

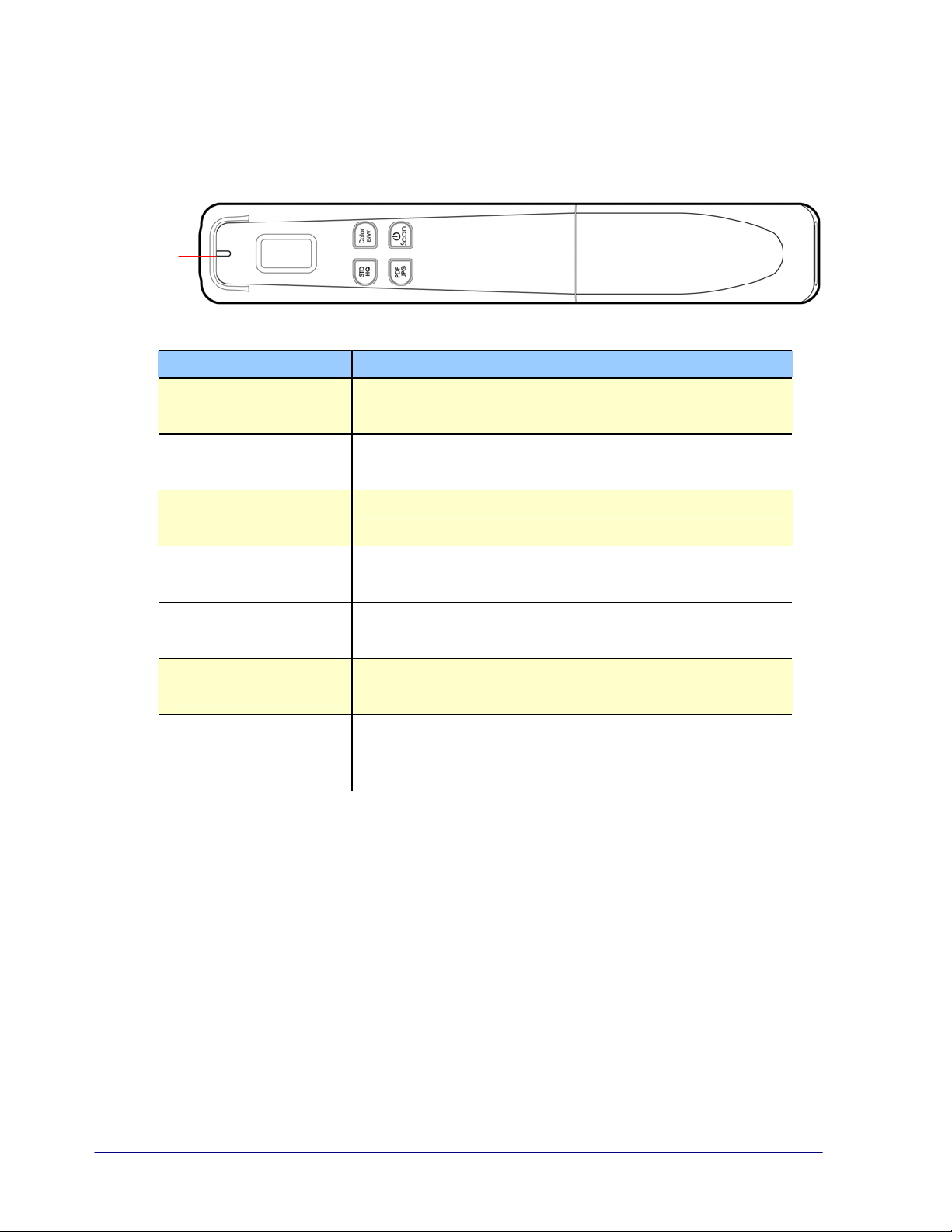

1.3 Top View

2 3 4

5 6

Item Name Description

1System indicator

light

Indicates the operating/warning status of the

scanner.

2 LCD display Displays battery status and scan settings.

3 Color selector Press to choose Color or Black and white

4 Power/Scan

button Press to power on, press again to start a scan and

end a scan.

5 Resolution

selector Press to choose STD (300 dpi), HQ (600 dpi), or

STD HQ (1200 dpi).

6 File format

selector Press to choose JPEG or PDF.

7 Battery

compartment Slide to remove the cover.

1-2

User’s Manual

1.4 Rear View

1 2

Item Name Description

1 USB port Used to plug the micro end of the USB cable to

connect to PC for power charging or images

transferring.

2 Memory

card slot Used to insert a memory card.

1.5 Bottom View

Ite

m Name Description

1Sensor

rollers

The rollers are sensors and should only be rolled in

one direction. Do NOT roll back and forth while

scanning, except during calibration.

2Glass While rolling scanner over a document, the optical

sensor in the glass reads and scans the image.

1-3

1.6 Scanner Indicator Light

Scanner

Indicator

Light

Status Indication

Off Scanner is off or scanner is on and ready for use

Orange briefly Powering on for initialization

Green, steadily on Scanning in progress in STD mode (300 dpi)

Orange, steadily on Scanning in progress in HQ mode (600 dpi)

Orange, flashing Scanning in progress in STD HQ mode (1200 dpi)

Green or Orange

flashing Processing scanned image

Red, flashing No SD card, SD card full, card error, no scan

performed after initiating wand scan mode, or low

battery

1-4

User’s Manual

1-5

1.7 LCD Display

Item Name Description

1Battery status Indicates the power status of the battery.

2Scan count Indicates scan count.

3 File format Indicates current file format for the scanned image.

Choice: PDF, JPEG.

4 Color mode Indicates current color mode. Choice: Color, Black

and White.

5 USB Indicates the scanner is connected to a computer.

6 Memory card Indicates an inserted memory card.

7 Resolution Indicates current resolution. Choice: STD (300 dpi),

HQ (600 dpi), STD HQ (1200 dpi).

User’s Manual

2. Installation

2.1 Precautions

Keep the product out of direct sunlight. Direct exposure to the sun or excessive

heat may cause damage to the unit.

Do not install the product in a humid or dusty place.

Place the product securely on an even, flat surface. Tilted or uneven surfaces may

cause mechanical or paper-feeding problems.

Retain the product box and packing materials for shipping purposes.

2.2 Install the Batteries (not included)

1. Push and remove the battery cover on the scanner.

2. Insert 2x AA batteries into the battery compartment. Make sure the batteries are

inserted with the correct polarity. (note correct + - direction)

3. Insert the battery cover.

Note:

The scanner does not recharge the rechargeable batteries.

2-1
