■ Quick and professional installation of various

video servers in the same rack

■ Expandable system, simply by adding blades

and wiring up

■ Integrated power supply, for easy

installation/expansion, and easy addition of

back-up power solutions

■ Higher density of video channels compared

to stand alone solution

■ Improved serviceability and trouble-free unit

replacement

AXIS Rack Solution

The AXIS Video Server Rack is a 19” rack solution that can be

used to mount a large number of video servers (typically serving

15-20 cameras and upwards) with a common power supply,

providing a space-efficient solution.

The Axis rack solution combines high reliability and

functionality with quick, flexible and professional installation.

Designed for improved serviceability and quick replacement

of units, the rack holds up to 12 interchangeable and hot-

swappable blades, so there is no need for power-down during

installation or service.

The Axis rack solution is designed for applications involving

large number of cameras, both existing and new systems. It is

also ideal for applications handling large physical surveillance

areas such as prisons, airports, large buildings, university

campuses and bus, subway and railway stations.

More video servers in less space – quick, flexible and

professional installation and service

Hardware & System

• Aluminum rack, 19” / 3U

• Available slots: 12 (support hot swap)

Connections

• Video: Analog video input/s (BNC)1

• Power: 100-240 VAC, 50/60 Hz, 1.6 A

Each slot contains the following connectors on

the rear of the rack:

• Network: 10Base-T/100Base-TX Ethernet

networks (RJ-45)

• Serial communication: RS-232 & RS-485

(terminal block)

• I/O: alarm inputs and outputs (terminal block)2

Operating Conditions

• Temp: 5 - 50 ºC (41-122 ºF)3

• Humidity: 20 - 80% RHG

Dimensions and Weight

• Height: 132 mm (5.2”)

• Width: 482 mm (19.0”)

• Depth: 300 mm (11.8”)

• Weight: 3.3 kg (7.3 pounds)(incl. PSU)

Shipping contains

• Video server rack

• Power supply module (installed)

• Blanking panels (installed)

• Connector kit

• Mains cable

• Installation guide

Approvals

• EMC:

- CE compliant according to:

+ EN55024:1998 +A1

+ EN61000-6-1:2001

+ EN61000-6-2:2001

+ EN55022:1998 +A1 Class B

+ EN61000-3-2:2000

+ EN61000-3-3:1995 +A1

- FCC Part 15 subpart B, demonstrated by

compliance with EN55022:1998

- VCCI:2002 Class B ITE

- C-tick AS/NZS 3548

• Safety

- EN60950

are trademarks or registered trademarks of their respective companies. We reserve the right to introduce modifications without notice.

24780/EN/R4/0505

www.axis.com

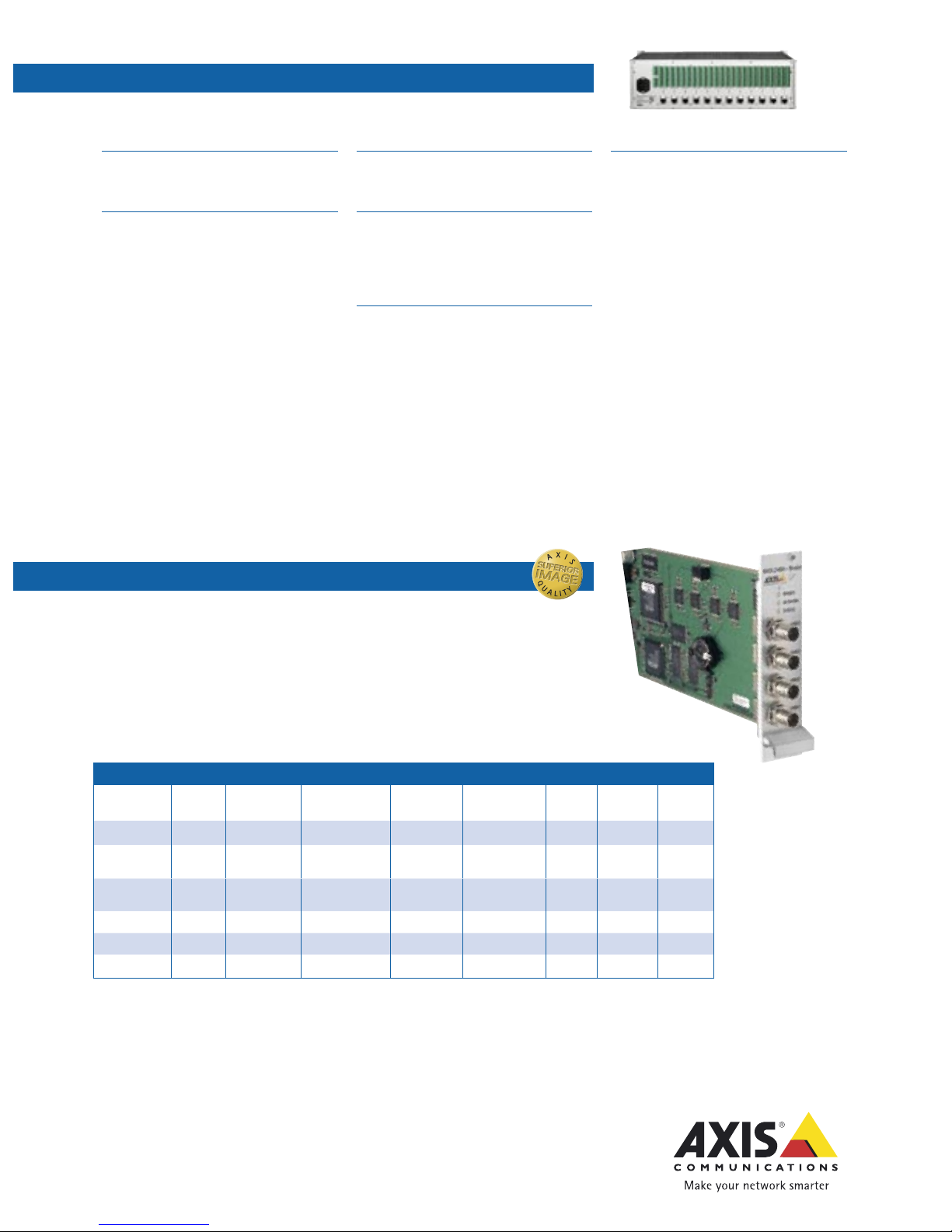

AXIS Video Server Rack

The following Blade Video Servers are available. Further information will be found

in the respective video server datasheet. Functionality of a blade server is exactly

the same as the stand alone version of the video server.

Each blade is shipped with connector kit, installation guide for video server rack

and the respective video server manual.

Product Selection Guide

Product No. of

channels

Video

compression

Total Frame Rate

(NTSC/PAL)

Video Motion

Detection

Alarm

inputs/outputs

PTZ

support

HTTPS Audio

support

240Q Blade 4 Motion JPEG 24/20 Yes 4 / 4 Yes Yes No

241Q Blade 4Motion JPEG/

MPEG-4 120/100 Yes 4 / 4 Yes Yes No

241S Blade 1Motion JPEG/

MPEG-4 30/25 Yes 4 / 4 Yes Yes No

250S Blade 1 MPEG-2 30/25 No 4 / 1 Yes No Yes

2400+ Blade 4 Motion JPEG 30/25 No 4 / 1 Yes No Yes*

2401+ Blade 1 Motion JPEG 30/25 No 4 / 1 Yes No Yes*

AXIS Blade Video Servers

1. Video input(s) are located on the blade

2. Number of inputs and outputs varies between different types of Blade.

3. Ensure proper ventilation/cooling when installing multiple racks.

* Requires the AXIS 2191 Audio Module

NOTE: Please see separate datasheets for all stand-alone video servers.
