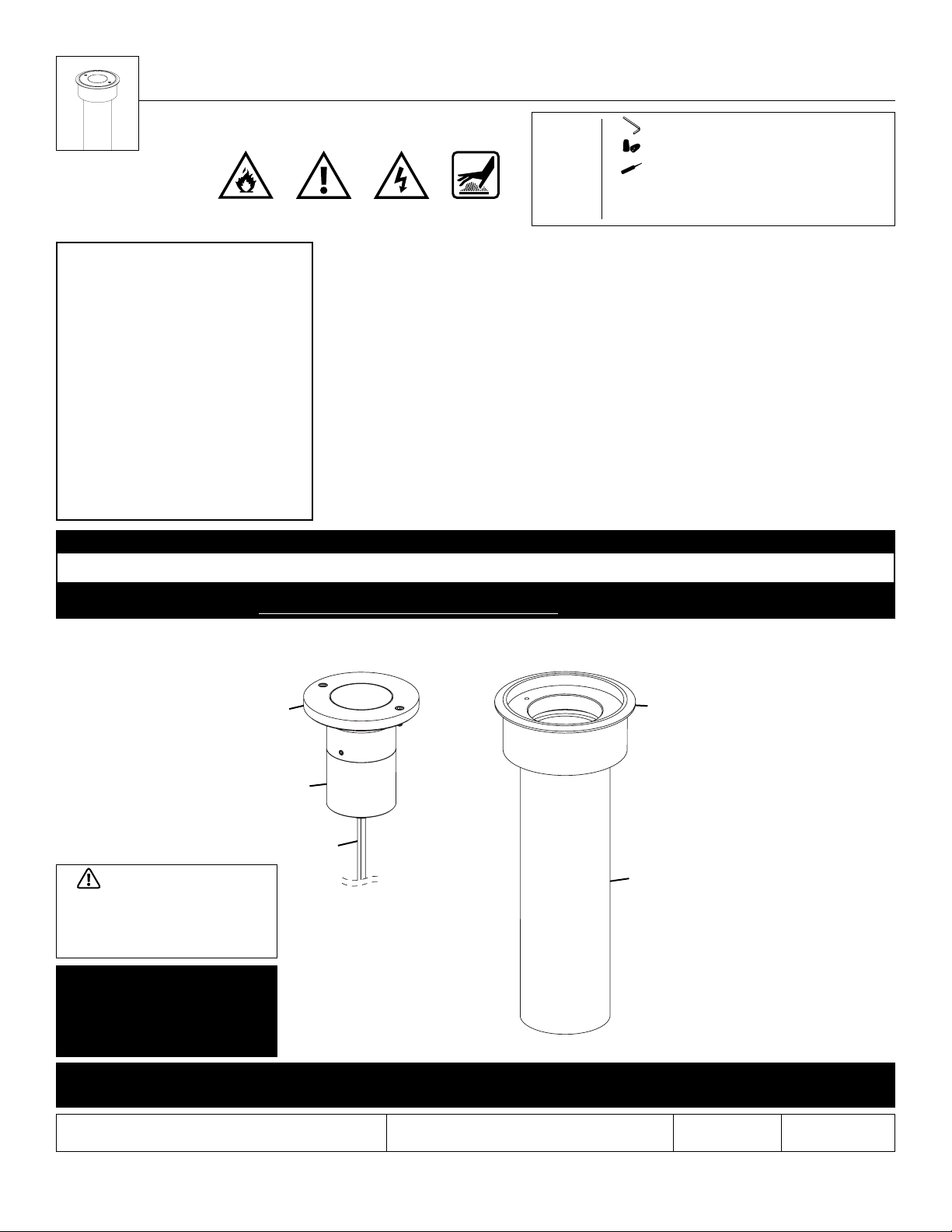

B-K lighting ARTISTAR UPLIGHT Bedienungsanleitung
Hot SurfaceLow VoltageWarning
Flammable
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning on.
Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
5/64” Allen Wrench
Waterproof Wire Connectors
Silicone
TOOLS
NEEDED:
Proper soil preparation is recommended before installation. See the DIG-IT guide at
www.bklighting.com/collaterals/install/digit.pdf for more information.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL
ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
RELEASE DATE
07/11/2023
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
REFERENCE NUMBER
INS-2862-00
Please refer to the low
voltage design guide at www.
bklighting.com/lvguide before
installation for proper wire
selection.
Standard Installation
ARTISTAR UPLIGHT
SURFACE MOUNT
Surface mount uplights are intended for
installation in wood, pavers, stone, and other
hardscapes.
Not recommended for concrete pour
installations.
INSTALLATION PVC Housing
Body
Faceplate
18 Ga. Wire
Surface Mount Collar
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
07/11/2023
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
REFERENCE NUMBER
INS-2862-00
Standard Installation
ARTISTAR UPLIGHT
SURFACE MOUNT
9. Mount faceplate to collar using two (2) #8-32 flat head
screws (included) with a 9/64” allen wrench.
WIRING DIAGRAM
LED - For use with 12VAC LED remote transformer
or magnetic transformers only. B-K Lighting
cannot guarantee performance with third party
manufacturers’ transformers.
4. Align holes to final installation orientation. Arrows
on temporary cover point towards screw location on
faceplate for alignment purposes.
NOTE: Do not remove temporary cover until
installation of faceplate.
6. Remove temporary cover and pull out remote wiring.
4” O.D.
4-1/2” O.D.
2. Loop minimum of 6” of wiring inside housing to allow
for fixture service.
NOTE: Do not remove temporary cover!
Finished grade
Wire nuts must
clear opening
6”
min.
Screws on faceplate will
align with alignment
arrows on temporary
cover
7. Access remote wiring inside housing. Make watertight
connections using waterproof wire connectors. Wire
nuts must clear opening. Insert fixture, wiring and
connections into housing. See wiring diagram.
5. Use a silicone based sealant between fixture and
mounting surface.
1. Drill 4” diameter hole into mounting surface at uplight
installation location as per lighting plan.
Do not exceed surface diameter, installation relies
on surface mount collar resting on surface grade.
Collar diameter is 4”. Surface mount flange is 4-1/2”
diameter
Pull secondary wiring from remote driver.
3. Place housing into hole. Surface mount collar should
rest on finished surface grade.
NOTE: Do not remove temporary cover!
HOT 12V
12V
FIXTURE
NEUTRAL
Remote
Transformer
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

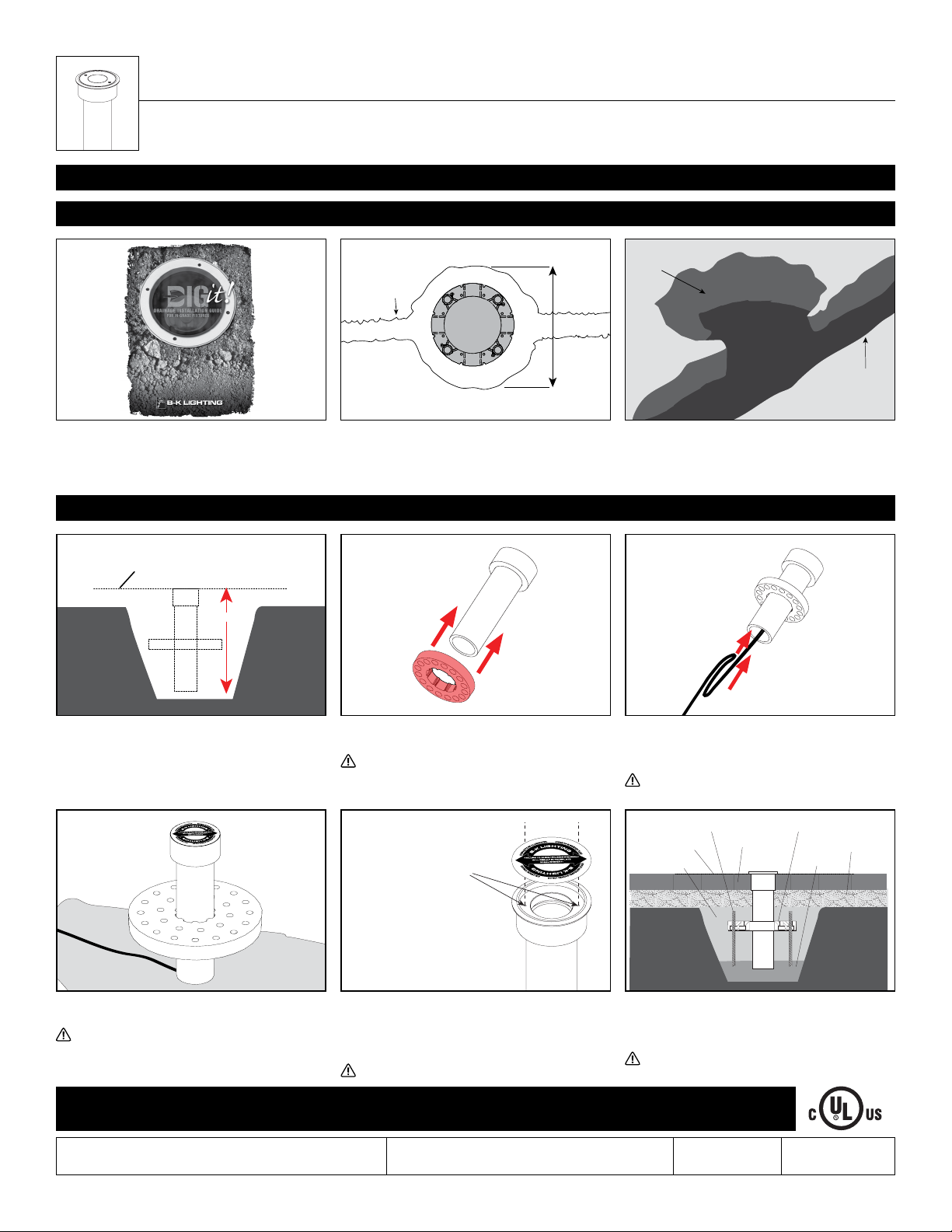

In-Ground Installation Instructions
Soil Prep
RELEASE DATE
07/11/2023
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
REFERENCE NUMBER
INS-2862-00
Conduit
trench
B. Dig hole 10” wide and 10” deep.
Conduit
Trench
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.A. Determine Soil Type by referencing DIG-IT Guide.
Prep soil according to DIG-IT Guide.
Fixture Installation
5. Place Power Pipe in hole.
NOTE: Leave sufficient wire length in the power
pipe for future service.
6. Orient the arrows on the temporary cover to
the desired position of the final faceplate screw
placement.
NOTE: Do note remove temporary cover until
installation of faceplate.
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with sand or
pea gravel for drainage.
NOTE: The mounting collar must be flush
to finished grade. Use stability flange to aid in
installation as shown.
Stability Flange
Rebar or Stake (Not Included)
Pea Gravel
Finished Grade Pavers Paver Sand
Soil
Screws on faceplate will
align with alignment
arrows on temporary
cover
1. Excavate trench according to designed lighting
plan 12” deep and 12” wide suitable for the fixture
housing.
2. Supply low voltage wiring necessary for installation.
3. Slide stability flange onto housing.
NOTE: Product is supplied with a stability flange
to anchor fixture and aid in installation.
4. Loop minimum of 6” of low voltage wire inside
housing to allow for fixture service. Place fixture in
hole.
NOTE: Do not remove temporary cover!
Finished Grade
12”
Finished Grade
8 3/4”
LINE 12V
FIXTURE
COM
Remote
Transformer
COM
Screws on faceplate
will align with
alignment arrows on
temporary cover
Stability Flange
Rebar or Stake (Not Included)
Pea Gravel or Sand
Finished Grade
Concrete
Stability Flange
Rebar or Stake (Not Included)
Pea Gravel or Sand
Finished Grade
Concrete
Finished Grade
Concrete
Wire Nuts Must
Clear Opening
6”
min.
Finished Grade
12”
Standard Installation
ARTISTAR UPLIGHT
SURFACE MOUNT
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
In-Ground Installation Instructions
RELEASE DATE
07/11/2023
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
REFERENCE NUMBER
INS-2862-00
9. Remove temporary cover and pull out remote
wiring.
Finished grade
Wire nuts must
clear opening
6”
min.
10. Access remote wiring inside housing. Make
watertight connections using waterproof wire
connectors. Wire connectors must clear opening.
Insert fixture, wiring and connections into housing.
See wiring diagram.
HOT 12V
12V
FIXTURE
NEUTRAL
Remote
Transformer
WIRING DIAGRAM
LED - For use with 12VAC LED remote
transformer or magnetic transformers only. B-K
Lighting cannot guarantee performance with
third party manufacturers’ transformers.
8. Fill with soil, then compress. Layer paver sand as
required for paver installation, then install pavers.
Pavers may need to be cut to fit around housing.
11. Mount faceplate to collar using two (2) #8-32 flat
head screws (included) with a 9/64” allen wrench.
Stability Flange
Rebar or Stake (Not Included)
Pea Gravel
Finished Grade Pavers Paver Sand
Soil
Standard Installation
ARTISTAR UPLIGHT
SURFACE MOUNT
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Fixture Relamping
RELEASE DATE
07/11/2023
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
REFERENCE NUMBER
INS-2862-00
1. Remove faceplate from collar using two (2) #8-32
flat head screws (included) with a 9/64” allen
wrench.
2. Remove fixture from collar. 3. Loosen two (2) #8-32 screw with a 5/64” allen
wrench to remove faceplate.
4. Space three fingers evenly around the optic and
gently rock optic to remove.
6. Disengage LED board and driver assembly. Replace
with new board and driver assembly.
7. Reverse install LED board and driver by carefully
engaging quick disconnects and inserting into
fixture body. Secure LED board in place with
stainless steel screws. Snap optics in place.
8. With flat head screw driver rotate dial to desired
lumen output. Replace fixture in mounting collar.
5. Use a 5/64” allen wrench to remove two (2) #2-56
socket head cap screws on LED board, grasp
LED board and gently pull up to expose quick
disconnect.
9. Mount faceplate to collar using two (2) #8-32 flat
head screws (included) with a 9/64” allen wrench.
Do not overtighten.
Standard Installation
ARTISTAR UPLIGHT
SURFACE MOUNT
Inhaltsverzeichnis
Andere B-K lighting Außenleuchte Handbücher
B-K lighting
B-K lighting PM4RM ROUND CAMLOCK Einrichtungshandbuch
B-K lighting
B-K lighting ARTISTAR UPLIGHT Bedienungsanleitung
B-K lighting
B-K lighting CO2 Bedienungsanleitung
B-K lighting
B-K lighting Precision 2 CO2 Series Bedienungsanleitung
B-K lighting
B-K lighting MB2 Bedienungsanleitung
B-K lighting
B-K lighting CATSKILL Series Bedienungsanleitung
B-K lighting
B-K lighting Brick Star Bedienungsanleitung
B-K lighting
B-K lighting Litestick Bedienungsanleitung
B-K lighting
B-K lighting EC Einrichtungshandbuch
B-K lighting
B-K lighting HP2 SERIES Bedienungsanleitung
B-K lighting
B-K lighting DENALI ST-DE-TR-A Bedienungsanleitung
B-K lighting
B-K lighting SARATOGA Series Bedienungsanleitung
B-K lighting
B-K lighting HP2RM Bedienungsanleitung
B-K lighting
B-K lighting TENAYA2 Series Bedienungsanleitung
B-K lighting
B-K lighting HP2 SERIES Bedienungsanleitung
B-K lighting
B-K lighting PRECISION2 CO2 Series Bedienungsanleitung
B-K lighting
B-K lighting HP2 SERIES Bedienungsanleitung
B-K lighting
B-K lighting Yukon Bollard Bedienungsanleitung
B-K lighting
B-K lighting Precision2 DR2 Series Bedienungsanleitung
B-K lighting
B-K lighting DENALI Bedienungsanleitung
Beliebte Außenleuchte Handbücher anderer Marken
LIGMAN
LIGMAN BAMBOO 3 Bedienungsanleitung
Maretti
Maretti TUBE CUBE WALL 14.4998.04 Bedienungsanleitung
Maxim Lighting
Maxim Lighting Carriage House VX 40428WGOB Bedienungsanleitung
urban ambiance
urban ambiance UQL1273 Bedienungsanleitung
TotalPond
TotalPond 52238 Bedienungsanleitung
Donner & Blitzen
Donner & Blitzen 0-02661479-2 Bedienungsanleitung
