Baby Lock EclipseDX BLE1DX-2 Technisches Handbuch

1

Congratulations on Choosing Baby Lock Eclipse dx C

O

N

G

R

A

T

U

L

A

T

I

O

N

S

2

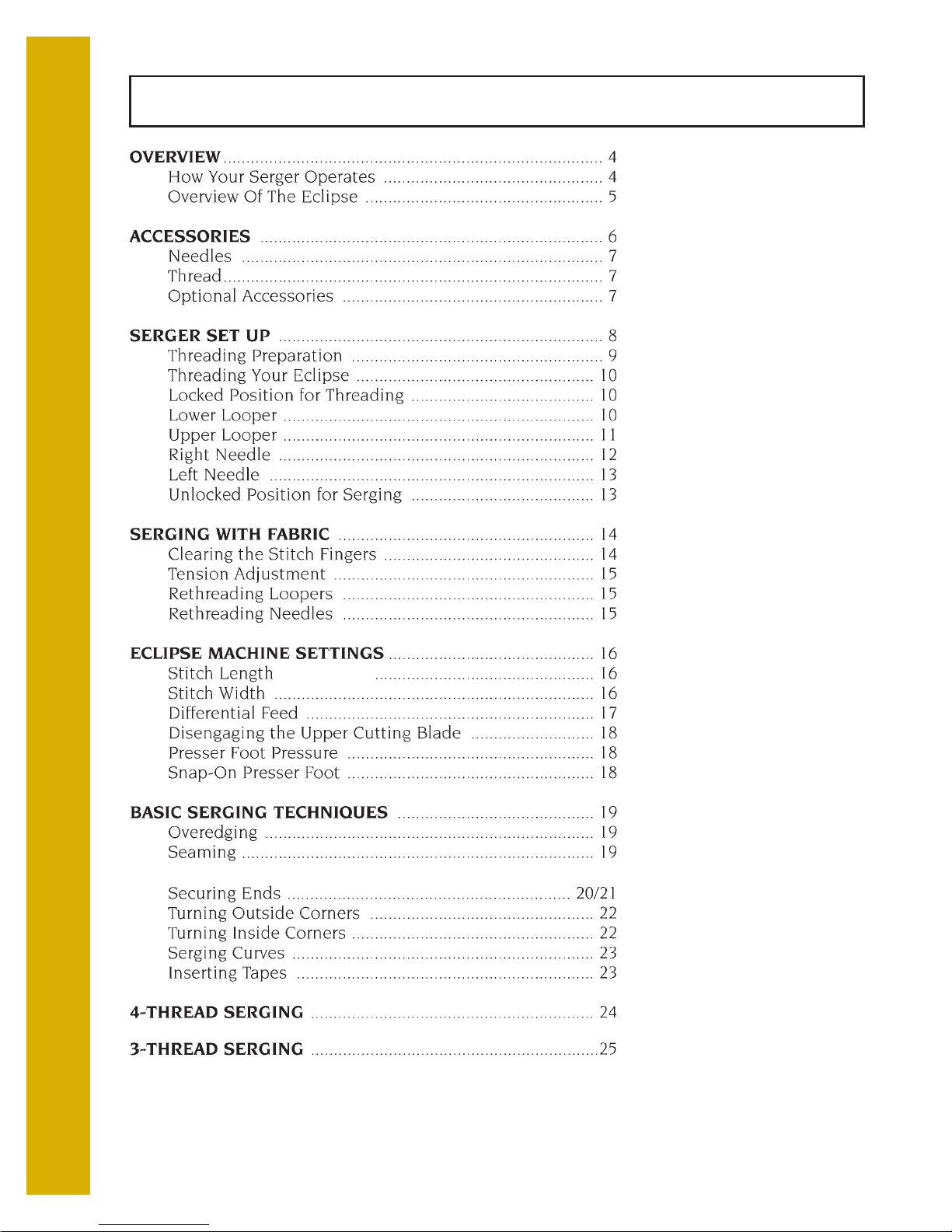

Table of Contents

T

A

B

L

E

O

F

C

O

N

T

E

N

T

S

Front Cover Seam Guide ................................................. 19

/Rolled Hem

3

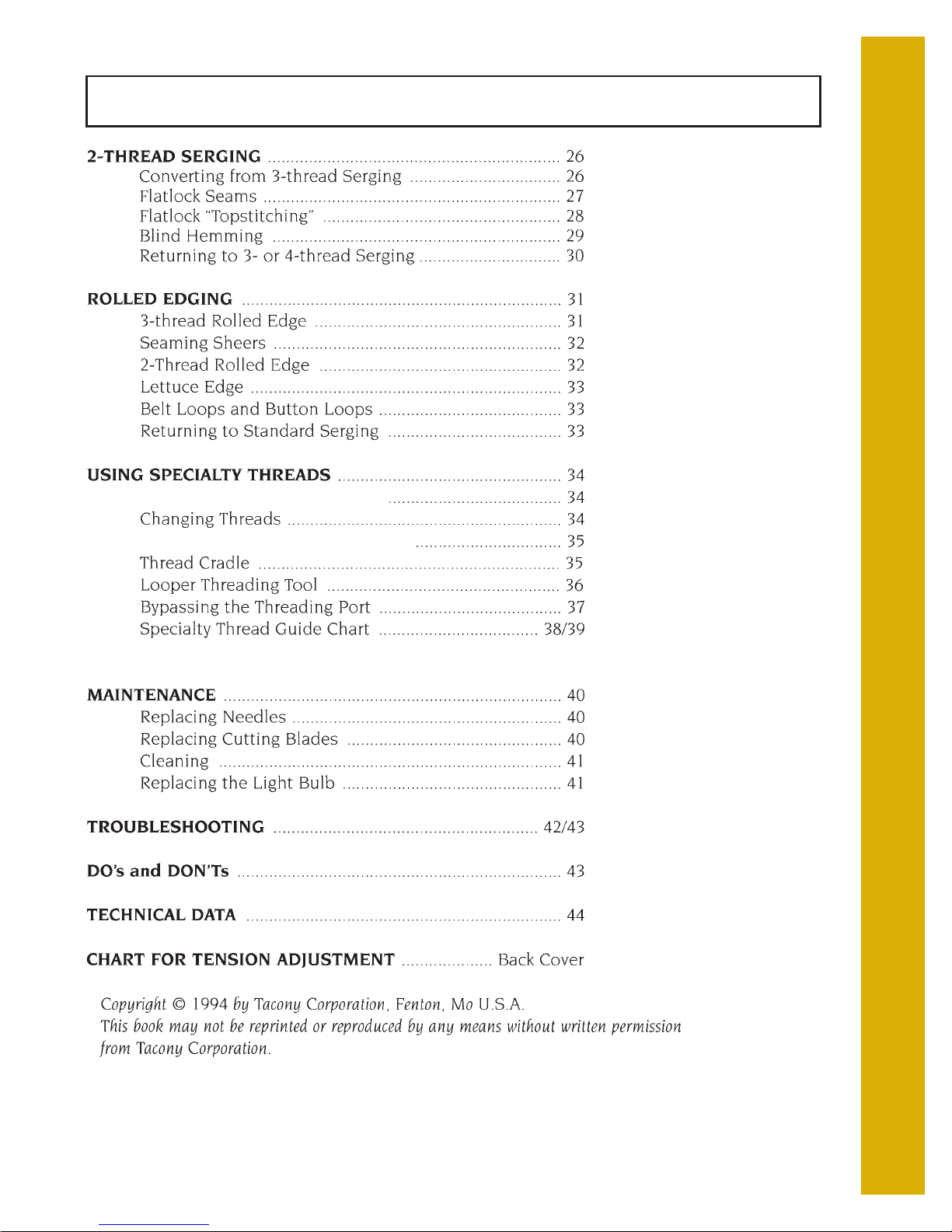

Table of Contents (Cont.) T

A

B

L

E

O

F

C

O

N

T

E

N

T

S

Threading Lightweight Thread

Threading Medium Weight Thread

4

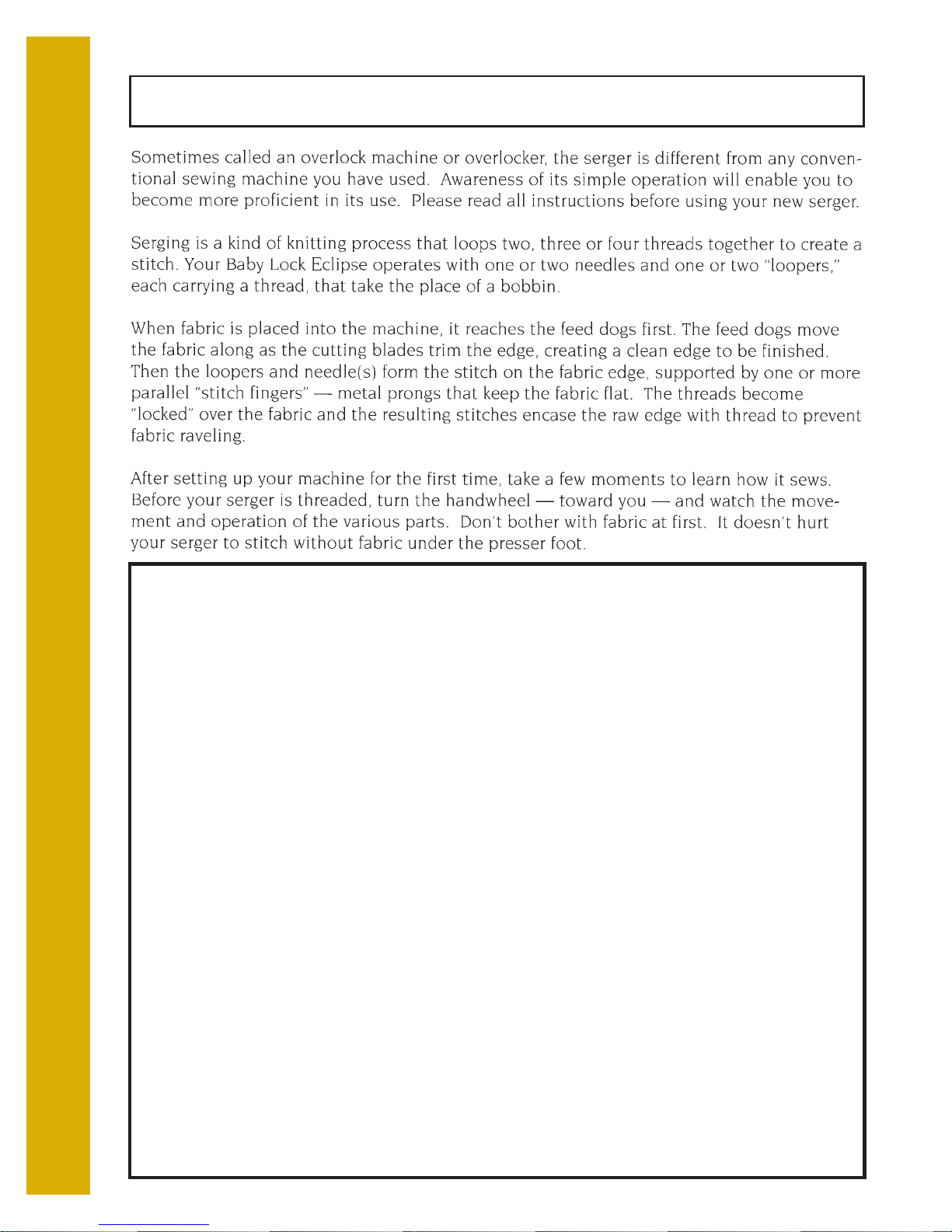

How Your Serger Operates

O

V

E

R

V

I

E

W

5

O

V

E

R

V

I

E

W

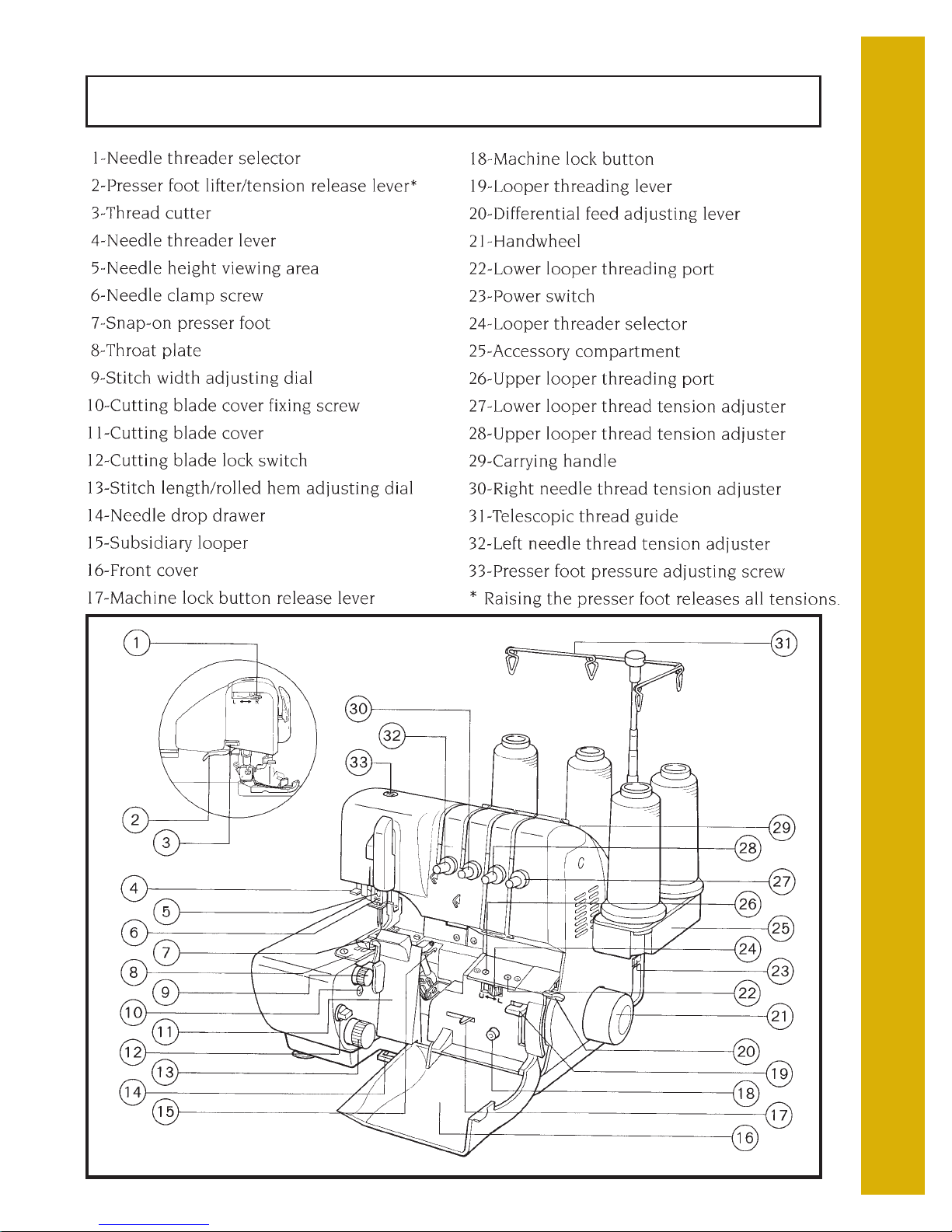

Overview of the Eclipse

6

A

C

C

E

S

S

O

R

I

E

S

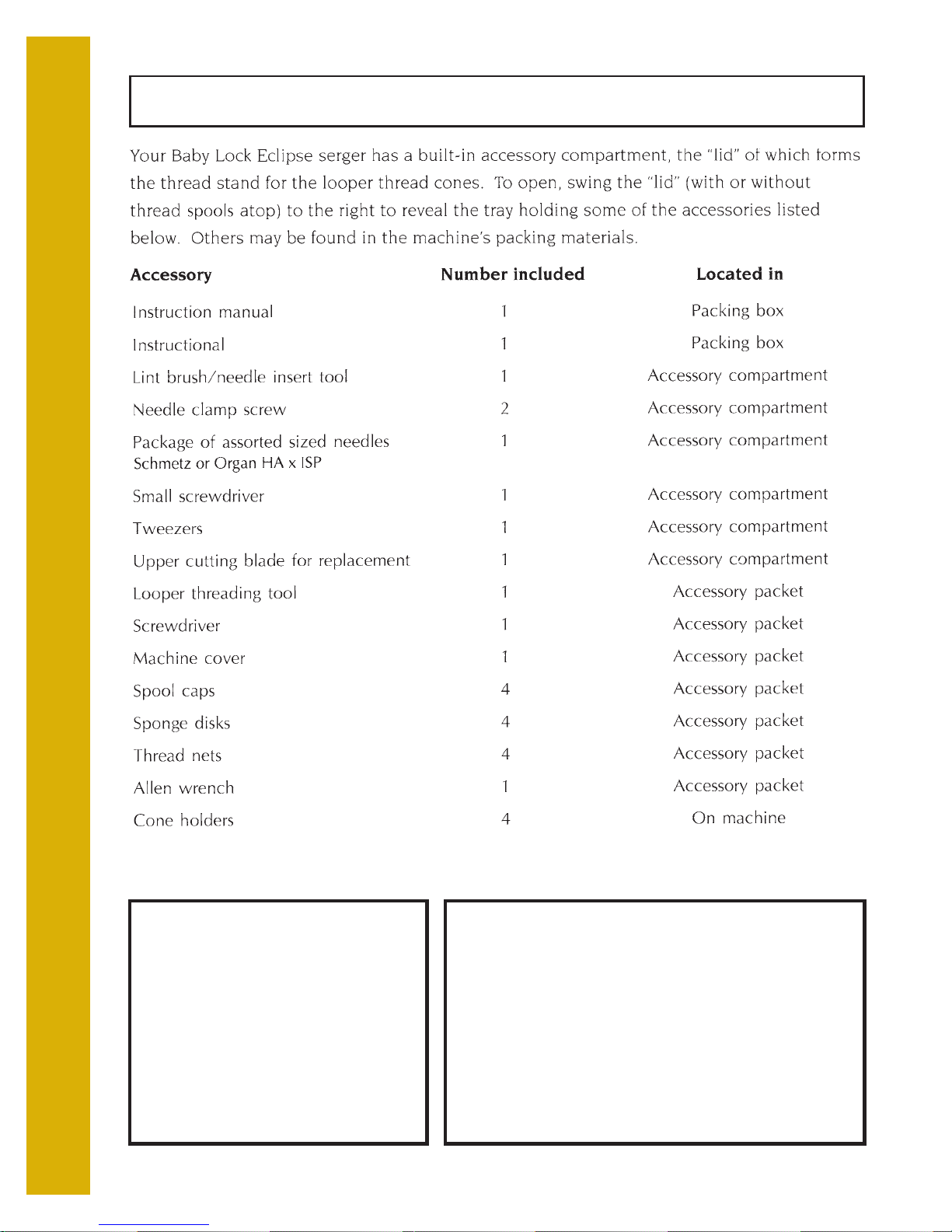

Accessories

DVD (U.S.A. only)

7

Needles

Optional Accessories

There are optional snap-on specialty feet available for the Eclipse. The optional accessories are

available at your Baby Lock retailer.

・Beading Foot R0-B5002-01A-C-E (BLE-BF)

・Blindhem Foot R0-B5002S02A-E (BLE-BLHFS)

・Clear Foot R0-B5002K01A-E (BLE-CLF)

・Cording / Piping Foot (3mm) R0-B5002-02A-C-E (BLE-CF3)

・Cording / Piping Foot (5mm) R0-B5002-03A-C-E (BLE-CF5)

・Elastic Applicator Foot R0-B5002S01A-E (BLE-EF)

・Flat Sole Foot R0-B5001K02B-C-E (BLE-FSF)

・Lace Applicator Foot R0-B5002S05A-E (BLE-LF)

・Rufﬂing Foot R0-B5002S03A-E (BLE-RF)

・Bulb Remover Tool R0-B7525-01A (262011)

・Size 90 Top Stitch Needle (T-90B)

Thread

A

C

C

E

S

S

O

R

I

E

S

8

After removing the packing materials from the box, gently lift your Baby Lock serger by gasping

the handle provided on the top of the machine. Place the machine on a serger sewing table or

any level surface that provides ample work area to the left of the machine. Place the foot control

in a pedal stay, if desired, and place if under the sewing table.

Plug the power cord into the machine ﬁrst, then into a wall outlet. The power switch is located

toward the back on the right side of the machine. Always make sure the power is OFF when the

machine is not in use (ﬁg.A).

Available foot control for U.S.A.: Model YC-482, or YC-420W

This appliance has a polarized plug (one blade wider than the other). To reduce the risk of

electric shock, this plug is intended to ﬁt in a polarized outlet only one way. If the plug does

not ﬁt fully in the outlet, reverse the plug. If it still does not ﬁt, contact a qualiﬁed electrician to

install the proper outlet. Do not modify the plug in any way.

The sewing speed of the machine is determined by the amount of pressure applied to the foot

control. When not in use, do not place anything on the foot control, or the machine could start

inadvertently and the foot control or motor could burn out (ﬁg.A).

Raise the telescopic thread guide to its highest position of 14". Rotate the shaft to the left and

right until each section "clicks" into a locked position (fig.B). The front cover may be opened

simply by placing your ﬁngers behind the tab at the right side and pulling toward you (ﬁg.C).

To open the cutting blade cover, place your thumb against the tab, and slide the cover to the

right. A slight pull forward will allow the cover to swing down, providing access to the loopers,

blades, and thread guides (ﬁg.D).

S

E

R

G

E

R

S

E

T

U

P

Setting Up Your Serger
