MODEL BL8800

SERVICE MANUAL

- 1 -

TABLE OF CONTENTS

A.REMOVING THE FRONT COVER............................. 2

B. REPLACING THE FRONT COVER........................... 4

1. HEIGHT OF NEEDLE BAR........................................ 5

2. GAP BETWEEN NEEDLE AND HOOK ..................... 6

3. TIMING OF THE HOOK............................................. 7

4. HEIGHT OF THE FEED DOG.................................... 8

5. NEEDLE PLATE AND NEEDLE POSITON ............... 8

6. TIMING OF THE FEED MOTION .............................. 9

7. ADJUSTING THE FORWARD AND REVERSE

STITCH ................................................................. 10

8. BOBBIN WINDER .................................................... 10

9. HEIGHT AND DIRECTION OF PRESSER FOOT ... 11

10. HEIGHT OF NEEDLE THREADER ....................... 11

11. ZIGZAG TIMING • NEEDLE STOP POSITION ..... 12

12. MOTOR BELT TENSION....................................... 12

13. TIMING BELT TENSION........................................ 12

14. BACKLASH OF HOOK GEAR ............................... 13

15. UPPER THREAD TENSION UNIT......................... 13

16. ADJUSTING THE LOWER THREAD TENSION.... 13

LOCATING THE DEFFECTED ELECTRICAL PART .. 14

The self-diagnostic program......................................... 14

HOW TO CHECK......................................................... 14

a. Frequency of power line........................................... 14

b. Condition of switches and sensors .......................... 15

b-1. Adjustment for buttonhole lever position............... 16

c. Phase of feed pulse motor ....................................... 17

d. Phase of zigzag pulse motor.................................... 17

e. Condition of foot controller and speed control lever. 17

WARNING MESSAGES ON LCD ................................ 17

TROUBLE SHOOTING OF ELECTRICAL PARTS...... 18

fig. A-1

fig. A-2

fig. A-3

fig. A-4

fig. A-5

- 2 -

A.REMOVINGTHE FRONT COVER

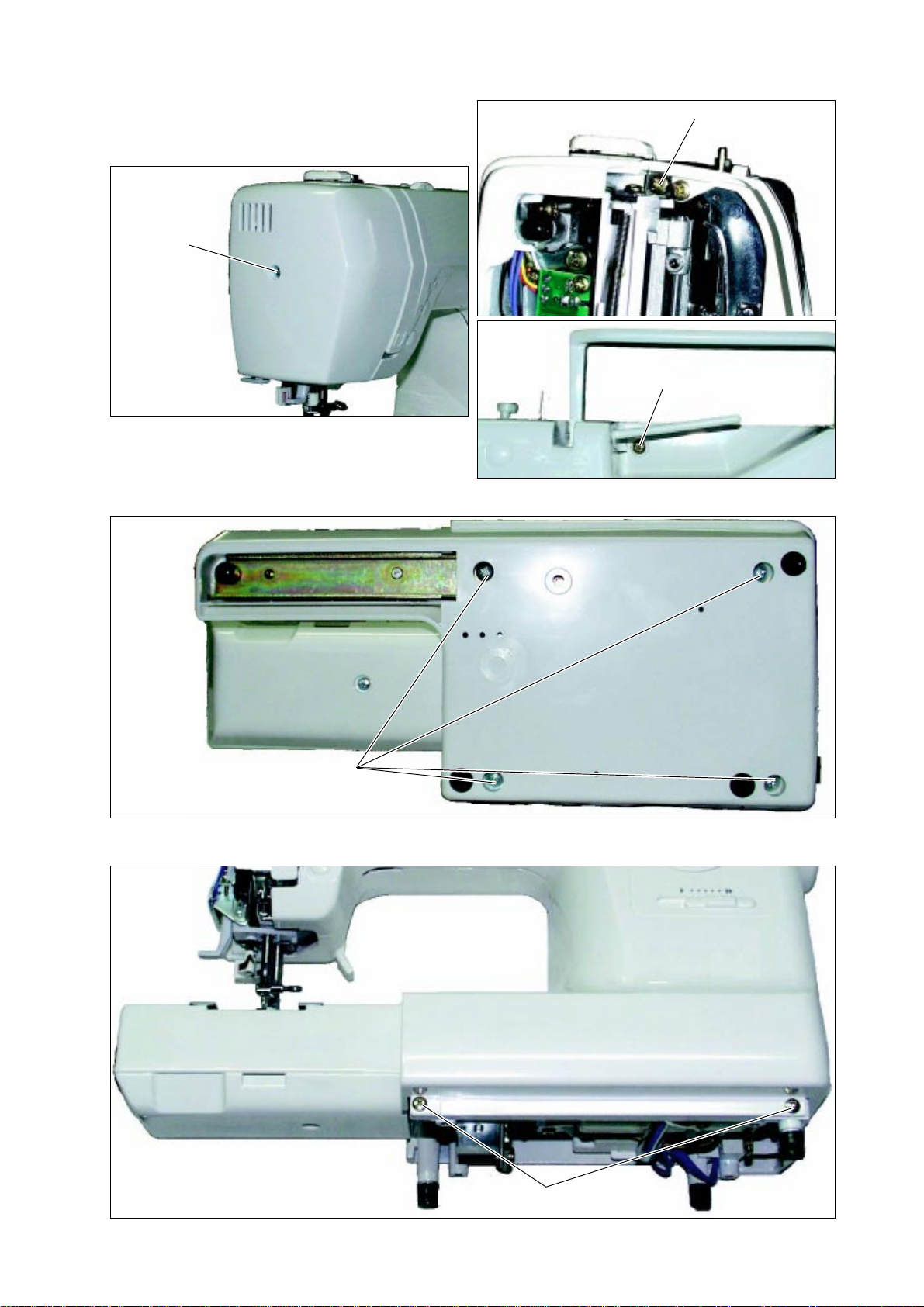

1. Remove the set screw (a) and the light cover. (fig. A-1)

2. Remove the left side screw (b) inside the thread take

up lever cover. (fig. A-2)

3. Remove the screw (c) located on the backside of

machine, above the spool pin. (fig. A-3)

4. Tilt the machine backward.

Remove the 4 screws (d) and base. (fig. A-4)

5. Remove the 2 screws (e) on the bottom of front cover.

(fig. A-5)

fig A-6

fig A-7

fig A-8

fig A-9

- 3 -

6. Stand up the machine.

The terminal cover will come out.

Insert the screwdriver into the hole of machine from

backside.

Hook the tip of driver into the groove of forward-

reverse adjusting knob (f). (fig A-6)

Slide them to the left and remove the knob.

7. Hook the tip of screwdriver to the front cover holder (g)

and pull down. (fig. A-7)

8. Tilt the machine backward again.

Hold the machine casting and push the left bottom

corner (h) of front cover upward. The hook inside of the

cover will come off. (fig. A-8)

9. Bring up the front cover carefully.

Disconnect the two cord connectors (i, j) from the CPU

curcuit board. (fig. A-9)

Terminal

cover

fig. B-1

fig. B-2

fig. B-3

fig. B-4

fig. B-5

- 4 -

B. REPLACINGTHE FRONT

COVER

1. Lower the presser foot lifter (k).

Turn the hand wheel toward you until the thread take-

up lever (l) rises to its highest point. (fig. B-1)

2. Connect the two cord connectors (i, j) from front cover

to the CPU circuit board on machine. (fig. A-9)

3. Set the front cover onto the machine casting so that

the tip of thread tension relasing lever (m) should be

hooked into the notch of tension guide (n). (fig. B-

2,3,4)

Check that the tension releasing mechanism has been

connected certainly.

4. Press the left side of front cover downward so that the

hook inside of cover will snap into a place.

5 Tighten the 2 screws (e) onto the bottom of front cover.

(fig. A-5)

6. Push up the front cover holder (g). (fig. A-7)

7. Insert the forward-reverse adjusting knob (f) into the

hole with the hook facing forward. (fig. B-5)

8. Replace the terminal cover and base, and tighten 4

screws (d) onto the base. (fig. A-4)

9. Tighten the screw (c) onto the back of machine. (fig. A-

10.Tighten the screw (b) onto the take-up lever cover. (fig.

A-2)

11. Replace the light cover and screw (a). (fig. A-1)

fig. 1-1

fig. 1-2

fig. 1-3

5.2±0.2 mm

- 5 -

1. HEIGHT OF NEEDLE BAR

Height of needle bar could be the cause for stitches to

skip. Check as the following procedures.

1. Set the pattern number at “2” which is straight stitch on

center needle position.

2. Raise the needle bar to its highest point by turning the

handwheel toward you. Remove the presser foot.

Remove the set screw (a) and needle plate. Lift up the

bobbin holder and remove it. (fig. 1-1)

3. Turn the handwheel toward you until the needle comes

to its lowest point.

Then, the spacing between the surface of hook race

and the top edge of needle eye must be 5.2±0.2 mm.

(fig. 1-2)

(= Turn the handwheel until the top edge of needle eye

is aligned with the surface of hook race, at this time the

needle bar should be rising 5.2±0.2 mm from its lowest

point.)

If this spacing is not correct, adjust as follows.

4. Remove the light cover.

5. Lower the needle to its lowest point by turning the

handwheel.

6. Loosen (not remove) the screw (b) on the needle bar

holder. (fig. 1-3)

Raise the needle bar until the needle eye is aligned

with the hook race. Then, lower the needle bar 5.2 mm

and re-tighten the screw (b).

CAUTION: DO NOT change the needle bar direction at

this adjustment. The long groove of needle must be

facing frontwards.

fig. 2-1

fig. 2-2

0.02-0.1 mm

fig. 2-3

fig. 2-4

- 6 -

2. GAP BETWEEN NEEDLE AND

HOOK

If the needle hits aginst the hook, it may be the cause of

needle and thread breakages. If the gap between needle

and hook is too big, it will cause to skip stitches. Check

and adjust as follows:

Prior to make this adjustment, check that the needle is not

bent and the needle is inserted correctly.

1. Remove the needle plate and bobbin holder. (See Sec.

1-2)

2. Set the pattern number at “1” . (Straight stitch on left

needle position)

3. Turn the handwheel toward you until the needle will

cross over the hook. (fig 2-1)

Then, check the gap between needle and hook is

about 0.02 to 0.1 mm. (fig. 2-2)

If the needle is hitting against the hook or if the gap is too

much, adjust as follows:

4. Remove the light cover.

5. Remove the cap on the back side of machine. (fig. 2-3)

6. Loosen (do not remove) the lock screw with a hexagon

socket screw key (3 mm). (fig.2-4)

Adjust the gap by turning the adjusting nut (a) with an

open ended spanner (10 mm).

- If the gap is too big, turn the nut upward.

- If the needle is hitting the hook, turn the nut

downward.

When correct gap is obtained, hold the nut and

retighten the lock screw. Check the gap again.

7. Replace the cap and light cover. Replace the bobbin

holder and needle plate.

fig. 3-1

fig. 3-2

fig. 3-3

fig. 3-4

1.5-2.0 mm

- 7 -

3.TIMING OFTHE HOOK

Prior to making this adjustmetnt, be sure that the needle

bar is set at the correct height. (See sec. 1)

Check the timing of hook as follows:

1. Remove the needle plate and bobbin holder. (See sec.

1-2)

2. Set the pattern number at “1”. (Straight stitch on left

needle position)

3. Turn the handwheel toward you until the needle is at

its lowest point.

4. Then, turn the handwheel slowly to turn the hook

counter-clockwise until the tip of hook is aligned with

the right side of needle. (fig. 3-1)

At this time, the gap between the tip of hook and the

top edge of needle eye should be 1.5 to 2.0 mm.

If the gap is too small or too large, adjust as follows:

5. Tilt the machine backward.

Remove the bed lid by removing the screw (a) and

sliding bed lid to the left. (fig. 3-2)

6. Loosen the two screws (b) on the lower shaft gear with

a hexagon socket screw key (2.5 mm). (fig. 3-3)

7. Turn the hook race by hand so that the tip of hook will

align with the right side of needle.

In this position, hold the race with your left hand and

turn the handwheel toward you to obtain the correct

gap (1.5 to 2.0 mm). (fig. 3-4)

8. Tighten the screws (b) and check the timing again.

9. Replace the bed lid, bobbin holder and needle plate.

fig. 4-1

fig. 4-2

0.8+0.05 mm

-0

fig. 5-1

fig. 5-2

- 8 -

4. HEIGHT OFTHE FEED DOG

If the feed dog does not come up over the needle plate

enough, it will result in insufficient and/or uneven feed of

fabrics.

The feed dog should come up over the needle plate

0.8+0.05 -0 mm. (fig. 4-1)

If it does not come up enough, adjust as follows:

1. Tilt the machine backward and remove the bed lid by

removing the screw and sliding it to the left. (See sec.

3-5)

2. Lower the presser foot lifter. Turn the handwheel until

the feed dog comes to its highest position.

3. Loosen the lock nut (a). Adjust the height of the feed

dog correctly by turning the inner screw (b). (fig. 4-2)

4. Hold the screw (b) and re-tighten the lock nut (a).

5. Re-check the height and motion of feed dog by turning

the handwheel.

5. NEEDLE PLATE AND NEEDLE

POSITON

When the zigzag width is set at maximum, the needle

should fall evenly into the both sides of needle plate hole (

the distance needle and edge of hole at each side). (fig.

5-1) If it is not so, adjust as follows:

1. Set the pattern number at “4” and stitch width to 5.

2. Remove the presser foot and the light cover.

3. Loosen the screw (a) located on the top of the needle

bar guide assembly. (fig. 5-2)

By slightly moving the needle bar left or right, adjust

the needle position so that the needle falls evenly into

the hole.

4. Tighten the screw (a) and re-check the position of

needle.

fig. 6-1

fig. 6-2

fig. 6-3

- 9 -

6.TIMING OFTHE FEED MOTION

If the feed motion is too fast of foo slow, it will be the

cause of fabfic puckers or needle breakage. Check and

adjust the feed timing as follows:

1. Tilt the machine backward and remove the bed lid by

removing the screw and sliding it to the left. (sec. 3-5)

2. Check that the guide-lines on the lower shaft and feed

cam should be aligned. (fig. 6-1)

If it is not so, adjust as follows.

3. Loosen the two screws (a) on the feed cam with a

hexagon socket screw key (2 mm).

Hold the feed cam with a screw key and turn the

handwheel either direction until the guide lines on the

lower shaft and feed cam are aligned.

4. Tighten the screws (a).

Next, check the timing of the up-down movements.

5. Turn the handwheel toward you until the needle comes

to its lowest position.

At this time, the guide-line on the feed rock cam should

be coming to its lowest point. (fig. 6-2)

If not, adjust as follows:

6. Remove the base.

Loosen the two screws (b) on the belt pulley with a

hexagon socket screw key (2 mm). (fig. 6-3)

7. Turn the lower shaft so that the guide line comes to its

lowest point.

At this point, hold the lower shaft with a pair of pincers

not to retate and turn the handwheel until the needle

comes to its lowest position.

8. Tighten the two screws (b).

9. When you have adjusted the timing of up-down

movement, check the timing of hook again. (sec. 3)

Guide Line

Inhaltsverzeichnis

Andere Baby Lock Nähmaschine Handbücher

Baby Lock

Baby Lock GOLD Ellisimo II BLSOG2 Montage- und Bedienungsanleitung

Baby Lock

Baby Lock Crescendo BLCR Technisches Handbuch

Baby Lock

Baby Lock Destiny BLDY Technisches Handbuch

Baby Lock

Baby Lock Ellisimo BLSO Bedienungsanleitung

Baby Lock

Baby Lock Diana BL480A Montageanleitung

Baby Lock

Baby Lock Euphoria BLC4 Technisches Handbuch

Baby Lock

Baby Lock Crown Jevel Konfigurationshandbuch

Baby Lock

Baby Lock Jazz BLMJZ Technisches Handbuch

Baby Lock

Baby Lock Creative Pro Installationsanleitung

Baby Lock

Baby Lock BLE1 Bedienungsanleitung

Baby Lock

Baby Lock Coronet BLCT16A Technisches Handbuch

Baby Lock

Baby Lock Creative Pro Konfigurationshandbuch

Baby Lock

Baby Lock Enterprise BNT10-U Bedienungsanleitung

Baby Lock

Baby Lock esante BLN Bedienungsanleitung

Baby Lock

Baby Lock Eclipse SX BLE1SX-2 Technisches Handbuch

Baby Lock

Baby Lock Quilter's Choice Professional BLQP Technisches Handbuch

Baby Lock

Baby Lock Quest BLQ2 Bedienungsanleitung

Baby Lock

Baby Lock Endurance BND9 Bedienungsanleitung

Baby Lock

Baby Lock BLRK3-HSLA Bedienungsanleitung

Baby Lock

Baby Lock Endurance II BND9-2 Bedienungsanleitung

Baby Lock

Baby Lock Solaris VISION BLSA3 Bedienungsanleitung

Baby Lock

Baby Lock Destiny II Bedienungsanleitung

Baby Lock

Baby Lock Aventura BLMAV Bedienungsanleitung

Baby Lock

Baby Lock Embroidery Professional BMP8 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung
