Baratza Maestro Bedienungsanleitung

Conical Burr Coffee Grinder

Operations Manual

Table of Contents

Introduction ............................................................................................. 1

Table of Contents .................................................................................... 2

Parts Identication .................................................................................. 3

Safety Information.................................................................................... 4

Initial Operation ....................................................................................... 5

Setting the Grind Control ........................................................................ 5

On/Off Switch.......................................................... 6

Care and Cleaning .................................................................................. 7

Cleaning the Housing and Hopper .............................................. 7

Cleaning the Burrs ...................................................................... 7

Remove the Ring Burr ................................................................ 7

Replacing the Ring Burr ............................................................. 8

Cleaning the Discharge Chute ................................................ 8

Replacing the Bean Hopper ....................................................... 8

Automatic Cleaning .................................................................... 9

Troubleshooting .................................................................................... 10

Warranty and Service ........................................................................... 11

Notes .....................................................................................................12

BEFORE USING YOUR GRINDER

Prior to using your Maestro Plus grinder for the rst time you should

wash the bean hopper and ground coffee bin in warm soapy water. See

the section on Care and Cleaning for instruction on how to remove and

reinstall these parts.

Parts Identication

Whole Bean Hopper

Grind Adjustment Scale

On Off Switch

Ground Coffee Bin

Hopper Lid

Burr Alignment and Lifting Tabs

Removable Ring Burr

Silicone Seal (cutaway)

Grind Adjustment Ring

Grind Adjustment Tab

Grind Setting Indicator

Center Cone Burr

•

••

•

Important Information

Please read the information below very carefully. It contains im

portant tips for the use, the safety and the maintenance and care

of this appliance. Please keep these operating instructions for

future reference.

Use only with 120-Volt current. Use only on alternating current

(AC).

Only clean the grinder housing with a dry or slightly damp cloth.

Do not use this grinder for anything other than its intended use

(i.e. grinding whole roasted coffee beans).

Disassemble your grinder only as directed in the care and clean

ing section of this manual. If you cannot remedy a malfunction

check www.baratza.com and visit our FAQ page. If you need fur

ther assistance e-mail us at suppor[email protected] or call us at

877-701-2021.

Baratza will not accept any liability for damage or injury if the

grinder is used other than for its intended purpose or is

improperly operated or repaired. All warranty claims will be void.

For Your Safety

Do not operate the grinder with a damaged cord or plug, or if

the grinder malfunctions.

Do not leave your grinder unattended while turned ON.

Shut off and unplug the grinder from the electrical outlet when

not in use and before cleaning.

To unplug, grasp plug and remove from the outlet-never pull on

cord.

Keep your grinder out of the reach of children.

Do not immerse the grinder, plug or cord in water or any other

liquid.

Caution

Always unplug the electrical supply cord prior to cleaning.

�

•

Initial Operation

Place the Maestro Grinder on a level surface. Insert the plug into a

120V AC outlet. Remove the lid from the hopper by lifting off. Pour the

desired quantity of roasted whole coffee beans into the hopper up to a

maximum of 8 oz. Replace the lid. Ensure the ground coffee bin is fully

inserted.

Setting the Grind Control

Slowly rotate the bean hopper

clockwise or counter clockwise

to align the indicator on the bean

hopper with the desired number

setting on the grind scale. Select

the correct grind for the brew pro-

cess you are using. 40 grind set-

tings are available. The settings

shown in the table below can be

used as a general guideline. The actual grind size for a particular setting

will vary depending on many factors, including: degree of roast (light vs.

dark), freshness, humidity, type of bean, oil content, etc. With use, you

will determine the setting that is right for your taste, brewing style and

your favorite beans.

Note: Partially ground coffee beans may remain between the burrs after

the grinder is turned off, adjusting the grind may be easier when the

grinder is running. Avoid running the grinder at very ne settings without

bean as it can damage the burrs.

Setting Type of Coffee Grind

1 to 14 Espresso Fine

16 to 32 Filter / Drip Medium

34 to 40 Press Coarse

Switch Operation

The Maestro is equipped with a specially

designed On/Off switch. You may rotate the

switch clockwise or counter clockwise from

any position without damaging it.

The quantity of ground coffee you need

depends on the type of bean, coarseness of

the grind, brewing method and personal taste.

With use, you will determine the amount of time it takes to grind the

quantity of coffee you need.

Grinding into an espresso-basket

Remove the grounds bin and position the

espresso-basket inside the grinder directly

below the discharge chute. Turn the switch on

until you have the desired quantity of coffee.

Note: It is important that the

espresso basket is held below

the discharge chute so the coffee

powder can free fall into the basket.

Holding the basket up tight to the

discharge chute will cause coffee to

back up and jam your grinder.

Care and Cleaning

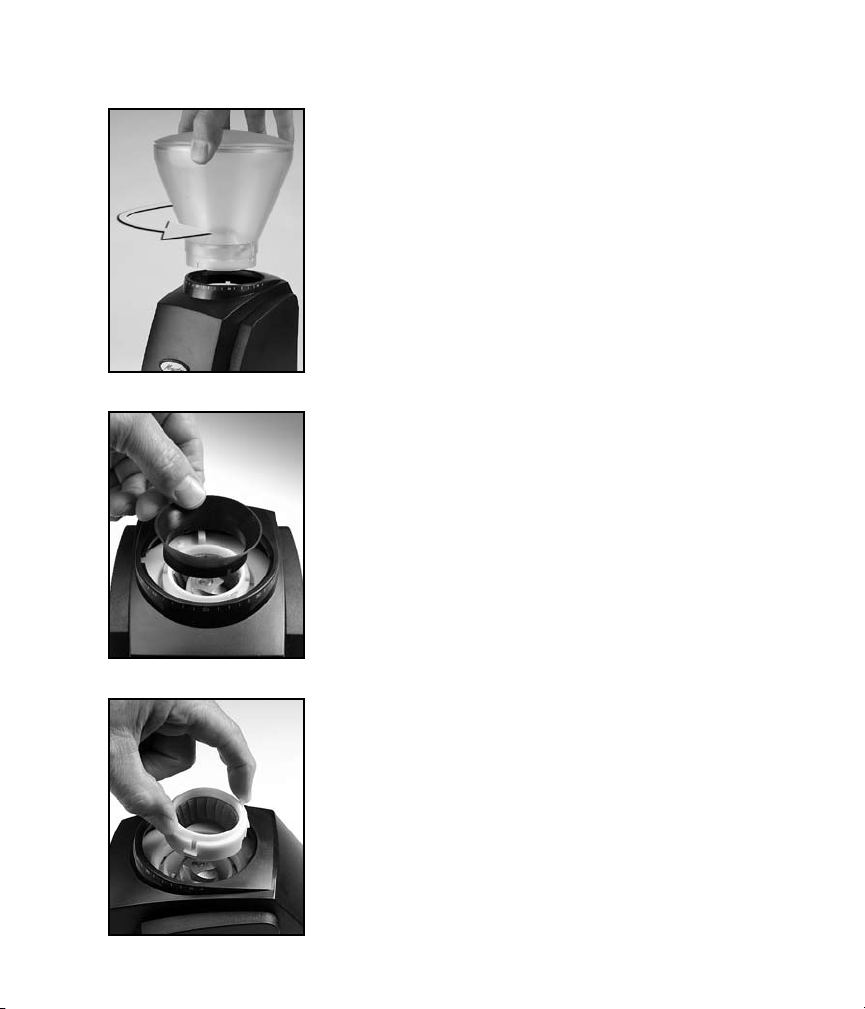

Cleaning the Housing and Hoppers

Switch the grinder off and remove the plug

from the power supply. Remove any remaining

beans from the bean hopper (it may be easiest

to tip the grinder over and pour the beans into

a bowl.). Remove the hopper by twisting it in a

counterclockwise direction as far as it will turn,

and then lift the bean hopper from the housing.

Wash the hopper, hopper lid, and ground coffee

bin in warm soapy water, rinse and dry.

Caution

Do not put the bean hopper, hopper lid, or

ground coffee bin in the dishwasher. Hand wash

only. Do not immerse the grinder housing in

water.

Cleaning the Burrs

If the grinder is used daily, the burrs should be

cleaned every few weeks. Cleaning enables the

burrs to achieve the most consistent grind pos-

sible. Cleaning also removes coffee oils, which

can degrade the avor of the ground coffee. Do

not wash the burr.

Remove the Ring Burr

Pull the silicone seal off the top of the ring Burr.

Remove the ring burr by lifting it straight up out

of the grinder by the lifting tabs. If the burr does

not lift out, ensure that the grind adjustment tab

is turned fully counterclockwise.

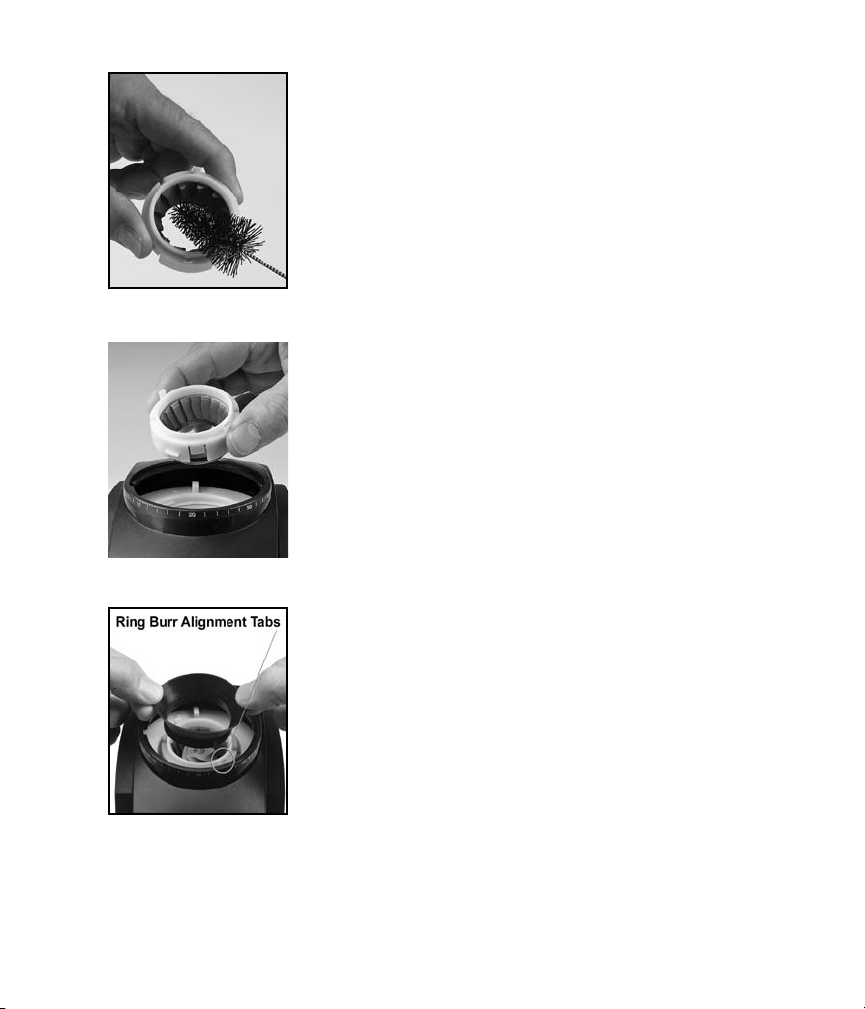

Cleaning the Ring Burr

Use the bristle brush (included with your grinder)

to remove any loose coffee residue on the ring

burr, the center cone burr and in the adjustment

area. Vacuum or blow out the residual coffee.

Wash the silicone seal in warm soapy water and

dry.

Replacing the Ring Burr

Replace the ring burr by lining up the red tab on

the ring burr with the red arrow on the adjustment

ring, if it is not aligned rotate the adjustment ring

fully counter clockwise. Wiggle and push down

rmly on the ring burr to ensure that it seats prop-

erly.

Replacing the Silicone Seal

After replacing the ring burr, replace the silicone

seal by lining up the two slots in the silicone seal

with the small tabs on the top of the ring burr and

slide the seal onto the ring burr.

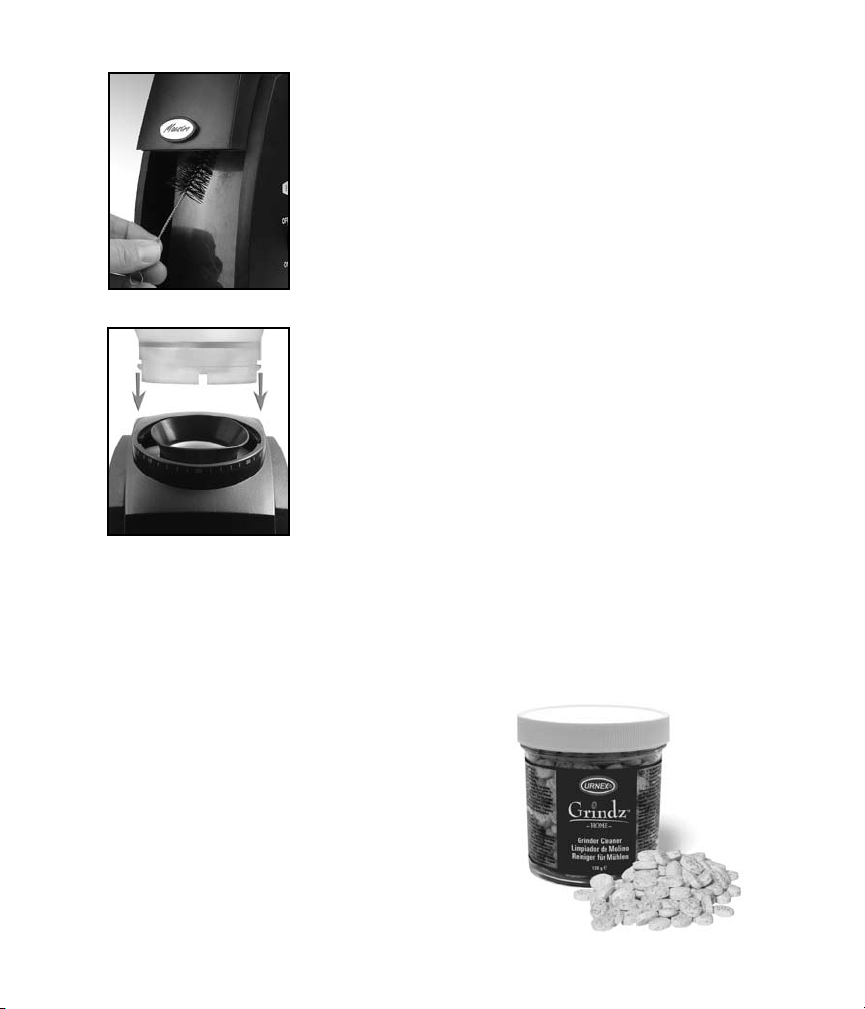

Clean the Coffee-Dispensing Chute

Remove the grounds bin. Using your bristle

brush, clean out any coffee grounds that may

be accumulating in the coffee-dispensing chute.

Clean out any ground coffee that has fallen in the

bin area. Replace the the grounds bin.

Replacing the Bean Hopper

To replace the bean hopper, line up the two tabs

on the base of the hopper (with the small tab on

the right side) with their respective slots in the

top of the grinder housing and insert the hop-

per into the grinder. Once the hopper is in place

rotate it clockwise to your desired grind setting.

Automatic Cleaning

A thorough, fast, and easy cleaning can be ac-

complished using Grindz™ grinder cleaner. Grindz™ is a product

designed to dislodge coffee particles and absorb and remove odors and

coffee oil residue. Simply place the recommended amount of Grindz™

(2 Tbs. ) into the empty grinder hopper. Adjust grind setting to 20, and

operate as if grinding coffee beans until all

of the Grindz™ has been ground. Once

complete, we recommend passing twice

as much coffee (4 Tbs.) through to remove

any Grindz™ residue. Discard the ground

coffee. For information on Grindz™ go to

www.urnex.com.

Grindz™ can be purchased at www.

baratza.com

Troubleshooting

For a complete and updated troubleshooting guide go to www.baratza.

com FAQ section.

Grinder does not run when switched on.

Insure the hopper is correctly in place and rotated at least

two clicks clockwise (set to a number less than 40).

Check the wall outlet with another appliance

Grinder runs when switched on, but coffee does not grind.

The grinder is jammed with coffee. Go to www.baratza.com for

detailed instructions to clean out the grinding chamber.

Grinder is operating normally, but stops abruptly.

Immediately turn off the grinder. A foreign object, such

as a pebble, green unroasted coffee bean or a twig, may

have jammed the burrs. See “Cleaning the Burrs”.

The grind is not ne enough or coarse enough.

Check the grind adjustment. If that does not solve the adjust

ment issues, the burrs could be warn and need to be replaced.

If you have additional questions, please check www.baratza.com

where we answer many frequently asked questions.
