Barbeques Galore G4ARCM Bedienerhandbuch

Page 1

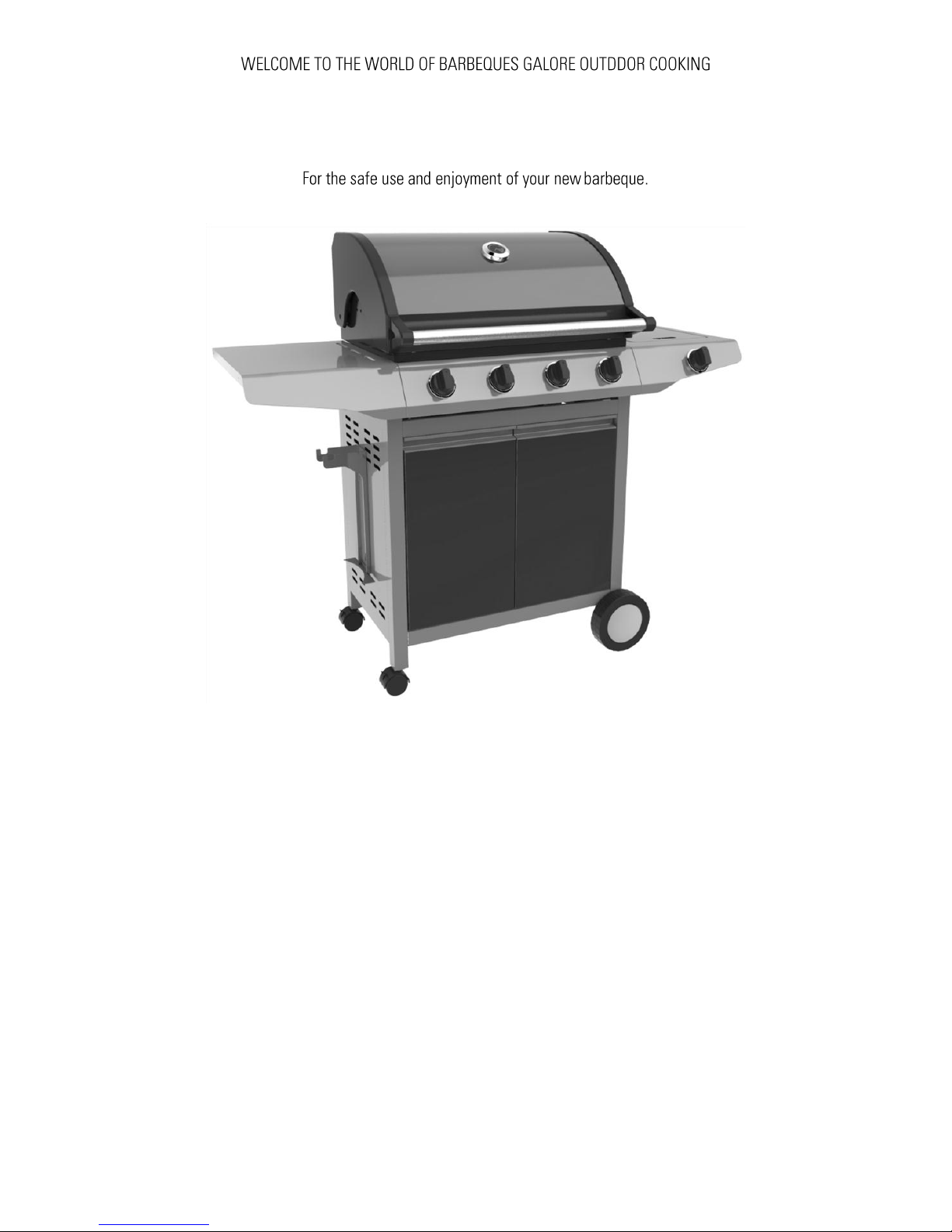

INSTRUCTIONS FOR ASSEMBLY AND USE OF

ARCOBELLE 4B BBQ ON SIDE BURNER CART BARBEQUES

These instructions contain important information that needs to be followed for the safe assembly and use of your

new barbeque. Please read through carefully and completely prior to assembly.

Take care to remove all packaging materials and protective coatings from the barbeque

before first use.

For Barbeque Models: G4ARCM

Tools required:

2 x adjustable spanners

1 x Phillips head screwdriver

1 x Regular screwdriver

IMPORTANT: READ ALL OPERATING INSTRUCTIONS BEFORE LIGHTING.

By following these instructions for safe and easy operation, you will enjoy years of

satisfying, trouble free outdoor cooking. And when you’re fully up and running, you can

visit your retailer for some great accessories and cooking tips to make your experience

even more rewarding. But first things first....

Page 2

Safety warnings

HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF THESE INSTRUCTIONS ARE IGNORED

It is the consumer’s responsibility to see that the barbeque is properly assembled, installed, and taken

care of. Failure to follow the instructions in this manual could result in bodily injury and/or property damage.

FOR YOUR SAFETY IF YOU SMELL GAS:

1. Turn “OFF” gas supply at bottle.

2. Turn the control knobs to “OFF” position.

3. Open barbeque hood

4. Extinguish all naked flames; do not operate any electrical appliances.

5. Ventilate the area.

6. Check for leaks as detailed in this manual whenever the gas cylinder is replaced or reconnected.

If odour continues or you have a fire you cannot extinguish, call your fire department.

Do not call from near the LPG gas cylinder because your telephone is an electrical device and could

create a spark resulting in fire and or explosion.

PRECAUTIONS:

1. Leak test all connections after each cylinder refill.

2. Never check for leaks with a lit match or open flame.

3. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other

appliance.

4. Any LP cylinder not connected for use, shall not be stored in the vicinity of this or any other gas,

electrical or motorised appliance.

WARNINGS

THIS BARBEQUE MUST NOT BE USEDINDOORS.

DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET

DO NOT PLACE ARTICLES ONOR AGAINST THIS APPLIANCE

DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS, OR SPRAY AEROSOLS

NEAR THIS APPLIANCE

DO NOT OPERATE THE APPLIANCEINDOORS

DO NOT OPERATE IN AN ENCLOSED AREA

DO NOT OPERATE THIS APPLIANCE BEFORE LEAK CHECKING HOSES AND GAS

CYLINDER CONNECTION

DO NOT MOVE THE APPLIANCE DURING USE.

ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AND THE INFIRM

AT A SAFE DISTANCE AWAY.

ANY MODIFICATION OF THE APPLIANCE MAY BE DANGEROUS.

TURN ALL GAS VALVES “OFF” INCLUDING THE GAS CYLINDER AFTER USE.

This barbeque has not been approved for marine use.

Page 3

Safety warnings (continued)

Do not perform any servicing on the barbeque yourself. This includes internal

adjustment of the regulator and gas valves. Servicing can only be carried out by

authorised technicians.

It is important that you install your barbeque exactly as described in these instructions.

In particular: you should keep the barbeque clear of combustible material, and you

should check for leaks whenever a new connection is made.

It is a good idea to tie back long hair and loose clothing while cooking in case of

unexpected flare ups.

Fat fires are the most common cause of problems in barbeques. They are caused by a

build-up of grease in the drip tray and the inside of the barbeque frame. A fat fire can

be difficult to put out, and will be dangerous if it spreads to the gas hose. You should

keep your barbeque clean to avoid this occurrence.Fat fire damage is not covered

under warranty. In case of fat fire, turn cylinder off. Do not try and extinguish with

water.Call the fire brigade.

Do not transport the barbeque whilst it is hot because there is a risk that the contents

of the grease cup will fall out.

NEVER leave a barbeque unattended with any burners switched on. Always switch off

all burners and cylinders when the barbeque is not in use.

Take care when touching a hot barbeque, especially on surfaces close to the firebox or

roasting hood.

Particular care must be taken when removing d

the rip tray. Hot fat can cause

serious injury. Let the barbeque cool completely before removing the fat tray.

It is fine to pre-heat with all burners on HI and the hood closed, but NEVER let the

temperature on the hood thermometer exceed 250ºC .

When cooking with the hood closed, turn one or more burners to LO or OFF as

required to keep the barbeque from getting too hot. NEVER let the temperature on the

hood thermometer exceed 250ºC .

NEVER leave all burners on HI for more than 15 minutes, always stay in control by

adjusting burners to LO and OFF as required to maintain suitable cooking

temperatures.

If the burner makesa hissing sound when lit, it may be burning internally. Turn burner off,

allow it to cool and try again.

Follow all manufacturers’ instructions to periodically check for gas leaks.

Do not allow build up of unburned gas.

Strong winds and low temperatures can affect the heating and performance of your gas

grill so factor in these elements when positioning your grill outdoors for cooking.

Never use your gas grill in a garage, porch, shed, breezeway or any other enclosed area.

Your gas grill is to be used outdoors only, at least 60cm from the back and side, 100cm

from above of any combustible surface. Your gas grill should not be placed under any

surface that will burn. Do not obstruct the flow of ventilation air around the gas grill housing.

This gas grill is not intended to be installed in or on recreational vehicles and/or boats.

Page 4

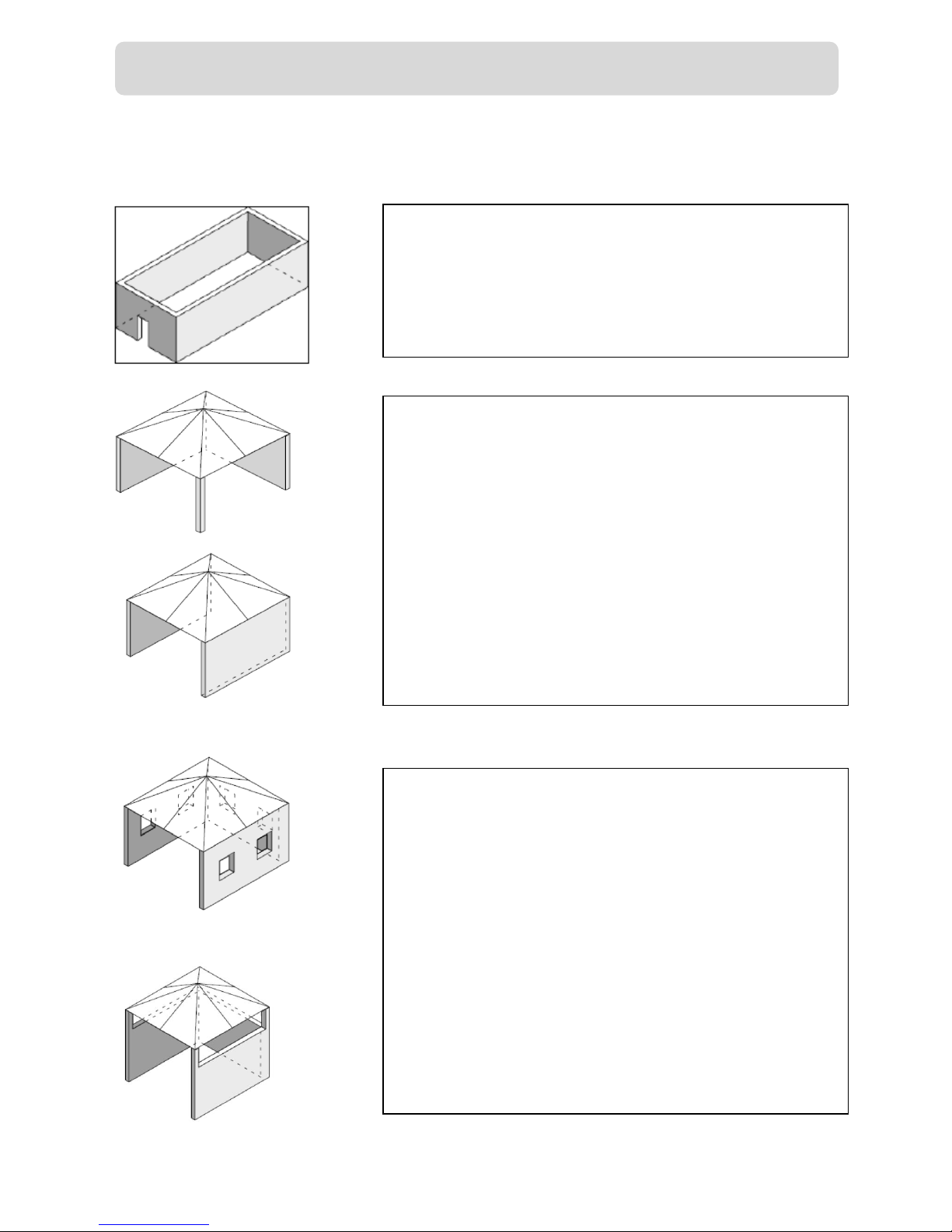

Where to put your barbeque

This barbeque must only be used in an above ground, open air situation with natural

ventilation, without stagnant areas, where gas leakage and products of combustion are

rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is

used must comply with one of the following:

(2) Within a partial enclosure that includes an overhead

cover and no more than two walls.

(1) Any enclosure with walls on all sides, but at

least one permanent opening at ground level,

and no overhead cover.

(3) Within a partial enclosure that includes an overhead

cover and more than two walls, the following shall apply:

(i) At least 25% of the total wall area is

completely open; and

(ii) At least 30% of the remaining wall area is

open and unrestricted.

(iii) In the case of balconies, at least 20% of the

total of the side, back and front wall areas

shall be and remain open and unrestricted.

Page 5

Where to put your barbeque (continued)

When used on the ground always place the appliance and cylinder on flat level ground.

NEVER light the GRILL with the HOOD in the closed position.

NEVER light the SIDE BURNER with the LID in the closed position.

Storage of Appliance

Storage of an appliance indoors is only permissible if the cylinder is disconnected and

removed from the appliance. When the appliance is not to be used for a period of time it

should be stored in its original packaging and stored in a dry and dust free environment.

This barbeque is designed to use outdoors, away from any flammable materials. It is

important that there are no overhead obstructions . It is important that the ventilation

openings of the appliance are not obstructed. The barbeque must be used on a level,

stable, heat resistant surface. The appliance should be protected from direct draughts and

shall be positioned or protected against direct penetration by any trickling water (e.g. rain).

Parts sealed by the manufacturer must not be altered by the user. No modifications should

be made to any part of this barbeque and repairs and maintenance should only be carried

out by an authorised service technician.

Connection to Appliance

Before connection, ensure that there is no debris caught in the head of the gas cylinder,

regulator, burner and burner ports. Spiders and insects can nest within and clog the

burner/venturi tube at the orifice. A clogged burner can lead to a fire beneath the

appliance.

Clean burner holes if necessary with a heavy-duty pipe cleaner.

Disconnect the regulator from the cylinder when the barbeque is not in use. Do not

disconnect the hose at the barbeque. If the hose is replaced fit the new hose to the

appliance using a spanner to tighten it onto the connection thread. Check for leaks.

Page 6

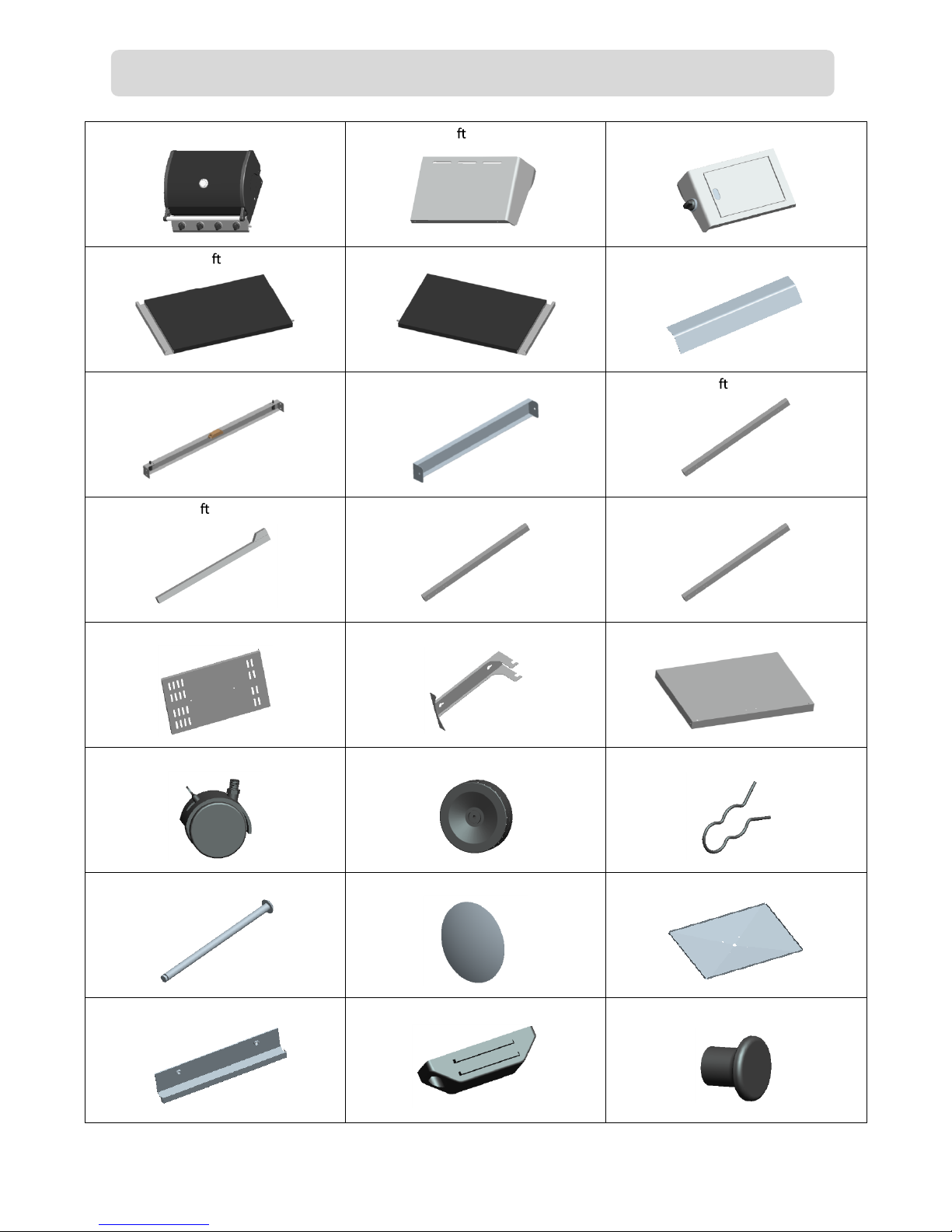

Contents list. Carefully unpack the carton and check all the parts:

1 x Firebox & Hood Assembly

1 x Le Side Shelf

1 x Right Side Burner & Shelf

1 X Le Door

1 X Right Door

4 X Flame Tamers

1 x Cross Brace

2 x Side Panel Braces

1 x Le Front Leg

1 x Le Rear Leg

1 x Right Front Leg

1 x Right Rear Leg

2 x Cart Side Panels

1 x Cylinder Hook

1 x Cart Base Panel

2 x Castors

2 x Wheels

1 x Locking Pin

1 x Axle

2 x Hubcaps

1 x Grease Channelling Tray

2 x Grease Channelling Tray

Brackets

1 x Magnet

1 x Grease Channelling Tray Handle

Page 7

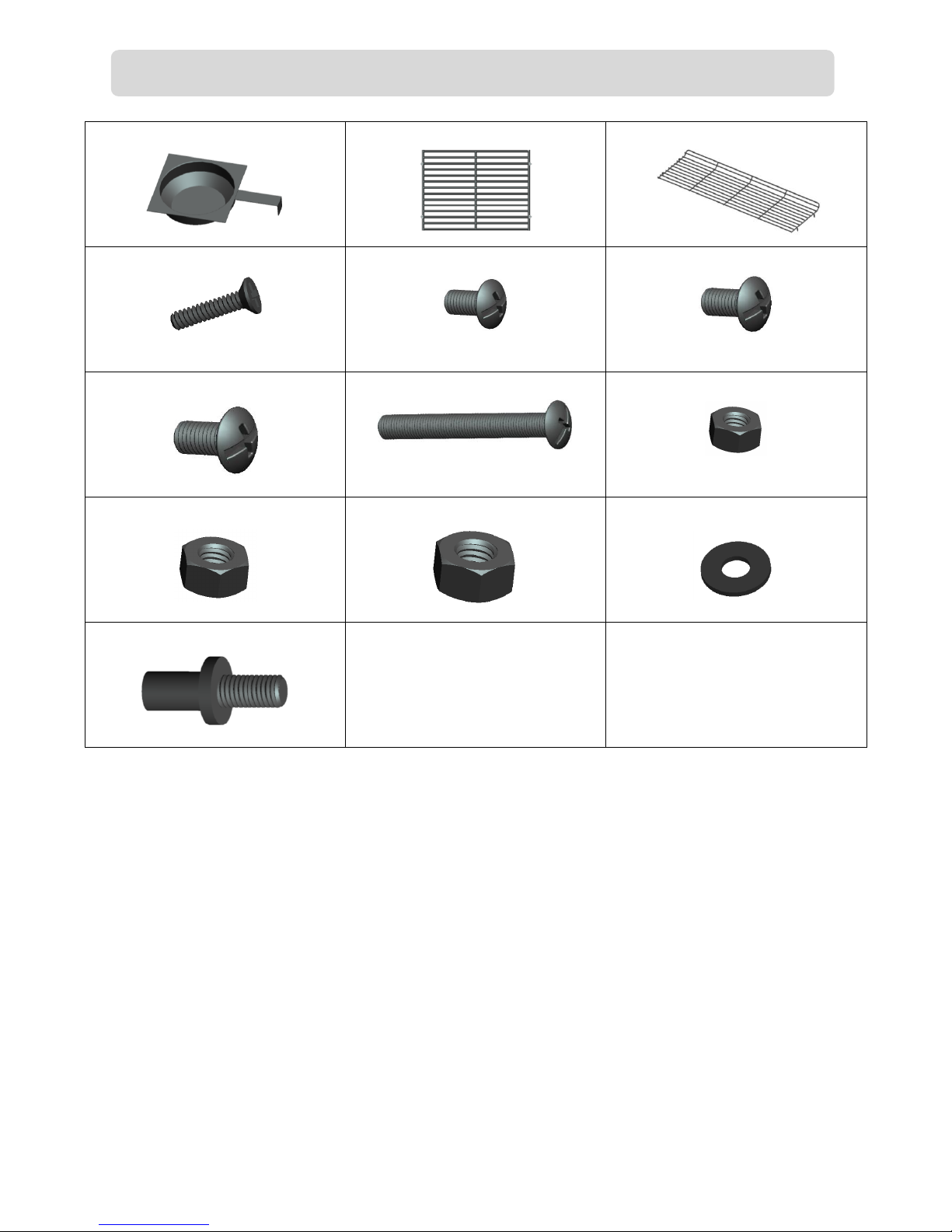

Contents list (continued)

1 x Grease Cup

2 x Cooking Grills

1 x Warming Rack

2 x M3*12mm Flat Head Screws

22 x M4*10mm Round Head Screws

5 x M5*10mm Round Head Screws

2 x M6*12mm Round Head Screws

8 x M6*50mm Round Head Screws

2 x M3 Nuts

4 x M4 Nuts

4 x M6 Nuts

4x M4 Washers

2 x Lower Door Hinges

Before you start, check that you have all the contents as above. Remove all items

including any packing materials from the firebox and hood assembly.

Page 8

Assembly instructions

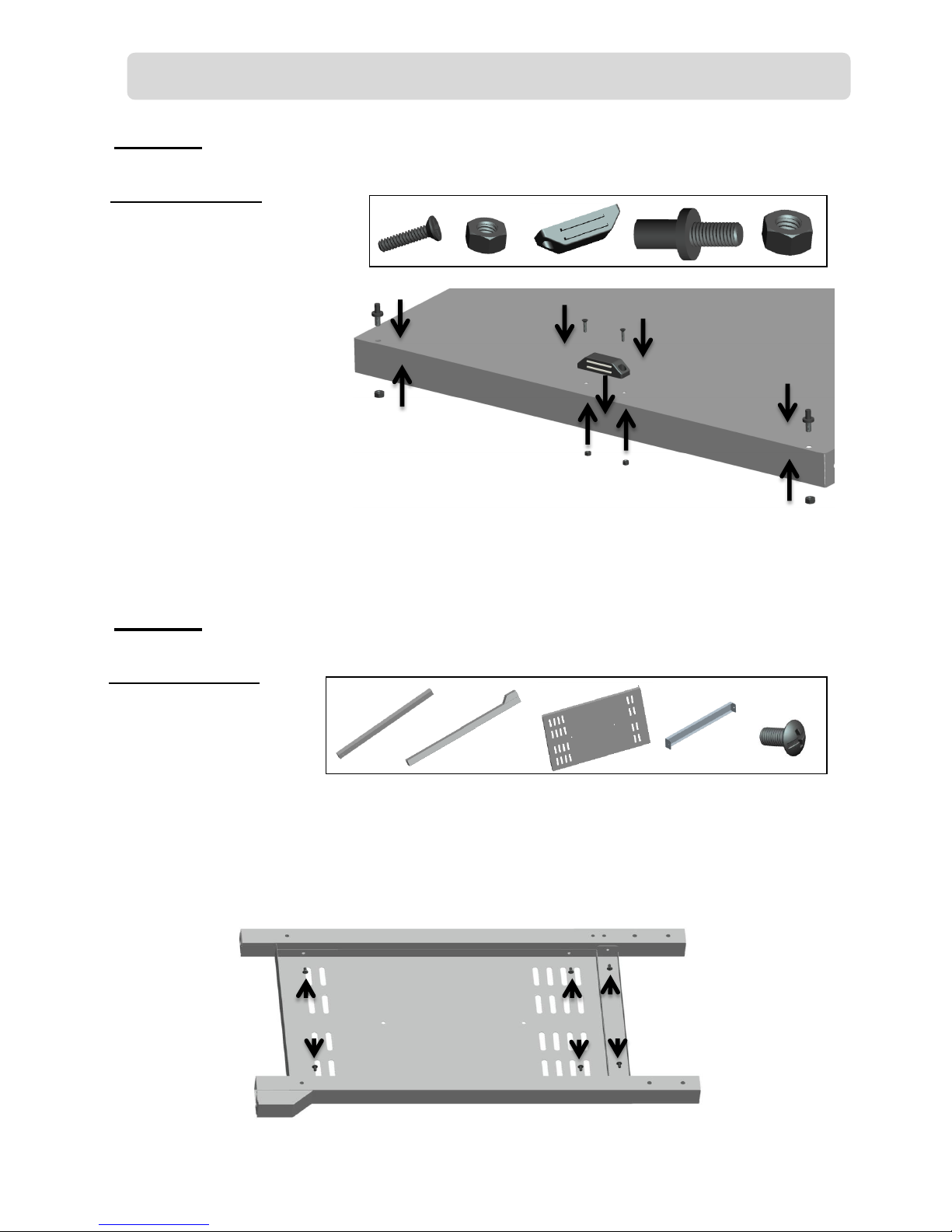

STEP 1: Attach magnet and lower door hinges to the cart base panel.

WHAT YOU NEED:

2 x M3*12mm Flat Head Screws

2 x M3 Nuts

1 x Magnet

2 x Door Hinge

2 x M6 Nuts

Screw the magnet to the cart

base panel with M3*12mm screws

and M3 Nuts. Ensure the magnetic

strips are facing outwards.

Fit the 2 lower hinges to the cart base panel as shown using 2 x M6 nuts.

STEP 2: Assemble the Cart Left Side Panel.

WHAT YOU NEED:

1 x Left Front leg

1 x Left Rear leg

1 x Cart Side Panel

1 x Cart Side Panel Brace

6 x M4*10mm Round Head Screws

Attach the cart side panel and side panel brace to the left front and rear legs as below.

Tighten by M4*10mm round head screws firmly.

Page 9

Assembly instructions (continued)

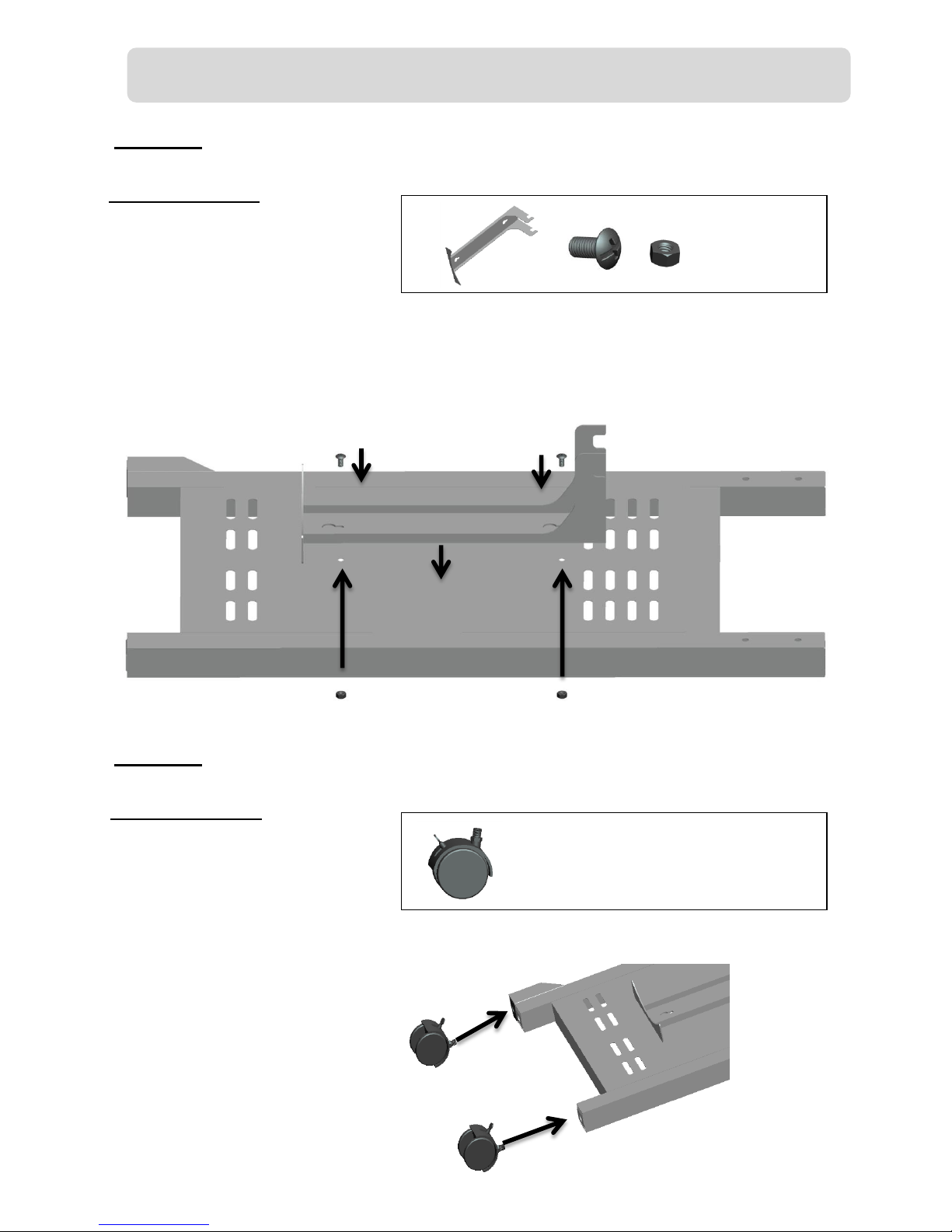

STEP 3: Attach the Cylinder Hook.

WHAT YOU NEED:

2 x M6*12mm Round Head Screws

2 x M6 Nut

1 x Cylinder Hook

Attach the cylinder hook to cart left side panel. Tighten by M6*12mm round head screws and

M6 nut.

STEP 4: Attach the Castors.

WHAT YOU NEED:

2 x Castors

Screw two castors to the legs as shown.

Page 10

Assembly instructions (continued)

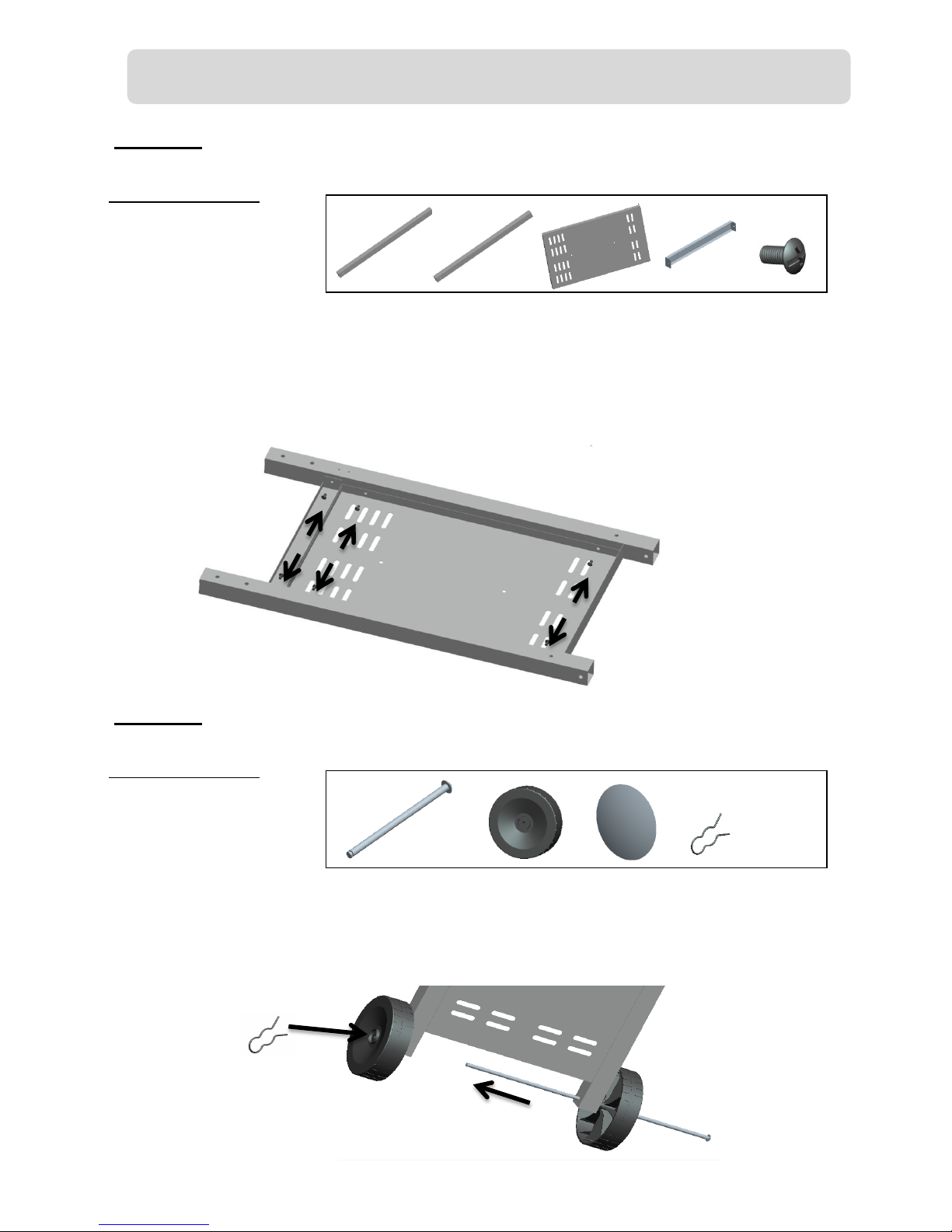

STEP 5: Assemble the Cart Right Side Panel.

WHAT YOU NEED:

1 x Right Front leg

1 x Right Rear leg

1 x Cart Side Panel

1 x Cart Side Panel Brace

6 x M4*10mm Round Head Screws

Attach the cart side panel and side panel brace to the right front and rear legs as below.

Tighten by M4*10mm round head screws firmly.

STEP 6: Attach the Wheels.

WHAT YOU NEED:

1 x Axle

2 x Wheels

1 x Locking pin

2 x Hubcaps

Thread the axle to go through the cart front and rear legs and two wheels as shown. Then insert

the locking pin into the slot on the axle.

Inhaltsverzeichnis

Andere Barbeques Galore Grill Handbücher

Barbeques Galore

Barbeques Galore Billabong Bedienungsanleitung

Barbeques Galore

Barbeques Galore STS2611ALP Bedienungsanleitung

Barbeques Galore

Barbeques Galore Billabong Bedienungsanleitung

Barbeques Galore

Barbeques Galore Ziegler & Brown TURBO BABERQUE Bedienungsanleitung

Barbeques Galore

Barbeques Galore KET57 Bedienungsanleitung

Barbeques Galore

Barbeques Galore downunder G2DLK Bedienungsanleitung

Barbeques Galore

Barbeques Galore G5CPBIQ Bedienungsanleitung

Barbeques Galore

Barbeques Galore CDBL Bedienungsanleitung

Barbeques Galore

Barbeques Galore BEEFMASTER V Series Bedienerhandbuch

Barbeques Galore

Barbeques Galore Turbo BTH2616ALP Bedienungsanleitung

Barbeques Galore

Barbeques Galore Turbo select G5STR Bedienungsanleitung

Barbeques Galore

Barbeques Galore Turbo STS Bedienungsanleitung

Barbeques Galore

Barbeques Galore Grand Turbo B4019LP Bedienungsanleitung

Barbeques Galore

Barbeques Galore ALFRESCO BG229SB-G Bedienerhandbuch

Barbeques Galore

Barbeques Galore Grand Turbo B3810ALP Bedienungsanleitung

Barbeques Galore

Barbeques Galore Turbo Charcoal BCH14A Bedienungsanleitung

Barbeques Galore

Barbeques Galore Y0662LP Bedienungsanleitung

Barbeques Galore

Barbeques Galore Grand Turbo YN662AGLP Bedienungsanleitung

Barbeques Galore

Barbeques Galore B3812ALP Bedienungsanleitung

Barbeques Galore

Barbeques Galore MC2CDFSL Bedienungsanleitung

Barbeques Galore

Barbeques Galore UN2616ACT Bedienungsanleitung

Barbeques Galore

Barbeques Galore Grand Turbo B3808ALP Bedienungsanleitung

Barbeques Galore

Barbeques Galore Connoisseur 0 Bedienungsanleitung

Barbeques Galore

Barbeques Galore ALFRESCO Series Bedienerhandbuch

Beliebte Grill Handbücher anderer Marken

Orbegozo

Orbegozo GR 2300 Bedienungsanleitung

bora

bora PT11 Bedienungsanleitung

Klarstein

Klarstein 10031664 Bedienungsanleitung

Garland

Garland MWE3W Bedienungsanleitung

Char-Broil

Char-Broil 463722714 Bedienungsanleitung

Nexgrill

Nexgrill 720-0830HK Bedienungsanleitung

Kenmore

Kenmore 415.16123800 Bedienungsanleitung

Camp Chef

Camp Chef PG24CLAU Bedienungsanleitung

Tucker Barbecues

Tucker Barbecues GTR Series Montageanleitung

Monogram

Monogram ZGG540NCP1SS Bedienungsanleitung

Equipex

Equipex Sodir Savoy Bedienungsanleitung

Gaggenau

Gaggenau VR 414 610 Bedienungsanleitung

Miele

Miele KM 408-1 Bedienungsanleitung

George Foreman

George Foreman GGR50B Bedienungsanleitung

AOG

AOG T series Bedienungsanleitung

Gorenje

Gorenje TG2000CB Bedienungsanleitung

Weber

Weber Genesis Silver-B Permamount NG 051701 Bedienungsanleitung

Glen

Glen SA 3037 Bedienungsanleitung
