XLM HD30

Barco’s XLM HD30 projector is the brightest projector available on the market today.

As the first DLPTM projector with a native wide-screen aspect ratio, native 2048 x 1080

resolution and light output of 30,000 center lumen, the XLM HD30 projector is ideally

suited to ultra wide-screen and HD projections.

With its functional design, fully sealed DMD engine and adjustable convergence

system, the XLM HD30 projector is purpose built to work around the clock, making it

ideal for use in the demanding rental & staging and large events markets.

The ultimate high-brightness projector

BR XLM HD30 may06 17-05-2006 17:56 Pagina 2

• Rugged Remote Control

Each XLM HD30 is delivered

inclusive of a Rugged Remote

Control.

• User-configurable lay-out

The XLM HD30 projector also allows users to configure custom

on-screen window lay-outs. Each individual lay-out can be

stored and recalled throughout the presentation as required.

•Projector Toolset

PC based application to control and remote diagnose XLMs

and FLMs.

• Flightcase

A specially designed flightcase is available optionally.

• Adjustable convergence system

Its adjustable convergence system allows for manual adjust-

ments in the field.

•Liquid cooling

An effective Liquid Cooling System enables the sealed engine

to reliably handle the extremely high light output.

• Integrated rigging points

The projector’s integrated rigging

points allow easy double-stack

installations, which can be truss

mounted. When placed on the

ground, the XLM HD30 projector

can even be triple-stacked

without requiring additional

support structures.

Reliable and built to work around the clock, Barco’s XLM HD30

projector is a sturdy single box/cabinet projector.

• Fully sealed DMD engine

Even at 30k lm, Barco’s XLM HD30 features a fully sealed DMD

engine that is protected against smoke and dust often found

in entertainment and large event environments.

•Multi image windowing

The XLM HD30 is able to show all 4 signal inputs simultaneous-

ly on screen. Leading the way

in wide-screen projection,

the XLM HD30 can be used

for multiple window wide-

screen presentations without

the need for an external

image processor.

•Minimum image latency

Benefitial for live events the XLM HD30 uses latest technology

to offer minimum image latency.

• Easy to operate

Purpose built for use in the rental & staging industry, the XLM

features an intuitive on-screen menu which ensures that the

projector is easy and simple to operate.

• Motorized tilt adjustment

Easy and fast motorized projection installation (eg. edge

blending of 2 projectors) via motorized edge blending.

•High quality edge blending

Via special 16 bit color process (P7), high contrast ratio (min.

1600:1) and Scenergix standard.

Rugged remote

Integrated rigging points

Ultra bright wide-screen projection

Barco’s XLM HD30 projector provides a native resolution of 2048

x 1080 pixels, which make it ideally suited to wide-screen pro-

jections that must deliver crisp, clear video and data content in

the most demanding environments.

Using a 6.3kW Xenon lamp which produces 30,000 Center

Lumen, the XLM HD30 projector guarantees the perfect high-

impact projection in even the most critical application.

The XLM HD30 obviously is also the best choice for extreme

bright HDTV projections/applications.

Purpose built for demanding rental & staging applications

XLM HD30

BR XLM HD30 may06 17-05-2006 17:56 Pagina 3

•Modular inputs

The XLM HD30 is equipped with four standard input slots

which accommodate both analogue and digital inputs. As

standard, each XLM HD30 projector (R9004460) comes

equipped with RGB, DVI-D, SDI and HD-SDI input modules,

which are all modular and can be exchanged with other

input modules as required. The XLM HD30 is compatible with

all sources ranging from RGB-analogue, RGB/YUV (15kHz),

DVI-D, SDI, Composite Video/S-video and HD-SDI.

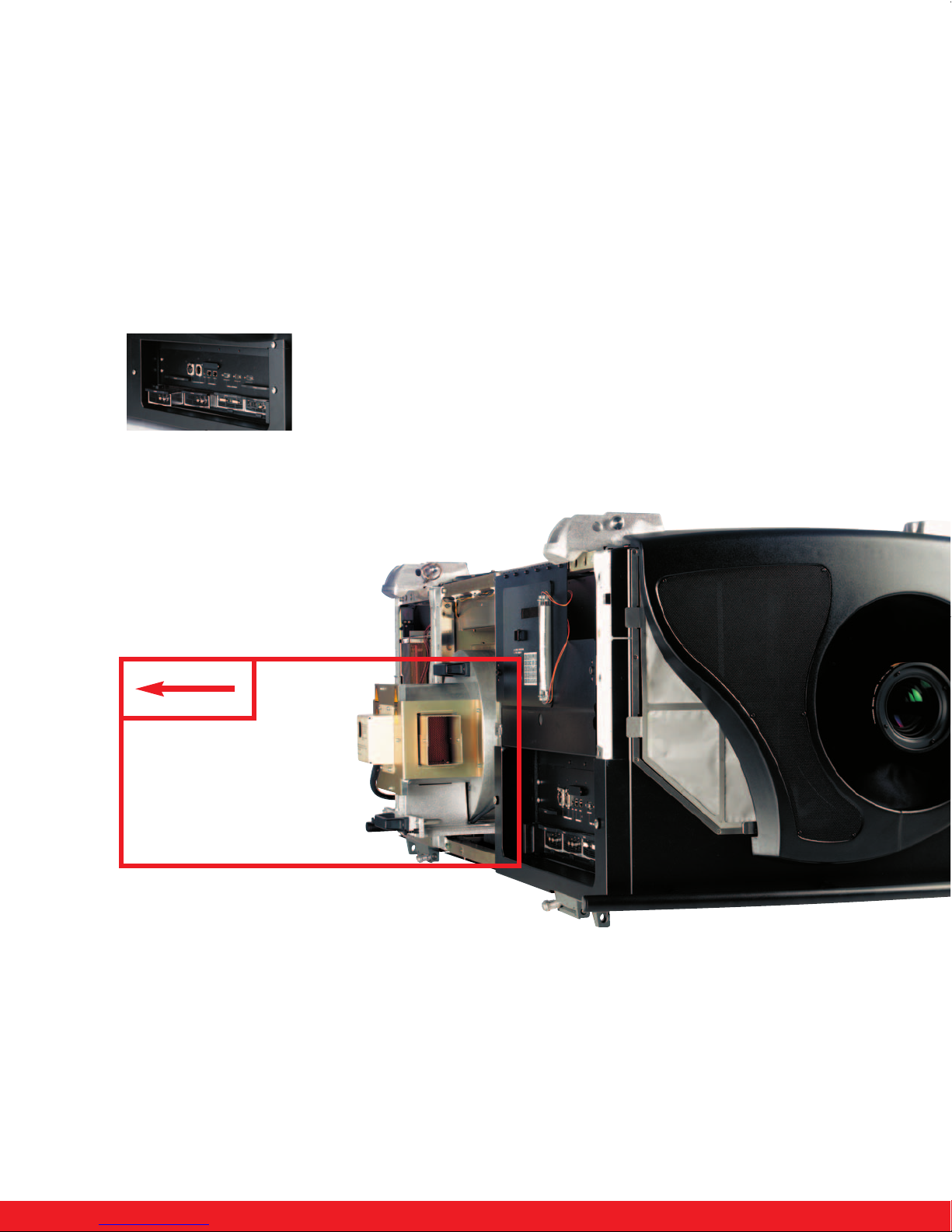

• Modular design

• Removable lamp house

• Removable power supply

• Removable electronics

• Removable lamp power supply

Modular inputs

Flexibility through modularity

•Lamp power redundancy

Three equivalent 2kW lamp power supplies offer you the

necessary redundancy; an interesting feature in the Rental &

Staging Market.

• Lamp house module

The XLM’s lamp house module allows for quick, easy

exchange of the projector’s lamp.

• Click & Play lens holder

A wide range of lenses can be used with the XLM to cover

even the most critical applications. The stable click & play

lens holder of the XLM HD30 makes lens exchanges quick,

simple and easy.

BR XLM HD30 may06 17-05-2006 17:56 Pagina 4

Barco Media & Entertainment

Noordlaan 5, 8520 Kuurne - Belgium

Tel. +32 56 36 80 47 - Fax + 32 56 36 83 86

email: sales.events@barco.com

www.barco.com/events

Ref.no. R599108 - May 2006

DLP™ technology by Texas Instruments offers crystal clear images with superior quality.

DLP is a trademark of Texas Instruments.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice.

The latest version of this product sheet can be found on www.barco.com.

XLM HD30 specifications

81mm (3.2”) 1,049mm (41.3”)

1,563mm (61.5”)

669mm (26.3”)

810mm (31.9”)

593mm (23.4”)

631mm (24.8”)

Light output (1) 30,000 center lumen DIMENSIONS

Resolution 2,048 x 1,080 (native)

Contrast ratio 1,600:1 (full field)

High contrast mode available with special lenses

Lamp 6.3kW Xenon

Lamp warranty 750 Hrs

Max. ambient temperature 35°C (95°F)

Power consumption 8,400 W

Mains voltage 3 x 400 V + N or 3 x 220 V

Weight projector 180 kg (400 lbs)

Dimensions (W x L x H) 810 x 1,563 x 631 mm (31.9 x 61.5 x 24.8 inch)

FEATURES

Sealed DLP core standard

Scenergix standard horizontal & vertical electronic edge blending

Network connectivity standard (10/100 base-T; 2 ports, internal hub)

Advanced picture in picture up to 4 sources simultaneous (with alfa blending; z-order)

INPUTS

Input source compatibility (2) 1,600 x 1,200 (max. input)

Modular inputs - standard 1x DVI • 1x SDI • 1x HD-SDI (all + loop through) • 1x RGB analogue (up to UXGA)

Modular inputs - optional 1x composite video/S-video • 1x RGB/YUV (both + loop through)

ORDER INFORMATION

Projector (incl. 4 inputs) R9004460

Projector (incl. 1 DVI) R9004461

Spare lamp R9852411

LENSES

Fixed focal lenses XLD 1.0 R9852950

Zoom lenses XLD 1.45 - 1.8 R9852090

XLD 1.8 - 2.4 R9852092

XLD 2.2 - 3.0 R9852094

XLD 2.8 - 5.5 R9852100

XLD 5.5 - 8.5 R9852920

(1) measured with XLD 1.45 - 1.8 on axis

(2) all current video sources in composite, S-VHS, RGB or component or Serial digital format

all current proposed HDTV, extended and improved television standards (1080i, 720p, ...)

computer and workstations with a resolution up to 1,600 x 1,200

most Macintosh computers

direct digital interfacing with current and future digital standards
