16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 1 of 18
THE
MODEL E16SGB/E13SGH CENTER PIVOT
OPERATOR’S MANUAL – ORIGINAL INSTRUCTIONS
STUMP GRINDER INTENDED USE
The Barreto Stump Grinder is designed to remove in-ground tree stumps and exposed roots. It should not
be used to cut any material other than wood stumps and the surface soil around the stumps or exposed
roots.
TABLE OF CONTENTS
LUBRICATION REQUIREMENTS 2
SAFETY MESSAGES 3
SAFETY INSTRUCTIONS OVERVIEW 4
STUMP GRINDER OPERATING INSTRUCTIONS 7
CONTROLS 7
ENGINE CONTROLS 9
ENGINE START UP PROCEDURE 9
OPERATOR PREPARATION 10
NOISE EMISSION DATA 10
VIBRATION EMISSION DATA 11
DETERMINE LOCATION OF UNDERGROUND UTILITIES 12
WORK SITE ASSESSMENT 13
CONTACT WITH UNDERGROUND UTILITIES 14
GRINDING TIPS 15
GROUND TRANSPORT OF THE GRINDER 16
ROAD TRANSPORT OF THE GRINDER 17
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 2 of 18
LUBRICATION REQUIREMENTS
Grease at the intervals indicated per the illustration of grease lubrication points. There is also a grease
diagram decal on the machine.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 3 of 18
SAFETY MESSAGES
General safety messages are listed in this Safety Messages section. Specific safety messages appear as
appropriate in this manual where a potential hazard may occur if procedures or instructions are not
followed correctly and completely.
SAFETY SYMBOL
This is the international safety alert symbol. This symbol is used in combination with a signal word
and written message to warn you of a potential for bodily injury or death.
A signal word "DANGER", "WARNING", or "CAUTION" is used with the safety alert symbol.
DANGER: Imminent hazards, that if not avoided, will result in serious personal injury or death.
WARNING: Potential hazards or unsafe practices, that if not avoided, could result in serious
personal injury or death:
CAUTION: Potential hazards or unsafe practices, that if not avoided, could result in minor personal
injury, product damage, or property damage.
Safety decals with a signal word "DANGER", "WARNING", or "CAUTION" are affixed to the stump
grinder near specific hazards.
This machine shall always be used in accordance with this manual. Study it and ALL decals on the stump
grinder before operating the stump grinder.
ALWAYS make sure the engine is turned off before performing maintenance, cleaning, or transport by
means other than under its own power.
Before using, always visually inspect to see that the tools are not worn or damaged. Replace worn or
damaged elements and bolts in sets to preserve balance.
Use extreme caution when reversing the machine towards you.
Do not change the engine governor settings or over speed the engine.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 4 of 18
SAFETY INSTRUCTIONS OVERVIEW
READ SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING!
USE COMMON SENSE AND PLENTY OF IT!
Call before you cut. If you do not call, you may cause an accident; suffer injuries or death; cause
interruption of services; damage the environment; and/or incur project delays. Expect to be held liable for
any damages caused, if you fail to call.
DANGER: Buried electric cables or gas lines can cause serious injury or death if struck with cutter
wheel. Always determine location of utilities before cutting.
WARNING: Fiber optic cables convey laser light that can injure your eyesight.
STAY CLEAR of moving parts on the stump grinder.

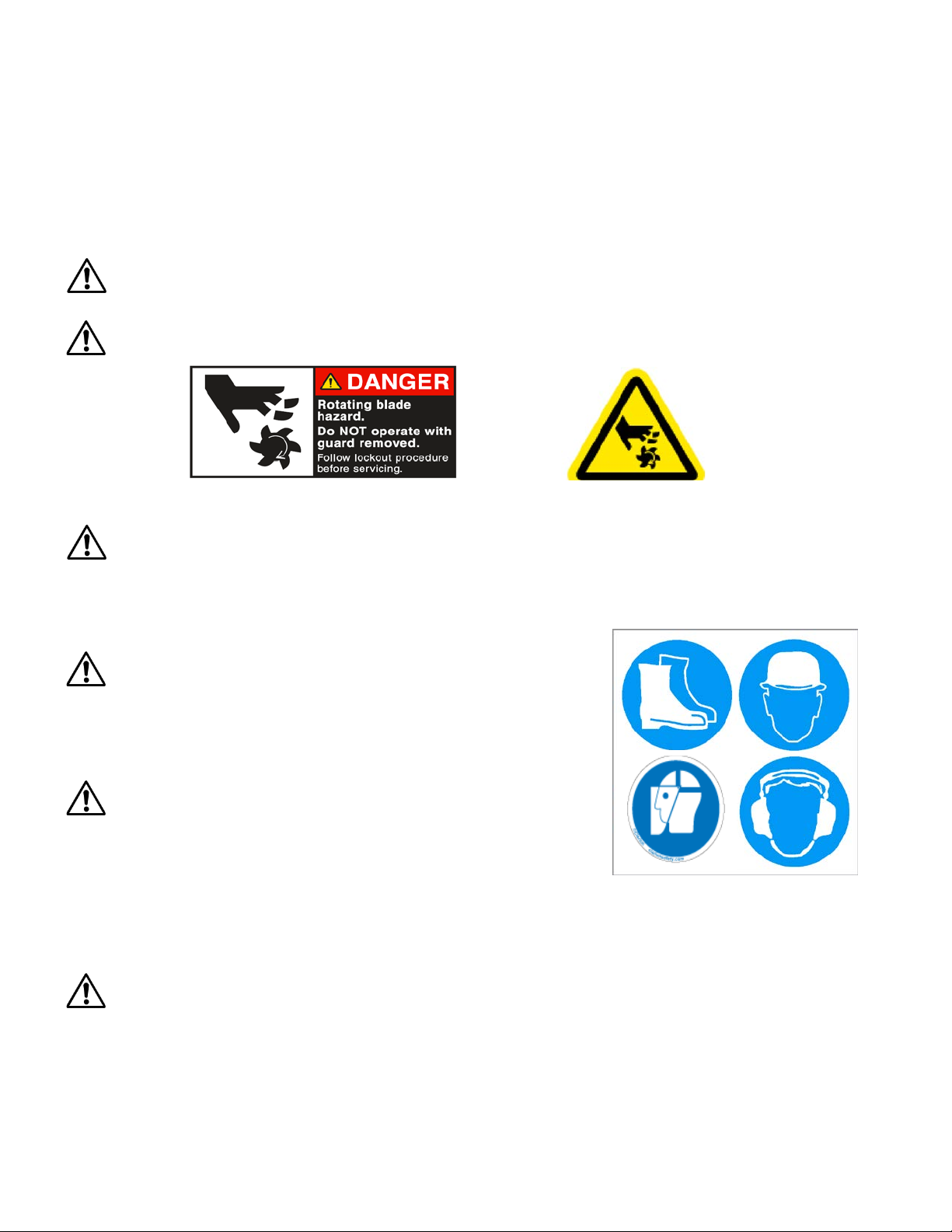

DANGER: Cutter wheel and other moving parts can cut off arms, legs, or fingers. Contact with the
cutter wheel while in operation will cause serious injury or even death. Stay in the operator’s
position at the controls when the cutter wheel is operating. Keep all observers and helpers at a safe distance
from the machine. Stop the cutter wheel immediately if anyone gets too close to the operating machine.
Wear a face safety shield and hard hat while operating or observing!
WARNING: The cutter wheel may throw chips, rocks and
debris into the area around the machine. Keep all bystanders at
a safe distance from the machine. Always wear eye protection when
operating or observing the machine in operation.
Wear adequate hearing protection while operating or observing.
WARNING: The machine and cutter wheel are loud when in
operation. Wear ear protection when operating the machine.
Exposure to loud noise is cumulative and may permanently damage
your hearing.
Wear safety boots and gloves. Wear close-fitting clothing. Contain long hair. Do not wear jewelry. Wear
reflective clothing if working near traffic.
Only operate outdoors and avoid breathing engine exhaust and fumes.
WARNING: Engine exhaust contains carbon monoxide gas that is toxic. Breathing it can cause
unconsciousness and death.
Adequate lighting is required, daylight or artificial, for safe operation of the stump grinder. Allow adequate
side and overhead clearances between machine and buildings, fences, and trees.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 5 of 18
SAFETY INSTRUCTIONS OVERVIEW (continued)
WARNING: Contact with the cutter wheel while in operation will cause serious injury or even
death. The teeth of the cutter wheel are sharp. Avoid contact even when the wheel is not moving.
Avoid inclines if at all possible.
WARNING: Navigating on any incline increases the danger of the machine losing traction or
rolling over, especially if the surface is wet. If you lose control, get out of the way immediately to
avoid personal injury. Navigation on inclines should be especially slow and turns very gradual. Refer to
the incline diagram in the section, “GROUND TRANSPORT”.
Avoid operating adjacent to drop-offs or embankments.
Always leave machine parked on a level surface.
Do not leave machine unattended with the engine running.
Do not operate machine near any source of flammable dust or vapors.
WARNING: Sparks from the engine exhaust can cause an explosion or fire in a flammable or
explosive atmosphere. Fuel fumes can catch fire or explode.
Do not operate machine near flames or sparks.
WARNING: Fuel fumes can catch fire or explode. If fuel is spilled, do not attempt to start engine
but move the machine away from the area of spillage and avoid creating any source of
ignition until the vapors have dissipated.
Shut off engine and allow it to cool before refueling.
WARNING: Fuel fumes can catch fire or explode. Refuel outdoors and do not smoke when
refueling. Do not refuel near a source flames or sparks. Always store fuel in containers
specifically designed for this purpose. Add fuel before starting engine. Never remove the cap
on the fuel tank or add fuel while the engine is running or when the engine is hot.
WARNING: Replace all fuel tank and container caps securely.
Do not touch the engine, muffler, or any of the belt components until cool.
WARNING: Muffler and engine get hot enough to cause serious burns. For the safety of yourself
and others, allow enough time for the engine, muffler, and the hydraulic fluid to cool completely
before performing any cleaning or maintenance.
WARNING: Stay clear of the articulation area while the engine is running.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 6 of 18
SAFETY INSTRUCTIONS OVERVIEW (continued)
WARNING: Keep safety guards and shields in place while the engine is running and keep all
operator protection systems in place and in operational condition.
WARNING: Never store the equipment with fuel in the tank inside a building where fumes can
reach an open flame or spark. Allow the engine to cool before storing in an enclosure. To
reduce fire hazard, keep the engine, muffler, battery compartment and fuel storage area free of
any vegetative material and excessive grease.
Keep others away. If the job site is near a road or pedestrian path, warn and divert both motorized traffic
and pedestrians. As appropriate, use traffic flag personnel, signs, cones, and lighting devices to insure
safety.
Never allow anybody to ride on the machine.
Never lift machine over any person at any time.
WARNING: If machine should fall, it would crush anybody under it.
We recommend having a fire extinguisher suitable for petrol fires in the operating area.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 7 of 18
STUMP GRINDER OPERATING INSTRUCTIONS
READ SAFETY INSTRUCTIONS BEFORE OPERATING! Both the SAFETY INSTRUCTIONS and
OPERATING INSTRUCTIONS are in this manual.
Be sure that the engine oil and fuel, and the machine hydraulic fluid are all at proper levels before starting
the engine.
STUDY AND UNDERSTAND CONTROLS BEFORE BEGINNING OPERATION.
CONTROLS
1. LOCATION: Move the Stump Grinder into position manually.
2. WHEEL LOCKS: When the Stump Grinder is in the correct position, lock the wheels in place by pulling
the wheel lock levers towards the operator.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 8 of 18
CONTROLS (continued)
4. WHEEL FRAME LOCK: when the Stump Grinder is in position and the wheels are locked, unlock the
wheel frame lock by pulling up on the lock pin and rotating it to place the roll pin in the catch.
5. ENGINE START: Both Vanguard and Honda options are equipped with manual pull starts. The engine
bail switch must be held down to allow the engine to start and run. If the bail is released, the engine will
shut down. After the engine is running and warmed up, increase the engine speed fully to engage the
centrifugal clutch and grinder wheel.
6. GRINDING: This Stump Grinder is manually pivoted back and forth to control the cutting and grinding.
As the stump get ground down, the handlebars can be adjusted and lowered for optimal operator position.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 9 of 18
ENGINE CONTROLS
FUEL SHUTOFF VALVE: Must be in OPEN position for engine to run.
CHOKE: Use while starting the engine, only needed if engine has not reached operating temperature.
(Refer to the ENGINE START UP PROCEDURE)
THROTTLE: Controls engine speed. Operate at full throttle when cutting (all the way forward).
ENGINE START UP PROCEDURE
Only operate machine outdoors and avoid breathing engine exhaust and fumes.
WARNING: Engine exhaust contains carbon monoxide gas that is toxic. Breathing it can cause
unconsciousness and death. Avoid any areas or actions that expose you to carbon monoxide.
COLD WEATHER OPERATIONS: Before operating in cold weather, refer to the Engine Owner’s Manual
for recommended engine oil. Do not spray starting fluid into the air cleaner as engine damage could result.
Engine bail switch must be held down for engine to start and run. If the bail switch is released, the engine
will shut down.
16SG OPERATOR’S MANUAL REVISED 2/16/17 Page 10 of 18
OPERATOR PREPARATION
Each operator must:
•Become familiar with the controls and operation of the stump grinder, preferably under the supervision
of an experienced operator.
•Be at least 18 yrs. of age and be mentally and physically capable of operating the stump grinder safely.
•Have studied the SAFETY AND OPERATING INSTRUCTIONS in this manual.
PERSONAL PROTECTION: For safety, stump grinder operator should wear personal protection
equipment. Keep observers at a safe distance and do not operate if people are near, especially children and
pets.
Wear a face safety shield and hard hat while operating or
observing!
WARNING: The cutter wheel may throw wood chips,
stones and debris.
Wear safety boots and gloves. Wear close-fitting clothing.
Contain long hair. Do not wear jewelry. Wear reflective clothing
if working near traffic.
Wearing adequate hearing (ear) protection while operating or
observing is recommended.
WARNING: Exposure to loud noise is cumulative
Hearing protection devices do not all provide the same level of
protection. Those that completely surround each ear are better
than earplugs. It is important to select a device that is adequate and appropriate for your specific work
environment since the peak noise level varies. A local environmental noise specialist may help you to
determine the level of hearing protection required.
NOISE EMISSION DATA
Machinery Directive declaration
DECLARED DUAL-NUMBER NOISE EMISSION VALUES
in accordance with ISO 4871
Normal Operation
Measured A-weighted sound power level, L
WA
(ref.
1pW) in decibels
104
Uncertainty, KWA, in decibels
3
Measured A-weighted sound pressure level, L
pA
(ref.
20µPa) at the operator's position in decibels
85
Uncertainty, KpA, in decibels
4
Values determined according to noise test code given in BS EN ISO 4254-1 Annex B using the basic
standard ISO 3744: 1994
NOTE 1 - The sum of a measured noise emission value and its associated uncertainty represents an
upper boundary of the range of values, which is likely to occur in measurements.
Values listed above are rounded to the nearest decibel according to ISO 4871
Noise Emissions Directive result.
Guaranteed sound power level
107
dB
NOTE - The guaranteed sound power level is calculated from unrounded values, and may differ from the values above
