BasIP AQ-07LL Bedienungsanleitung

quickstart guide

AQ-07LL

IP INDOOR VIDEO ENTRY PHONE

Full User Manual

The BAS-IP AQ-07LL IP video intercom indoor monitor is designed with

a 7-inch stylish TFT touch-screen colour display and plastic case.

and white body color will suit any interior style.

The intercom can be powered from 12V or PoE, and the classic black

wiki.bas-ip.com

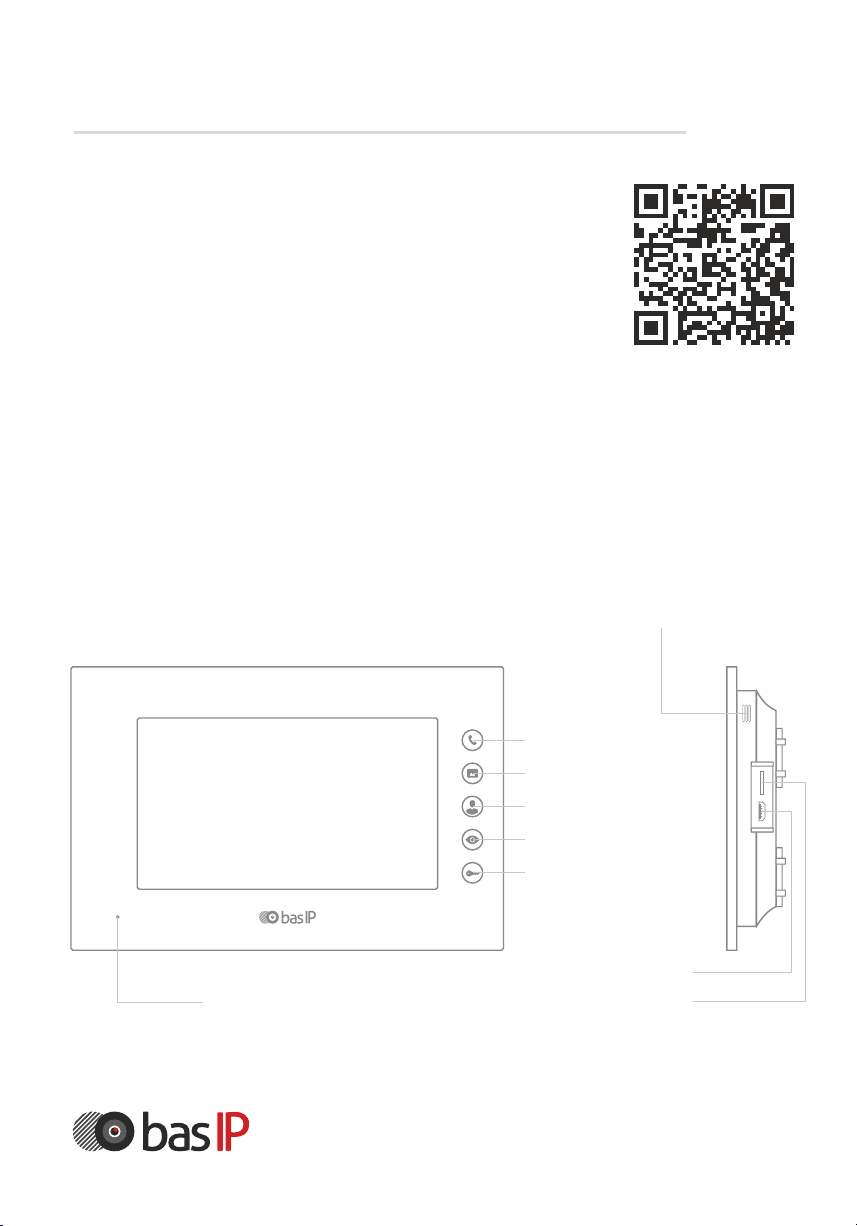

1Call

Photo frame mode

Concierge

Monitoring

Open

6Microphone

7Loudspeaker

8MicroUSB port

9MicroSD slot

The main screen consists of the main desktop and two additional ones,

on which various information is displayed. There is also the option

of adding custom desktops with the ability to customize them by

the number of icons and locations. This option is necessary for convenient

sorting of user applications when adding them to the desktop.

There can be an unlimited number of user desktops and up to eight

application icons can be placed on one desktop.

Main screen

FIRST SCREEN

The ﬁrst desktop displays the current

date and time.

Second SCREEN

On the desktop are displayed:

Date•

Time•

Weather widget•

Main sections of the monitor menu:•

Calls •

Messages •

Outdoor panels view menu •

IP cameras view menu •

third SCREEN

On the third desktop, additional system

menus and applications are displayed:

Quad splitter•

Security alarms•

Smart home menu•

Service menu•

Adding a new desktop and apps

Clamp any of the icons on the additional

desktop for one second, after which the

desktop will go into edit mode

Click on the button to add a new desktop

in the lower right corner

Select the required number of icons

displayed on this desktop:

2 x 2 / 3 x 2 / 4 x 2

Click on the add application icon and select

the necessary ones in a new window

After adding the necessary applications

to the desktop, you must click on the «Ok»

button to return to normal mode.

To remove the desktop, go to edit mode

and click on the «Delete» icon

in the lower-left corner.

To add a new desktop, you must:

To call the navigation panel to access some functions, you must swipe

down or click at the top of the screen.

Navigation bar

Concierge quick call

The ﬁrst desktop displays the current

date and time.

Call elevator

The ﬁrst desktop displays the current

date and time.

Adjusting the sound modes

Normal - a mode in which all sounds

are turned on.

Mute - a mode in which all sounds except

the alarm are turned oﬀ. You can also

adjust the time while mute mode will

be enabled.

Do Not Disturb - a mode in which all

sounds except the alarm are turned oﬀ

and incoming calls from other devices

are not displayed on the screen.

VIDEOIntercom SETTINGS

System

• Brightness: Screen brightness adjusting.

Ringtone volume: Ringtone volume adjustment.•

Talk volume: Volume of the speaker adjustment •

(during the talk).

Language: Choose the language of the system.•

General SETTINGS

General settings display.

Do not disturb mode

Turning on this function, you can specify a time

interval in which all incoming calls to the monitor

will be received without sound and the screen

will not be activated.

All calls to the monitor in this mode will be

displayed in Missed Calls on the main screen.

Silence mode

To enable this function, you can set the time

mode, at which all incoming calls will appear

without sound.

Intercom

• Camera: Turn on/oﬀ the monitor camera.

Auto hung up after opening: Automatically end•

a call 3 seconds after pressing the «Open» button

during a call.

Answerphone: The function of an automatic call•

receiving by the monitor after 30 seconds of not

answering the call for recording a video message.

• Autoanswer: Automatic receiving incoming

calls function.

Protect the lock from opening with user•

password: Turn on / oﬀ the protection function

of the unauthorized door opening from

the monitor with a user password.

When the function is enabled, a user password

will be required to open the lock during a call.

Intercom SETTINGS

Intercom settings display.

The function is not available if the micro SD card

is not mounted.

Address

• Building number: 0001-9999

Unit: 00-99•

Floor number: 00-99•

Room number: 01-99•

Device: The sequence number of the monitor•

in the system.

If the monitor is one, it is necessary to set «0» in this line.

If there are several monitors, then the numbering should begin

with «0» and end with «8».

• Sync code: Synchronization code between

monitors and panels for intercom.

The address is used to automatically synchronize

and search for devices on the network that

are necessary to ensure communication between

them.

SIP

• Enable / Disable: Enable / disable SIP

registration.

Proxy: A proxy SIP server that can be•

represented by both an IP address and

a domain name.

Data format:

Before the proxy address, you must specify «sip:».

DTMF

• Realm: SIP server address.

Data format:

Сan be represented by both an IP address and

a domain name.

• STUN IP: STUN server address.

Example:

stun.l.google.com

• STUN port: The port of the STUN server.

Example:

For google STUN server 19302 port is used.

• Login: SIP number.

Password: Password of SIP number.•

• Lock Name #1: The name displayed near

the ﬁrst lock button.

Default value: Enable / disable the function•

to send a standard value when the button

to open the ﬁrst lock is pressed (the internal

protocol command to open the door).

Lock code #1: DTMF code transmitted when•

the ﬁrst lock button is pressed.

By default, panels are set to open the door when

there is «#» DTMF code received to open the ﬁrst lock.

• Second lock: Turn on/oﬀ the button

of the second lock, for example when using

the SH-42 module or the AV-07T panel.

Lock Name #2: The name displayed near•

the second lock button.

Lock code #2: DTMF code transmitted when•

the second lock button is pressed.

By default, panels are set to open the door when there

is «0» DTMF code received to open the second lock.

Network

• DHCP: enable / disable mode to get network

settings automatically.

IP: Internal monitor IP address.•

Network settings

Network settings display.

By default, the internal monitor can have a static IP address

192.168.1.90 or 192.168.1.91.

NTP

• Use custom NTP Server: Enable / disable

the use of the user time synchronization server.

This option is used to automatically synchronize

the date and time.

NTP server: User time server input ﬁeld.•

• Mask: Subnet Mask.

Gateway: The main gateway.•

DNS: DNS server address.•

Current IP: Displays the current IP address•

of the monitor.

Current MAC: Displays the MAC address•

of the monitor.

Link

• Server: The input ﬁeld for the IP address

or domain name of the server on which

the software for monitoring and controlling

the Link system is installed.

Send status to server: Enable / disable•

the option to send the current status

of the monitor in Link software.

Scenes settings

Security settings

Security settings display.

Zones

This menu allows you to conﬁgure scripts

for connected alarm sensors.

A total of 3 scenarios are available: Out, Home

and Sleep.

Depending on each scenario, you can customize

the logic of the triggering of certain loops.

Activation time: The time after which a particular

scenario is activated.

You can set up a delay from 0 to 300 seconds.

After pressing the button, the following window

will appear.

• №: Number of the sensor.

Type: Type o the sensor.•

Normal mode - the sensor is activated only when the system

is armed and if this sensor is selected in the paragraph above.

Usually this type is used for door and window sensors.

Emergency and 24 hours - is active constantly.

These types can be selected when ﬂood sensors, gas, volume,

smoke and heating are connected to the loops.

• Mode: Mode of the sensor.

It depends on the sensor used.

• 3C - activation is performed when switching position

NO - normally open sensor, activation is performed when•

the contacts are closed

NC - normally closed sensor, activation is performed when•

the contacts open

Bell - doorbell connection mode. When the contacts are•

closed, the monitor will start playing the incoming call melody.

• Delay: Delay before activating

a speciﬁc sensor.

Sensor: Selects the display type•

of the sensor for additional

informativity when triggered.

The delay until the sensor triggers are only active

if the «Normal» type is selected. The delay time

does not add up to the arming time.

To disable alarm you need to enter password.

By default, password is 1234.

User password

• Old password: Current password input ﬁeld.

By default, user password is 1234.

• New password: New password input ﬁeld.

Conﬁrm: New password conﬁrmation ﬁeld.•

Admin password

• Old password: Current password input ﬁeld.

By default, user password is 123456.

• New password: New password input ﬁeld.

Conﬁrm: New password conﬁrmation ﬁeld.•
