BasIP AV-04SD Bedienungsanleitung

USER MANUAL

INDIVIDUAL ENTRANCE PANEL

AV-04FD

There is also the possibility of individual text or logo appliance on the panel

(through in the service center).

BAS-IP AV-04FD — stylish vandal-proof panels with installation by the ﬂush

mount method.

Full User Manual

Appearance

Device description

wiki.bas-ip.com

Mechanical call button.

Microphone.

Backlight.

Camera.

Loudspeaker.

INDIVIDUAL ENTRANCE PANEL

Main features

• Panel type: Individual.

• Camera: 1/4”.

• Resolution: 2 Мp.

• Сamera angle: 100° (horizontal).

• Output video: HD (1280 × 720), H.264 Main Proﬁle.

• Night backlight: 6 LEDs.

• Light sensitivity: 0,01 LuX.

• Protection class: IP65.

• IK-Code: IK09.

• Working temperature: -40 — +65 °С.

• Power consumption: 6,5 W, in standby — 3,6 W.

• Power supply: PoE, +12 V DC.

• Body: Aluminum.

• Colors: Silver.

• Dimensions for installation: 85 × 180 × 45 mm.

• Size of the panel: 95 x 190 x 27 mm.

• Installation: Flush mount.

EAN: 5060514913529 (SILVER)

Completness check of the product

Before installation of the outdoor panel, it is necessary to check that

it is complete and all components are available.

Outdoor panel kit includes:

1 pc

After verifying the device's completeness, you can switch to the outdoor panel

connection.

For connection you will need:

Electrical connection

An Ethernet UTP CAT5 or higher cable connected to a network

switch / router.

Cable length recommendations

The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,

according to the IEEE 802.3 standard.

Outdoor panel

Manual

Flush mounting bracket

Set of wires with connectors for connection of power supply,

lock, and additional modules

Wrench set screws

Power Peripheral Interface LAN (PoE)

RJ45

DC12V

+12V GND 485+ 485- NC COM NO EXIT DS DIN

SH-45 Door Sensor

Exit Button

GND

+12V

SH-42

(optional)

Power supply at +12 V, 2 amps, if there is no PoE.

Connection scheme of electromechanical lock

using external power supply for panel and the lock.

You can connect any type of electromechanical or electromagnetic lock for which the switched current

does not exceed 1 Amp.

+12V

+-+12V

Connection scheme of electromagnetic lock

using external power supply for panel and the lock.

+12V

+-+12V

Power supply

for the panel Power supply

for the lock Power supply

for the lock

Power supply

for the panel

Electromechanical

lock Electromagnetic

Lock

Power Peripheral Interface LAN (PoE)

RJ45

DC12V

+12V GND 485+ 485- NC COM NO EXIT DS DIN

SH-45 Door Sensor

Exit Button

GND

+12V

SH-42

(optional)

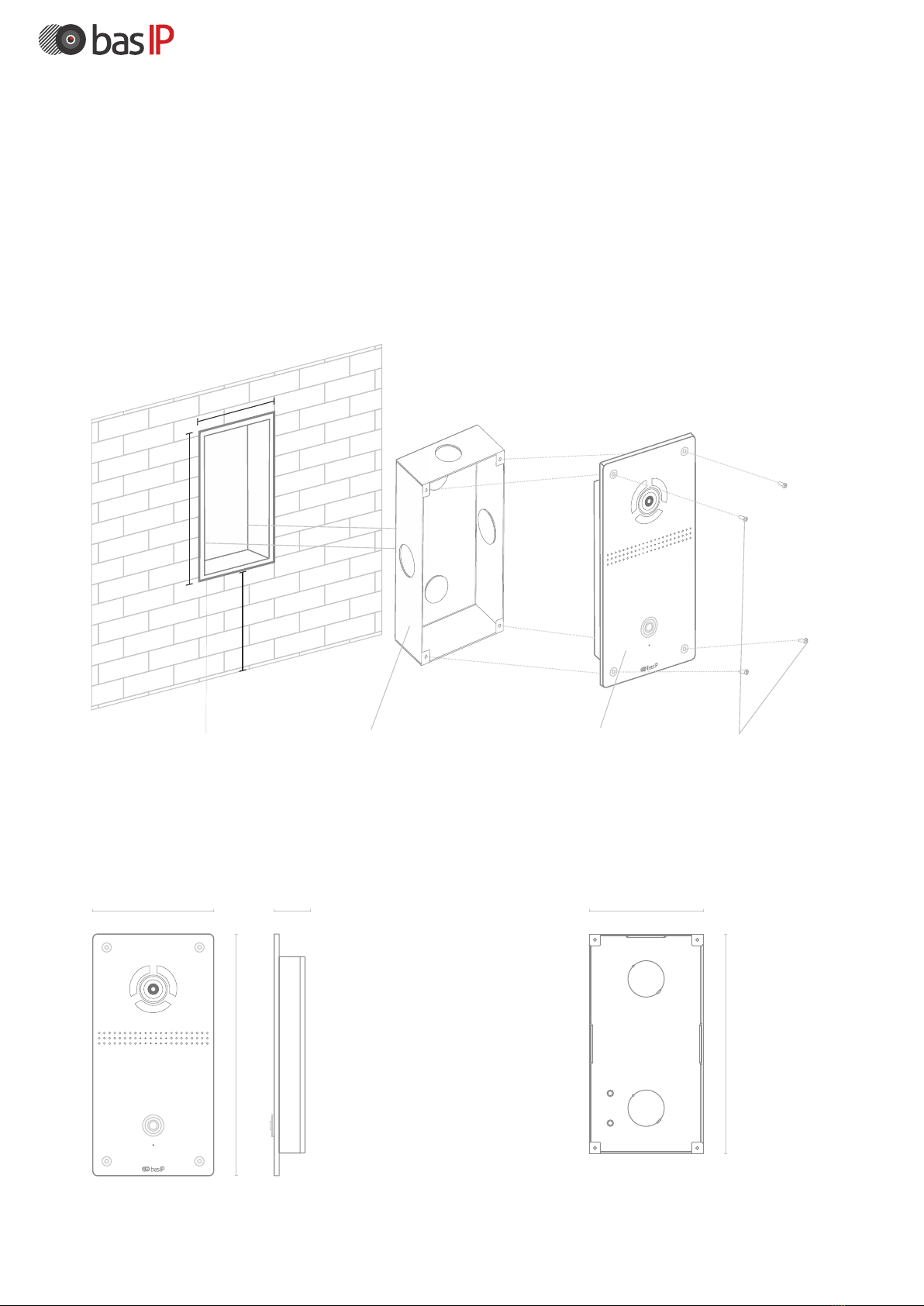

Mechanical mounting

It is also necessary to provide supply of a power cable, additional modules

and the local network.

Before mounting the door panel, a hole or recess in the wall with dimensions

of 87 × 182 × 46 mm must be provided.

Niche ScrewsOutdoor PanelBracket

Outdoor Panel

95 mm 27 mm

190 mm

87 mm

182 mm

120-140 cm

Flush Bracket

85 mm

180 mm

EAN: 5060514913529 (SILVER)

Warranty

The warranty card number

Model name

Serial number

Seller name

With following stated terms of warranty is familiar, functional test was

performed in my presence:

Customer signature

Warranty conditions

The warranty period of the product — 36 (thirty-six) months from

the date of sale.

Transportation of product must be in its original packaging or supplied one

by the seller.

The product is accepted in warranty repair only with a properly ﬁlled warranty

card and the presence of intact stickers or labels.

The product is accepted for examination in accordance with the cases

provided by law, only in the original packaging, in a full complete set,

appearance corresponding to the new equipment and presence of all relevant

properly ﬁlled documents.

This warranty is in addition to the constitutional and other consumer rights

and in no way restrict them.

Terms of warranty

The warranty card must indicate the name of the model, serial number,

purchase date, name of the seller, seller company stamp and

the customer’s signature.

Delivery to the warranty repair is carried out by the buyer himself.

Warranty repairs carried out only during the warranty period speciﬁed

in the warranty card.

The service center is committed to do everything possible to carry out

the repair warranty products, up to 24 working days. The period spent

on the restoration of product functionality is added to the warranty period.

Notes

EAN: 5060514913529 (SILVER)

www.bas-ip.com
