Instructions for use

KDA 2800/1

PRODUCT DESCRIPTIONRF 240/280 GB

TAB 78031 GB 3

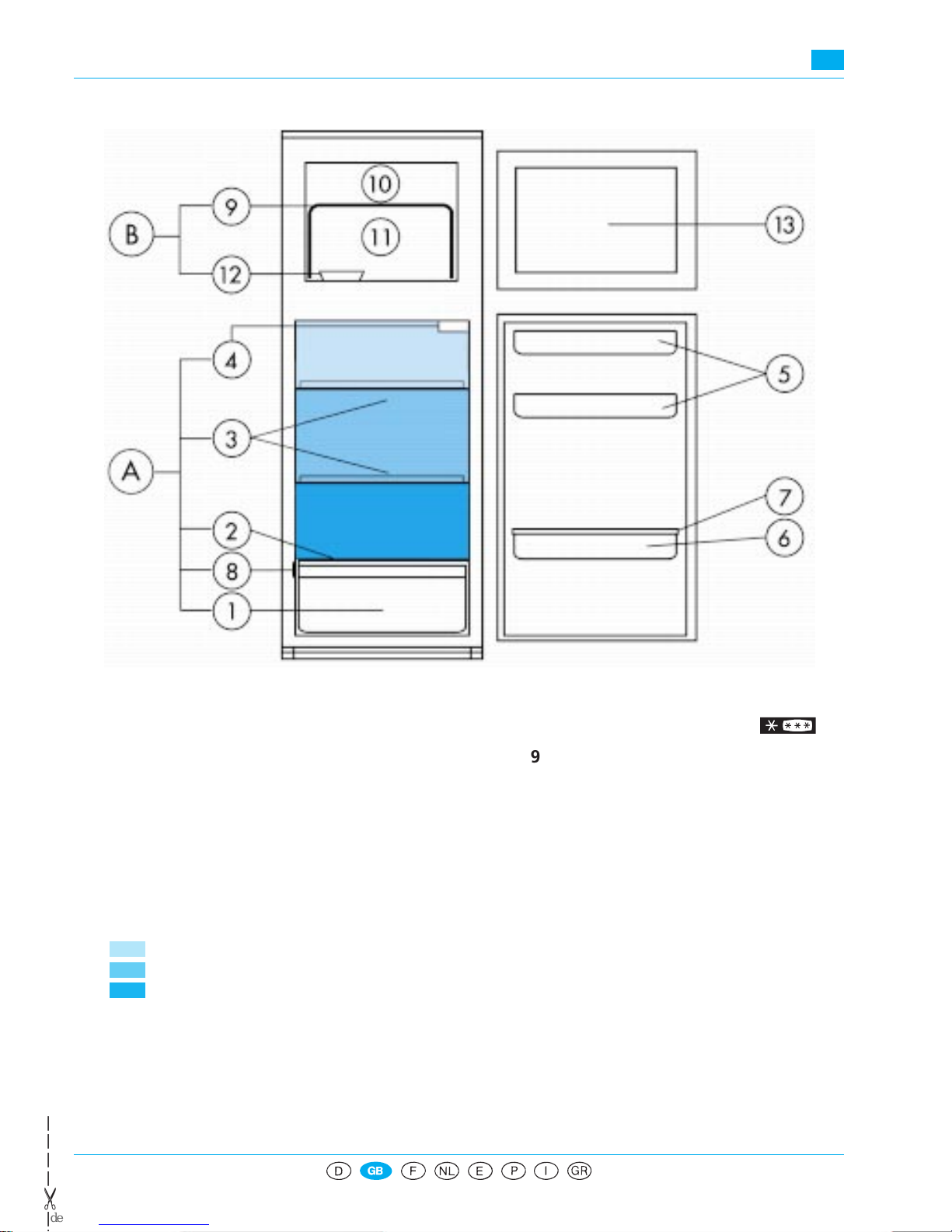

A. Refrigerator compartment

1. Crisper drawer

2. Cover crisper

3. Shelves / shelf area

4. Thermostat control knob/light

5. Door trays

6. Bottle shelf

7. Removable bottle retainer

8. Rating plate (at side of crisper drawer)

cool zone

intermediate temperature

cold zone

B. Freezer compartment

9. Rack

10. Area for fast freezing of fresh food

products

11. Storage area for frozen or deep-frozen

food

12. Icecubetray

13. Freezer compartment inner door panel.

Note: the number of shelves and the design of accessories may vary depending on the model.

Shelves and door trays are all removable.

Warning: refrigerator accessories are not dishwasher-resistant.

3490qw

““““x“““““““““““““““““““““““““““““““““““““““““““““““““““““““““““““““““““

RF 240/280

Controls

A. Thermostat knob

B. Light switch

C. Thermostat setting index

D. Bulb (15 W max.)

Thermostat set to x: refrigerator and lights off

Thermostat set to 1:warmest internal temperature

Thermostat set to 7:coldest internal temperature

It is advisable to set the thermostat to positions 2-3

Note: external air temperature, the frequency with which the door is opened and the position of the

appliance may affect the internal temperature of the refrigerator. Set the thermostat accordingly.

Freezing

For best results, turn the thermostat knob half a notch towards the lower numbers when storing food

in the freezer compartment.

Removing the light

Undo by turning anticlockwise, as shown in the illustration.

3490qw

TAB 78032 GB retro 4

CONTENTSGB

BEFORE USING THE APPLIANCE Page 11

PROTECTING THE ENVIRONMENT Page 11

PRECAUTIONS AND GENERAL SUGGESTIONS Page 11

HOW TO USE THE REFRIGERATOR COMPARTMENT Page 12

HOW TO USE THE FREEZER COMPARTMENT Page 13

HOW TO DEFROST AND CLEAN THE FREEZER

COMPARTMENT Page 14

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT Page 14

CARE AND MAINTENANCE Page 15

TROUBLESHOOTING GUIDE Page 15

AFTER SALES SERVICE Page 16

INSTALLATION Page 16

BEFORE USING THE APPLIANCE

xYour new fridge-freezer is designed exclusively

for use in the home.

The

freezer compartment may be

used to freeze fresh and cooked foods, make ice

cubes and store both deep-frozen and frozen

products. The freezer is defrosted manually.

The refrigerator compartment defrosts

automatically and is used to store fresh food

and drinks.

For maximum satisfaction from your

appliance carefully read these user

instructions which contain a description of

your appliance and useful food storage tips.

Keep this booklet in a safe place for future

consultation.

1. After unpacking, make sure the appliance is

undamaged and that the door closes correctly.

Any damage must be communicated to your

retailer within 24 hours of delivery.

2. Wait at least 2 hours before connecting the

appliance to the power supply.

3. Make sure appliance installation and electrical

connections are made by a qualified technician in

compliance with the manufacturer’s instructions

and current local safety regulations.

PROTECTING THE ENVIRONMENT

1. Packing

Thepackingboxmaybefullyrecycledas

confirmed by the recycling symbol.

Follow local disposal regulations.

Keep potentially hazardous packaging (plastic

bags, polystyrene etc.) out of the reach of

children.

2. Appliance

The appliance is built from reusable materials.

If you decide to scrap the refrigerator, it must be

disposed of in compliance with local waste

disposal laws. Before scrapping, cut off the

power cable so that the appliance cannot be

connected to the mains. Dispose of the

appliance at an authorised collection centre for

refrigerant.

Information

This appliance is free of CFC’s (refrigerant circuit

contains R134a) or free of HFC’s (refrigerant

circuit contains R600a – Isobutane). For more

details, please refer to the rating plate on the

appliance.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

xOnly use the refrigerator compartment to

store fresh food and the freezer compartment to

store frozen food, freeze fresh food and make

ice cubes.

xDo not cover or close the air vents.

xDo not store liquids in glass containers in the

freezer compartment since they may explode.

xDo not eat ice cubes or ice lollies immediately

after taking them out of the freezer since they

may cause “cold” burns.

xDo not allow children to play or hide in the

refrigerator to prevent the risk of trapping and

suffocation.

xBefore cleaning or servicing the appliance,

always unplug it or switch off the mains

power supply.

xThe mains power cable may be replaced only by

a trained service technician.

Declaration of conformity

xThis appliance is designed to store food products

and complies with EC Directive 89/109.

For appliances with Isobutane (R600a)

The refrigerant Isobutane is a natural gas of high

environmental compatibility but which is

inflammable. Therefore, it is essential to ensure that

the ducts of the refrigerant circuit do not get

damaged.

HOW TO USE THE REFRIGERATOR COMPARTMENT

This refrigerator is equipped with a

star

freezer compartment.

The refrigerator compartment defrosts

automatically.

The refrigerator can operate in an ambient

temperature ranging from +10

Cto+38

Cbut

functions best at temperatures between +16

Cand

+32

Switching on the refrigerator

Insert the plug in the mains outlet.

The thermostat sets the temperature in both the

refrigerator and freezer compartments.

Setting the temperature:

For correct operation and optimum food

storage in both compartments.

Refer to

enclosed product sheet for thermostat

setting instructions.

If you wish to change the temperature setting

in the compartments, turn the thermostat

adjustment knob as required:

For WARMER TEMPERATURES turn the

thermostat knob down to positions 1or2.

For COLDER TEMPERATURES turn the

thermostat knob up to positions 5to7.

When the thermostat is set to

both the appliance

and internal light switch off.

Note:

The temperature inside the two compartments is in

part determined by the position of the appliance,

the room temperature and frequency with which

the doors are opened.

Use the thermostat to adjust the temperature in

relation to these factors.

How to store food in the refrigerator

compartment

Fill the refrigerator as illustrated in the adjacent

figure:

A. Cooked food

B. Meat and fish

C. Fruit and vegetables

D. Bottles

E. Eggs

F. Butter, cheese etc.

Notes:

Air circulates freely between the shelves and

back wall of the refrigerator interior.

Do not store food against the back wall of the

refrigerator compartment.

Do not store warm food in the refrigerator

compartment.

Store liquids in closed containers.

The storage of greens with a high water content

may cause condensation to form inside the

bottom drawer. This is quite normal however,

and in no way impairs refrigerator performance.

HOW TO USE THE FREEZER COMPARTMENT

The

star freezer compartment may be

used to store frozen products for the time

indicated on the packaging and to freeze

fresh food by placing it on the shelf in the

top of the freezer. Frozen products should

instead be stored in the bottom of the

freezer compartment to prevent contact

with food still to be frozen.

The rating plate shows the quantity of fresh

food that can be frozen in 24 hours.

Important

Wrap and seal fresh food in:

Aluminium foil, cling film, air and water-tight

plastic bags, polythene containers with lids or

special freezer containers.

The freezer compartment is able to maintain

correct storage temperatures even in the case

of power failure. If this is the case, do not

open the freezer door until power is restored.

Important

Refer to the adjacent table for fresh food

storage times (months).

When you purchase frozen food, make

sure:

The packaging is undamaged (frozen food in

damaged packaging may have deteriorated).

If the package bulges or is marked by liquid

stains, the product has not been correctly

stored and may have partially thawed.

When shopping, leave frozen food purchases

until last and transport items in insulated bags.

Place items in the freezer as soon as you get

home.

If food has partially thawed, do not refreeze.

Consume within 24 hours.

Avoid subjecting frozen foods to temperature

variations. Observe the “Best before date” on

the packaging.

Always observe the storage information on

packages.

Making ice cubes

Fill the ice cube tray three quarters full with

water and place in the bottom of the freezer

compartment.

If the ice cube tray sticks to the bottom of the

compartment do not use pointed or sharp

instruments to detach them.

HOW TO DEFROST AND CLEAN THE FREEZER COMPARTMENT

We recommend defrosting the freezer

compartment once or twice a year when

ice has built up to about 3 mm on the

walls and when the freezer contents are low.

1. Open the door, remove the food from the

freezer, wrap in paper and pack together in

an insulated bag or cool part of the house.

2. Unplug the appliance.

3. Leave the door open to allow the ice on the

freezer walls to thaw.

4. Remove the defrost water from the bottom

of the freezer compartment.

5. Clean with a sponge soaked in a solution of

lukewarm water and neutral detergent.

Do not use abrasive products.

6. Rinse and dry thoroughly.

xNote: To avoid irreparable damage to

the freezer compartment, do not use

pointed or sharp metal instruments to

scrape off ice or heat the compartment

artificially.

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

Regularly clean the refrigerator

compartment. The refrigerator

compartment defrosts automatically.

The formation of water droplets on the back

wall of the refrigerator compartment indicates

that the automatic defrosting cycle is underway.

The defrost water is channelled to a run-off and

collected in a container where it evaporates.

Keep the run-off channel clean using the special

tool supplied. This ensures that defrost water is

drained efficiently.

Before cleaning the appliance, unplug it from

the mains.

xClean the refrigerator interior with a sponge

soaked in a solution of lukewarm water and/

or neutral detergent.

xRinse and dry thoroughly with a soft cloth.

Do not use abrasive products.

CARE AND MAINTENANCE

Built-in appliances

xRegularly clean the air vents using a vacuum

cleaner or brush (see figure

xClean the exterior with a soft cloth.

Free-standing appliances

xRegularly clean the condenser at the rear of

the appliance using a vacuum cleaner or

brush (see figure

PROLONGED DISUSE

1. Empty the refrigerator and freezer

compartments.

2. Unplug from the mains.

3. Defrost the freezer compartment and clean

and dry the interior of both compartments.

4. Leave the doors open to prevent the

formation of unpleasant odours.

TROUBLESHOOTING GUIDE

1. The appliance does not work

xIs there a power failure?

xIs the plug properly inserted in the socket?

xIs the two-pole circuit breaker connected

xHas the fuse blown?

xIs the power cable damaged?

xIs the thermostat set on position x?

2. The temperature inside the

compartments is not cold enough

xDo the doors close properly?

xIs the appliance installed near a heat source?

xIs the thermostat correctly set?

xIs air circulation inhibited?

3. The refrigerator compartment

temperature is too cold

xIs the thermostat correctly set?

4. Water collects in the bottom of the

refrigerator compartment

xIs the defrost water run-off clogged?

5. The internal light does not work

Refer to point 1 and then:

xUnplug the appliance from the mains.

xFollow the instructions and drawing in the

enclosed table to gain access to the bulb.

xCheck the bulb and, if necessary, replace.

Do not use a bulb which exceeds 15 W.

Note:

xThe edge of the refrigerator door may

be hot. This is not a fault but is intended

to prevent the formation of

condensation.

xGurgling noises etc. inside the

refrigerating circuit are quite normal.

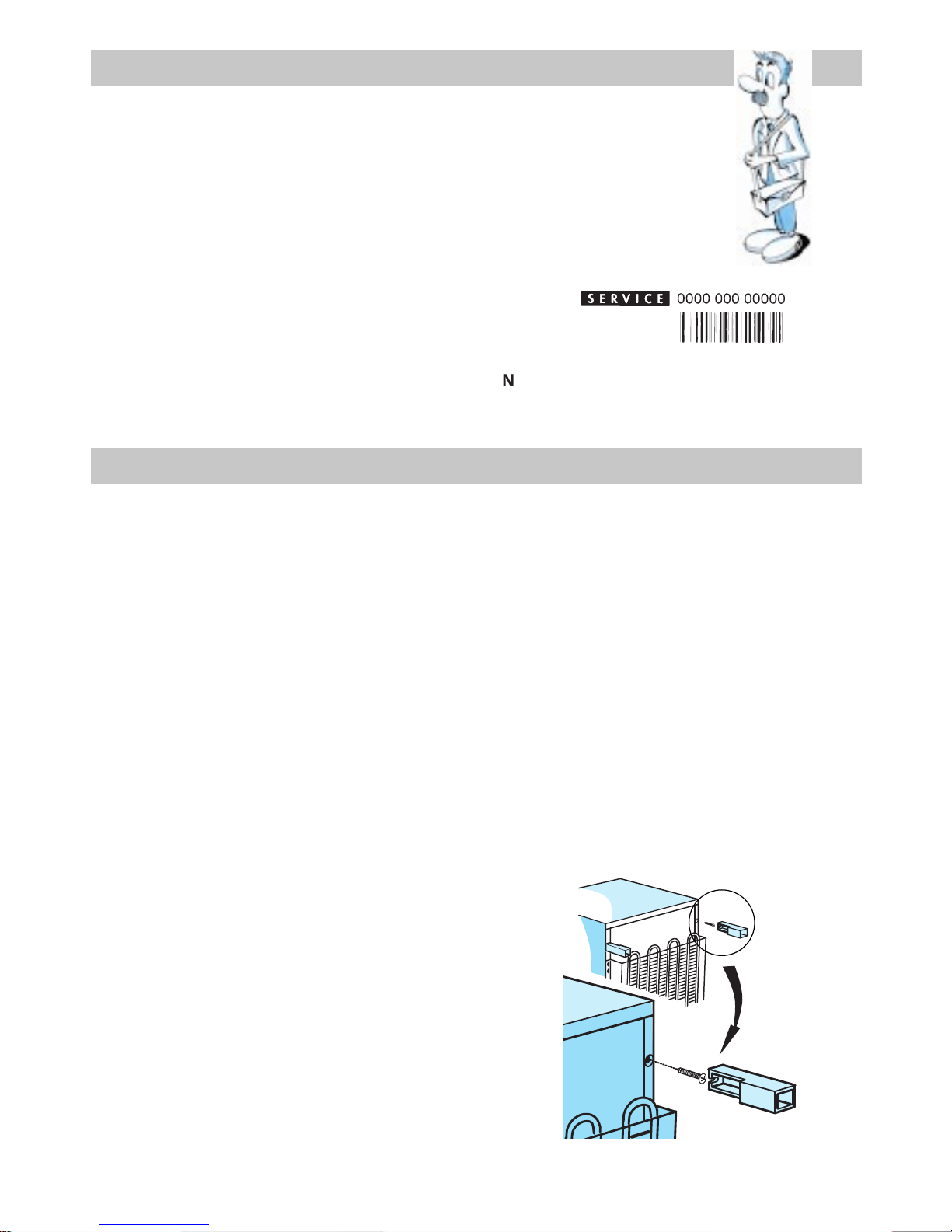

AFTER SALES SERVICE

Before contacting our after sales service:

1. Try to remedy the problem (see

“Troubleshooting guide”).

2. Restart the appliance to see if the fault

repeats.

If the malfunction persists, switch off the

appliance and switch on again after an hour.

3. If the malfunction still persists, contact our

Customer Service, specifying:

xthe nature of the problem

xthe appliance model

xThe Service number (the number after the

word SERVICE on the rating plate located on

the side of the fruit and vegetable drawer).

xYour full address

xYour telephone number complete with area

code.

Note: Door opening direction changes

effected by our Customer Service are not

covered by the terms of guarantee.

INSTALLATION

xDo not install the appliance in the vicinity of a

heat source.

xInstall the appliance in a dry and well

ventilated room.

xMake sure there is sufficient clearance above

and below the refrigerator to ensure free air

circulation.

xClean the appliance interior (see “How to clean

the refrigerator compartment”).

xMount the accessories.

ELECTRICAL CONNECTION

xElectrical connections must be made in

accordance with local regulations.

xVoltage and power consumption information is

shown on the rating plate on the side of the

fruit and vegetable drawer.

xThe appliance must be earthed as

prescribed by law. The manufacturer

declines all liability for injury to persons

and animals or damage to property

resulting from failure to comply with this

requirement.

xIf the appliance plug and wall socket are

incompatible, the socket must be replaced by a

qualified electrician.

xDo not use extension leads or multiple

adapters etc.

FREE-STANDING APPLIANCES

(only)

xMount the spacers (if provided) on the back

of the condenser behind the appliance (see

figure).

xFor best performance, leave a clearance of at

least 5 cm above the appliance and enough

spacebetweentheapplianceandthe

adjacent furniture to allow air to circulate.

xMake sure the appliance is perfectly level

andifnecessary,adjustthefrontfeet.

ELECTRICAL DISCONNECTION

xDisconnect the appliance from the mains by

removing the plug or disconnecting the two-

pole circuit breaker upstream of the socket.

Inhaltsverzeichnis

Andere Bauknecht Kühlschrank Handbücher

Bauknecht

Bauknecht KGTNF 20CME IN Bedienungsanleitung

Bauknecht

Bauknecht WLMG 1015 Bedienungsanleitung

Bauknecht

Bauknecht KGNA 336 OPTIMA Bedienungsanleitung

Bauknecht

Bauknecht KDMC Bedienungsanleitung

Bauknecht

Bauknecht KSI 9VS1 Bedienungsanleitung

Bauknecht

Bauknecht KVIK20041A Bedienungsanleitung

Bauknecht

Bauknecht KVE 2530/A Bedienungsanleitung

Bauknecht

Bauknecht KGA 325 OPTIMA Bedienungsanleitung

Bauknecht

Bauknecht KGNA 335 Bedienungsanleitung

Bauknecht

Bauknecht KSDN 5061/A Bedienungsanleitung

Bauknecht

Bauknecht GKN 1774 2 Bedienungsanleitung

Bauknecht

Bauknecht Optima+ KVA 172 Bedienungsanleitung

Bauknecht

Bauknecht KSDN 5061/A/1 Bedienungsanleitung

Bauknecht

Bauknecht KGN 7050/0 Bedienungsanleitung

Bauknecht

Bauknecht UVI 1340 Bedienungsanleitung

Bauknecht

Bauknecht BNF70 400 Bedienungsanleitung

Bauknecht

Bauknecht GKEA 2515 OPTIMA Abmessungen

Bauknecht

Bauknecht KVA 1312 Bedienungsanleitung

Bauknecht

Bauknecht GKNE 1770 A Bedienungsanleitung

Bauknecht

Bauknecht KSDN 5060 Bedienungsanleitung

Bauknecht

Bauknecht KSN 7050 Bedienungsanleitung

Bauknecht

Bauknecht KGA 275 OMPTIMA Bedienungsanleitung

Bauknecht

Bauknecht KGNA 305 Bedienungsanleitung

Bauknecht

Bauknecht GKNA 3200 Optima Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
