Instructions for use

KVIE 2009/A

PRODUCT SHEET GB

GB FNL I

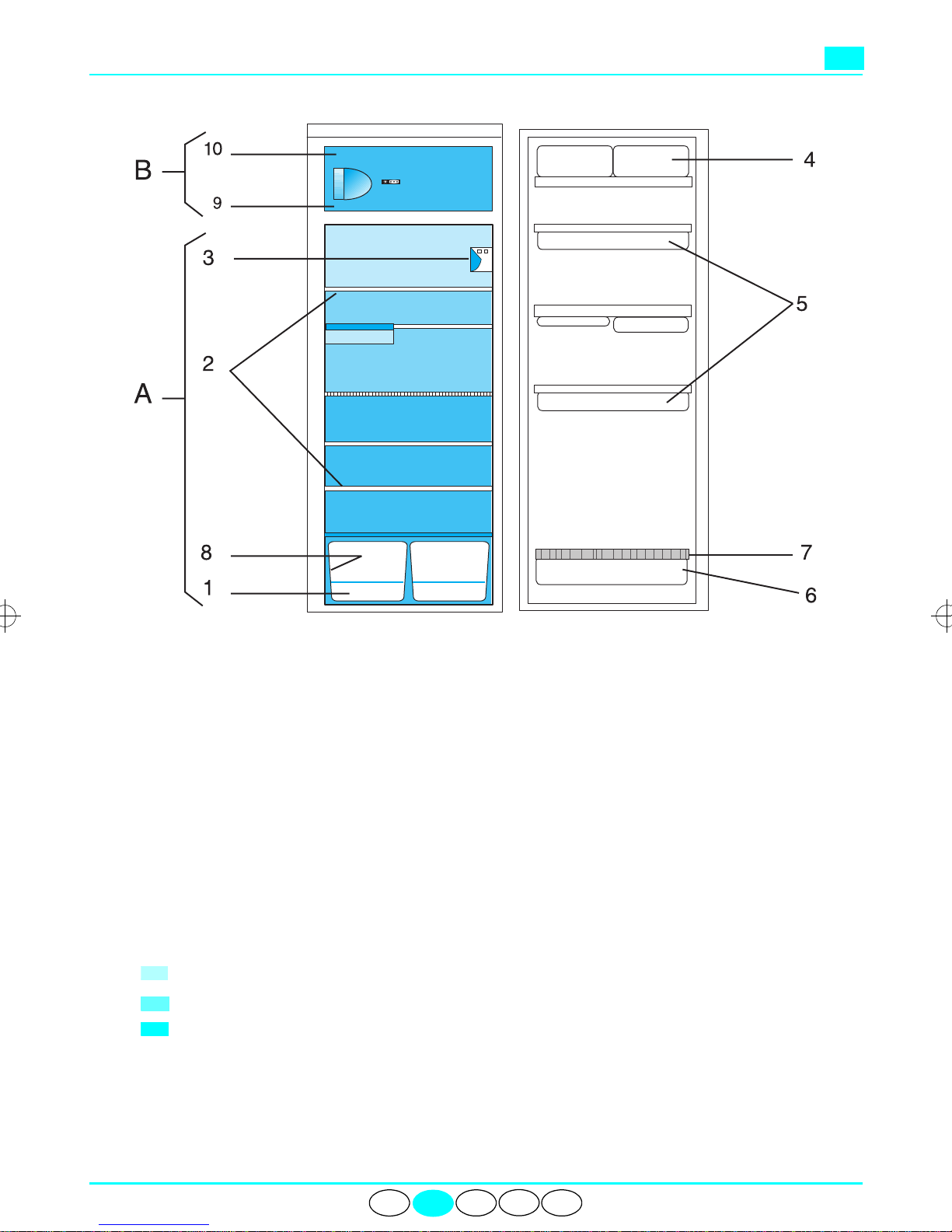

A. Refrigerator compartment

1. Crisper drawer

2. Shelves / Shelf area

3. Electronic control group with light

4. Upper door tray

5. Door trays

6. Bottle compartment

7. Bottleholder shelf

8. Rating plate (at the side of crisper drawer)

B. Freezer compartment

9. Ice cube tray

(inside the compartment)

10. Freezer compartment inner door

Least cold zone

Intermediate temperature zone

Coldest zone

Note: The number of shelves and shape of accessories may vary, depending on the model. All shelves, door

trays and racks are removable.

Warning: Refrigerator accessories must not be washed in a dishwasher.

37048_GB.fm5 Page 1 Monday, January 25, 1999 12:08 PM

GB F

5019 100 37048 NL I

How to operate the refrigerator compartment

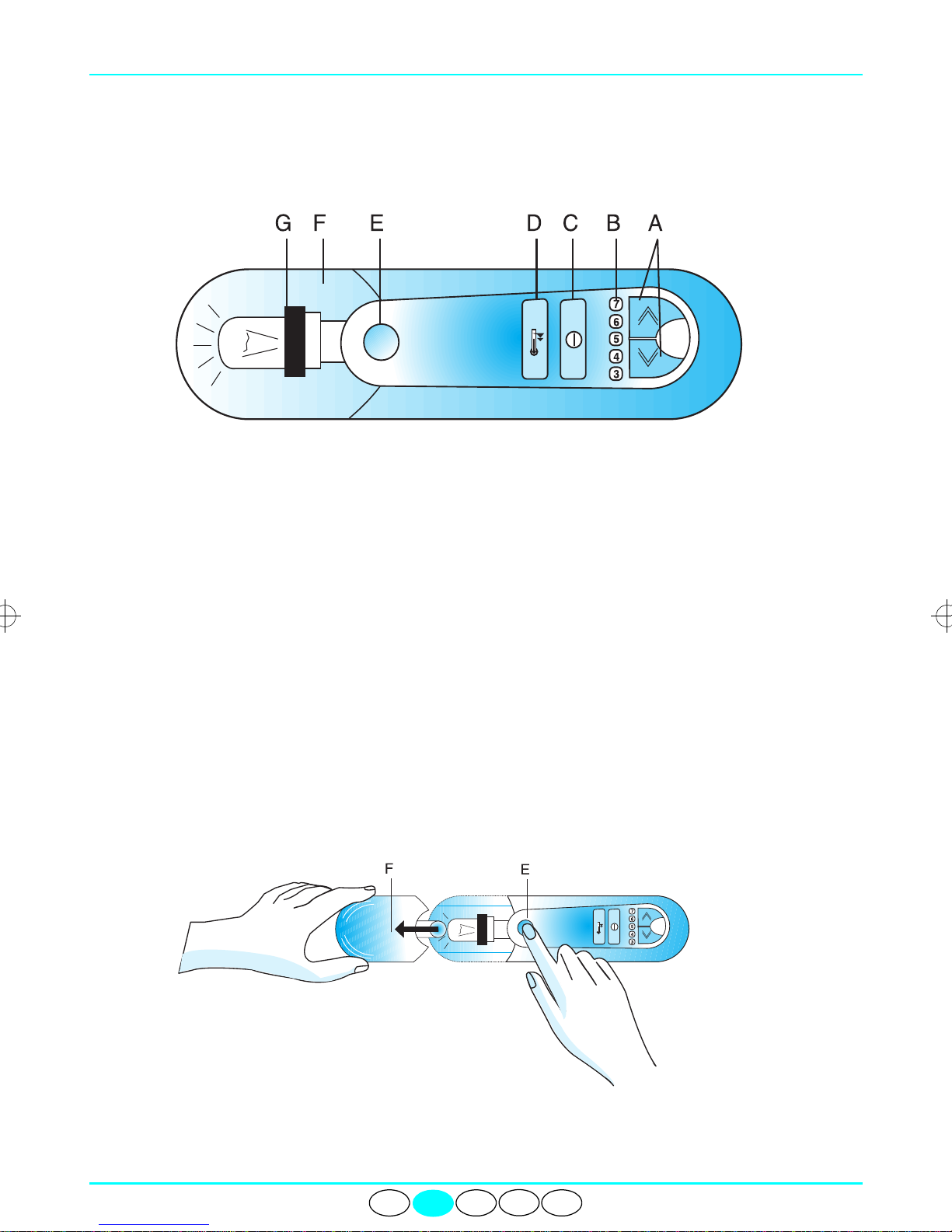

A. Temperature selection buttons for the refrigerator compartment (+/-)

B. Displays indicating selected temperature in °C

Actual temperature may differ from the set temperature.

C. ON/OFF button for refrigerator compartment

D. Fast freeze button

E. Light diffuser release button

F. Light diffuser

G. Bulb (max 25 watt)

The average recommended thermostat setting is 5.

The refrigerator can operate at ambient temperatures between +10°C and +38°C.

Optimal performance is obtained at temperatures between +16°C and +38°C.

Note: The ambient air temperature, the frequency of opening the door and the position of the appliance can

affect the internal temperatures of the refrigerator. These factors must be taken into account when setting

the thermostat.

Removing the light diffuser

1 - Hold the diffuser and press button “E”.

2 - Slide cover “F” towards the rear of the appliance.

3 - Remove the bulb and replace it with a new one (25 Watt).

37048_GB.fm5 Page 2 Monday, January 25, 1999 12:08 PM

CONTENTS GB

BEFORE USING THE REFRIGERATOR PAGE 12

PROTECTING THE ENVIRONMENT PAGE 12

PRECAUTIONS AND GENERAL

RECOMMENDATIONS PAGE 13

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT PAGE 14

HOW TO USE THE FREEZER COMPARTMENT PAGE 16

HOW TO DEFROST THE APPLIANCE PAGE 16

CARE AND MAINTENANCE PAGE 17

TROUBLESHOOTING GUIDE PAGE 17

AFTER-SALES SERVICE PAGE 18

INSTALLATION PAGE 18

Your new appliance is exclusively for domestic

use.

The freezer compartment can be used

to deep freeze fresh and cooked food, make ice

cubes, and for the storage of frozen and deep-

frozen food. Defrosting is a manual procedure.

The refrigerator compartment, which has an

automatic defrost feature, is used for the storage

of fresh food and beverages

To get the most out of your new appliance,

read the user handbook thoroughly. The

handbook contains a description of the

appliance and useful tips for storing food.

Keep this handbook for future consultation.

1. After unpacking the appliance, make sure

that the door shuts properly. Any damage

must be reported to your dealer within

24 hours after delivery of the appliance.

2. Wait at least two hours before connecting

the appliance to the power supply in order

to ensure the refrigerant circuit is fully

efficient.

3. Appliance installation and electrical

connections must be carried out by a

qualified electrician, in accordance with the

manufacturer's instructions and local

regulations.

1. Packing

The packaging material is entirely recyclable,

and is marked with the recycling symbol($).

Follow local disposal regulations.

Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children,

as they are potentially dangerous.

2. Appliance

The appliance is made from recyclable

materials.Disposeofthe appliance in conformity

with local environmental regulations.

Make the appliance unusable by cutting off the

powercord.The appliance must be consigned to an

authorised collection centre for the recovery of

refrigerant gas.

Information:

This appliance does not contain CFCs (replaced

with R134a) or HFCs (replaced with R600a -

Isobutane). For more information, refer to the

rating plate affixed to the appliance.

Appliances with isobutane(R600a)

Isobutane is a naturally occurring low

environmental impact gas. Caution is required,

however, because Isobutane is inflammable.

Therefore, it is essential to ensure that

refrigerant pipelines are not damaged.

BEFORE USING THE REFRIGERATOR

PROTECTING THE ENVIRONMENT

•Use the refrigerator compartment only for

storing fresh foods and the freezer

compartment only for making ice

cubes, storing frozen food and freezing fresh

food.

•Do not cover or obstruct the air vents of the

appliance.

•Do not store liquids in glass containers in the

freezer compartment - danger of

bursting.

•Do not eat ice cubes or ice lollies immediately

after taking them out of the low temperature

compartment - risk of “cold” burns.

•Do not allow children to play or hide inside

the appliance - risk of becoming entrapped

and suffocating.

•Before any cleaning or maintenance

operation, unplug the appliance from the

mains or disconnect the electrical power

supply.

•The power cable can only be replaced by an

authorised person.

Declaration of conformity

•This appliance is intended to come into

contact with foodstuffs and conforms to D.L.

108 of 25.01.1992 (European Directive

89/109/EEC).

PRECAUTIONS AND GENERAL RECOMMENDATIONS

Switching on the appliance

1. Plug in the appliance.

2. The appliance switches on. The temperature

is factory set to 5 °C.

A visual warning signal flashes when the

door has been left open for more than 2

minutes.

(see “Refrigerator door open alarm” in this chapter).

Temperature adjustment for refrigerator

compartment

To adjust the temperature in the refrigerator

compartment, proceed as follows:

•Press button (A) to increase the

temperature, e.g. from 5° to 7°;

•Press button (A) to lower the

temperature, e.g. from 7° to 5°;

Note:

Room temperature, frequency of door opening,

the introduction of hot food and incorrect

positioning of the appliance can affect the

internal temperature of the refrigerator, which

may differ from that indicated on the panel.

Switching off the appliance

If the appliance is not to be used for a prolonged

period of time, it can be switched off by pressing

button (C) Although connected to the power

supply, the appliance is effectively switched off,

theinternallightisswitchedoffandallLEDsareoff

except red LED (C). To switch the appliance on

again, press button (C) again.

Refrigerator door open alarm

If the refrigerator door is accidentally left open

the appliance issues a warning by means of an

intermittent inside light.

When the door has been left open for 2 minutes

theinsidelightbegins toflash. It willstop flashing

when the door is closed.

Using the refrigerator compartment

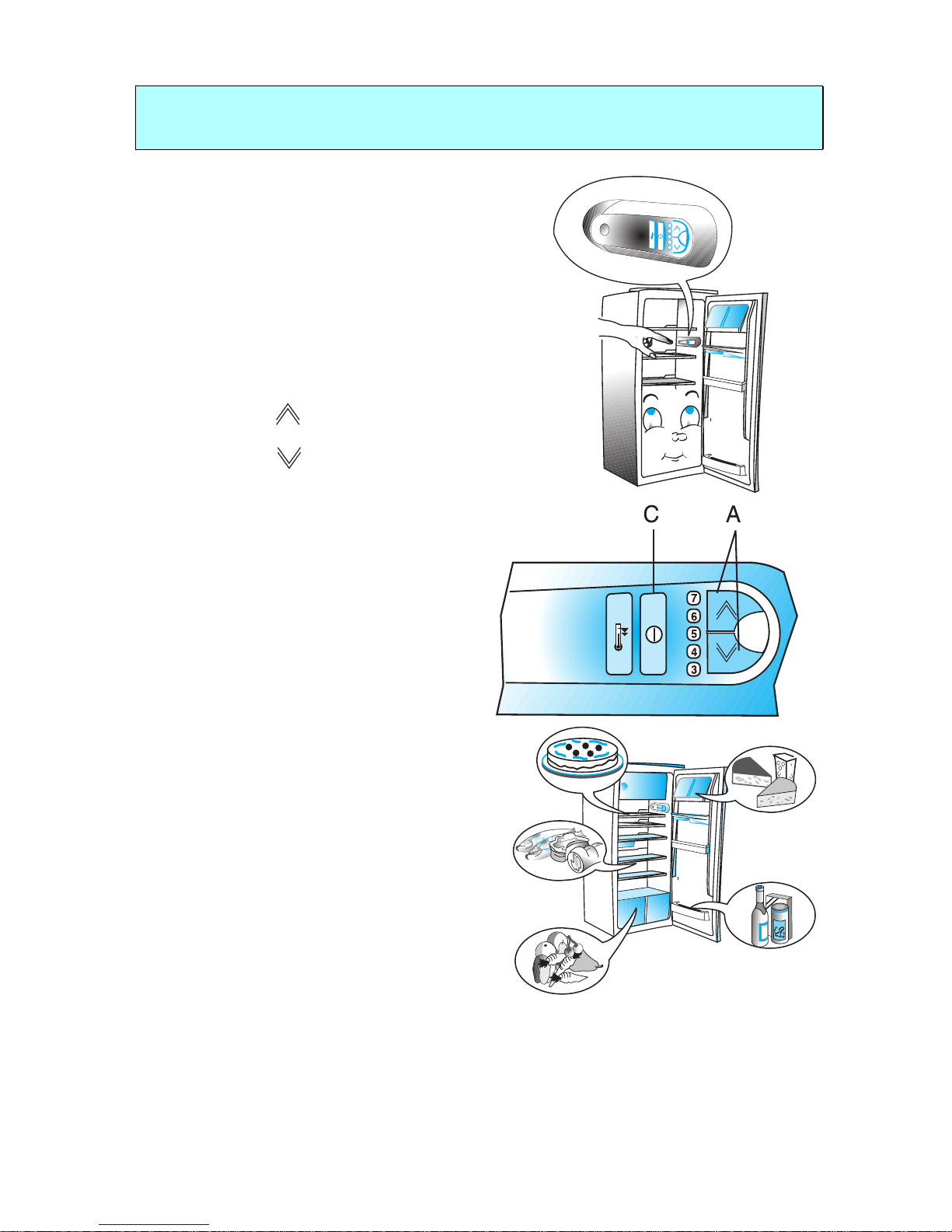

Position the food as shown in the figure.

A Cooked food

B Fish, meat

C Fruit and vegetables

D Bottles

E Cheese

Note:

•The space between the shelves and the rear

wall of the refrigerator compartment must be

unobstructed to allow air circulation.

•Do not place food in direct contact with therear

wall of the refrigerator compartment.

•Do not place hot food in the refrigerator.

•Store liquids in closed containers.

Warning

Storing vegetables with high water content

can cause condensation to form in the

crisper: this will not affect the correct

operation of the appliance.

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

The freezer compartment this

compartment can be used for freezing fresh

foods.

The quantity of fresh food that can be frozen

in 24 hours is shown on the rating plate.

Freezing fresh food

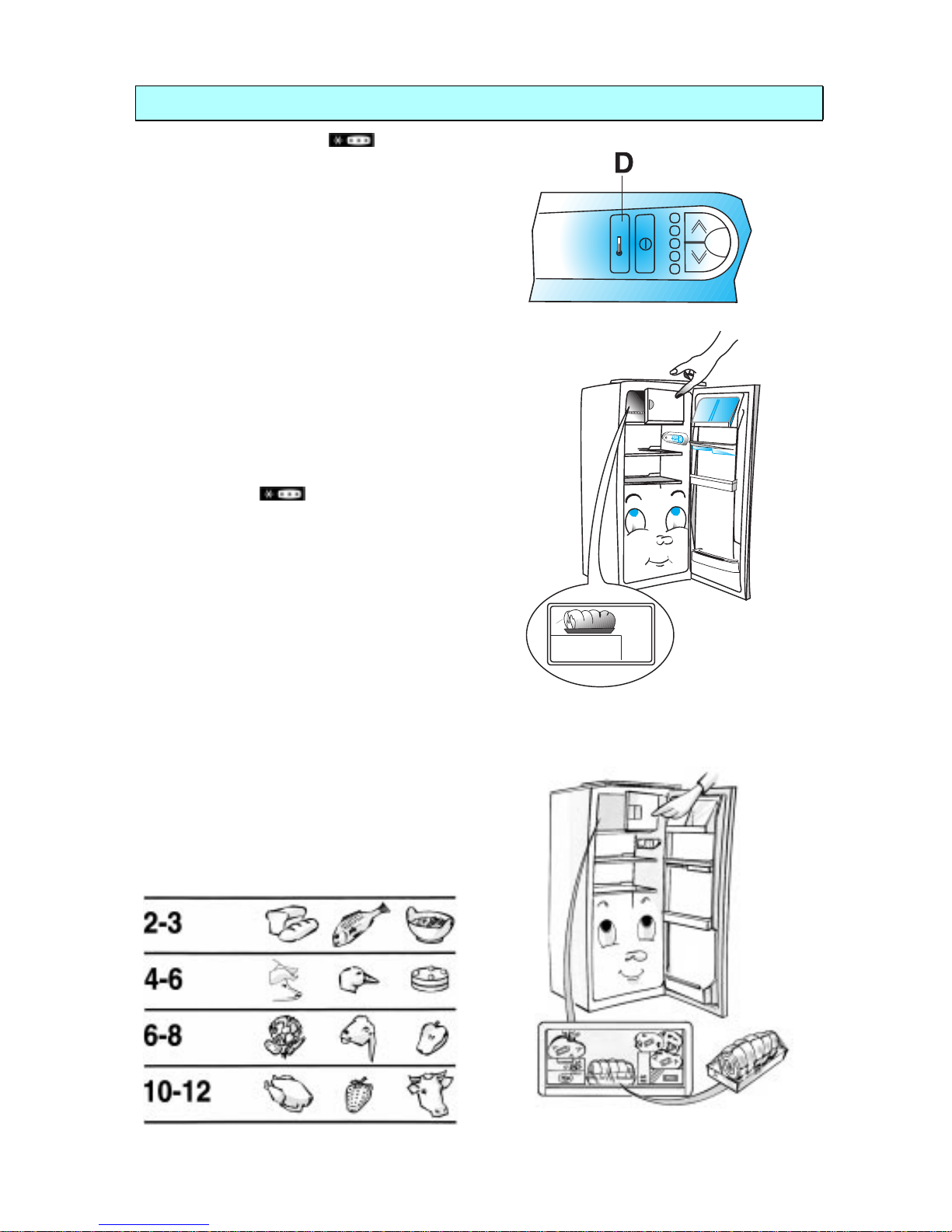

•Press the freeze button (D) the yellow LED

comes on and remains lit for the entire

period.

•If your appliance is equipped with a grid,

position food to be frozen as indicated in

Fig. 1, otherwise position food as illustrated

in Fig. 2.

A) Arrange the fresh food on the grid, leaving

sufficient space around each pack for the air

to circulate and avoiding contact with already

frozen food (Fig.1).

B) Arrange the food centrally in the

compartment, , ensuring it does not

come into contact with already frozen food.

Leave a space of approx. 20 mm around

packages (Fig. 2 ).

•After approximately 24 hours the function

switches off automatically and the yellow LED

for button (D)switches off. To cancel the

function, press button (D) again.

Thetablealongsideshowstherecommended

maximum storage time for frozen fresh

foods.

HOW TO OPERATE THE FREEZER COMPARTMENT

Fig. 2

Fig. 1

MONTHS FOOD

When purchasing frozen food products:

•ensure that the packaging is not damaged

(frozen food in damaged packaging may

have deteriorated). If the package is swollen

or has damp patches, it may not have been

stored under optimal conditions and thawing

may have already begun.

•When shopping, leave frozen food

purchases till last and transport the products

in a thermally insulated cool bag.

•Place the items in the freezer compartment

as soon as you get home.

•If food has thawed, even partially, do not re-

freeze it. Consume within 24 hours.

•Avoid, or reduce temperature variations to

the minimum. Respect the best-before date

on the package.

Always observe the storage information on the

package.

Making ice cubes

•Filltheicecubetray2/3fulland placeitinthe

freezer compartment. .

•Do not use sharp or pointed instruments to

detach the tray if it is stuck to the freezer

bottom.

Bend the ice tray slightly to remove the cubes.

Before defrosting, unplug the appliance from

the mains or disconnect the electrical power

supply.

Defrosting of the refrigerator compartment is

completely automatic. Droplets of water on

the rear wall of the refrigerator compartment

indicate that the periodic automatic defrost

cycle is in progress. The defrost water is

automatically routed to a drain outlet and

into a container from which it evaporates.

Clean the defrost water drain outlet regularly

using the tool supplied with the appliance. This

precautionensuresthatdefrostwaterisremoved

correctly (Fig. 3).

Defrosting the compartment

Defrostthefreezer compartment once or

twice a year or when the formation of ice on the

walls is excessive.

It is perfectly normal for ice to form. The amount

and speed at which the ice forms depends on

ambient conditions and the frequency with which

thedoorisopened.Iceformationis concentrated

atthe topofthe compartmentanddoesnotaffect

the efficiency of the appliance.

If possible, defrost the freezer compartment when

it is nearly empty.

•Remove the food from the freezer

compartment and group together in a cool

place or in a cool bag.

•Leave the door open to allow the frost to melt.

•Clean the interior with a sponge soaked in

warm water and/or neutral detergent. Do not

use abrasive products.

•Rinse the interior and dry thoroughly.

•Put the food back into the freezer

compartment.

•Close the door.

Plug in the appliance again and switch on

following the instructions in chapter “HOW TO

OPERATE THE refrigerator compartment”.

Adjustments and selections valid before

switching off will automatically be restored.

HOW TO USE THE FREEZER COMPARTMENT

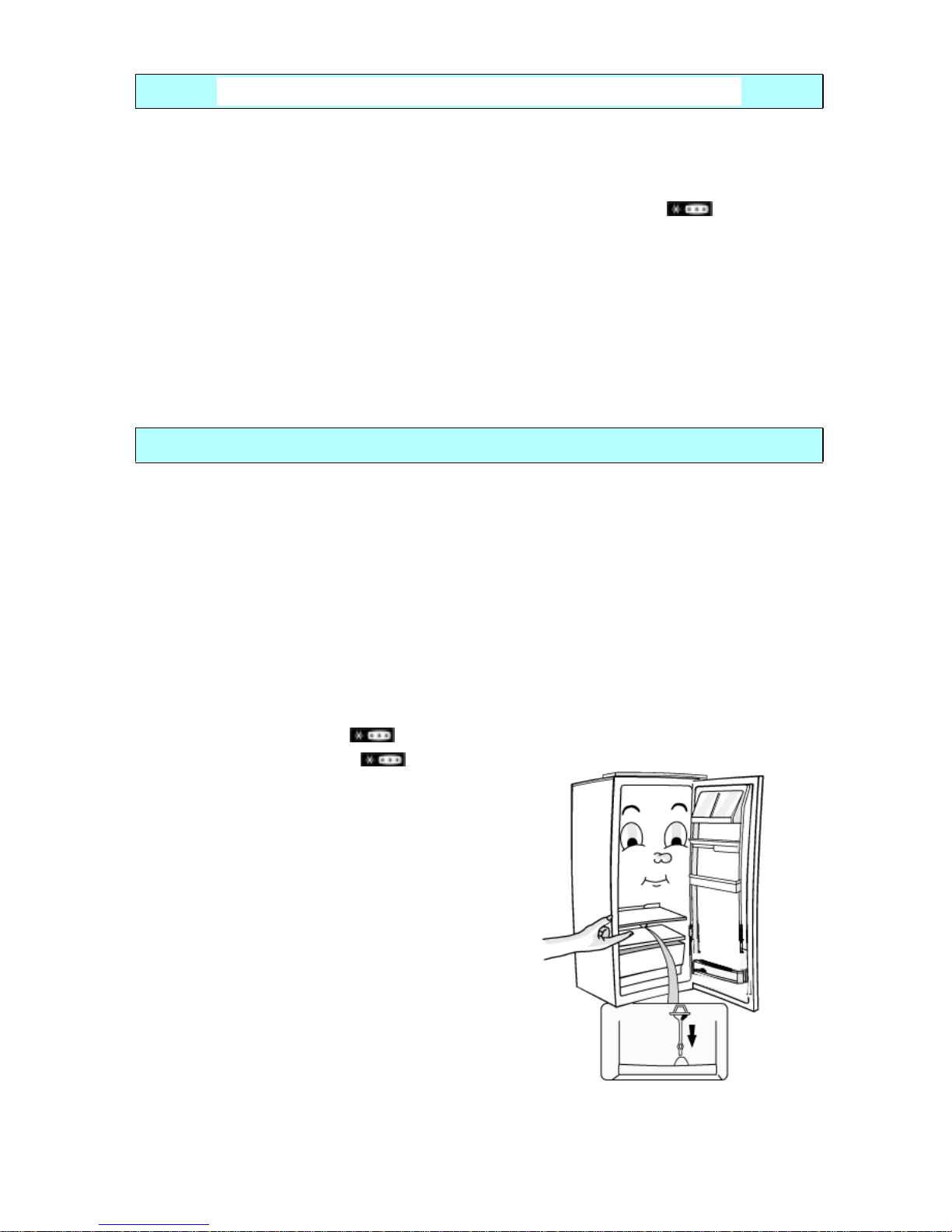

HOW TO DEFROST THE APPLIANCE

Fig. 3

Inhaltsverzeichnis

Andere Bauknecht Kühlschrank Handbücher

Bauknecht

Bauknecht GKN 1774 2 Bedienungsanleitung

Bauknecht

Bauknecht KSDN 5061/A/1 Bedienungsanleitung

Bauknecht

Bauknecht GKEA 2550 Optima Bedienungsanleitung

Bauknecht

Bauknecht KVA 2500/1 Bedienungsanleitung

Bauknecht

Bauknecht KGA 325 OPTIMA Bedienungsanleitung

Bauknecht

Bauknecht KGI 2900/A Bedienungsanleitung

Bauknecht

Bauknecht KSI 9VS1 Bedienungsanleitung

Bauknecht

Bauknecht KDA 2800/1 Bedienungsanleitung

Bauknecht

Bauknecht KGA 275 OMPTIMA Bedienungsanleitung

Bauknecht

Bauknecht KSN 7050 Bedienungsanleitung

Bauknecht

Bauknecht KDMC Bedienungsanleitung

Bauknecht

Bauknecht KRB 1310 Bedienungsanleitung

Bauknecht

Bauknecht GKNE 1770 A Bedienungsanleitung

Bauknecht

Bauknecht GKEA 2515 OPTIMA Abmessungen

Bauknecht

Bauknecht KR 19G4 A2 + IN Bedienungsanleitung

Bauknecht

Bauknecht BNF70 400 Bedienungsanleitung

Bauknecht

Bauknecht UVI 1340 Bedienungsanleitung

Bauknecht

Bauknecht KVIK20041A Bedienungsanleitung

Bauknecht

Bauknecht KGNA 305 Bedienungsanleitung

Bauknecht

Bauknecht KSDN 5061/A Bedienungsanleitung

Bauknecht

Bauknecht GKA 1713 Optima Bedienungsanleitung

Bauknecht

Bauknecht KDNA 4300 Bedienungsanleitung

Bauknecht

Bauknecht WLMG 1015 Bedienungsanleitung

Bauknecht

Bauknecht GKNA 3200 Optima Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
