60 cm Side touch control 4 hyperspeed

zone ceramic hob.

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 19/07/07

Get user manuals: See SafeManuals.com

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 8 – 9

Ceramichoblayout 9

Control panel layout 9

Usingtheceramichob 10

Before first use 10

Touchcontrols 10

Turningthehobon 10

Turning on a zone and setting a power level 11

Turning off a zone gradually 11

Turning off a zone instantly 11

Turningthehoboff 12

Residualheatindicator 12

Locking the hob top 12 – 13

Safetycut-off 13

Automatic pre-heating 13 – 14

Changing the power level during automatic pre-heating 14

Switching off automatic pre-heating 15

Hobguidelines 15 – 16

Cleaning and maintenance 17

Cleaning the ceramic hob top 17

Aftereachuse 17

Cleaning table 17

Using a ceramic hob scraper 18

Using a specialist ceramic hob cleaner 18

Installation 19

Positioning 19

Unpacking the appliance 19

Installing the appliance 20 – 21

Electricalconnection 22

Connecting the mains supply cable 22 – 23

Replacing the mains supply cable 23

My appliance isn’t working correctly 24 – 25

Baumatic Ltd. Conditions of Guarantee 26

Contact details 27

Get user manuals: See SafeManuals.com

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Get user manuals: See SafeManuals.com

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Information

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

Get user manuals: See SafeManuals.com

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

The appliance should only be installed and connected by a

suitable qualified person.

Care should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

If you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect

it from your mains supply. Otherwise there is the risk of electric

shock occurring.

During use

Any film or stickers that are present on the hob surface when it

is delivered should be removed before use.

Care should be used when utilizing the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

Make sure that all of the cooking zones are switched off after

use.

Get user manuals: See SafeManuals.com

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC dated 19/02/1973 Low Voltage Directive.

-89/336/EEC dated 03/05/1989 EMC Directive inclusive of

Amending Directive 92/31/EEC.

-93/68/EEC dated 22/07/1993 CE Marking Directive.

-89/109/EEC dated 25/01/1992 Materials that can touch food.

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

To avoid damaging your appliance

oThe ceramic glass can be damaged by objects falling onto it.

oThe ceramic glass edge can be damaged by knocks from

cookware.

oCast iron and cast aluminium cookware with damaged bases

may scratch the ceramic surface if they are dragged across it.

Get user manuals: See SafeManuals.com

oPans should be lifted on and off the hob surface and not

dragged.

oCooking zones should not be switched on without cookware

placed on it. Also the cookware should not be empty.

Specifications

Product dimensions: Aperture dimensions:

Height: 510 mm Height: 490 mm

Width: 580 mm Width: 560 mm

Depth: 40 mm

Product specifications:

o2 x 1.80 kW hyperspeed zones (diametre 180 mm)

o2 x 1.20 kW hyperspeed zones (diametre 140 mm)

oSide touch control operation

o4 individual residual heat indicators

oSafety lock

oWrap around designer frame

Standard accessories

oCeramic hob scraper

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 30 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 6 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

Get user manuals: See SafeManuals.com

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

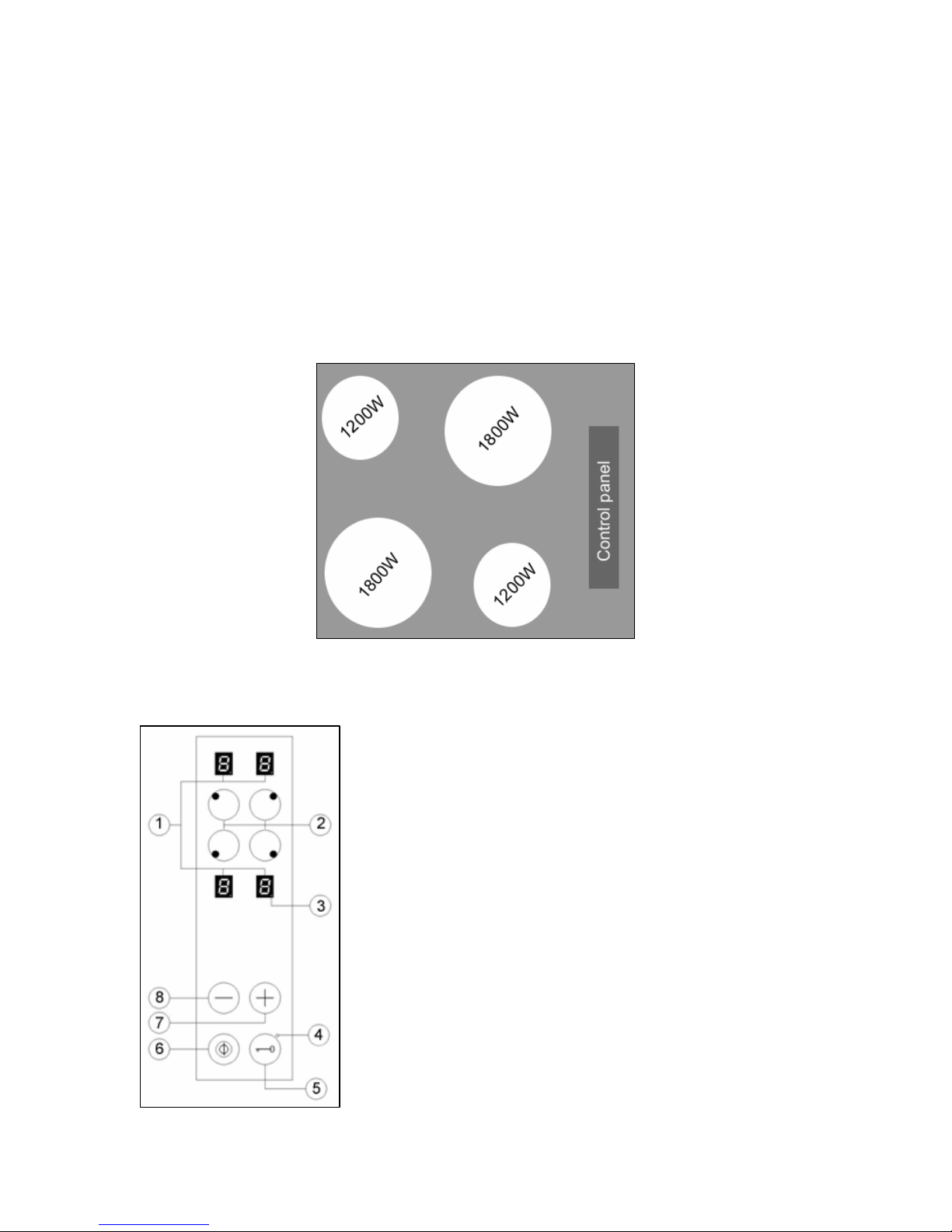

Ceramic hob surface layout

Control panel layout

1. Cooking zone indicators

2. Cooking zone selection button

3. Decimal point symbol

4. Safety lock neon

5. Safety lock button

6. ON/OFF button

7. Plus button

8. Minus button

Get user manuals: See SafeManuals.com

Using the ceramic hob

Before first use

IMPORTANT: You should clean the ceramic hob surface (see

“Cleaning and maintenance” section).

oYou should switch on one cooking zone at a time, for 5 minutes

at the maximum setting. This will help to eliminate any new

smell that exists and evaporate any humidity that has formed on

the heating elements during transit.

oDo not burn off more than one zone at once.

oDo not place a pan on the ceramic hob until this burn off process

has been completed.

Touch controls

oAll operations are performed by means of the touch controls that

can be found on the control panel.

oEach touch control has a visual display that corresponds to it.

oEvery time you press a touch control, an acoustic signal will

sound.

Turning the hob on

oPress the ON/OFF button (6)

oThe cooking zone indicators (1) will all read “0”.

oThe decimal point symbol (3) will flash on and off.

Get user manuals: See SafeManuals.com
