Baumatic BAO6001-P Bedienungsanleitung

BAO6001-P/BAO6003-P

fan built-in oven

BAO6005-P multifunction

built-in oven

User Manual for your Baumatic

BAO6001-P 4 function fan oven

BAO6003-P 7 function fan oven

BAO6005-P 9 function multifunction oven

The Smart Choice

NOTE:This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

Contents

Environmental note 4

Important safety information 5-8

Specifications 9

Product specifications 9

Standard accessories 10

Electrical details 10

Control panel 11

Oven programmer/timer display 12

Setting and using the oven programmer/timer (BAO6001-P,BAO6003-P) 12

Setting the time of day 12

Setting the minute minder function 12

Setting the duration function 13

Setting the end cook function 14

Setting the start and end time function 15

Adjusting the audible signal 16

Selecting a cooking function and temperature (BAO6001-P,BAO6003-P) 16

Selecting manual operation mode 16

Selecting an oven function 16

BAO6001-P,BAO6003-P standard oven functions 17

BAO6001-P additional functions 17

BAO6003-P additional functions 17

Thermostat control knob 18

Oven operating light 18

BAO6005-P electronic programmer and cooking functions 19-22

Cooking guidelines 23

Warnings 24

Cleaning and maintenance 25

Removable oven roof liner (BAO6003-P only) 26

Replacing the oven bulb 26

Removing the oven door for cleaning 26-27

Removing the inner door glass for cleaning 27

Installation 28

Electrical connection 28

Installing the oven into the kitchen cabinet 29

Positioning the appliance 29

Ventilation requirements 30

My appliance isn’t working correctly 31-32

Contact details 33

Welcome to Think Appliances letter 3

Dear Customer,

Congratulations on purchasing your new product from Think Appliances.

To register your parts and labour warranty (some conditions apply please refer to your

warranty card for more details) please contact out Customer Care team on:

1800 444 357

Our Customer Care centre is there to ensure you get the most out of your appliance. For

example, should you want to learn more about recommended cooking temperatures, the

various cooking functions available, how to set and program your LED clock, and importantly

taking care of your appliance when cleaning, please call us because we are here to help you.

It is important that you read through the following use and care manual thoroughly to

familiarize yourself with the installation and operation requirements of your appliance to

ensure optimum performance.

We also carry a complete range of spare parts for all Think products. For all your spare parts

enquiries please contact our team at Pronto Parts on:

1300 306 973

Again, thank you for choosing an appliance brought to you by Think Appliances and we look

forward to being of service to you.

Kind regards

Management

Think Appliances

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Information

oThis appliance is designed for domestic indoor household use only

and can be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

WARNING

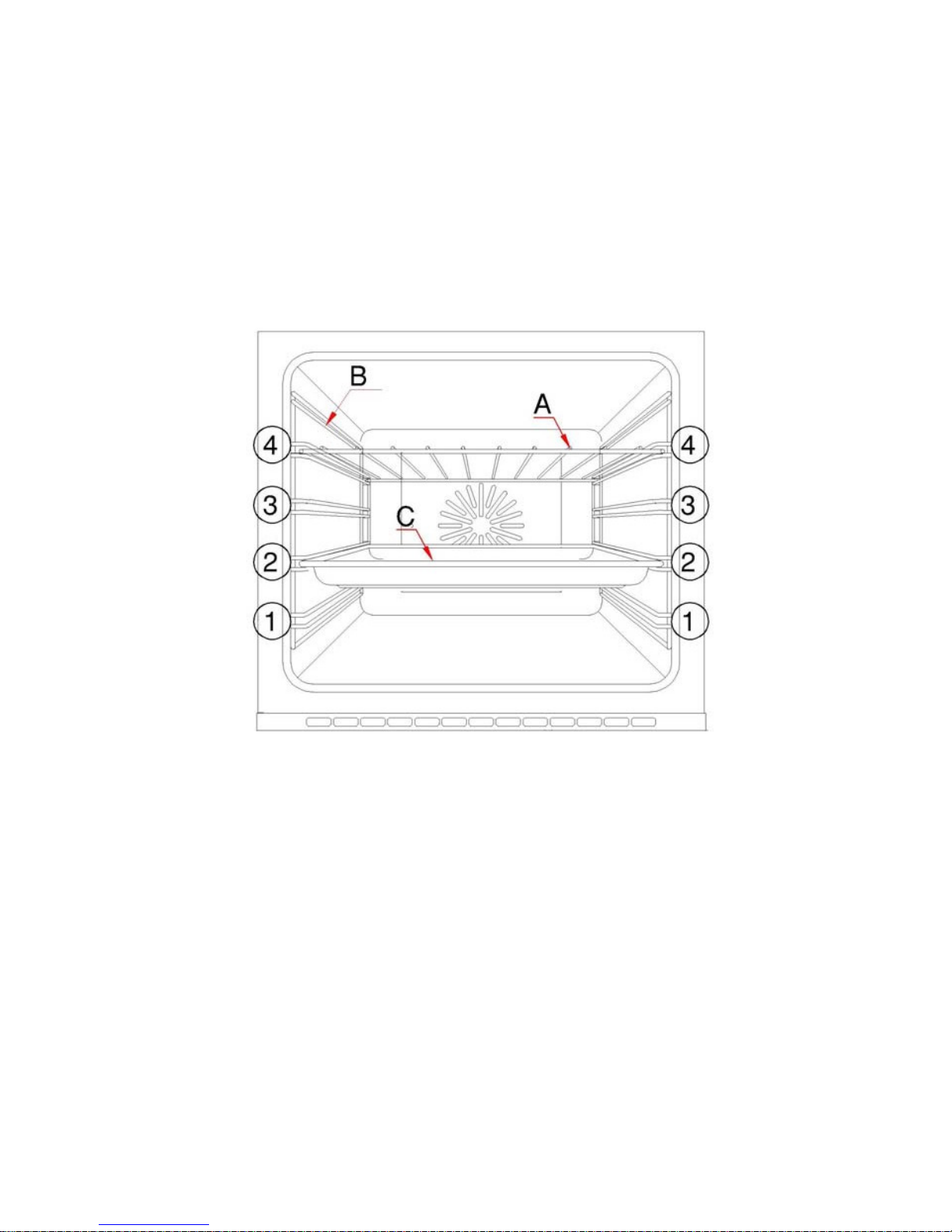

To ensure the oven shelves operate safely, correct placement of the shelves between the side rails

(items 1 to 4) is imperative. This will ensure that during removal of the shelf or tray, hot food

items should not slide out completely.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be turned off before

following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

Please consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oIn the parts destined to come into contact with foodstuffs, this

appliance is in accordance with the requirements of the EC

directive 89/109 transposed in the Italian Legislative Decree No.

108 of 25/01/92.

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

parts 1 and 2.6

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

o The appliance conforms to Australian Standards AS/NZS60335,

Specifications

Product Dimensions Aperture Dimensions

Height: 591 mm 580 mm – 583 mm

Width: 597 mm 560 mm

Depth: 525 mm 550 mm

Cooling fan

oA tangential cooking fan is fitted inside of this appliance, to make

the internal temperature of the oven stable and the external

surface temperature lower.

Product specifications

o4 oven functions (BAO6001-P)

o7 oven functions (BAO6003-P)

o9 oven functions (BAO6005-P)

oEnergy efficiency class: A

oOven capacity: 57 litres

oOven light

oLED full programmer

oCooling fan

oThermostatically controlled grill

oTriple-glazed removable door
