Bazooka MGW1014 Bedienungsanleitung

ENGLISH

Dear customer,

Congratulations on your purchase of a Bazooka MGW high-performance

subwoofer. At Bazooka we are fanatics about accurate music reproduction.

Your selection of our products for your sound system indicates that quality

sound is also important to you too. At SAS, we take great pride in

manufacturing revolutionary audio products, and through the years of

engineering expertise, hand craftsmanship and critical testing procedures,

we have created the MGW high-performance series of subwoofers. We hope

that you will take as much pride in owning and using one of these high-quality

audio products as we do designing and manufacturing them.

When properly installed and operated, your Bazooka MGW subwoofer will give

you years of clean uninterrupted sound reproduction. Therefore, we urge you

to take a few minutes to carefully read through this manual. It will explain

how to properly build an enclosure to optimize performance and longevity of

the subwoofer.

Sound can be deceiving. Over time your hearing comfort level adapts to

higher volumes of sound. What may have sounded normal can actually be too

loud and harmful to your hearing. Guard against this by setting your

equipment at a safe level before your hearing adapts.

To establish a “safe level”,

Start with your volume control at a low setting.

Slowly increase the volume control until you can hear comfortably,

clearly and without distortion.

Once you have established a comfortable “sound level”, make a note

of this position and do not go above this setting

Taking a minute to do this will help prevent your hearing from being damaged

and allow you to enjoy listening to music throughout your lifetime.

2MGW SUBWOOFERS

ENGLISH

CALCULATING ENCLOSURE VOLUME

It is difficult to give exact box dimensions that are universal for all cars and

trucks. It is for this reason that you must be able to calculate the space in

which you have available in order to achieve the proper air volume required.

It is recommended to build your enclosure from 3/4” thick MDF (medium

density fiberboard). Make sure the enclosure is sealed air tight.

Calculating External Volume

1.) To calculate box volume, measure the outside Width x Height x Depth of the

enclosure.

Example 12” x 14” x 9” = 1512”.

2.) Next you must convert cubic inches into cubic feet. To do this, you must

divide the cubic inch total by 1728”.

Example 1512 1728 = .875 Cubic feet.

Calculating Internal Volume

1.) To calculate the internal (net) volume of the above box you must first

multiply the thickness of the wood you are using by Two (2).

Example 3/4” x 2 = 1.5”.

2.) Next subtract 1.5 from each of the outside measurements of the box.

Width Height Depth

12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5

3.) Multiply the new totals (H x W x D)

Example: 10.5 x 12.5 x 7.5 = 984.375

4.) Next you must convert cubic inches into cubic feet. To do this, you must

divide the cubic inch total by 1728”

Example 984.375 1728 = .5696 Cubic feet.

ENGLISH

MGW1214

Free Air Resonance. (FS) 36

Total Q of driver @ FS including all resistance. (Qts) .55

Q of driver @ FS including non electrical resistance only. (Qms) 11.95

Q of driver @ FS including electrical resistance only. (Qes) .58

The driver's compliance expressed as an equivalent (Vas) 1.85

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .19

The DC resistance of the driver's voice coil (ohms). (Re) 3.8

RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/450

Max Power handling (Standard/ With Liquid Cooling) (W) 450/675

The driver's voice coil inductance (millihenries). (Le) 1.4

The drivers sensitivity (dB @ 1W 1M). (Sens) 91

PRODUCT SPECIFICATIONS

MGW1014

Free Air Resonance. (FS) 33

Total Q of driver @ FS including all resistance. (Qts) .45

Q of driver @ FS including non electrical resistance only. (Qms) 13.64

Q of driver @ FS including electrical resistance only. (Qes) .47

The driver's compliance expressed as an equivalent (Vas) 1.27

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .19

The DC resistance of the driver's voice coil (ohms). (Re) 3.9

RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/450

Max Power handling (Standard/ With Liquid Cooling) (W) 450/675

The driver's voice coil inductance (millihenries). (Le) 1.4

The drivers sensitivity (dB @ 1W 1M). (Sens) 89

ENGLISH

4MGW SUBWOOFERS

PRODUCT SPECIFICATIONS

MGW1514

Free Air Resonance. (FS) 27

Total Q of driver @ FS including all resistance. (Qts) .56

Q of driver @ FS including non electrical resistance only. (Qms) 7.21

Q of driver @ FS including electrical resistance only. (Qes) .61

The driver's compliance expressed as an equivalent (Vas) 4.5

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .32

The DC resistance of the driver's voice coil (ohms). (Re) 3.4

RMS Power Handling (Standard/ With Liquid Cooling) (W) 500/750

Max Power handling (Standard/ With Liquid Cooling) (W) 700/1050

The driver's voice coil inductance (millihenries). (Le) 2.7

The drivers sensitivity (dB @ 1W 1M). (Sens) 92

ENGLISH

Ported Enclosure

Box Volume *1.6 Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 3 Inches

Port Length 5.8 Inches

* Box is given as internal air volume including port and driver displacement.

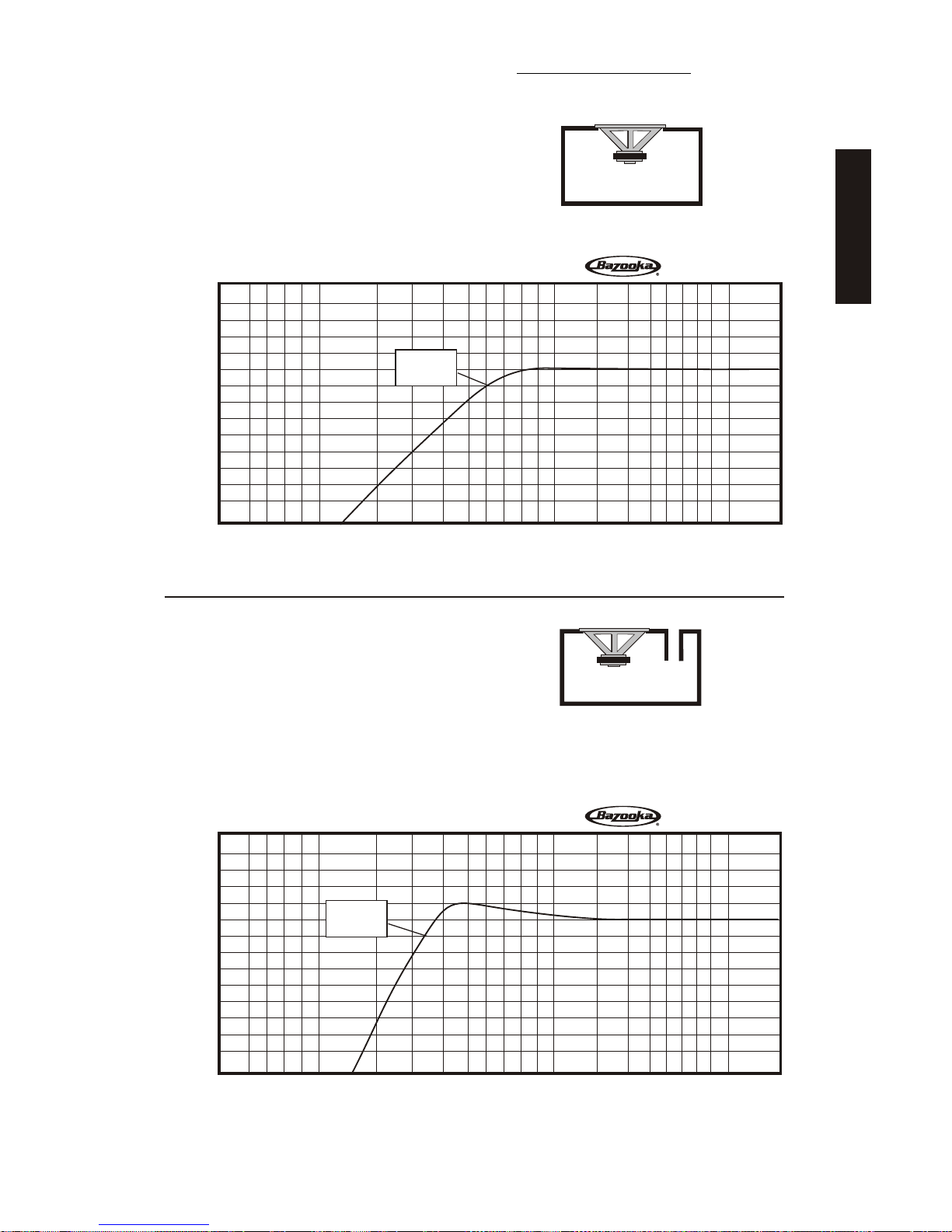

MGW1014 RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 0.56 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 33F3 = 33

Ported EnclosurePorted Enclosure

Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

MGW1014 Amplitude Response (dB/Hz)MGW1014 Amplitude Response (dB/Hz)

F3 = 60F3 = 60

ENGLISH

6MGW SUBWOOFERS

Ported Enclosure

Box Volume *2.0 Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 4 Inches

Port Length 8.25 Inches

* Box is given as internal air volume including port and driver displacement.

MGW1214 RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 1.0 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

MGW1214 Amplitude Response (dB/Hz)MGW1214 Amplitude Response (dB/Hz) Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 56F3 = 56

MGW1214 Amplitude Response (dB/Hz)MGW1214 Amplitude Response (dB/Hz) Ported EnclosurePorted Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 35F3 = 35

ENGLISH

Ported Enclosure

Box Volume *3.0 Cu Ft.

Port Frequency (Fb) 40Hz

Port Quantity 2

Port Diameter 4 Inches

Port Length 12.2 Inches

* Box is given as internal air volume including port and driver displacement.

MGW1514 RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 1.7 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 33F3 = 33

Ported EnclosurePorted Enclosure

Sealed EnclosureSealed Enclosure

MGW1514 Amplitude Response (dB/Hz)MGW1514 Amplitude Response (dB/Hz)

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 45F3 = 45

ENGLISH

8MGW SUBWOOFERS

The innovative design of the MGW component Woofers allows you to

liquid cool the voice coil motor assembly for maximum power handling

capability. With the addition of the CHIL PLUG and the CHIL KIT from your

local dealer, or directly from SAS, you can easily add liquid cooling to

your MGW Series Component Woofer.

CHIL Plug

Utilizing the optional CHIL plug

can increase the MGW

woofers power handling up

to 50%.

LIQUID COOLING

ENGLISH
