Bazooka CSW1014 Bedienungsanleitung

Dear customer,

Congratulations on your purchase of a Bazooka CSW high-performance

subwoofer. At Bazooka we are fanatics about accurate music

reproduction. Your selection of our products for your sound system

indicates that quality sound is also important to you too. At SAS, we

take great pride in manufacturing revolutionary audio products, and

through the years of engineering expertise, hand craftsmanship and

critical testing procedures, we have created the CSW high-performance

series of subwoofers. We hope that you will take as much pride in

owning and using one of these high-quality audio products as we do

designing and manufacturing them.

When properly installed and operated, your Bazooka CSW subwoofer

will give you years of clean uninterrupted sound reproduction.

Therefore, we urge you to take a few minutes to carefully read through

this manual. It will explain how to properly build an enclosure to

optimize performance and longevity of the subwoofer.

Sound can be deceiving. Over time your hearing comfort level adapts

to higher volumes of sound. What may have sounded normal can

actually be too loud and harmful to your hearing. Guard against this by

setting your equipment at a safe level before your hearing adapts.

To establish a “safe level”,

Start with your volume control at a low setting.

Slowly increase the volume control until you can hear

comfortably, clearly and without distortion.

Once you have established a comfortable “sound level”, make a

note of this position and do not go above this setting

Taking a minute to do this will help prevent your hearing from being

damaged and allow you to enjoy listening to music throughout your

lifetime.

CALCULATING ENCLOSURE VOLUME

It is difficult to give exact box dimensions that are universal for all cars

and trucks. It is for this reason that you must be able to calculate the

space in which you have available in order to achieve the proper air

volume required. It is recommended to build your enclosure from 3/4”

thick MDF (medium density fiberboard). Make sure the enclosure is

sealed air tight.

Calculating External Volume

1.) To calculate box volume, measure the outside Width x Height x

Depth of the enclosure.

Example 12” x 14” x 9” = 1512”.

2.) Next you must convert cubic inches into cubic feet. To do this, you

must divide the cubic inch total by 1728”.

Example 1512 1728 = .875 Cubic feet.

Calculating Internal Volume

1.) To calculate the internal (net) volume of the above box you must

first multiply the thickness of the wood you are using by Two (2).

Example 3/4” x 2 = 1.5”.

2.) Next subtract 1.5 from each of the outside measurements of the box.

Width Height Depth

12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5

3.) Multiply the new totals (H x W x D)

Example: 10.5 x 12.5 x 7.5 = 984.375

4.) Next you must convert cubic inches into cubic feet. To do this, you

must divide the cubic inch total by 1728”

Example 984.375 1728 = .5696 Cubic feet.

PRODUCT SPECIFICATIONS

CSW1014

Free Air Resonance. (FS) 30

Total Q of driver @ FS including all resistance. (Qts) .44

Q of driver @ FS including non electrical resistance only. (Qms) 4.11

Q of driver @ FS including electrical resistance only. (Qes) .49

The driver's compliance expressed as an equivalent (Vas) 2.25

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .75

The DC resistance of the driver's voice coil (ohms). (Re) 3.4

RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/250

Max Power handling (Standard/ With Liquid Cooling) (W) 300/300

The driver's voice coil inductance (millihenries). (Le) 1.7

The drivers sensitivity (dB @ 1W 1M). (Sens) 88

CSW1214

Free Air Resonance. (FS) 30

Total Q of driver @ FS including all resistance. (Qts) .44

Q of driver @ FS including non electrical resistance only. (Qms) 4.19

Q of driver @ FS including electrical resistance only. (Qes) .49

The driver's compliance expressed as an equivalent (Vas) 2.78

volume of air (Cubic Ft.).

The driver's linear displacement (Inches). (Xmax) .75

The DC resistance of the driver's voice coil (ohms). (Re) 3.6

RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/250

Max Power handling (Standard/ With Liquid Cooling) (W) 300/300

The driver's voice coil inductance (millihenries). (Le) 2.2

The drivers sensitivity (dB @ 1W 1M). (Sens) 89

Ported Enclosure

Box Volume *1.7 Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 4 Inches

Port Length 10.6 Inches

* Box is given as internal air volume including port and driver displacement.

CSW1014 RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 0.60 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 36F3 = 36

Ported EnclosurePorted Enclosure

Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 62F3 = 62

CSW1014 Amplitude Response (dB/Hz)CSW1014 Amplitude Response (dB/Hz)

Maximum Power

Handling 250 Watts

Maximum Power

Handling 300 Watts

Ported Enclosure

Box Volume *2.0Cu Ft.

Port Frequency (Fb) 40Hz

Port Diameter 4 Inches

Port Length 8.23 Inches

* Box is given as internal air volume including port and driver displacement.

CSW1214 RECOMMENDED ENCLOSURES

Please Note: Our suggested box volumes are given as internal air requirements

Sealed Enclosure

Box Volume * 0.97 Cu Ft.

* Box is given as internal air volume including driver

Displacement.

CSW1214 Amplitude Response (dB/Hz)CSW1214 Amplitude Response (dB/Hz) Sealed EnclosureSealed Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 60F3 = 60

CSW1214 Amplitude Response (dB/Hz)CSW1214 Amplitude Response (dB/Hz) Ported EnclosurePorted Enclosure

5 Hz5 Hz 1010 5050 100100 500500 10001000

dBdB

FrequencyFrequency

1212

-6-6

-12-12

-18-18

-24-24

F3 = 36F3 = 36

Maximum Power

Handling 300 Watts

Maximum Power

Handling 250 Watts

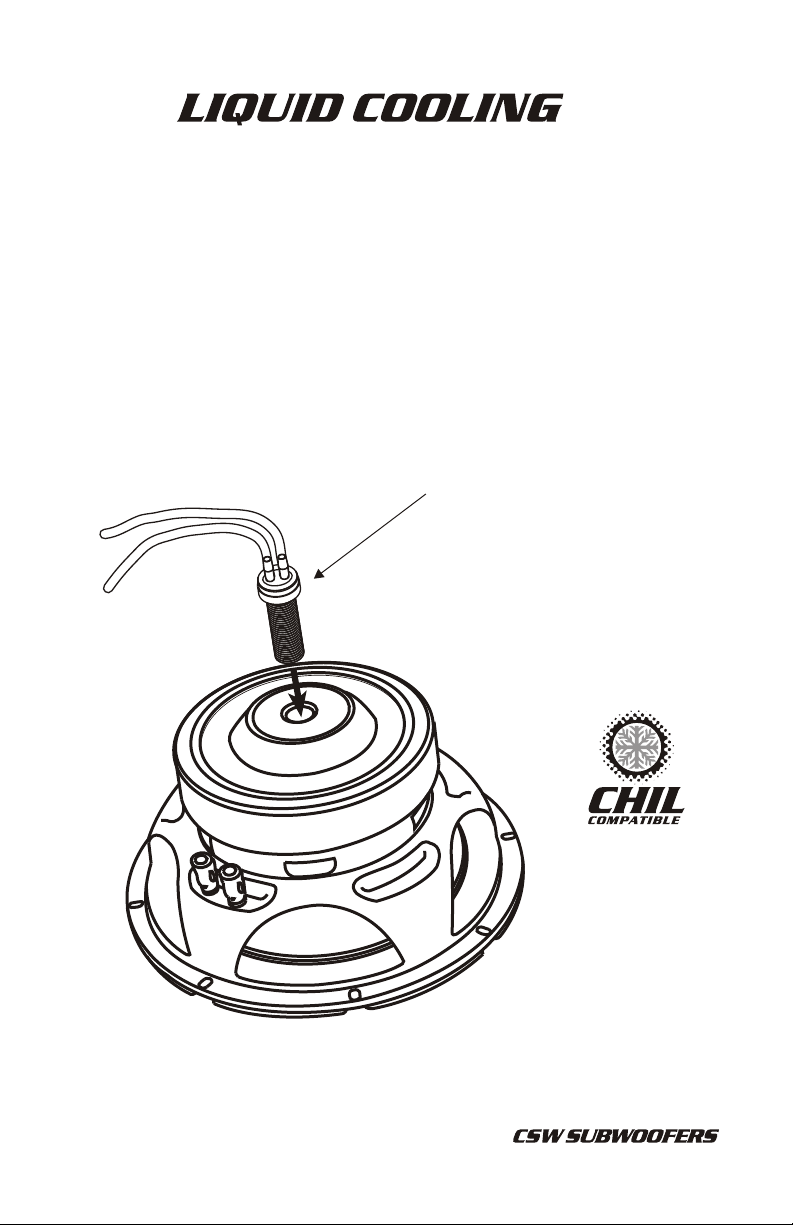

The innovative design of the CSW component Woofers allows

you to liquid cool the voice coil motor assembly for maximum

power handling capability. With the addition of the CHIL

PLUG and the CHIL KIT from your local dealer, or directly from

SAS, you can easily add liquid cooling to your CSW Series

Component Woofer.

CHIL Plug

Utilizing the optional CHIL

plug can increase the CSW

woofers power handling

up to 50%.
