Belkin F5D7050ceE Bedienungsanleitung

802.11g Wireless USB Adapter

User Manual

English

French

German

F5D7050ecE

P74851ec

Quick Installation Guide

802.11g Wireless USB Adapter

Contents

Wireless USB Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Driver and Utility Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

For Windows 98SE/ME/2000/XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation Wizard CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

802.11g Wireless USB Adapter

The 802.11g Wireless USB Adapter (F5D7050ceE / WN4501G-ZZ) is a

54 Mbps wireless adapter that seamlessly integrates with existing Ethernet

networks to support applications such as mobile users or temporary

conferences. This solution offers a high data rate and reliable wireless

connectivity with considerable cost savings over wired LANs (which include

long-term maintenance overhead for cabling). Just install enough wireless

access points to cover your network area, plug wireless cards into your

notebooks or computers, and start networking.

Using this card in conjunction with any 802.11b/g wireless access point, you

can create an instant network that integrates seamlessly with your existing

LANs. Moreover, moving or expanding your network is as easy as moving or

installing additional access points – no wires!

Features

• Backward compatible with the existing 802.11b WLAN infrastructure

• Enhances your network security with Wired Equivalent Privacy (WEP), Wi-Fi

Protected Access (WPA), and the new WPA2*

• Greater flexibility to locate or move networked PCs

• Easy Plug-n-Play installation and user-friendly configuration

• Integrates with or replaces wired LANs at dramatically lower cost than wired

alternatives

• Orthogonal Frequency Division Multiplexing (OFDM) technology provides

high speed connection

*Available via future driver upgrade

2 3

Applications

The wireless products offer fast, reliable, cost-effective network access for

wireless clients in applications such as:

• Remote access to corporate network information

Email, file transfer, and terminal emulation

• Difficult-to-wire environments

Historic or old buildings, asbestos installations, and open areas where

wiring is difficult to employ

• Frequently changing environments

Retailers, manufacturers, and banks who frequently rearrange

the workplace and change location

• Temporary LANs for special projects or peak times

Trade shows, exhibitions, and construction sites that need to set up for a

short time period. Retailers, airline, and shipping companies who need

additional workstations for peak times

• Access to databases for mobile workers

Doctors, nurses, retailers, office workers who need access to

databases while being mobile in a hospital, retail store, office,

campus, etc.

• SOHO (Small Office Home Office) users

SOHO users who need quick and easy installation of a small network

System Requirements

Before you install the 802.11g Wireless USB Adapter, check your system

for the following requirements:

• Available USB 2.0 slot

• A PC running Windows 98SE/ME/2000/XP

• CD-ROM drive

• Minimum of 32 MB RAM and 300 MHz CPU

• Minimum of 6 MB of free hard disk space for driver and utility

installation

• Another IEEE 802.11g or 802.11b compliant device installed

in your network, such as the Wireless Cable/DSL Broadband

Router with USB Print Server, or another machine with a

wireless adapter, such as the 802.11g Wireless PCI Card.

Package Contents

The 802.11g Wireless USB Adapter package includes:

• 1 802.11g Wireless USB Adapter

• 1 Installation Wizard and Documentation CD

• 1 Quick Installation Guide

Please inform your dealer if there are any incorrect, missing or damaged parts.

If possible, retain the carton and the original packing materials, in case there is

a need to return the product.

4 5

Hardware Description

The F5D7050ceE / WN4501G-ZZ adapter provides 54 Mbps connections. It is

fully compliant with the specification of the IEEE 802.11g standard. It can be

installed in any computer running Windows 98SE/ME/2000/XP, with a USB 2.0

slot.

LED

The Link LED indicator of the F5D7050ceE / WN4501G-ZZ is described in the

following figure and table.

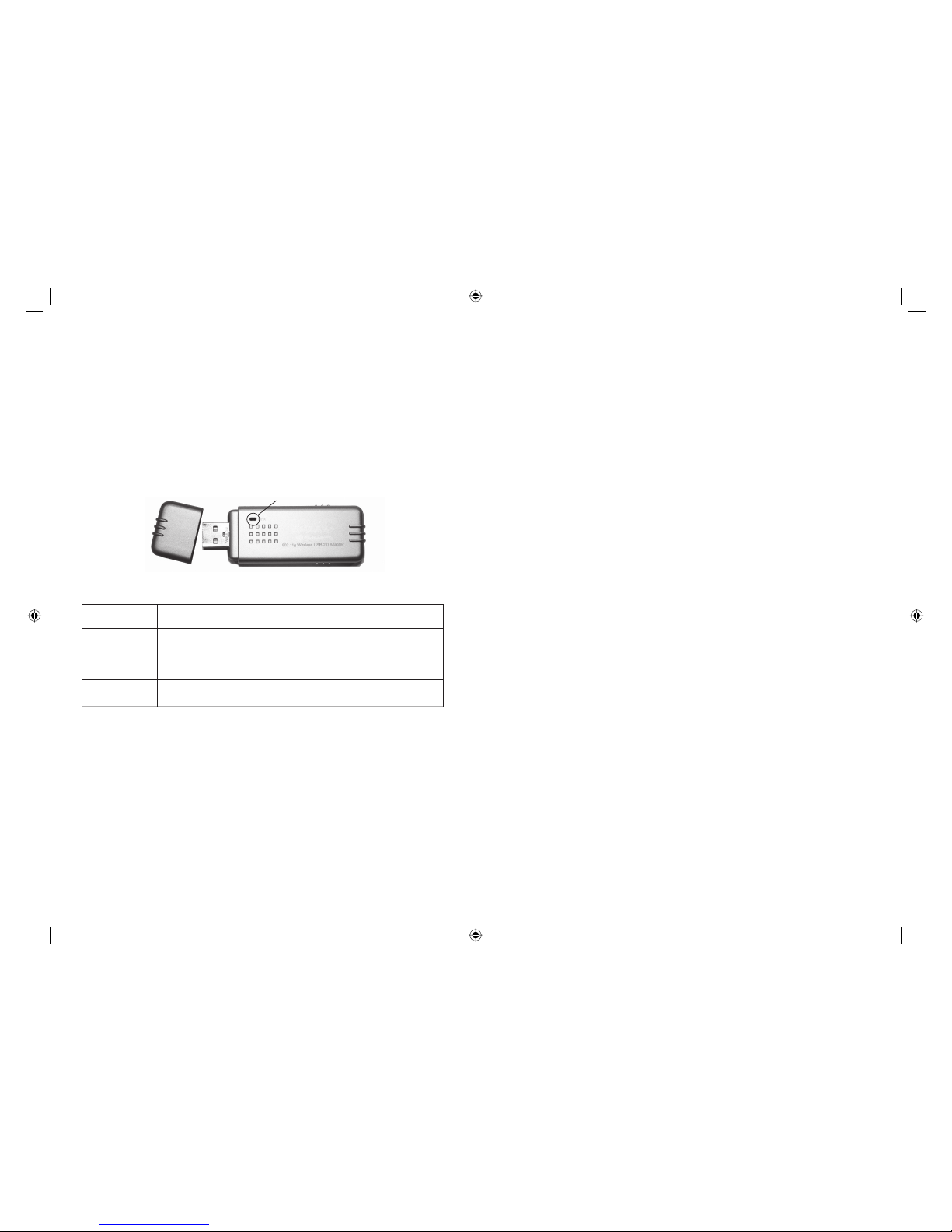

Figure 1. LED Indicator

Status Description

On (Green) Indicates a valid connection.

Slow Flashing Indicates that the adapter is scanning for available networks.

Fast Flashing Indicates that the adapter is transmitting or receiving data.

Driver and Utility Installation

The Installation Wizard and Documentation CD that comes with the package

contains all the software, including the driver and utility for the adapter.

For Windows 98SE/ME/2000/XP

It is recommended that you install the utility and driver software first, before

inserting the adapter into your computer.

You may find that the screen shots here do not exactly match your version of

Windows. This is because these screen shots were created from Windows XP.

Steps for Windows 98SE/ME/2000, are similar, but not identical, to Windows XP.

Installation Wizard CD

Note: Installation processes such as this may require the use of your original

licensed copy of Windows. Please have your Windows CD available BEFORE

proceeding with the installation.

Please run the Installation Wizard CD prior to plugging in the USB adapter.

This installation method makes the process as simple and Plug-and-Play as

possible. Simply run the driver/utility program, reboot your machine, and insert

your Wireless USB 2.0 Adapter.

Link LED

6 7

For Windows 98SE/ME/2000/XP

1. Insert the Installation Wizard and Documentation CD.

2. Click the Install Driver/Utility button to continue.

3. Please wait while the Driver/Utility installation wizard begins

and copies files.

Driver and Utility Installation

4. Find an available USB slot on your PC. Remove cap from the

F5D7050ceE / WN4501G-ZZ. When prompted, completely slide the

F5D7050ceE / WN4501G-ZZ USB 2.0 adapter in the USB slot of your PC

and make sure that there is a firm connection. See “Hardware Installation”

on page 12

5. You will see the Found New Hardware Wizard. Select Install the software

automatically (Recommended), and click Next.

8 9

For Windows 98SE/ME/2000/XP

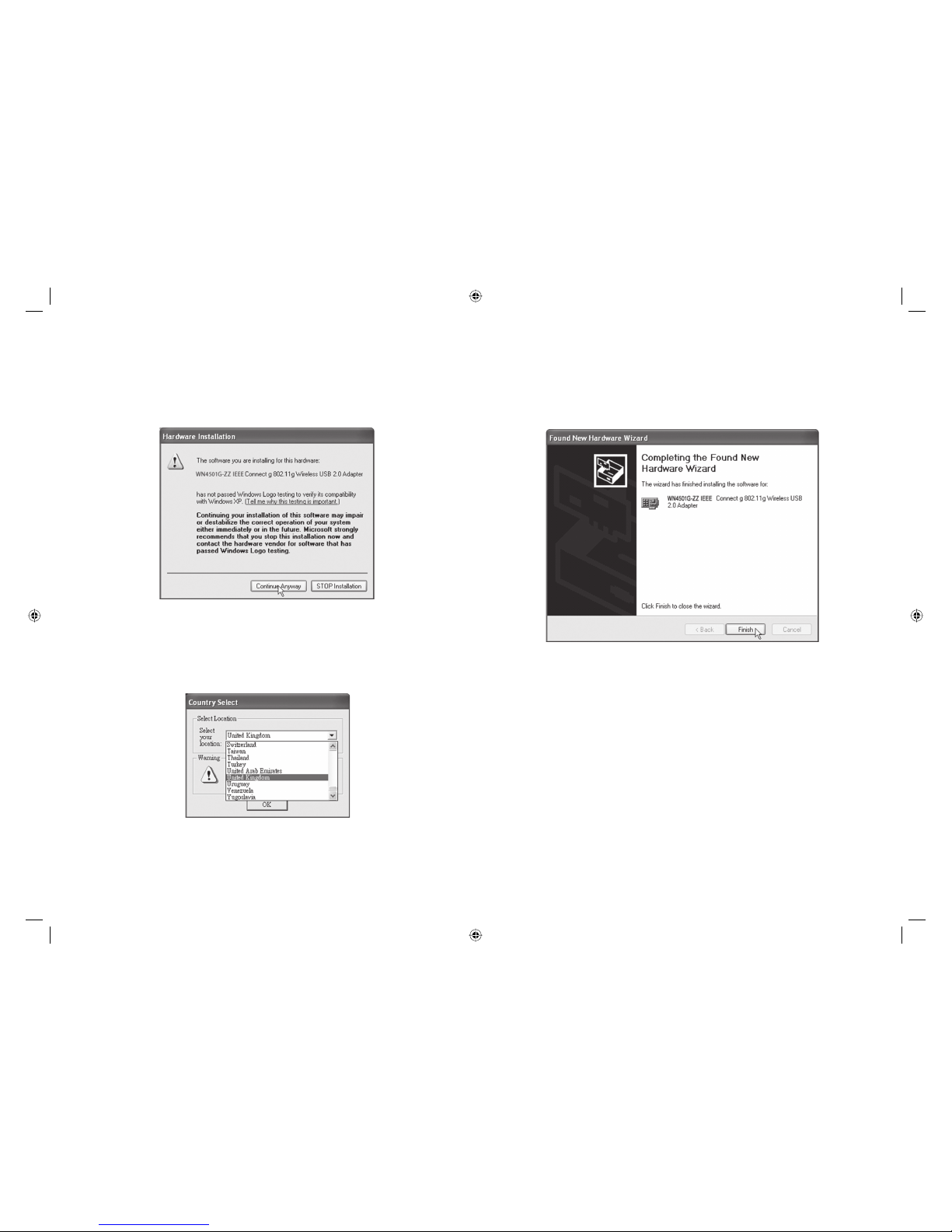

6. You may be prompted by a digital signature pop-up window on Windows

2000 or Windows XP. Click Yes or Continue Anyway to continue the driver

installation.

Note: Do not select STOP Installation, as this will cancel the installation

process, and the drivers will not be installed properly.

7. For users who are using this adapter outside of the United States and

Canada, the Country Select window will appear. Please select the country in

which you are using the adapter.

Note: This domain configuration applies only to users outside of the FCC

regulatory domain. If you are using this adapter in the United States and

Canada, please skip this step.

Driver and Utility Installation

8. This window will then appear indicating that the driver has been installed

on your system. Click Finish to exit the window.

10 11

For Windows 98SE/ME/2000/XP

9. Select Yes, I want to restart my computer now. Click Finish and your PC

will restart. After booting up, your Wireless USB 2.0 Adapter is ready to use.

Hardware Installation

Network cards are sensitive to static electricity. To protect the card, avoid

touching its electrical components, and touch the ground often to equalize

the static charges, before handling the card.

To insert the card:

1. Find an available USB 2.0 slot in your desktop PC or a laptop.

Figure 2. USB Port

Laptop USB port

Desktop USB port

Hardware Installation

2. With the adapter’s connector facing the USB slot, slide the

card completely into the slot as shown below.

Figure 3. Desktop Installation

Figure 4. Laptop Installation

Adaptateur USB Sans Fil 802.11g

Guide d’Installation

F5D7050ecE

P74851ec

Contenu

Adaptateur USB Sans Fil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Configuration requise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Contenu de l’emballage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Description du matériel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Témoins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Installation du pilote et de l’utilitaire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Sous Windows 98SE/ME/2000/XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CD avec Assistant d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Installation matérielle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ADAPTATEUR USB SANS FIL

L’Adaptateur USB Sans Fil (F5D7050ceE / WN4501G-ZZ) est un adaptateur

sans fil 54 Mbps qui s’intègre parfaitement aux réseaux Ethernet existants

pour utilisation d’applications telles que les utilisateurs mobiles et les

conférences temporaires. Cette solution offre un débit de données élevé et une

connectivité sans fil fiable, vous permettant également de faire des économies

sur l’installation de câbles pour les réseaux standard. Vous n’avez qu’à installer

des points d’accès aux endroits stratégiques de votre zone à couvrir, brancher

des cartes sans fil à vos ordinateurs de bureau ou portables et vous êtes prêt

à communiquer en réseau!

Si vous utilisez cette carte avec un point d’accès 802.11b/g sans fil, vous

pouvez instantanément créer un réseau qui s’intègre parfaitement à votre

réseau local existant. Qui plus est, déplacer ou étendre votre réseau est simple

comme bonjour : il vous suffit de déplacer vos points d’accès ou d’en installer

d’autres — sans câbles !
