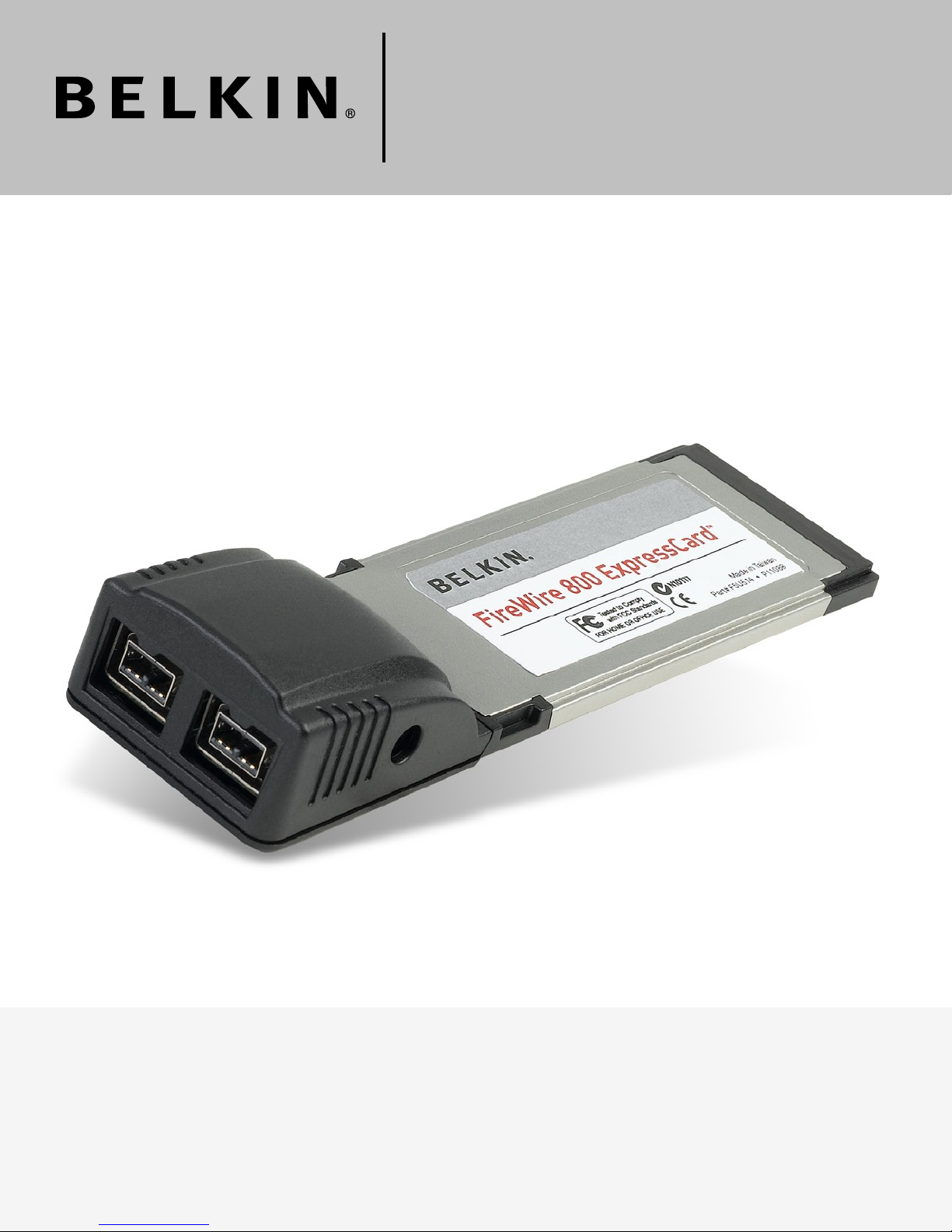

FireWire 800 ExpressCard™ Adapter

Adaptateur ExpressCard™ FireWire 800

Adaptador ExpressCard™ FireWire 800

FireWire 800 ExpressCard™ Adapter

Adaptateur ExpressCard™ FireWire 800

Adaptador ExpressCard™ FireWire 800

User Manual

Manuel de l’utilisateur

Manual del usuario F5U514tt

1. Introduction ...................................................................... 1

Benefits ......................................................................... 2

System Requirements ................................................... 3

Package Contents ......................................................... 3

2. Driver Installation ............................................................ 4

3. Verifying Proper Installation ........................................... 6

4. Troubleshooting ............................................................... 7

5. Information ...................................................................... 9

Table of Contents

Congratulations and thank you for purchasing the FireWire

800 ExpressCard Adapter from Belkin. This ExpressCard

Adapter offers notebook users a fast and convenient way

to add a FireWire® port that can take advantage of the

increased bandwidth and features the new ExpressCard I/O

interconnection standard delivers.

Why ExpressCard Technology?

ExpressCard technology, the standard destined to replace

CardBus, quadruples your computing bandwidth. This

results in faster music downloads, smoother streaming

video, and lightning-fast access to mass-storage devices.

The ExpressCard Adapter provides the perfect solution for

simultaneously streaming movies and downloading video

from your camcorder to your hard drive—without risking

that your computer will freeze, crash, or slow to a trickle.

ExpressCard technology future-proofs your computer with

technology so advanced that it exceeds the processing

speed of many devices currently on the market. This means

that installing the ExpressCard Adapter now assures you of

device-upgrade expansion room for many years to come.

Please carefully review this User Manual so that you can

take full advantage of all the capabilities the Belkin FireWire

800 ExpressCard Adapter offers.

Introduction

Benefits

• Meets PCI Express Base Specification Revision 1.1

• Delivers single-lane (x1) PCI Express throughput support

rates of 2.5Gbps

• Complies with ExpressCard 34mm-wide

module specification

• Builds in 2 external, independent 6-pin FireWire 800 ports

• Supports 1394 Open Host Controller Interface (OHCI)

Specification 1.1

• Features IEEE 1394b-compliant ports at 100, 200, 400, and

800Mbps

• Equips 1 DC jack for using power adapter to provide

12VDC power output

• Complies with IEEE 1394, 1394a, and 1394b

• Allows you to connect/disconnect devices without

powering down the system (hot-swappable)

System Requirements

• Windows®-based or Mac® notebook with available

ExpressCard slot

• Windows 2000 and XP

• Mac OS® X v10.4.x and above

Package Contents

• FireWire 800 ExpressCard Adapter

• CD Driver

• User Manual

Introduction

1. Insert the FireWire 800 ExpressCard Adapter installation

CD into your CD-ROM drive. After a few moments, the

main menu automatically starts. Note: If the main CD does

not begin automatically, click the “Start” button and select

“Run”. From the “Run” dialog box, enter “<drive>:\setup_

xp2.exe” and click “OK” (where “<drive>” represents the

driver letter that identifies your CD-ROM drive under “My

Computer”—e.g., if the CD is in drive D, enter “D:\setup_

xp2.exe”).

2. Locate your notebook’s ExpressCard slot(s). With your

notebook on, slide the ExpressCard Adapter into the

unused 34mm or 54mm ExpressCard slot.

Note: Do not plug any devices into the ExpressCard

Adapter until you have completely finished the

driver installation.

3. Select “FireWire 800 Driver”. The Software Installation

Wizard appears and begins to download the drivers. If

the following “Software Installation” prompt appears, click

“Continue Anyway” to complete the installation process.

Driver Installation

4. After the files successfully copy over, verify that the

correct driver has been installed on your computer, as

described below under “Verifying Proper Installation”.

5. Installation is now complete and the ExpressCard Adapter

is ready to use.

Verifying Proper Installation

Check the “Windows Device Manager” to confirm that your

ExpressCard Adapter has been

properly installed.

1. Right-click on “My Computer” and

select “Manage”.

2. Select the “Device Manager” tab.

3. Click the (+) sign next to “IEEE 1394 Bus host controllers”.

The “IEEE 1394 Bus host controllers” will now include one

entry that reads “OHCI IEEE 1394b Host Controller”.

The ExpressCard Adapter and devices connected to the

computer do not work properly.

Please do the following:

1. Check that all the cables you are using are the correct

types, and that they are all securely connected.

2. Make sure all devices are powered on and connected to

the proper power supply and source.

3. Reconnect daisy-chained devices you may have

disconnected for installation. If reconnecting does not

clear up the problem, restart your computer.

4. Make sure you have properly installed

the ExpressCard Adapter.

The computer did not detect the

ExpressCard Adapter.

1. Make sure that the ExpressCard Adapter is correctly

plugged into the ExpressCard 34/54mm slot; if not, plug

in it securely.

2. If the ExpressCard Adapter is plugged in correctly, see if

its gold connectors are clean; if not, clean the connector

surface.

3. Follow the procedure on page 6 titled “Verifying Proper

Installation”. If the ExpressCard designation “OHCI IEEE

1394b Host Controller” does not appear in the Device

Manager, update your computer BIOS to the latest

version (contact your computer manufacturer for details).

If after updating your BIOS your computer still does not

detect the ExpressCard Adapter, contact your computer

manufacturer for advanced support for BIOS.

Troubleshooting
