Belkin USB VIDEOBUS P73261 Bedienungsanleitung

P73261 F5U206-MAC

USB VideoBus™

for Macintosh®

User Guide

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 1

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 2

Software and Hardware Installation

Step 1: Insert the CD into your CD-ROM drive

Place the CD into your CD-ROM drive. When the CD icon

appears on your desktop named “Belkin USB VideoBus”,

double click on the icon to display its contents.

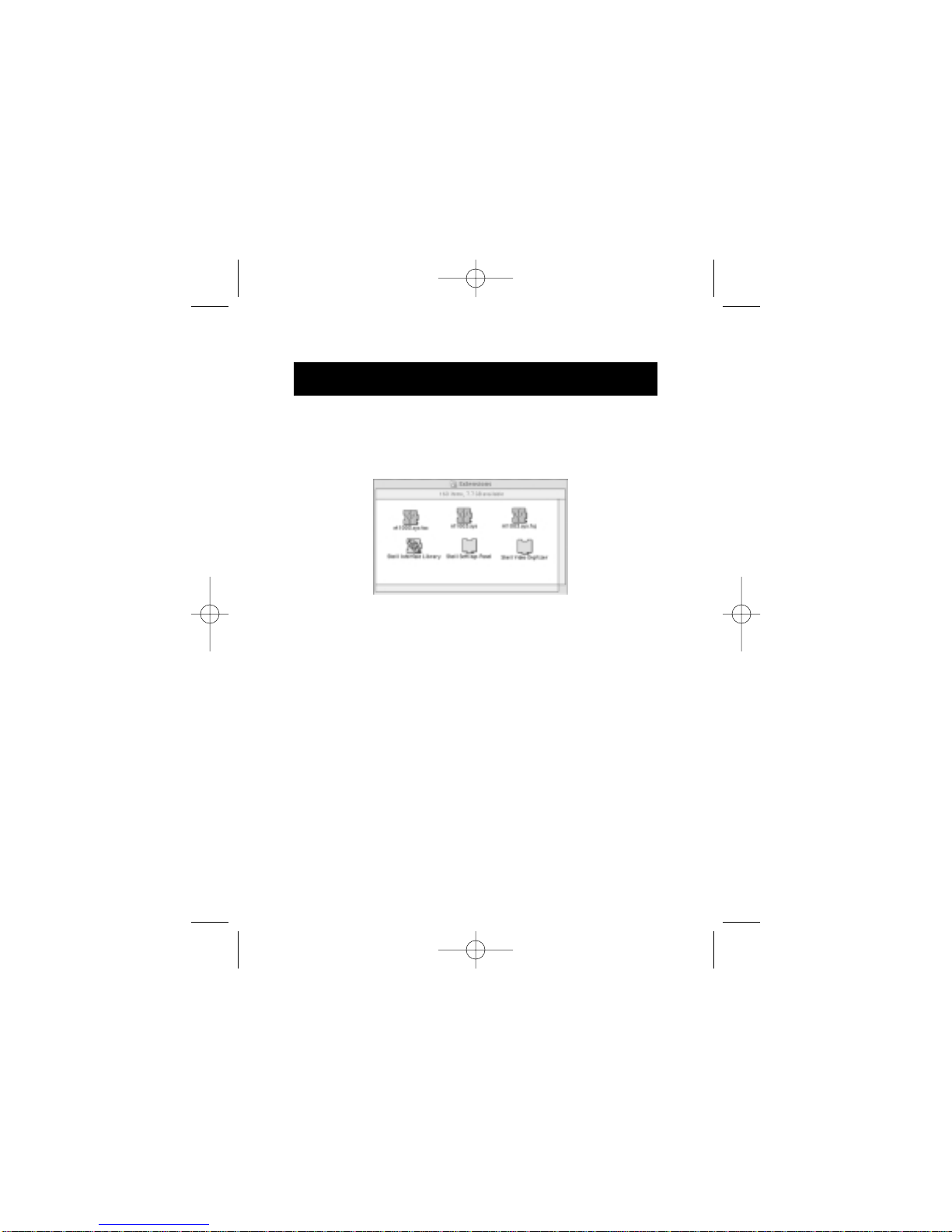

Step 2: Installer

2.1. Double click on the icon named “Belkin®USB

VideoBus V1.2”.

Features

System Requirements

• Mac®or iMac™Computer with USB Capabilities

• Mac®OS 8.6 or higher

Package Contents

• Belkin USB VideoBus™for Macintosh®

• Installation CD including Strata™VideoShop™4.5

• Audio cable for connection from source to sound card

• User Guide

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 1

Software and Hardware Installation (continued)

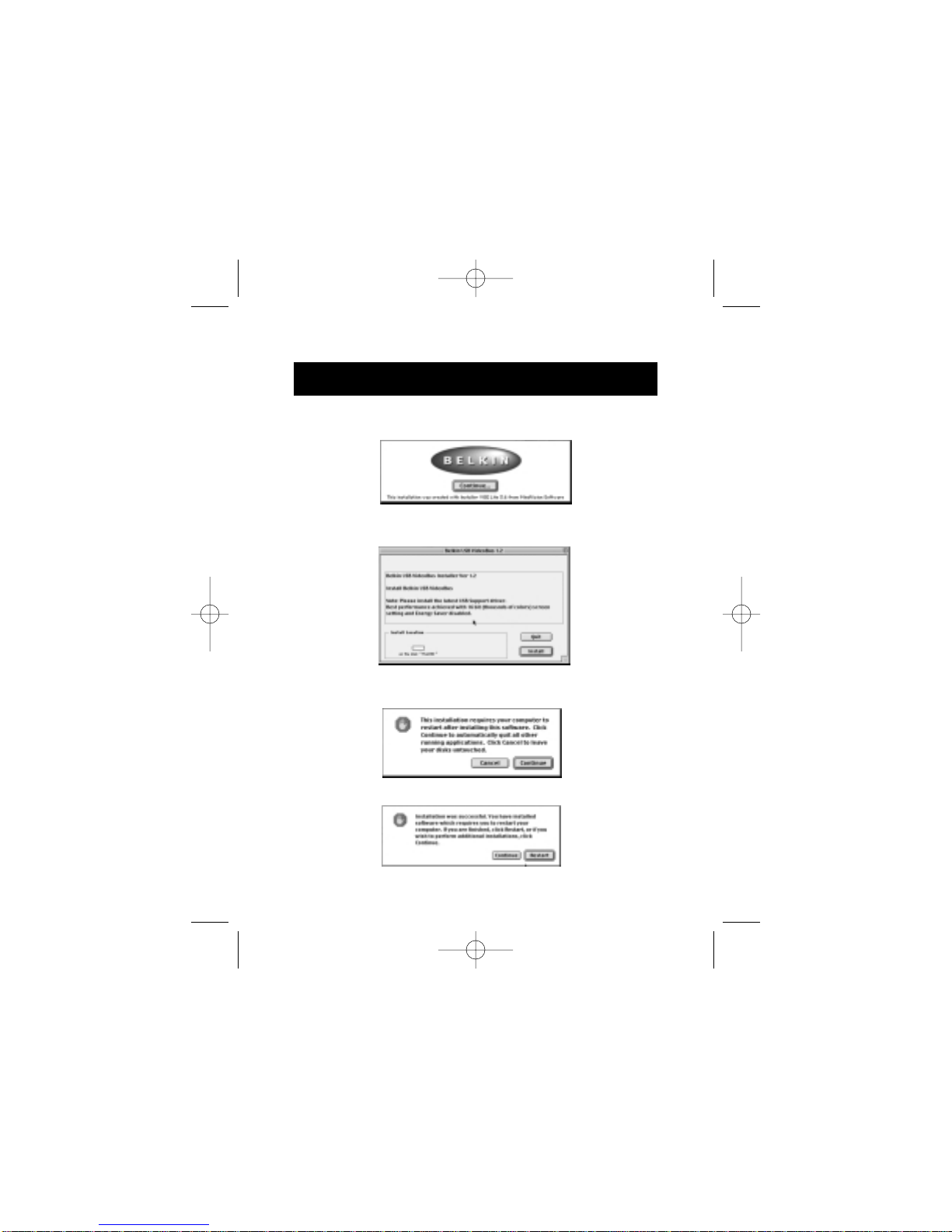

2.2. On the Belkin screen click on “Continue”.

2.3. The screen that follows will prompt you to commence

installation. Click on “Install”.

2.4. A message will appear warning you to restart your

computer after installation. Click “Continue”.

2.5. Click “Restart” to complete the installation.

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 2

The Belkin USB VideoBus™Installer application will place 6

items on the “Extensions” folder, namely: 1) NT1003.sys 2)

NT1003.sys.fuj 3) NT1003.sys.tos 4) Shell Interface Library 5)

Shell Settings Panel 6) Shell Video Digitizer.

Step 3: Connect the USB VideoBus™adapter to

your USB Port

After restarting the computer, attach the Belkin USB

VideoBus™adapter for Macintosh®to your Macintosh®

computer by connecting the adapter to any built-in USB port

on your Macintosh®computer or any USB hub. It is not

necessary to turn off the Mac®when attaching the Belkin

USB VideoBus™.

Step 4: Installation Complete!

Your Belkin USB VideoBus™adapter for Macintosh®is now

ready for use.

Note: The gray button on the Belkin USB VideoBus™is

used for “Snap Shot” application.

Software and Hardware Installation (continued)

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 3

Connecting a VCR or Camcorder to

the USB VideoBus™

After installing the USB VideoBus™, you can now start

connecting the VCR or camcorder to the USB VideoBus™. The

following outlines the steps connecting the USB VideoBus™to

the VCR or camcorder:

1. Connecting a VCR

VCRs usually include either an S-video or RCA (depending on

your VCR) video cable with the same connector on both ends,

to allow connection of the VCR to a Television set. Please use

this cable to connect your VCR to the USB VideoBus™.

1. Connect the Yellow RCA or S-video connector on one end

of the audio/video cable to the "Video Out" connector on

the VCR. Connect the Yellow RCA or S-Video connector on

the other end of the Audio/Video cable to the appropriate

connector on the USB VideoBus™.

2. If you want to capture sound as well, connect the Red and

White RCA connectors on the included VideoBus™audio

cable to the left and right "Audio Out" connectors of the

VCR. Connect the mini-stereo plug on the VideoBus™audio

cable to the microphone jack on the iMac™, G3 or G4.

2. Connecting a Camcorder

If your camcorder has RCA Video and Audio out connectors,

please refer to the instructions above for connecting a VCR.

1. Most camcorders use a custom cable for Video and Audio

output. Using the cable included with your camcorder,

connect either the S-Video or Yellow RCA connector to the

Yellow RCA connector on the Belkin USB VideoBus™.

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 4

Connecting a VCR or Camcorder to

the USB VideoBus™(continued)

2. If you want to capture sound as well, connect the Red and

White cable using the included RCA Female/Female

adapters. Plug the mini-stereo connector on the video’s audio

cable into the microphone input of your iMac™, G3 or G4.

This connection only applies if the audio connectors on your

camcorder is the RCA type for other types of connectors.

Refer to your camcorder manual.

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 5

Configuring Audio

In order to capture sound using the included audio cables, it is

important to make sure that your computer’s audio properties

are properly configured:

1. Click on the "Apple" icon from the “Menu” bar.

2. Choose "Control Panel" then "Monitor and Sound" from

the menus that appear.

3. Click on the "Sound" icon and set the following:

1. Computer System Volume: Halfway

2. Sound Monitoring Source: Sound In

4. Close the “Monitor and Sound” window.

The USB VideoBus™driver CD comes with a software

called Strata™VideoShop™4.5 that will allow you to

capture video and create amazing images; you can

now proceed installing this software. To install Strata™

VideoShop™double-click "Install VideoShop™4.5"

then follow the on-screen instructions.

The Strata™VideoShop™manual is in PDF format; if

you do not have Adobe Acrobat Viewer, you must

install Viewer. On the CD, double click on "Acrobat

Reader Install" then on the following screen that

appears, double-click on Reader 3.01 Installer. Next,

follow the on-screen instructions. Once Adobe Acrobat

is installed you can open "Tutorial" to learn how to use

Strata™VideoShop™4.5. You can also browse

VideoShop™4.5 ReadMe and Documentation for

additional information. Read the VideoShop™Tutorial

ReadMe and documentation first before proceeding.

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 6

Using VideoShop™’s digitizing function, you can capture your

own clips.

Equipment needed for Digitizing:

• USB VideoBus™- this will be your digitizing hardware

installed on the computer

• VCR or camcorder and necessary cables

Digitizing Equipment Setup

For digitizing, you will be capturing clips from an external

source, such as a VCR or camcorder. Follow the instructions on

the previous pages about connecting your VCR or camcorder to

the USB VideoBus™.

Before Digitizing

•Important: To capture sound, follow the steps on the

previous page regarding “Configuring Audio”.

• To improve digitizing performance, it is recommended that

you follow these rules:

a) Turn off network sharing.

b) Quit any other applications you are not using.

c) Defragment your hard drive.

d) Make sure you have adequate space on your hard

drive to store the digitized clips. The following

digitizing example will require at least 50MB.

Digitizing Clips (Example)

To Display the Digitizing Window:

1. Start VideoShop™.

2. Select “New” from the “File” menu to start a new project.

Note: You do not have to have a project open to digitize.

You can open the digitizing window at anytime

Digitizing Clips using Strata™VideoShop™4.5

on the USB VideoBus™

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 7

with the “Show Digitizing Window” command. The

digitized clips will be stored in the VideoShop™cache

folder (or designated digitizing folder). To use the clips,

import them into the bin when you start a project.

3. The “Project Settings” dialog appears. Click on the

“Internet” setting. Both the “Recording” and “Project

Settings” change to “Width: 160”, “Height: 120” and

“FPS: 15”. This means that the clip you digitize will be 160

pixels wide x 120 pixels high. Your VideoShop™project will

also have the same settings and have a frame rate of 15

frames per second.

4. Click “OK” to start a new project with these settings. A

new project starts and VideoShop™’s main windows appear.

5. Select “Show Digitizing Window” from the “Windows” menu.

-OR-

Click the “Digitize” button on the button bar (icon that

looks like a video camcorder located on the upper right-

hand corner of your screen). The “Digitizing” window is

displayed. The size of the digitizing area is displayed at the

top left: 160x120.

To Configure the Digitizing Software:

1. From the “Digitize” menu, select “Video On” to enable

the Video digitizing function.

Note: This command is only enabled if VideoShop™detects

a digitizing card in your computer (in our case it is the

USB VideoBus™).

A check mark next to the command indicates it’s

already active.

2. From the Digitizing menu, select “Video Settings”. The

“Video” dialog box appears.

3. From the “Video Settings” pop-up menu (top left) select

“Source”. This option is used to select the source for

Digitizing Clips using Strata™VideoShop™4.5

on the USB VideoBus™(continued)

P73261/F5U206-MAC/US/man.qxd 1/7/00 5:23 PM Page 8
