Belkin TSG-UK-1-008 Referenzhandbuch

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®Self Help Guide

IMPORTANT!

This Guide refers to the

following Products:

Configuring Your Router With Your Modem

Synopsis:

Please read the following carefully;

Requirements:

A standard (Wireless) Router does not come

equipped with the means to connect to the Internet

of it’s own accord but rather is designed to

connect to your existing Modem. Your Modem may

be an ADSL Modem (connected to your phone

line) or a Cable Modem (connected to a co-axial

aerial, often shared with television). Either way the

Modem must have an RJ45 connection to your PC

not a USB connection.

If you have no Modem, or a USB based Modem

then you should ensure you buy a Modem Router

not just a Router.

In order to complete this guide and in so doing

connect to the Internet successfully you will need

the following equipment;

•A working ADSL or Cable Modem (non-Belkin)

•Your Belkin Router or Wireless Router

•2 x RJ45 Ethernet Cables*

•A Computer with an Ethernet (LAN) Port

•Power Supplies for the above Hardware.

•Your Internet Service Provider (ISP) Settings

*A cable should have been provided with your Modem to

connect it to your PC, and another one was provided with

your Belkin Router.

TSG-UK-1-008 | www.belkin.com | Page 1 of 8

All Belkin Routers

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

To begin with it is best to start from a known working set-up so this guide assumes

that you currently have Internet working via your Modem directly connected to your

Computer – essentially with the Belkin Router not yet in place.

The Hardware set-up is now complete and all devices can be powered on if they are not

already. The Router’s LEDs should indicate the Modem and PC connections.

Self Help Guide

Configuring Your Router With Your ADSL Or Cable Modem

TSG-UK-1-008 | www.belkin.com | Page 2 of 8

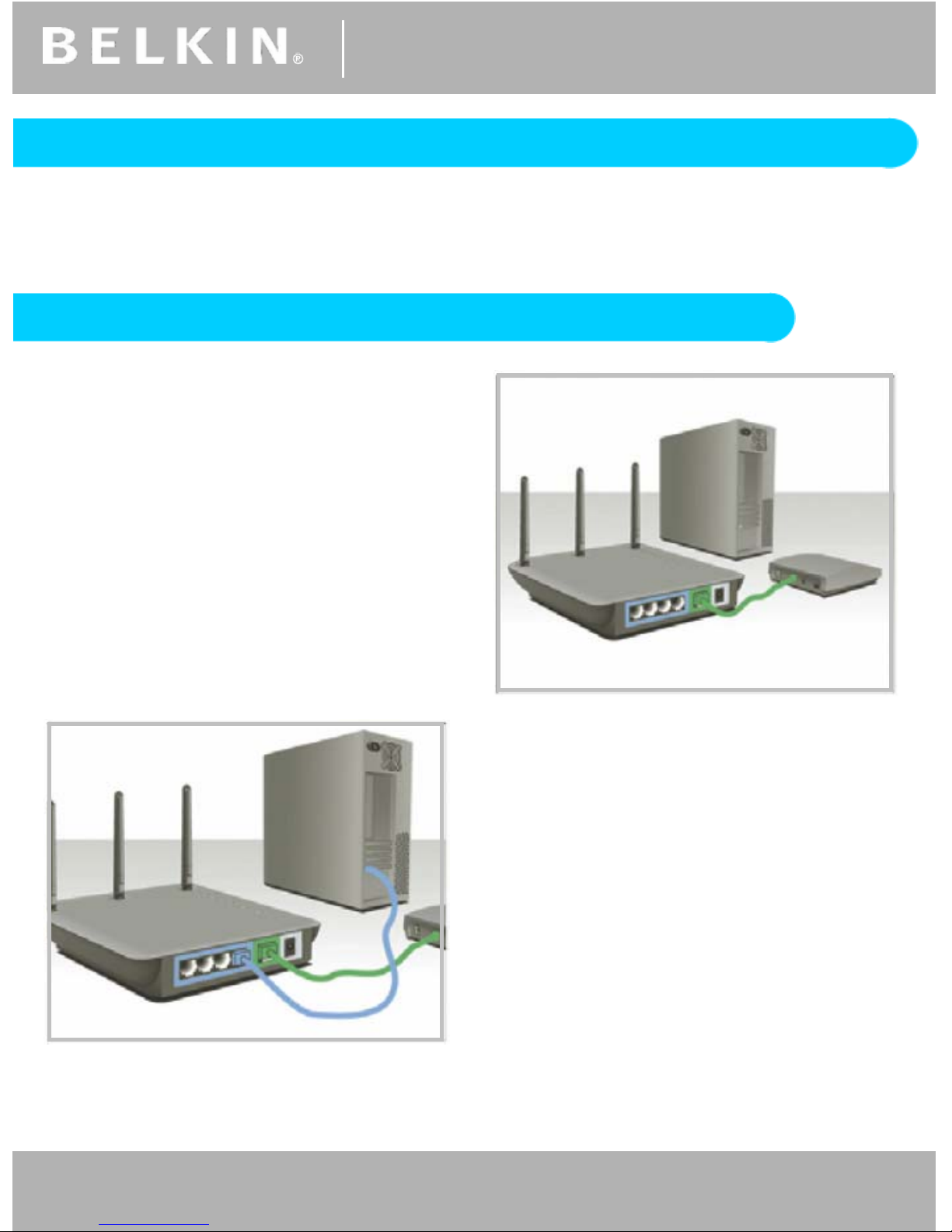

Step 1 – Setting Up The Hardware

Locate the RJ45 Cable between your

Modem and the Networking (LAN) Port of

your Computer. Take note as to the

location of this Port on your Computer as

you will need it again.

Unplug the ‘Modem’ Cable from your

Computer and plug it into the separate

Port on the Rear of the Belkin Router

labelled as ‘Internet/WAN’ or ‘Connection

To Modem’.

Next, locate the RJ45 Cable that was

supplied with your Belkin Router. This is

usually a blue cable.

Plug one end of this Cable into ANY one

of the LAN Ports of your Belkin Router.

These Ports are labelled 1-4.

Connect the other end of the same (blue)

Cable to the Networking Port of your

Computer – the same Port that the

Modem used to be connected to.

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 3 of 8

Step 2 - Configuring Your Belkin Router

In most cases there will be no problems connecting between your PC and your Router

now that they are physically connected to one another.

To access the Web User Interface of any Belkin Router simply open your Internet

Browser (i.e. Internet Explorer) and type the default IP Address of the Router into the

Address Bar. This is usually 192.168.2.1. There is no need to add ‘www’ or ‘http://’

All being well the Web User Interface will be displayed and you can login to the Router

by leaving the Password field blank when prompted. As most UK ISPs require Routers

to be configured to use the ‘Dynamic’ Connection Type and this is the Default

Connection Type of all Belkin Routers the Interface may already show that you have an

Internet connection. If the Status Bar of the Router Interface does show ‘Connected’

then the Internet Connection should now be working.

If however the status is displayed in red as ‘No Connection’ even after the Page is

refreshed then further action is required.

With some UK connections simply powering off your Modem for 10 minutes and then

starting it again will allow the Router to be ‘Connected’.

Failing this the Router can always be manually configured by using the Menu option

‘Connection Type’. Under the option for ‘Dynamic’ there is the option to ‘Clone The Mac

Address’. This is required if your ISP has registered the unique MAC Address of your

Computers Network Card as a basis for the connection. ‘Cloning’ the MAC Address

ensures that the Routers unique MAC Address is replaced with that of your Computer

so that connectivity can be resumed.

We would always advise that you check with your ISP as to which settings they

recommend.

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

If you are unable to open the Router’s User Interface (192.168.2.1) then the actual

connectivity between PC and Router should be tested. To do this click on the ‘Start’

button, locate the ‘Run’ option and once the ‘Run’ command Window opens type ‘cmd’

into the entry field (as shown below) and then press ‘OK’ or hit ‘ENTER’.

NOTE: ‘cmd’ is simply an abbreviation of ‘command’ which older operating systems

will use instead of the abbreviated form.

A Black DOS-Window should appear with a flashing cursor. Simply type in ‘ipconfig’

and press ‘ENTER’*.

*’ipconfig’ is an abbreviation of Internet Protocol Configuration – For older Operating

Systems use ‘winipcfg’

Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 4 of 8

Troubleshooting – Unable To Connect To The Belkin Router

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

Providing you have a working connection to your Router information similar to that

shown below will be displayed;

By default all Computer Network Interface Cards (NICs) are set to ‘Obtain an IP Address

Automatically’ if the Network Card has done this then it will obtain one from the Router

which is acting as a DHCP Server. The Information shown in the Screenshot above

shows that this is happening correctly;

1. The DNS Suffix shows ‘Belkin’ – This is the ‘Hostname’ of the Belkin Router

2. The Default Gateway shows the Router’s IP Address (192.168.2.1) as used above.

3. The PC has successfully obtained a 192.168.2.x IP-Address from the Router

If you receive that same type of information as shown above then please try connecting

to the User Interface of the Router via your Internet Browser again, as a Network

Connection does seem to be present.

If you receive Information that is missing a ‘DNS Suffix’ and/or ‘Default Gateway’ or

shows any other message including ‘Media Disconnected’ then please double check

the Physical connections and if required continue with the troubleshooting as follows.

Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 5 of 8

B e l k I n

1 9 2 . 1 6 8 . 2 . 2

2 5 5 . 2 5 5 . 2 5 5 . 0

1 9 2 . 1 6 8 . 2 . 1

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

To troubleshoot further click on the ‘Start’ menu and select ‘Control Panel’. In the

‘Control Panel’ double click the icon for ‘Network Connections’ (which in older

Operating Systems may show as ‘Internet Connections’ after which ‘Network’ should

be selected).

Once the Network Connections are open you will see an Icon for your Local Area (LAN)

Connection which is essentially the Network Card of your Computer. This will look

similar to that shown below;

If for any reason there is a red cross shown on the Icon then the physical connection

should be checked.

Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 6 of 8

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

Next, right-click the Icon for your Local Area Connection so that the sub-menu appears

and select ‘Properties’. This will bring up the ‘Properties’ Window for your Computer’s

Network Card.

From the large white window select the option

For ‘Internet Protocol (TCP/IP)’ Providing you

Have administrative rights over the Computer

the ‘Properties’ button should be highlighted.

Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 7 of 8

Click on the ‘Properties’ button to continue. A

screen similar to that shown left should

appear.

Connectivity problems are often because the

Card has been set to ‘Use The Following IP

Address’ i.e. a Static IP Address.

Set the Card to ‘Obtain An IP Address

Automatically’ and ‘Obtain DNS Server

Address Automatically’ as shown here and

then click the ‘OK’ button to save the

changes.

Once the changes are affected you should

test the connectivity again using ‘ipconfig’ in

the black DOS Window as described before.

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

If your attempts to access the Web User Interface of the Belkin Router using the

Router’s Default IP Address (192.168.2.1) result in your Computer attempting to start a

‘Dial-Up Connection’ then please do the following;

•Open the Internet Explorer Browser

•Close any Pop-Up Windows or Error Messages that appear

•Select ‘Tools’ from the Upper Menu Bar of Internet Explorer

•From the ‘Tools’ Menu select the sub-menu item ‘Internet Options’.

A New Window will open displaying the Internet Options organised under different Tab

Headings.

•Select the ‘Connections’ Tab

Here you may see your ISP listed in the large white box. In the centre of this tabbed

page there are also three radio buttons.

•Select the Radio Button ‘Never Dial A Connection’ then click on ‘Apply’ then ‘OK’

You should now re-attempt the connection to the Router’s Web User Interface as

described above.

Self Help Guide

TSG-UK-1-008 | www.belkin.com | Page 8 of 8

Troubleshooting – Internet Browser And Dial-Up Pop-Ups
