Belkin SURF N300 Bedienungsanleitung

User Manual

F9K1004v1 8820-01044 Rev. A00

HigH Performance Wireless n300 VPn

ROUTER

TABLE OF CONTENTS

System ................................................. 27

Status .....................................................27

LAN .......................................................31

DHCP......................................................35

Schedule...................................................38

Log........................................................40

Language ..................................................41

Internet ................................................. 42

Status .....................................................42

Dynamic IP Address .........................................43

Static IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

PPP over Ethernet (PPPOE)...................................45

Point-to-Point Tunneling Protocol (PPTP)........................47

Layer-2 Tunneling Protocol (L2TP) .............................49

Wireless ................................................ 51

Basic ......................................................51

Advanced ..................................................54

Security....................................................56

Filter.......................................................62

Wi-Fi Protected Setup (WPS)..................................64

Client List ..................................................67

Policy......................................................68

Introduction… .............................................1

Package Contents ............................................ 1

System Requirements......................................... 1

Introduction.................................................. 2

LED Overview................................................ 3

Before you Begin ..........................................4

Considerations for Wireless Installation .......................... 4

Computer Settings (Windows XP/Windows Vista/Windows 7) ....... 5

Hardware Installation......................................... 10

Configuring your Router ...................................11

Setup Wizard .............................................12

VPN Wizard ............................................. 26

TABLE OF CONTENTS

Firewall ................................................ 69

Enable .....................................................69

Advanced ..................................................69

DMZ.......................................................70

Denial of Service (DoS).......................................70

MAC Filter ..................................................71

IP Filter ....................................................72

URL Filter ..................................................73

Advanced ............................................... 74

Network Address Translation (NAT) ............................74

Port Mapping ...............................................75

Port Forwarding .............................................76

Port Trigger.................................................77

Application Layer Gateway (ALG) ..............................78

Universal Plug and Play (UPnP)................................79

Quality of Service (QoS) ......................................80

Routing ....................................................83

VPN .................................................... 85

Status .....................................................86

Profile Setting...............................................87

IPSec ....................................................88

L2TP over IPSec...........................................94

L2TP.....................................................95

User Setting ................................................98

Wizard .....................................................99

Tools .................................................. 118

Admin ....................................................118

Time......................................................119

Dynamic DNS (DDNS) ......................................120

Power.....................................................122

Diagnosis .................................................123

Firmware ..................................................124

Back-up ...................................................125

Reset .....................................................126

Technical Support, Warranty, FCC Statement .............. 127

INTRODUCTION

Package Contents

• Belkin Wireless N300 VPN Router

• Power Adapter

• RJ-45 Ethernet LAN Cable

• CD-ROM with User Manual and Setup Wizard

• Quick Guide

System Requirements

• RJ-45 Ethernet Based Internet (ADSL or Cable Modem)

• Computer with Wireless Network function

• Windows, Mac OS or Linux based operating systems

• Internet Explorer or Firefox or Safari Web-Browser Software

INTRODUCTION

Introduction

F9K1004 is a Wireless 11N Gigabit VPN Router with 2

attachable antennas that delivers up to 6x faster speeds and

3x extended coverage than 802.11g devices. F9K1004 supports

various network with superior throughput and performance and

unparalleled wireless range. With its WPS function, it helps users

to connect their wireless devices with just a push of a button.

There’s also a built-in 4-port full-duplex 10/100/1000 Fast

Switch to connect your wired Ethernet devices together. The

Router function ties it all together and lets your whole network

share a high-speed cable or DSL Internet connection.

INTRODUCTION

LED Lights Icon Description

Wireless LAN

Color – Blue

Ligh ts when Wireless signal is activated.

Internet WAN

Color – Blue

LAN LAN

Color – Blue

Ligh ts when wired network device is conne cted to RJ-45 port.

Blinks when data transfer occ urs on RJ-45 port.

Power

Color – Oran ge

Ligh ts when device is powered ON.

Blinks device is Reset.

Blinks when Wireless data transfer and blinks when WPS handshake is initialized.

Steady light-up when ethernet port is plugged in.

Blinks when data transfer.

BEFORE YOU BEGIN

Before you Begin

This section will guide you through the installation process.

Placement of the F9K1004 is very important to avoid poor

signal reception and performance. Avoid placing the device

in enclosed spaces such as a closet or cabinet..

Considerations for Wireless Installation

The operating distance of all wireless devices cannot be pre-

determined due to a number of unknown obstacles in the

environment that the device is placed. These could be the

number, thickness and location of walls, ceilings or other objects

that the wireless signals must pass through. Here are some key

guidelines to ensure that you have the optimal wireless range.

1. Keep the number of walls and ceilings between the Belkin

access point and other network devices to a minimum.

Each wall or ceiling can reduce the signal strength; the

degradation depends on the building’s material.

2. Building materials makes a difference. A solid metal door or

aluminum stubs may have a significant negative effect on

range. Position your wireless devices carefully so the signal

can pass through drywall or open doorways. Materials such

as glass, steel, metal, concrete, water (fish tanks), mirrors, file

cabinets and brick will also degrade your wireless signal.

3. Interference can also come from other electrical devices

or appliances that generate RF noise. The most

common types are microwaves or cordless phones.

BEFORE YOU BEGIN

• Click Start button and open Control Panel.

Computer Settings (Windows XP/Windows Vista/Windows 7)

Windows XP Windows Vista Windows 7

BEFORE YOU BEGIN

• Windows XP, click [Network Connection]

• Windows Vista, click [View Network Status and Tasks] then [Manage Network Connections]

• Windows 7, click [View Network Status and Tasks] then [Change adapter settings]

BEFORE YOU BEGIN

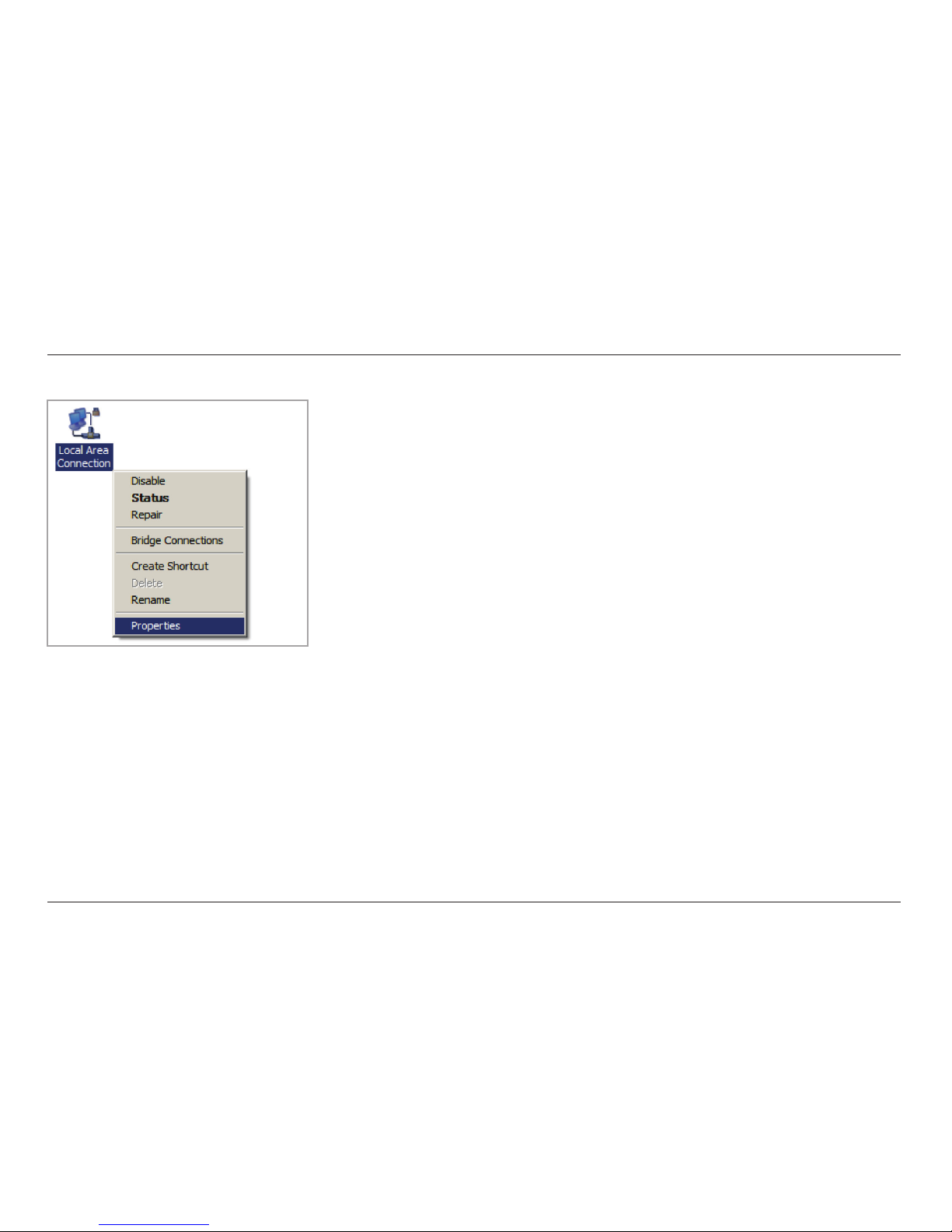

• Right click on [Local Area Connection] and select [Properties].
