5-Port Gigabit Switch
8-Port Gigabit Switch
User Manual
F5D5141-5
F5D5141-8
Share large files at faster network speeds,
with maximum efficiency
5-Port Gigabit Switch
8-Port Gigabit Switch
1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Getting to Know your Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Connecting Networking Devices to your Switch. . . . . . . . . . . . . . . . 4
4 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Placement of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table of Contents
Introduction
section
1
2
3
4
5
6
7
8
Congratulations on your purchase of this high-quality Belkin 5- or
8-Port Gigabit Switch. Backward-compatible with 10/100 networks,
each Switch easily integrates into a new or existing network for
instant high performance. It delivers dedicated 100Mbps links to
each directly attached LAN segment or PC, enabling your servers
and workstations to transfer large AV and graphic files efficiently
throughout your network. They provide your servers and workstations
the capacity to transfer large video, audio, and graphic files
throughout your network—at gigabit speeds.
Engineered for compact convenience, each Switch features a durable
metal chassis that can be placed on the desktop or mounted on a
wall. All ports auto-negotiate between a 10-, 100-, or 1000Mbps
network and adjust for straight-through or crossover cables, so you
don’t have to worry about cable type.
Compatible with existing 10/100 networks and major operating
systems, your 5- or 8-Port Gigabit Switch from Belkin delivers error-
free transfers at maximum networks speeds.
1
Features
- High-speed, dedicated 10/100/1000 Ethernet ports
• 5 ports (Belkin 5-Port Gigabit Switch F5D5141-5)
• 8 ports (Belkin 8-Port Gigabit Switch F5D5141-8)
- Standards
• IEEE 802.3 z/ab 1000Base-T
• IEEE 802.3u 100Base-Tx
• IEEE 802.3 10Base-T
- 1U chassis, place on your desk or mount on a wall
- Auto MDI/MDIX ports
- Auto-negotiation between 10-, 100-, and 1000Mbps on all ports
- Auto-negotiation for full and half duplex on all ports
- Collision detection on all ports
- IEEE 802.3x PAUSE frames flow control in full-duplex operation
- Back-pressure flow control in half-duplex operation
- Support for up to 8,000 MAC address entries
- A Belkin Limited Lifetime Warranty and free, 24-hour
technical support
Package Contents
• Belkin 5- or 8-Port Gigabit Switch
• Power Adapter
• Self-Adhesive Rubber Pads for Desktop
• User Manual
Introduction
32
Introduction
Front-Panel LEDs

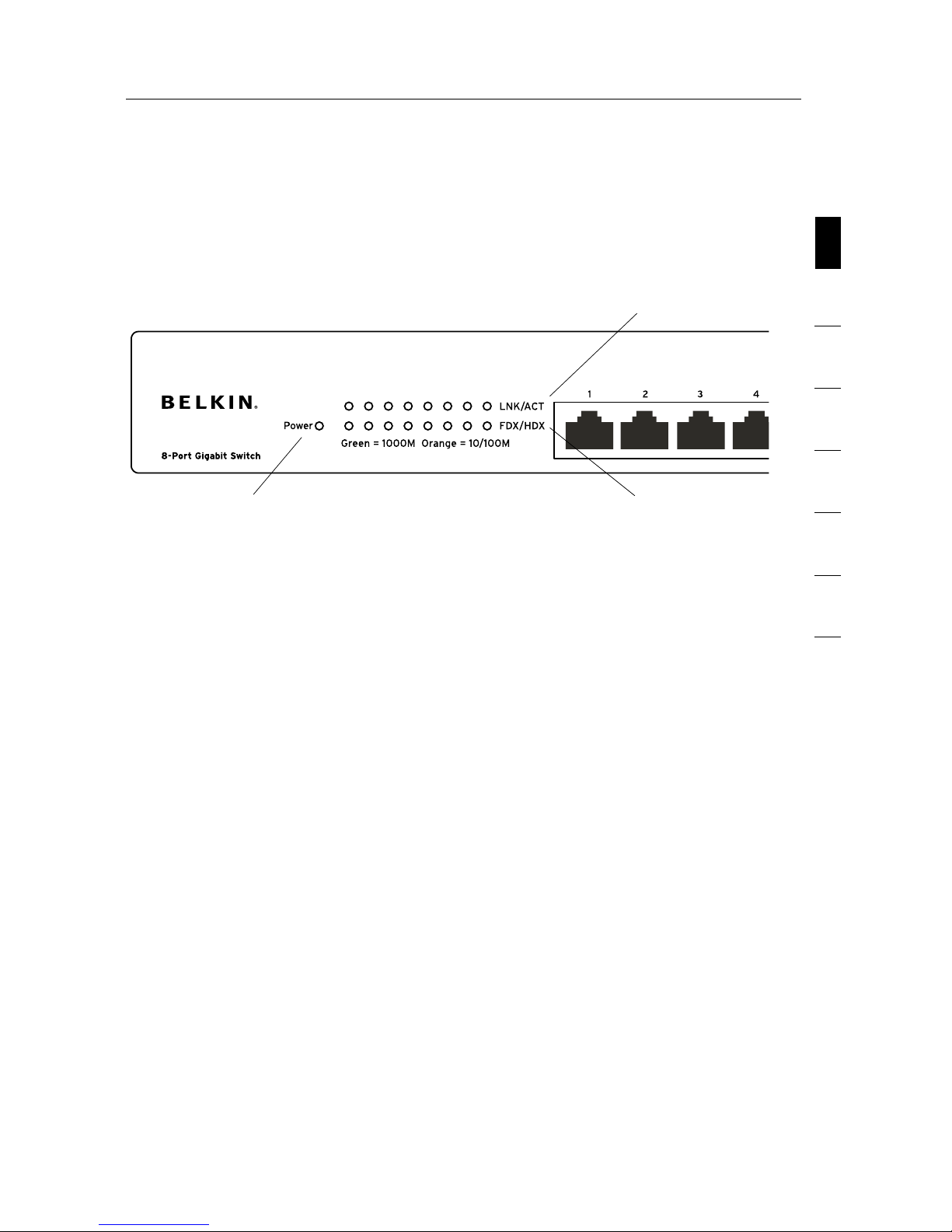

Belkin 5- or 8-Port Gigabit Switches feature two rows of LEDs that
provide information about connection speed and activity, plus a
separate Power LED.
(a) Power (POWER) LED
• Green – Switch is operating normally
• Off – There is no power to the Switch
(b) Speed, Link, and Activity (Link/Act) LED
• Solid Green – A valid link has been established
• Blinking Green – Data is being transmitted and received
• Off – No link is established
(c) 1000M LED
• Solid Green – A valid 1000Mbps link is established
on the port
• Off – A valid 10/100Mbps link is established on the port
(b)
(c)
(a)
Introduction Getting to Know your Switch
section
1
2
3
4
5
6
7
8
3
Introduction
4
Connecting Networking Devices to your Switch
4
Connecting Networking Devices to your Switch
Connecting your Switch to your Computers
1. Power down all your equipment.
2. Connect a Category 5e or 6 Ethernet cable between each
computer’s network interface card (NIC) and one of the
numbered ports on the front of the Switch.
3. All switch ports can automatically negotiate speeds at full- and
half-duplex modes to allow users to attach 10Base-T,
100Base-Tx, and 1000Base-T network devices.
4. Connect the power adapter cord into the power adapter socket
in the rear of the Switch; now plug the adapter into a power
source (wall jack or power strip).
5

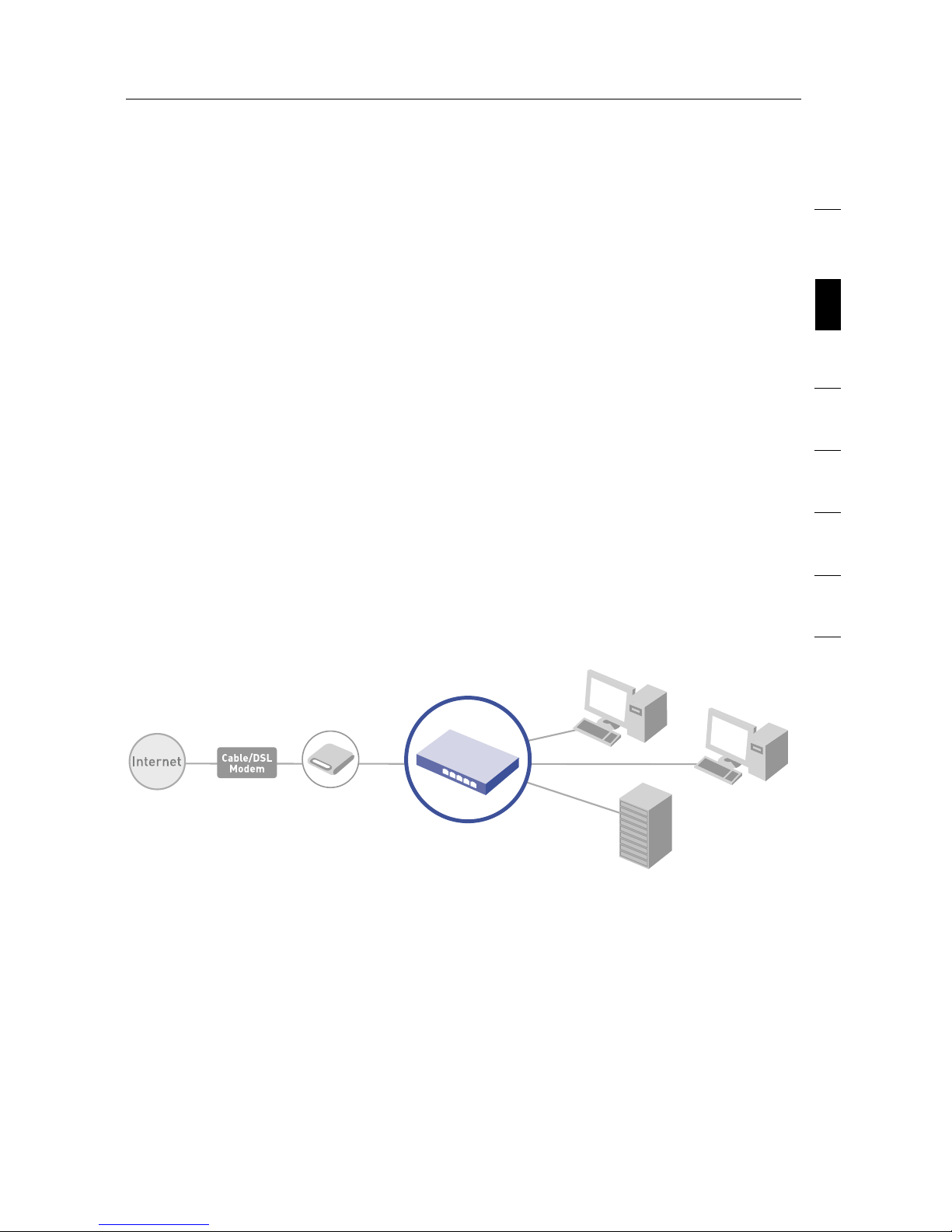

Connecting your Switch to your Broadband Router
1. Make sure your broadband router is correctly configured to
connect to your ISP and you are able to surf the Internet.
Note: If have questions regarding the configuration of your
broadband router setup, consult your broadband router vendor.
2. Connect a Category 5e or 6 Ethernet cable between one of the
numbered ports on the rear of the broadband router and one of
the numbered ports on the rear of the Switch.
3. Connect the power adapter cord into the power adapter socket
in the rear of the Switch; now plug the adapter into a power
source (wall jack or power strip).
4. Power down all your computers.
5. Connect a Category 5e or 6 Ethernet cable between each
computer’s NIC and one of the numbered ports on the rear
of the Switch.
6. Power up all your computers connected to your Belkin Switch.
5
Connecting Networking Devices to your Switch
section
1
2
3
4
5
6
7
8
Connecting your Switch to another Switch
1. Connect a Category 5e or 6 cable between one of the numbered
ports on the front of the Switch and one of the numbered ports
on the other Switch to which you are cascading or connecting.
2. All switch ports can automatically negotiate speeds at full- and
half-duplex modes to allow users to attach 10Base-T,
100Base-Tx, and 1000Base-T network switches or hubs.
3. All ports support auto MDI and MDIX functionality. When
cascading or connecting switches or hubs, the user can use a
straight-through or crossover cable.
Important: When connecting two switches together, use a single
cable. If multiple cables are used, loops may occur resulting in
unwanted collisions. This will result in poor network performance.
Cabling Distances
• 328 ft. (100m)
Recommended Cabling Standard
• Category 5e or 6 for gigabit connections (1000Mbps)
• Category 5 for Ethernet (10Mbps) and Fast Ethernet
connections (100Mbps)
76
Connecting Networking Devices to your Switch
This Switch segments your network, significantly increasing both
bandwidth and throughput. Each port on the Switch can be attached
to any Ethernet, Fast Ethernet, or Gigabit Ethernet device, such as
another switch or a server’s network adapter. All Switch ports operate
at 10/00Mbps full and half duplex, or 1000Mbps full duplex, providing
up to 2Gbps of bandwidth to the attached device.
Bridging Functions –
This Switch provides fully transparent bridging functions. It
automatically learns node addresses that are subsequently used to
filter and forward all traffic based on the destination address. When
traffic passes between devices attached to the same shared collision
domain, those packets are filtered from the Switch. But when traffic
must be passed between unique segments (i.e., different ports on the
Switch), the high-speed switching fabric forwards the packets at
near-zero latency.
Switching Functions –
Store-and-forward switching is used to forward traffic to other ports.
This scheme ensures data integrity and provides a clean data stream.
Sample Application –

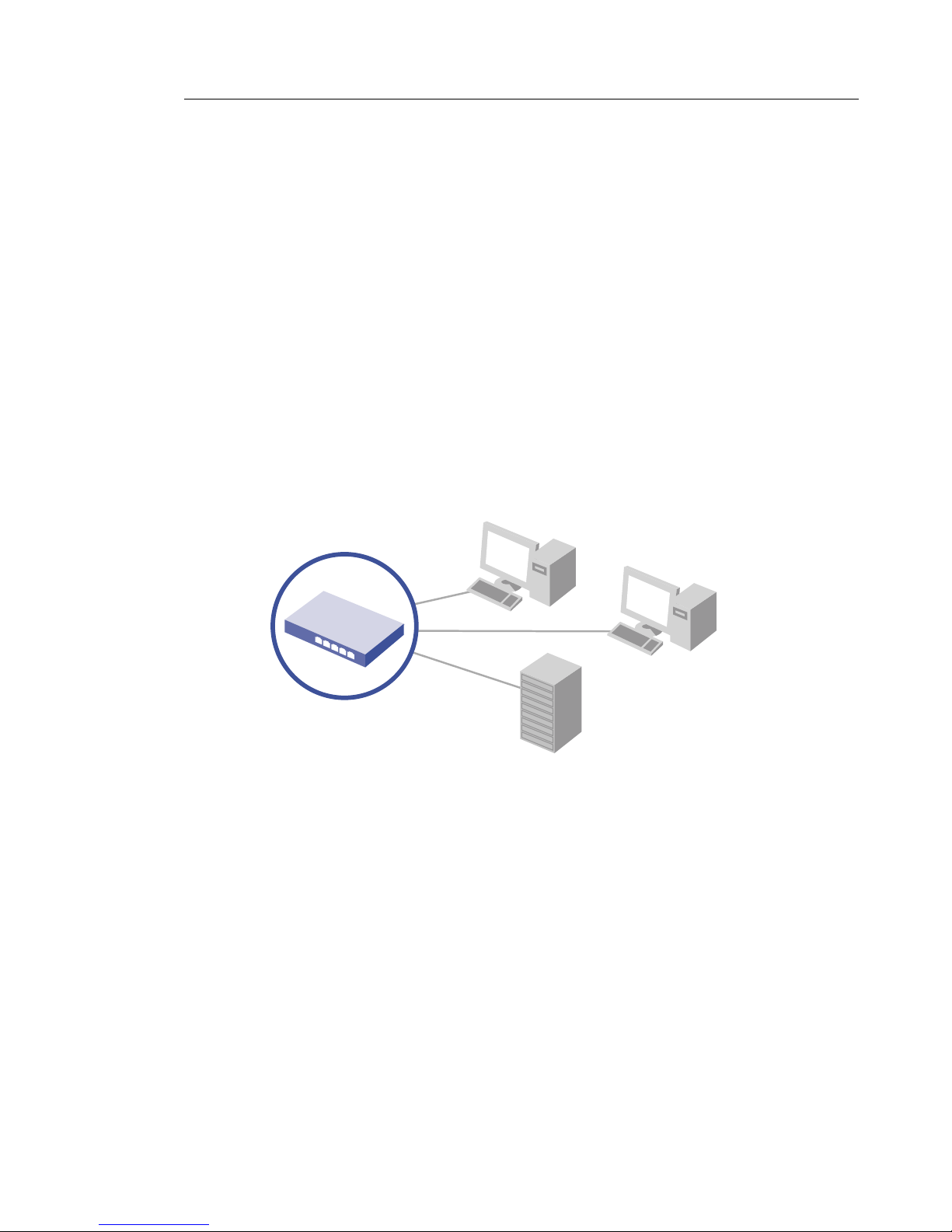

This Switch is designed to operate as a small workgroup switch. It
can provide 10-, 100-, or 1000Mbps connections to workstations, or
1000Mbps full-duplex links to high-speed servers. It can also provide
a high-bandwidth uplink to the network backbone.
Applications
7
section
1
2
3
4
5
6
7
8
