This section provides complete instructions for the hardware setup of a single KVM Switch.

(F1DS102L or F1DS104L)

Installing the KVM Switch

The KVM Switch is a plug-and-play device for installation. For a quick start on installation and

operation, please follow the instructions below for the setup sequence:

Connect the Audio

Once all cables have been connected, power up the KVM Switch followed by the CPUs that are

attached to the KVM Switch. All computers can be powered on simultaneously. The KVM Switch

emulates a mouse and keyboard on each port and allows your computer to boot normally. Your

KVM Switch should now be ready for use.

NOTE: Speakers and microphones are not required for use of your KVM Switch.

Single-Switch Installation

Audio and Microphone Connections Powering Up the Systems

Step 1.

Connect the shared keyboard, monitor, and

mouse (also speaker set and microphone) to the

console port of the KVM Switch.

NOTE: Since the USB interface is hot-pluggable, you don’t have to turn off the computer before making connections

to the KVM Switch.

Step 3.

Power up your KVM Switch by connecting the external power adapter to it.

Step 4.

Power up the connected computers one by one. After your computers are powered up, the

keyboard and mouse will be recognized and now you can begin operating the KVM Switch.

Step 2.

Connect each of your computers to the

KVM Switch, using the USB KVM cable, and

audio and mic cables.

Step 1.

Using the audio cable attached to

your speakers, connect the male

3.5mm plug to the lime audio jack in

the “Console” section of the

KVM Switch.

Step 2.

Using the mic cable attached to

your microphone, connect the male

3.5mm plug to the pink mic jack in the

“Console” section of the KVM Switch.

Step 3.

Using the SOHO USB Cable Kit, connect one

end of the lime male 3.5mm plug to the speaker

jack of your sound card or computer, and

connect the other end to the audio jack of the

KVM Switch.

Step 4.

Using the KVM Cable, connect one end of the

pink male 3.5mm plug to the mic jack of your

sound card or computer, and connect the other

end to the pink mic jack of the KVM Switch.

Front View

Back View

KVM Soho VGA U-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102L, F1DS104L

front panel

back panel

KVM Soho DVI 4 Port Enclosure

Print Graphics v.2.1 F1DD102L, F1DD104L

front panel

back panel

KVM Soho VGA T-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102J, F1DS104J

front panel

back panel

Audio/Mic Switch

KVM Switch

USB Hub

Port 1

Port Indicators

KVM Soho VGA U-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102L, F1DS104L

front panel

back panel

KVM Soho DVI 4 Port Enclosure

Print Graphics v.2.1 F1DD102L, F1DD104L

front panel

back panel

KVM Soho VGA T-type 4 Port Enclosure

Print Graphics v.2.1 F1DS102J, F1DS104J

front panel

back panel

DC Power Jack

Additional Computer Audio/Mic Jacks

1st Computer

Audio/Mic

Console Jacks Audio/Mic

Console

Jacks

USB Hub

Port 2

VGA Console

Port

1st Computer

Port

2nd Computer

Port

3rd Computer

Port

4th Computer

Port

USB Console

Port

Belkin Tech Support

US: 800-223-5546 ext. 2263

310-898-1100 ext. 2263

UK: 0845 607 77 87

Australia: 1800 235 546

New Zealand: 0800 235 546

Singapore: 65 64857620

Europe: www.belkin.com/support

Belkin International, Inc.

501 West Walnut Street

Los Angeles, CA 90220, USA

310-898-1100

310-898-1111 fax

Belkin Ltd.

Express Business Park, Shipton Way

Rushden, NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

Belkin Ltd.

4 Pioneer Avenue

Tuggerah Business Park

Tuggerah, NSW 2259, Australia

+61 (0) 2 4350 4600

+61 (0) 2 4350 4700 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, The Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax

trademarks of respective manufacturers listed.

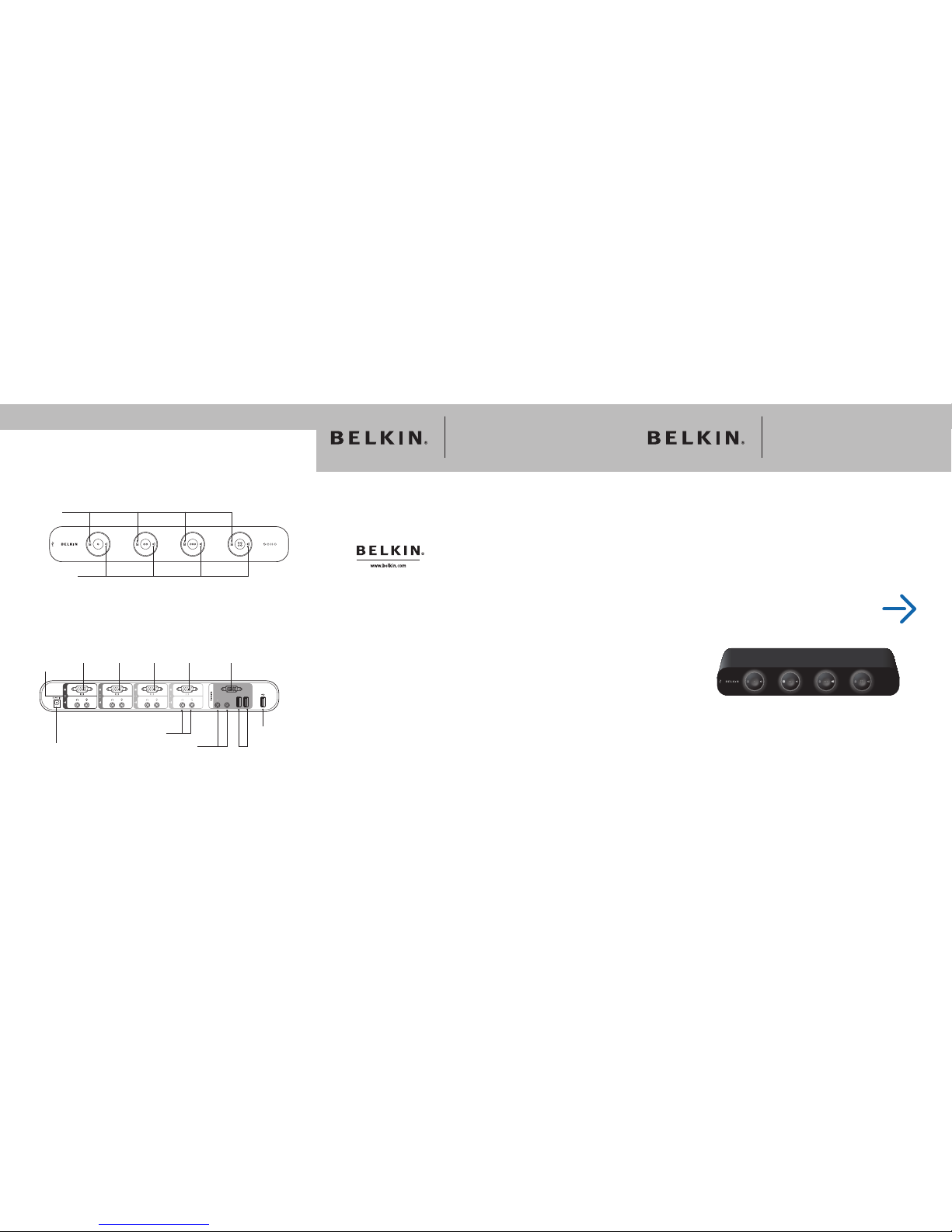

Quick Installation Guide F1DS102L

F1DS104L

PM00510

OmniView®SOHO KVM

Switch with Audio

VGA with USB Console and Host Support

OmniView®SOHO KVM

Switch with Audio

VGA with USB Console and Host Support

Start Here
