Bestop Trektop NX Bedienungsanleitung

Installation Instructions - Trektop NX

Installation Instructions

Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited (JK) 4 Door

2007 – Current

Part Number: 56823

Before you begin installing your new Trektop NX, please read

all the instructions thoroughly, and watch the Bestop installation

video. (See Support section on this page)

For a smooth fit:

For easier installation, the top should be installed at a temperature above

72º F. Below this temperature, the fabric may contract an inch or more,

making it difficult to fit the vehicle.

It is normal for the fabric to contract and wrinkle when stored in the ship-

ping carton. Within a few days after installation, the fabric will relax and the

wrinkles will disappear.

Installation Tips

Safety glasses should be worn at all

times when installing this product.

This product is designed primarily to enhance the appearance of the vehicle and to shield the occupants from ordinary weather conditions. Do not rely in

any way on the components of this product to contain the occupants within the vehicle, or to protect against injury or death in the event of an accident, This product will not protect

the occupants from falling objects. Never operate the vehicle in excess of manufacturer

WEAR SEAT BELTS AT ALL TIMES

potentially dangerous situation.

Tools Installation Time

Skill Level

Support

We’re here to help!

Go to www.Bestop.com and

click “Contact Us”

See a video showing installation of this top at:

Or search Youtube for “Bestop Trektop NX install JK Unlimited (four door)”

http://www.youtube.com/watch?v=SiHjRyVdtqU

2 Hours

2 - Moderately Easy

Phillips

Screwdriver

13mm Socket

Utility Knife Ratchet

Safety

Glasses

Installation Instructions - Trektop NX

Installation Instructions

Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited (JK) 4 Door

2007 – Current

Part Number: 56823

Installation Instructions - Trektop NX

Installation Instructions

Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited (JK) 4 Door

2007 – Current

Part Number: 56823

Parts List

- Required parts for each installation section - Page number in Installation Guide

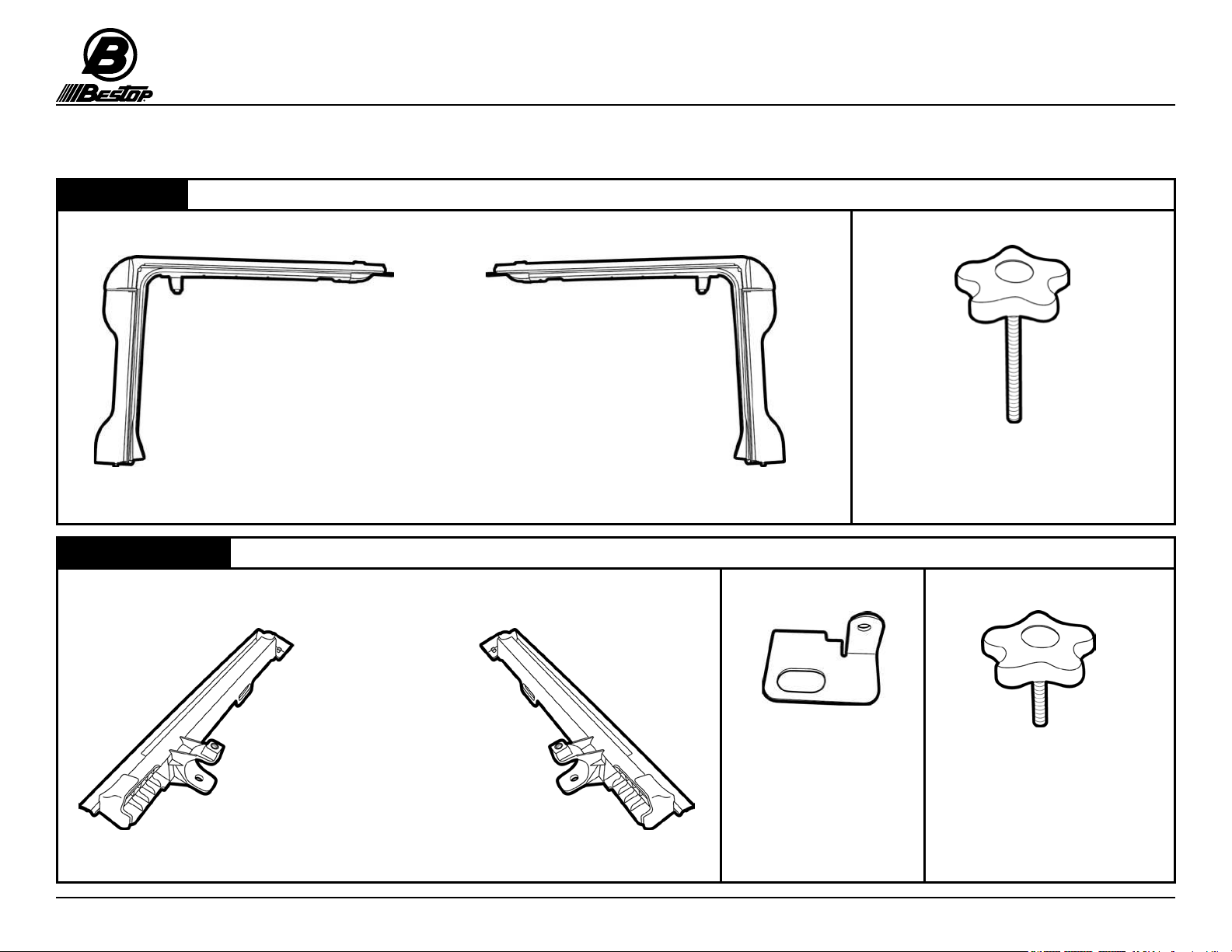

Section 1 Rear Door Surrounds Page 6 of Guide

Rear Door Surround

Qty - 1

Part # 486.67 - Left

Rear Door Surround

Qty - 1

Part # 486.66 - Right

M8 x 75mm Knob

Qty - 4

Part # 478.90

Sections 2&3 Front Door Surrounds Pages 7 & 8 of Guide

Front Door Surround

Qty - 1

Part # 479.86 - Right

Front Door Surround

Qty - 1

Part # 479.87 - Left

Sunrider Bracket

Qty - 1 per side

485.50 Right (shown)

485.51 Left

M8 x 30mm Knob

Qty - 2

Part # 480.22

Installation Instructions

Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited (JK) 4 Door

2007 – Current

Part Number: 56823

Parts List

- Required parts for each installation section - Page number in Installation Guide

Sections 6, 7, 8 & 9 Front & Rear Top Arches, Tailgate Bar Mounts & Side Bows Pages 13 to 18 of Guide

Front Top Arch

Qty - 1

Part # 483.24

Rear Top Arch

Qty - 1

Part # 483.27

Tailgate Bar Mount

Qty - 1

Part # 488.47 - Left

Tailgate Bar Mount

Qty - 1

Part # 488.46 - Right

#8 x 1/2” Screw

Qty - 8

Part # 393.79

Side Bow

Qty - 2

Part # 485.47

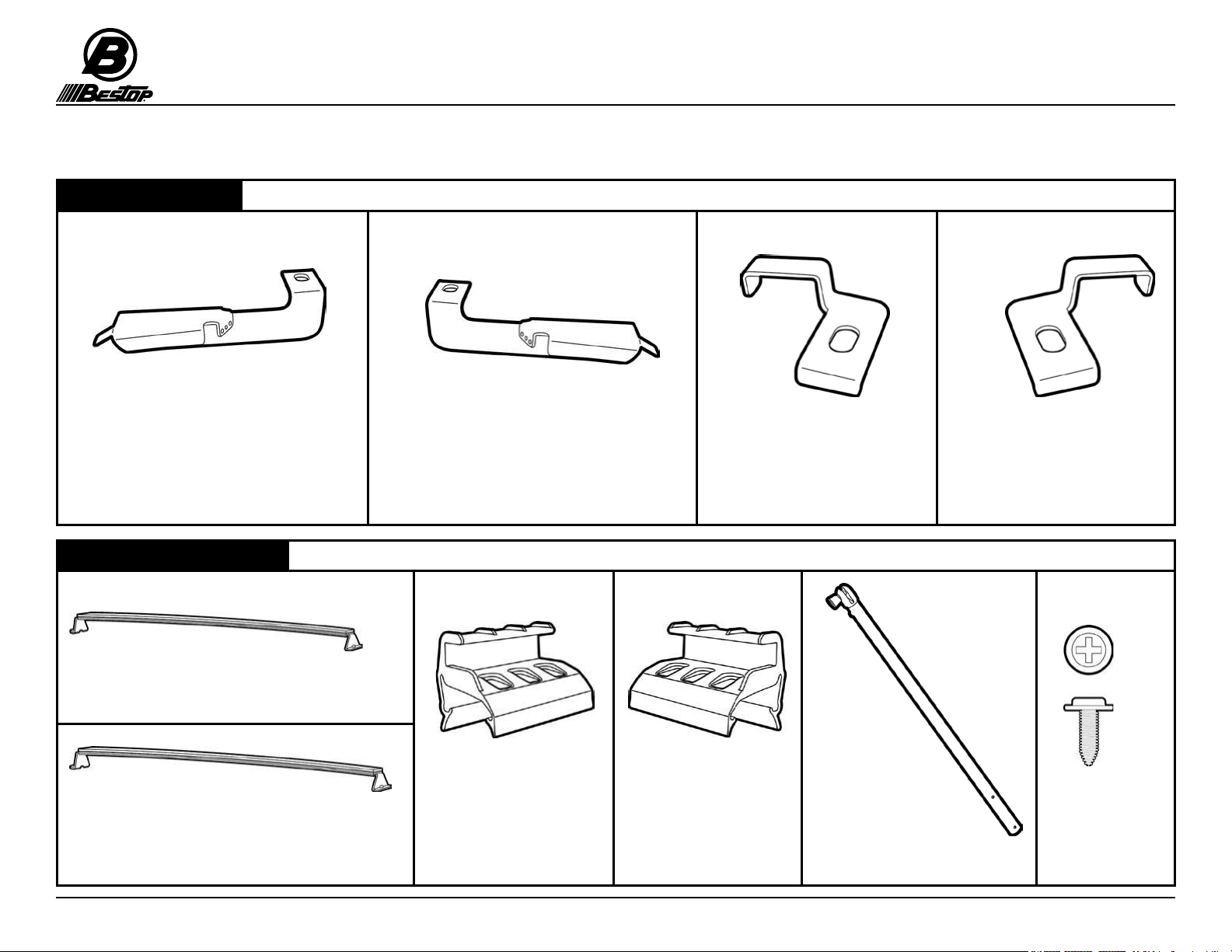

Sections 4 & 5 Cable Brackets & Rear Bow Brackets Pages 10 to 12 of Guide

Cable Bracket Qty - 1

Part # 502.39 - Left

Cable Bracket Qty - 1

Part # 502.38 - Right

Rear Bow Bracket

Qty - 1

Part # 484.87 - Left

Rear Bow Bracket

Qty - 1

Part # 484.86 - Right

Installation Instructions - Trektop NX

Installation Instructions

Trektop NX

Vehicle Application:

Jeep Wrangler Unlimited (JK) 4 Door

2007 – Current

Part Number: 56823

Parts List

- Required parts for each installation section - Page number in Installation Guide

Sections 10 to 15

Sections 16 to 21

Foam Seals, Middle Bow, Bow Clip & Rear Bow

Web Strap, Tailgate Bar, Fabric Top and Windows

Pages 19 to 24 of Guide

Pages 25 to 31 of Guide

Web Strap with

Snap Hook

Qty - 2

Part # 460.37

Middle Bow

Qty - 1

Part # 486.21

Foam Tape Strips

Qty - 2

Part # 417.43

Foam Seals

Qty - 1 per side

Part # 457.76 Right

Part # 457.77 Left

Bow Clip

Qty - 1,

Part # 479.22

Tailgate Bar

Qty - 1

Part # 489.46

Rear Bow

Qty - 1

Part # 486.18

Deck, Header Assembly, & Fabric Top

Right Side Window

Left Side Window

Rear Window

Installation Instructions - Trektop NX

Page 6

Rear Door Surround

Qty - 1 per side

486.66 Right (shown)

486.67 Left

Install Rear Door Surrounds

Section 1

Step 1 Step 2486.66 486.67 478.90 Hardware

M8 x 75mm Knob

Qty - 1 per side

Part # 478.90

Insert the pin in the bottom of the Rear Door

Surround into the hole in the belt rail behind the

rear door opening. Press the channel along the top

of the Rear Door Surround around the horizontal

sport bar.

Repeat on the other side of the vehicle.

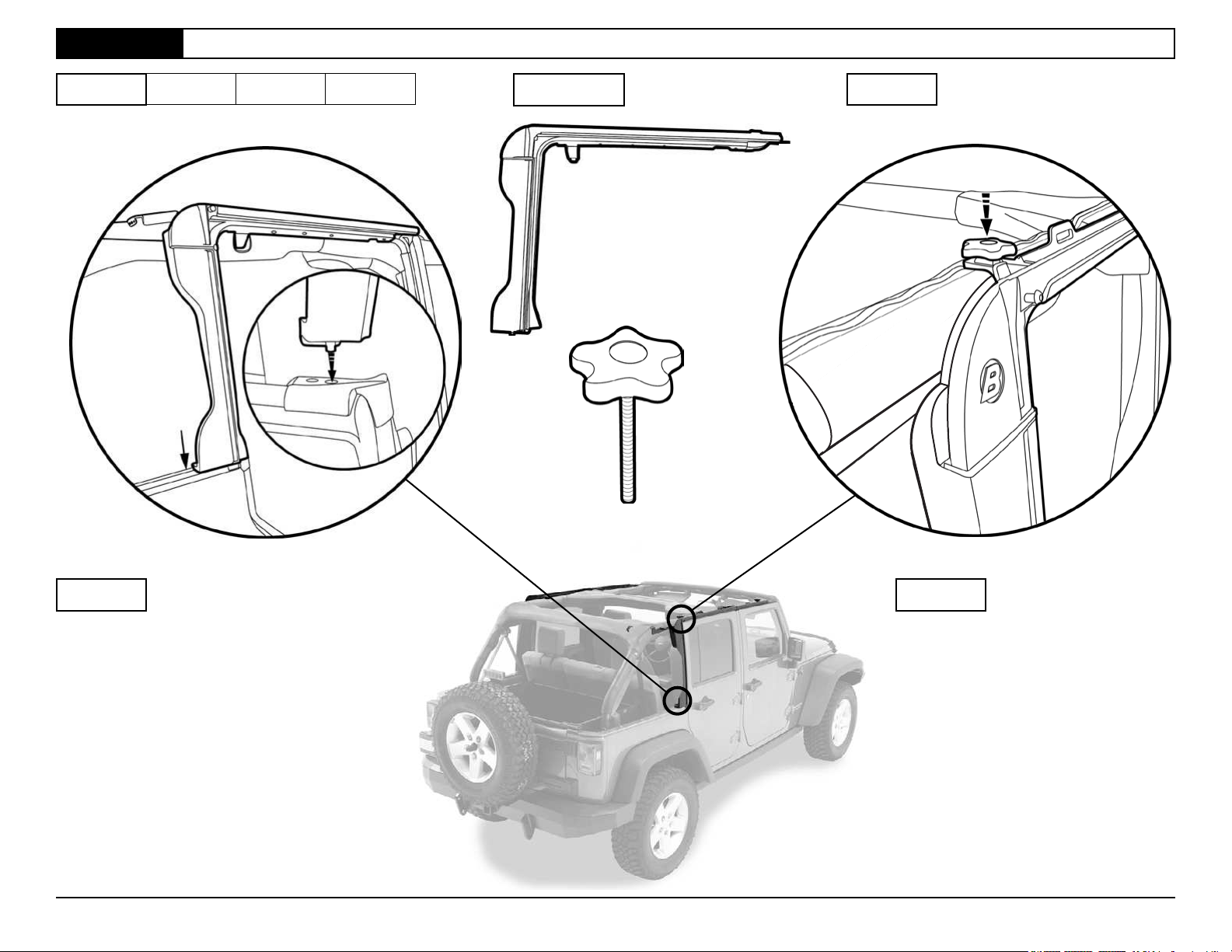

Open the Rear Door. Insert an M8 x 75mm Knob into the rear

position on the Door Surround.

Repeat on the other side of the vehicle.

Step 1 Step 2

Installation Instructions - Trektop NX

Page 7

Install Front Door Surrounds

Section 2

Step 1 479.86 479.87 478.90 Hardware

Front Door Surround

Qty - 1 per side

479.86 Right (shown)

479.87 Left

M8 x 75mm Knob

Qty - 1 per side

Part # 478.90

Insert an M8 x 75mm Knob into the front

position on the Door Surround.

Repeat on the other side of the vehicle.

Step 1

Step 2

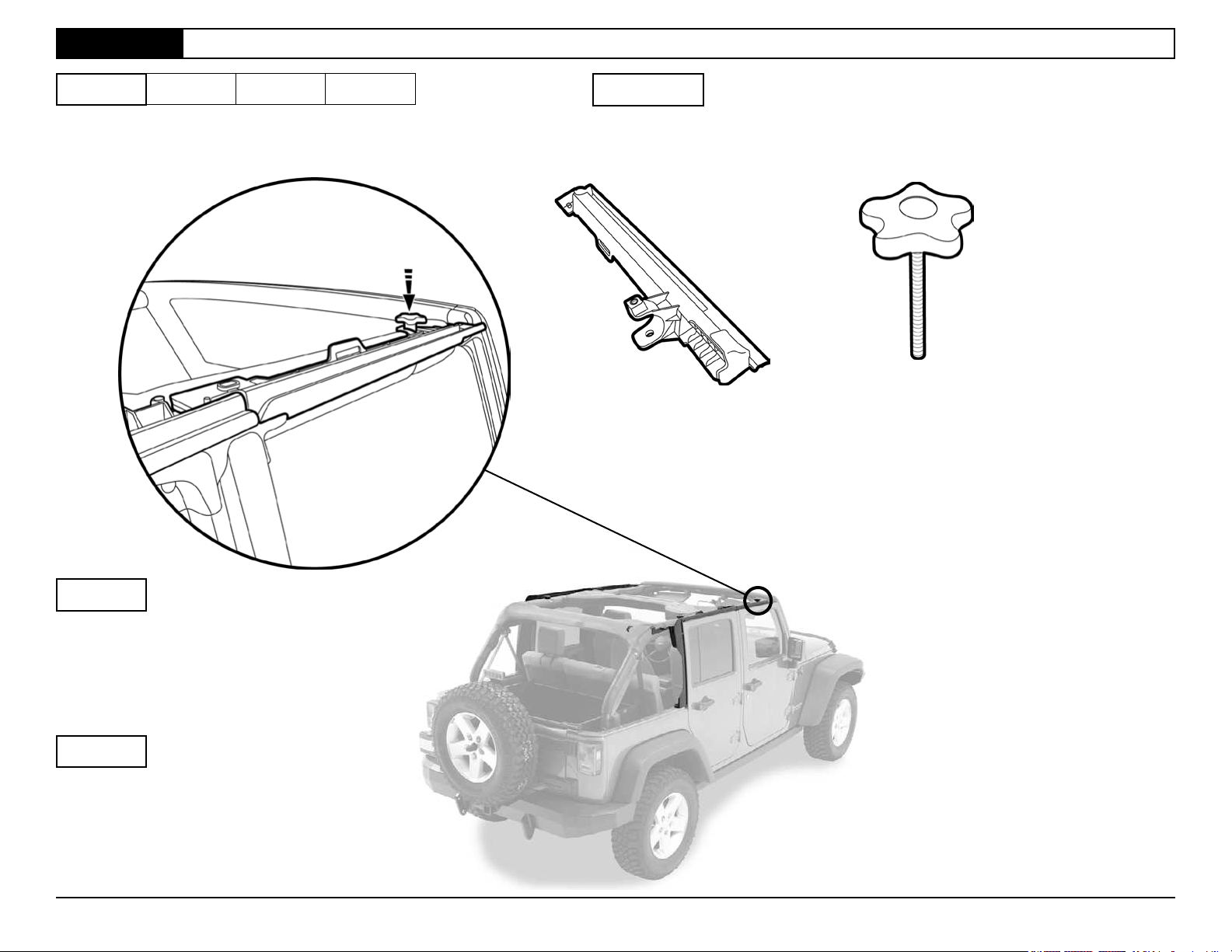

Position the Front Door Surround on the sport bar

above the passenger side door and press it into

place as with the rear.

Open the Front Door.

Installation Instructions - Trektop NX

Page 8

Install Sunrider Bracket

Section 3

Step 1 Step 2485.50 485.51 480.22 Hardware

Sunrider Bracket

Qty - 1 per side

485.50 Right (shown)

485.51 Left

M8 x 30mm Knob

Qty - 1 per side

Part # 480.22

Step 1 Step 2

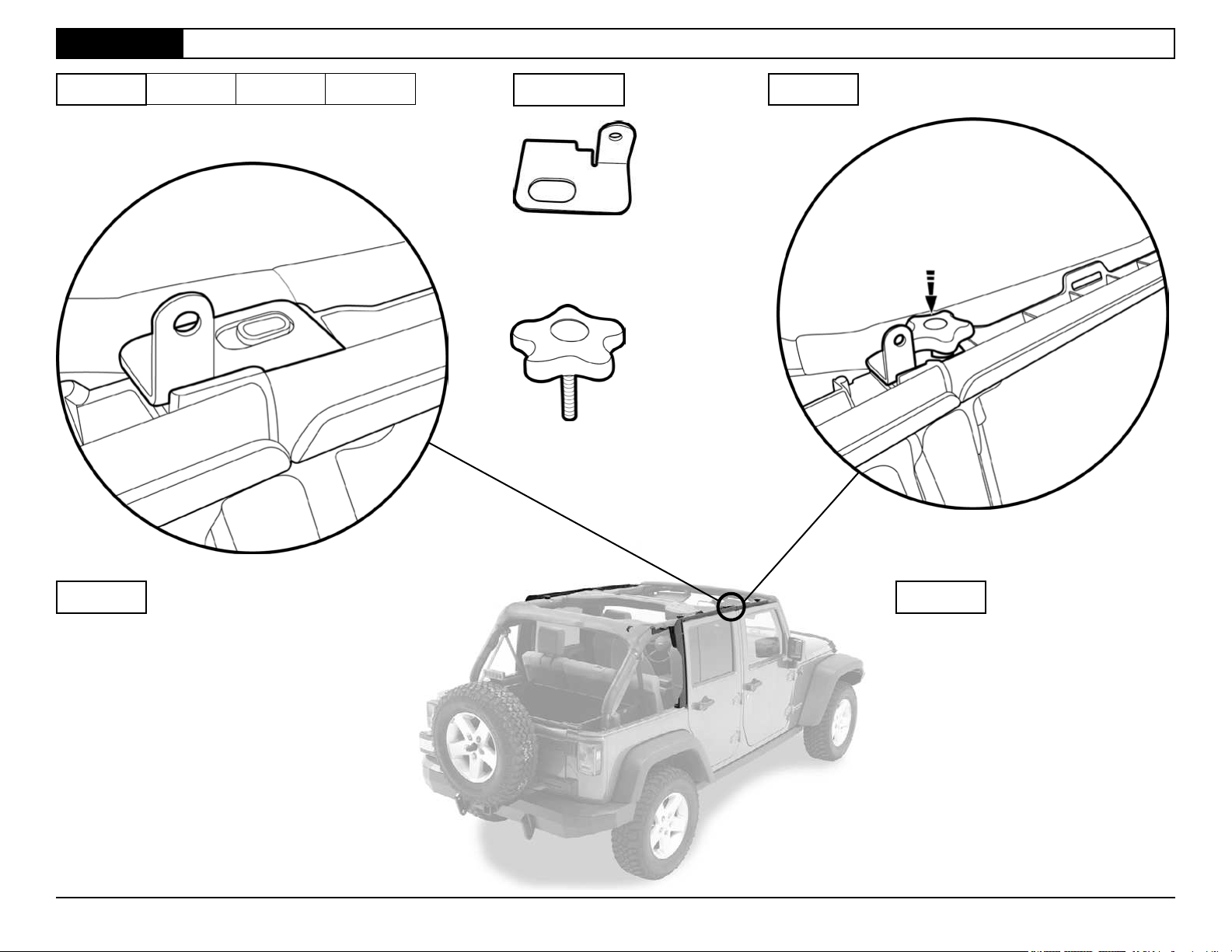

Place the Right Sunrider Bracket over

the hole where the Front and Rear

Door Surrounds join.

Secure the Right Sunrider Bracket

with the M8 x 30mm Knob.

Repeat with the Left Sunrider Bracket.

Installation Instructions - Trektop NX

Page 9

Install Cable Brackets

Section 4

Step 1 502.38 502.39 Step 2

Utility Knife

Step 1 Step 2

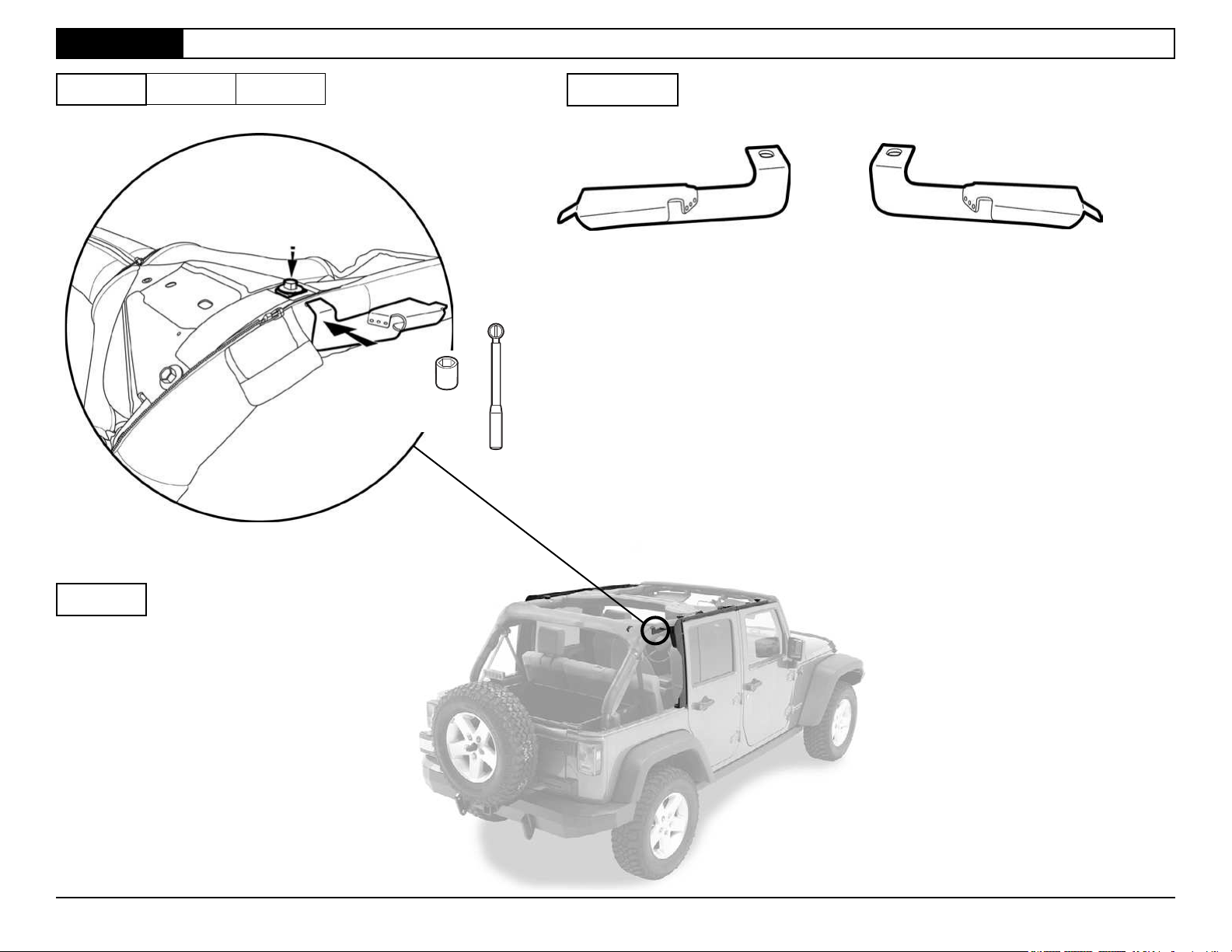

Unzip the upper rear and rear leg sport bar covers

and locate the upper sport bar bolt. Use a 13mm

socket and ratchet to remove the bolt and set it

aside to be reused.

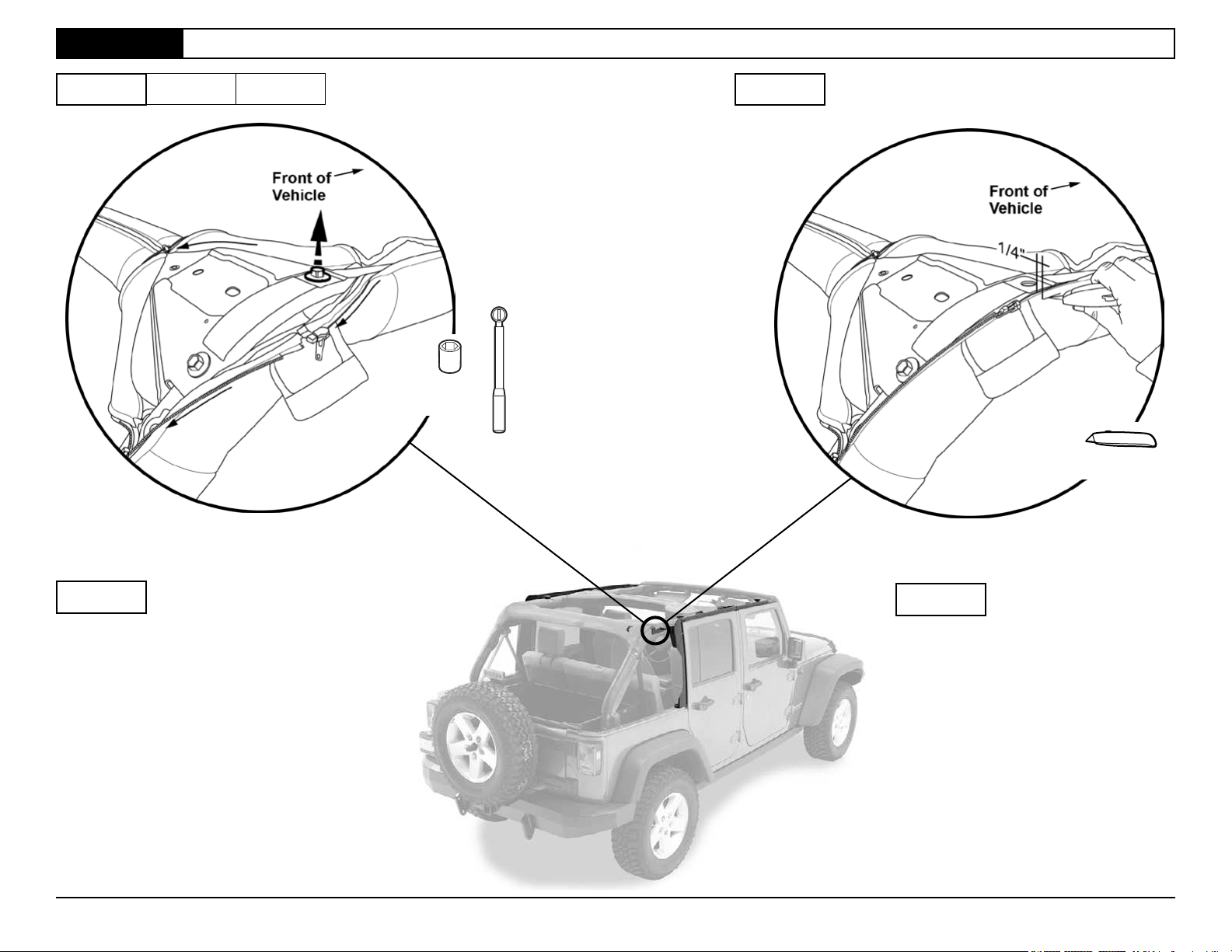

Cut a horizontal slit the same width as the

Cable Bracket in the sport bar cover 1/4"

below the zipper and aligned with the bolt

hole.

Ratchet

13mm

Socket

Installation Instructions - Trektop NX

Page 10

Install Cable Brackets (cont.)

Section 4

Step 3 502.38 502.39 Hardware

Cable Bracket

Qty - 1

Part # 502.39 - Left

Cable Bracket

Qty - 1

Part # 502.38 - Right

Step 3

Use the bolt that was removed to mount the

Cable Bracket to the sport bar through the

slit in the sport bar cover. Tighten the bolt.

Repeat on both sides of the vehicle.

Ratchet

13mm

Socket
