Biomorph Level 2Plus Bedienungsanleitung
Level 2Plus
Ground Support Equipment (US) ltd., DBA Biomorph, 11 Broadway, New York, NY 10004. Tel and Fax 888 302 3375
www.biomorph.com
SX2M-A-TT-B-DS
SX2M-A-TT-B-DS
SX2M-B-TT-S-DS
SX2M-B-TT-B-DS
2
“Questions? Please call 917.328.8955 for support.
IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917.328.8955, by text or phone and wait on site for response. Also, photos of
completed desk(s) must be sent to 917.328.8955 or [email protected] and wait ON SITE for approval. This will avoid potential revisits. Thank you.

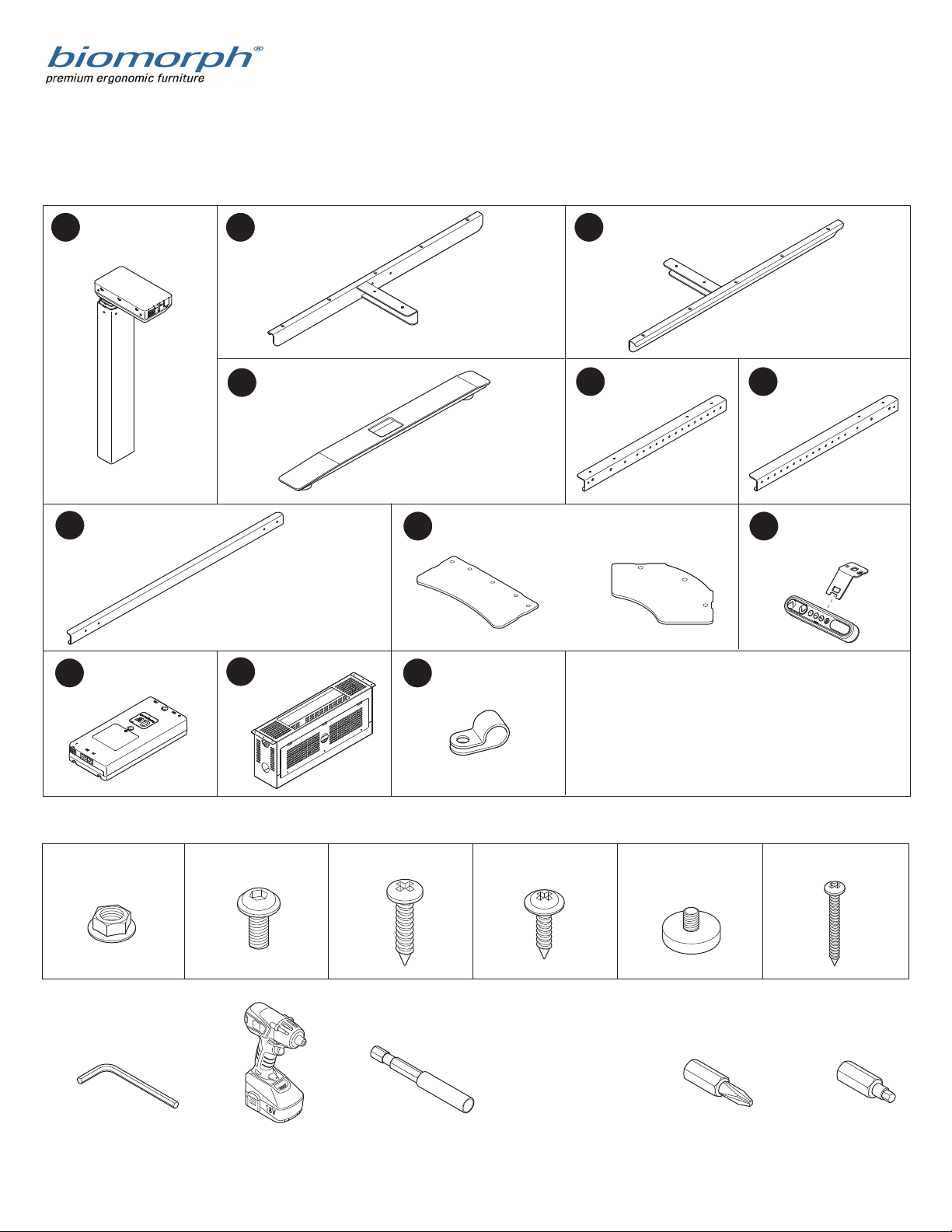

Components
Hardware
Tools
4mm Wrench Drill Extension #2 Phillips Bit Hex Bit
M6 Flange Head Nut
Qty. 4
16mm PH Wd Screw
Qty. 12
M6 x 12 Screw
Qty. 24
45mm PH Wd Screw
Qty. 2
D - Glider
Qty. 4
5 x 25mm Wd Screw
Qty. 24
2 Port Control Box
Qty 1
Wire Clips
Qty 10
Table Top
Qty 1
or
Cable Cab
Qty 2
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
h i
jl
k
Leg
Qty 2
aLH Top Plate
Qty 2
bRH Top Plate
Qty 2
c
Foot
Qty 2
d
Adjustable
Crossbar
Qty 1
g
LH Adjustable
Crossbar Section
Qty 1
eRH Adjustable
Crossbar Section
Qty 1
f
3

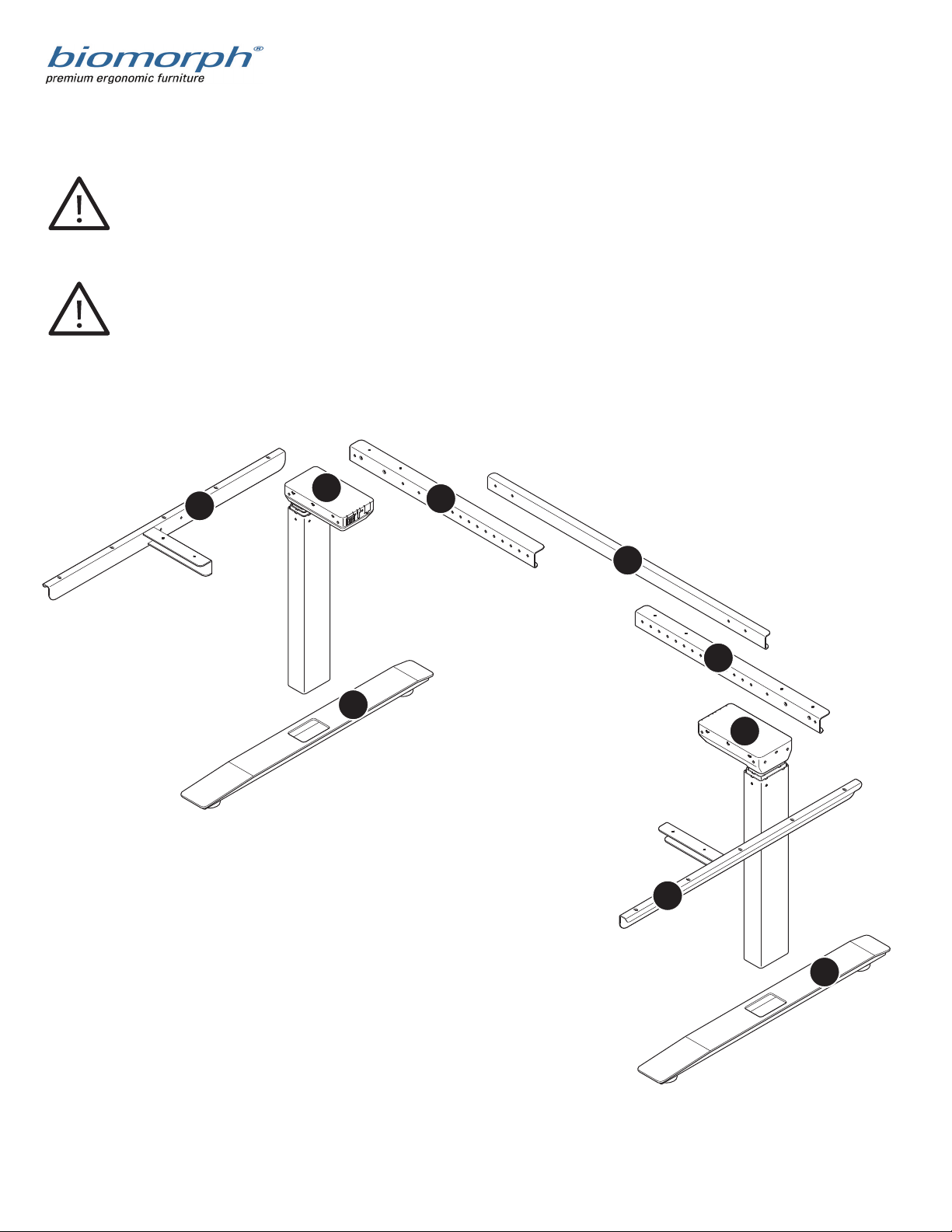

Assembly OverviewAssembly Overview
IMPORTANT:
DO NOT BUILD THISTABLE UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP, IN PLACE, AND
TOPS THEN ATTACHED. If this procedure is not followed then tops will not line up with frame. DO NOT
REMOVE PROTECTIVE MATERIAL FROMTOPS UNTIL FINAL ASSEMBLY.
IMPORTANT:
When moving this desk, do not drag frame as it can cause leg actuators to bind and fail. Always lift o
floor using frame, not tops.
g
e
f
d
d
a
a
b
c
4

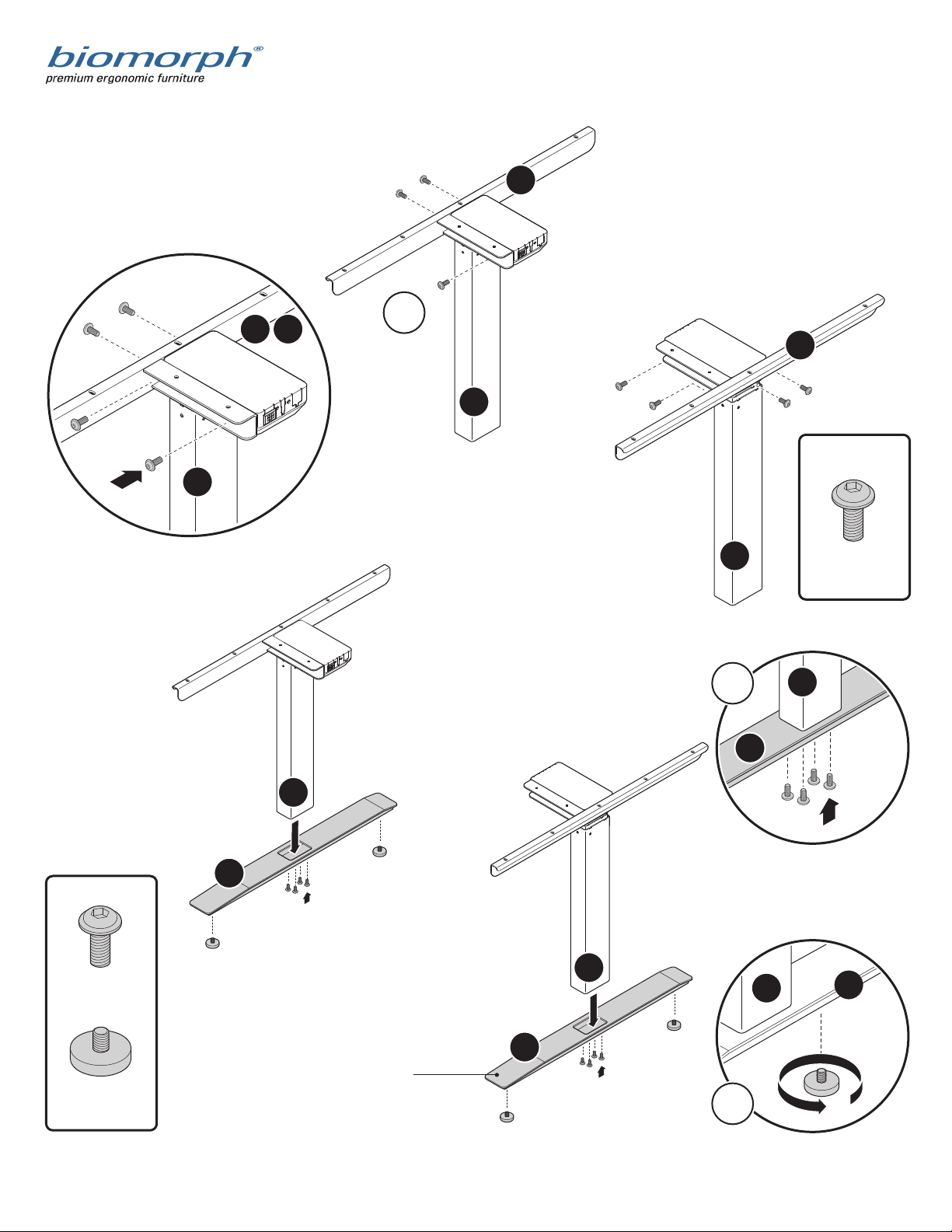

Leg Assembly
Level 2Plus
d
M6 x 12 Screw
Qty. 4
a
d
a
Glide
Qty. 4
M6 x 12 Screw
Qty. 8
2
3
d
bc
a
1
a
a
c
b
d
Note: Longer end of
Foot must face toward
front (user) side.
a
a
5

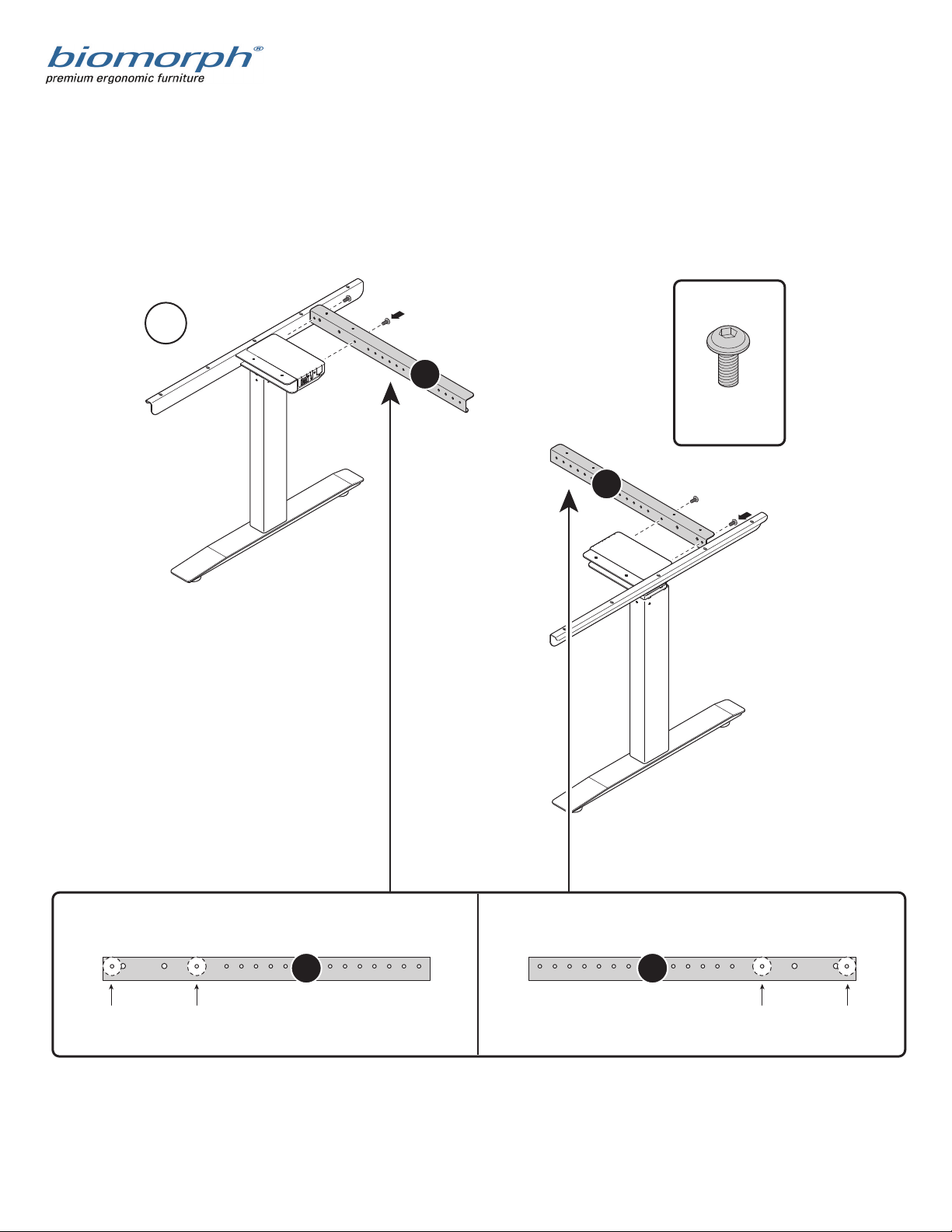

Crossbar Assembly
Level 2Plus
e
f
LH Side RH Side
e
Use these holes. Use these holes.
M6 x 12 Screw
Qty. 4
f
4
Use these holes.
e
60” LH Side 60” RH Side
54” LH Side 54” RH Side
M6 x 12 Screw
Qty. 4
M6 Flange
Head Nut
Qty. 4
g
f
e
5
Use these holes.
g g
f
Use these holes. Use these holes.
g g
ef
7

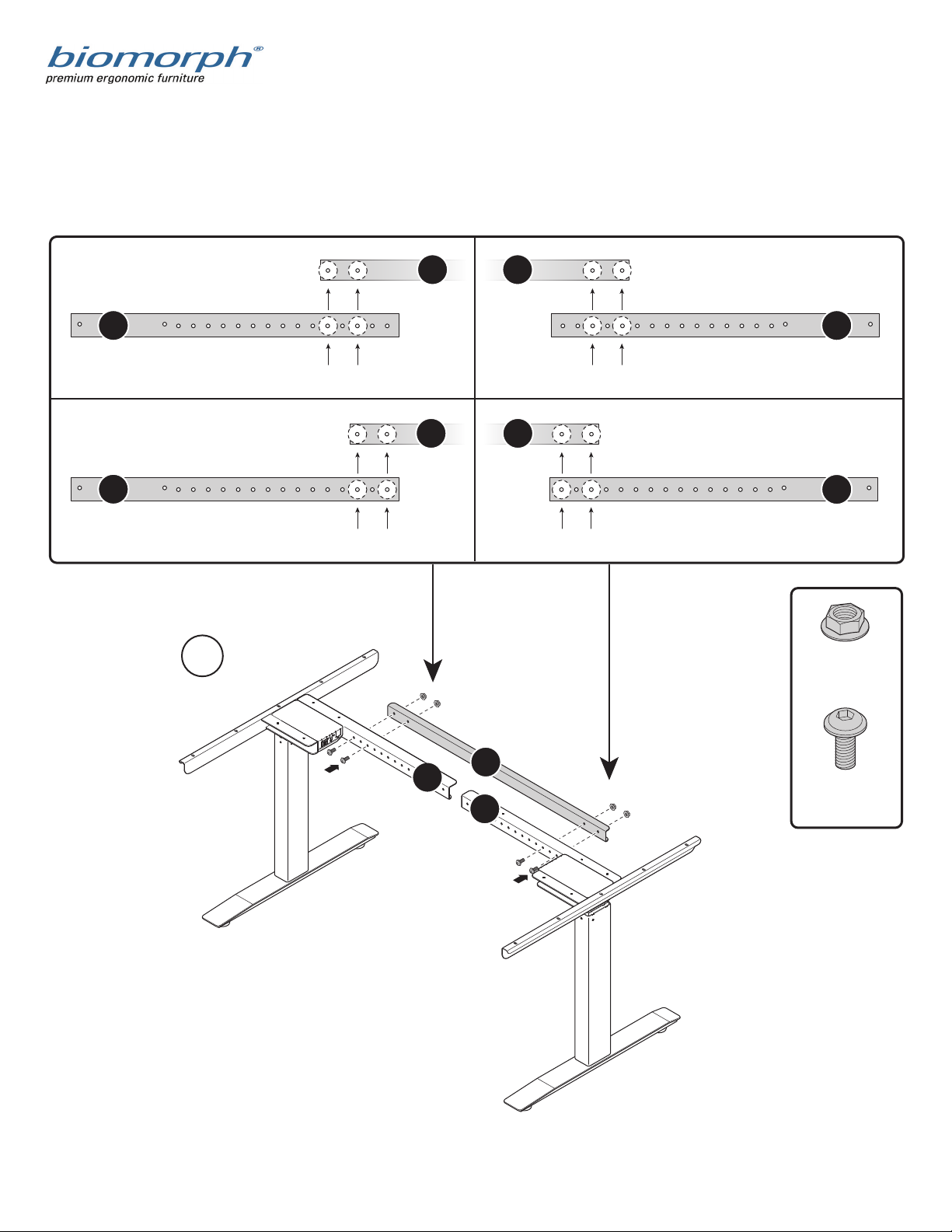

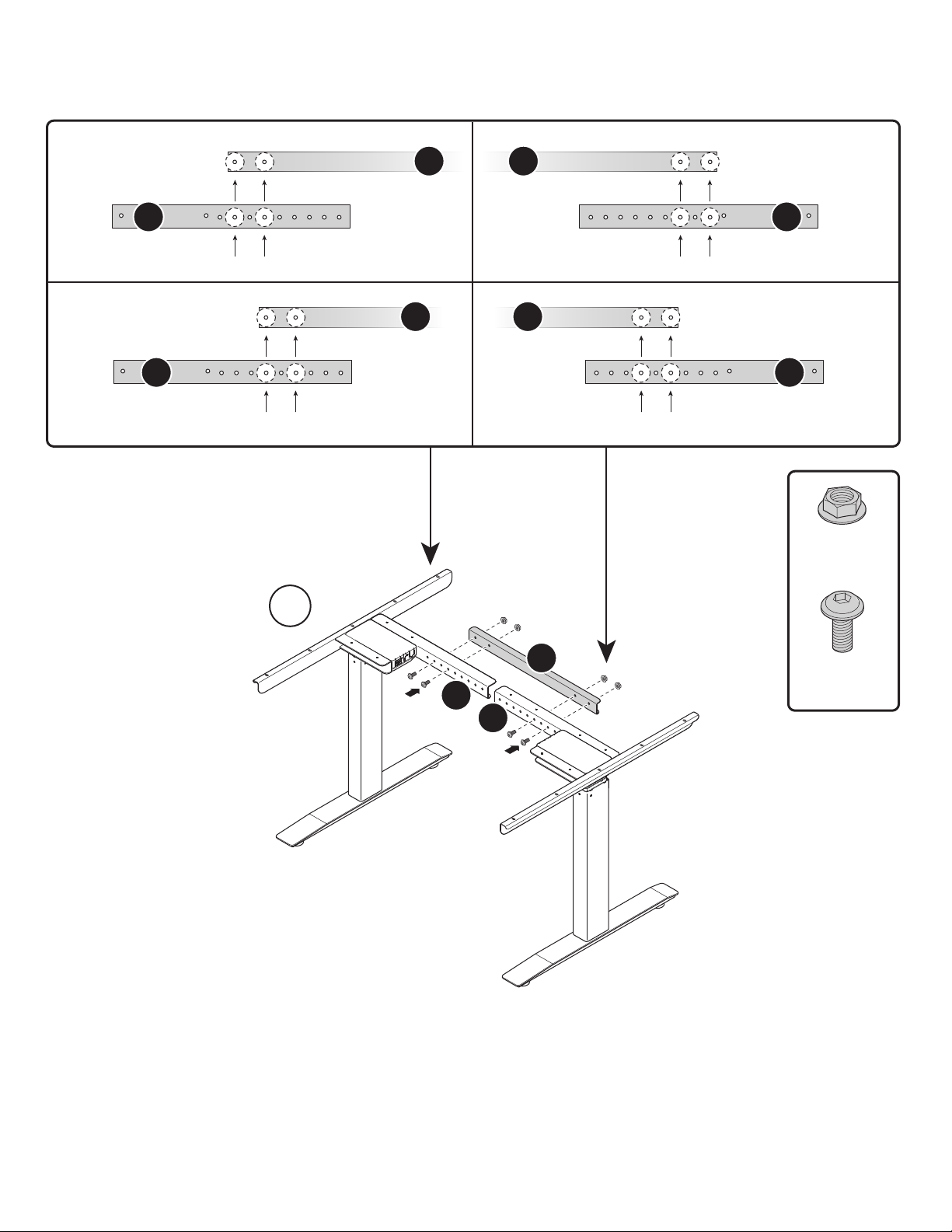

Crossbar Assembly (continued)
Level 2Plus
M6 x 12 Screw
Qty. 4
M6 Flange
Head Nut
Qty. 4
g
f
e
6
84” LH Side 84” RH Side
72” LH Side 72” RH Side
Use these holes. Use these holes.
e
g
f
g
Use these holes. Use these holes.
e
g g
f
8

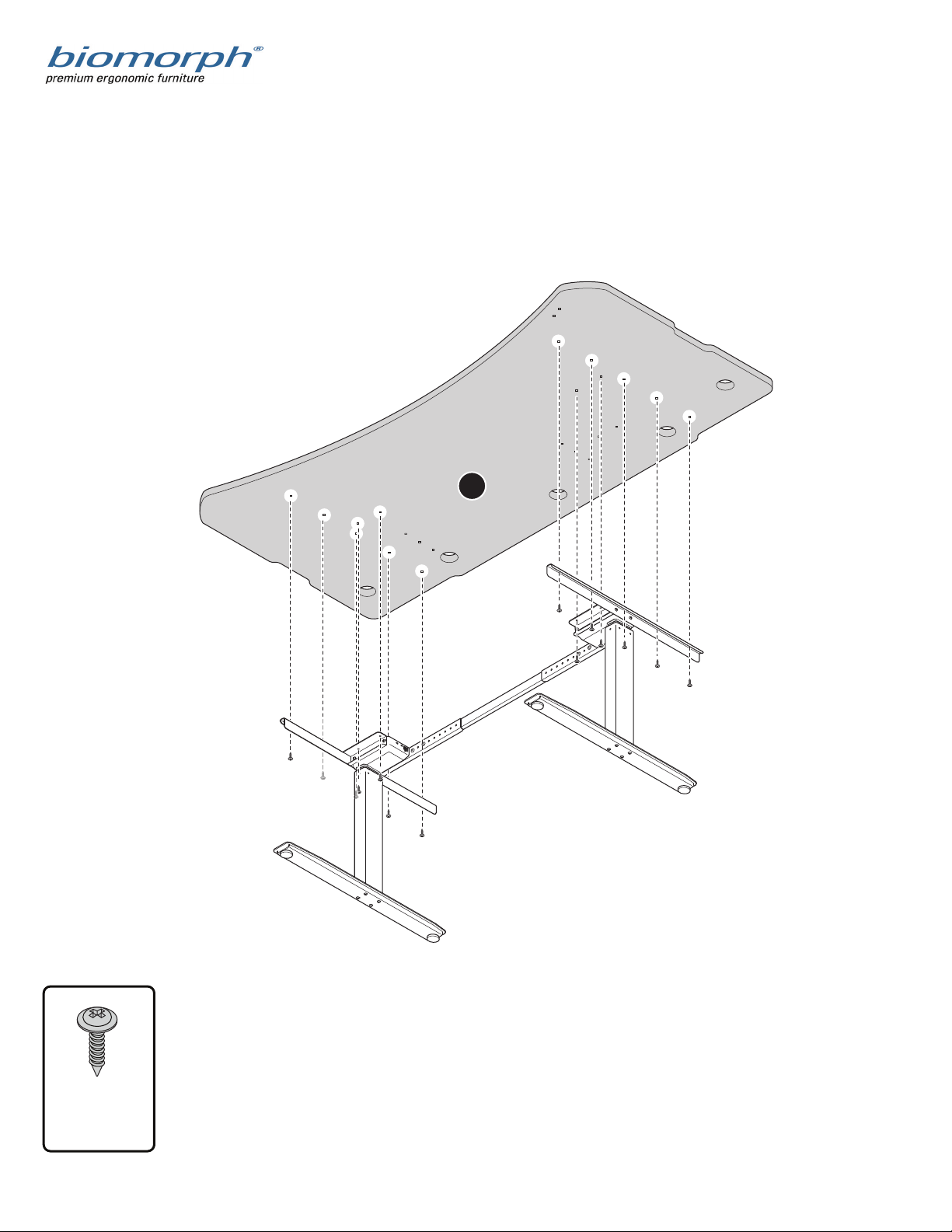

Top Assembly
Level 2Plus
Note: Pro Plus assembly shown below. Personal plus assembles in the same manner.
5 x 25mm
Wood Screw
Qty. 10
h
9

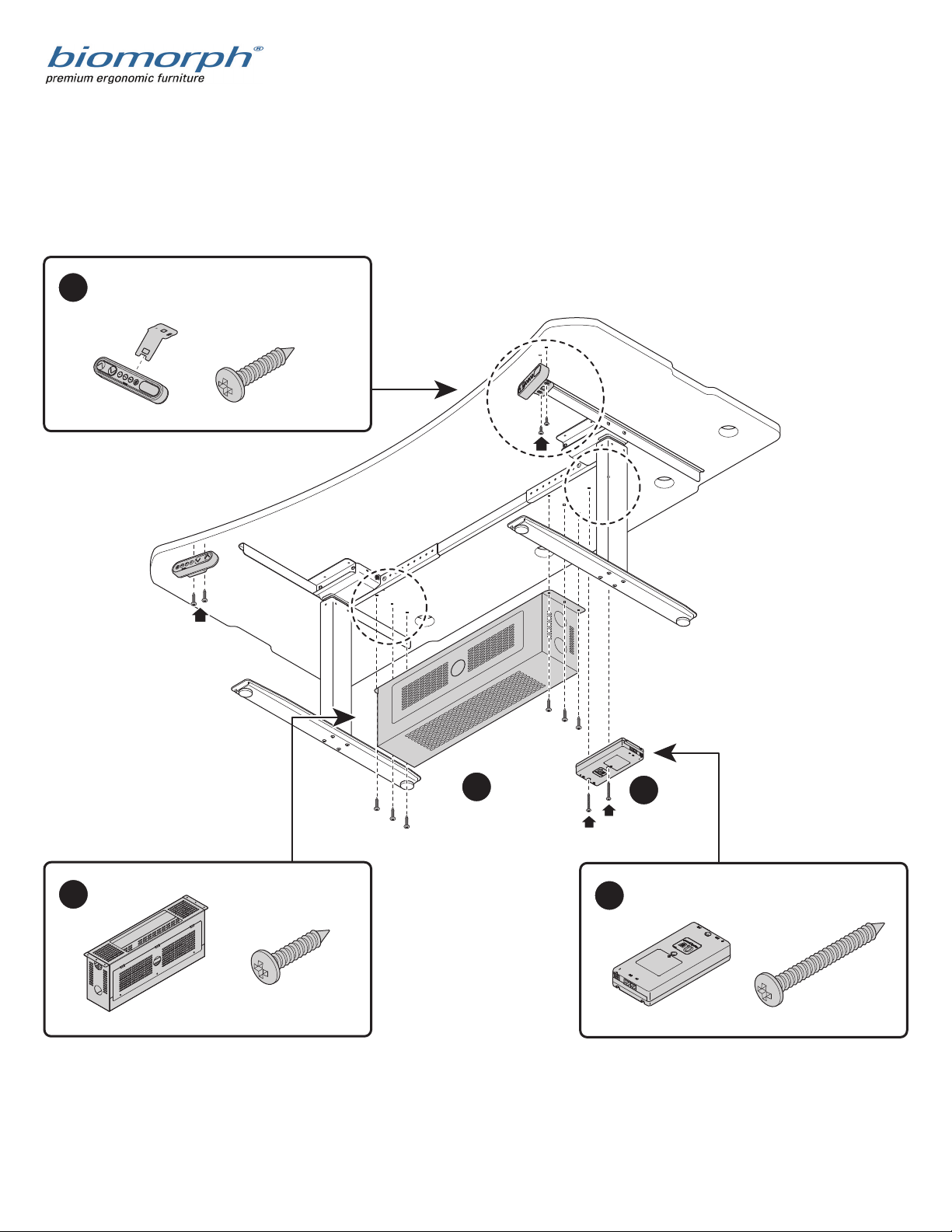

Cable Management & Electrical
Level 2Plus
Note: Pro Plus assembly shown below. Personal plus assembles in the same manner.
j
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
16mm PH
Wood Screw
Qty. 2
i
2 Port Control Box
Qty 1
45mm PH
Wood Screw
Qty. 2
j
k
Cable Cab
Qty 1
16mm PH
Wood Screws
Qty 6
k
10

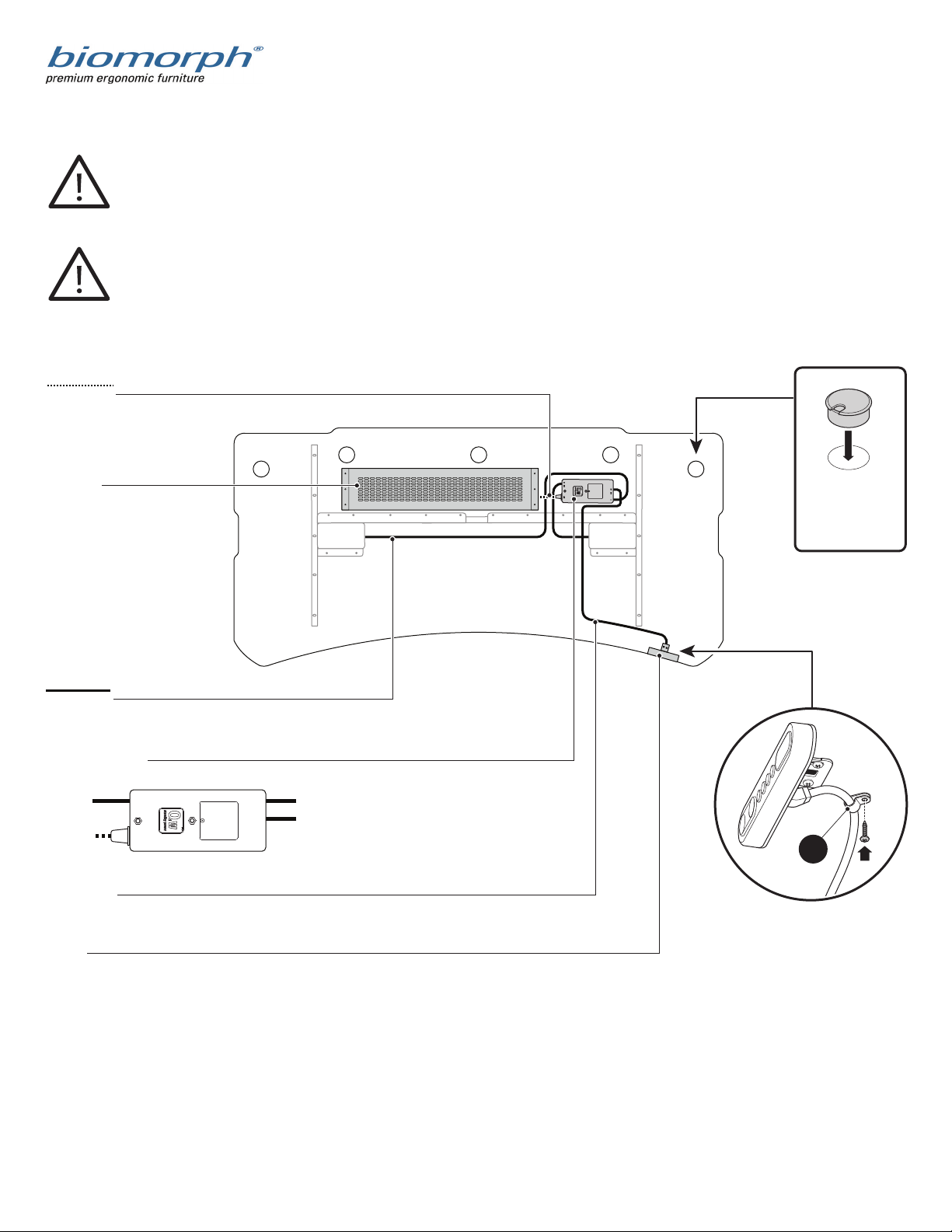

Cable Diagram Level 2Plus
IMPORTANT:
All cables must be tacked up and made neat with supplied cable guides. NO cables may hang down ex-
cept those passing through cable chains. Make sure cables have enough slack between surfaces to allow
full height adjustment between surfaces.
IMPORTANT:
Extend desktops to full opposite heights to ensure that cables will travel w/o stress).
GROMMET HOLE
Place grommet into
grommet hole. Route
cable accordingly.
POWER CABLE
Connect power cables to power
strips inside cable cabs.
2 PORT CONTROLLER
box for FRONT surface
SWITCH
POWER CABLE
LONG CABLE/
FRONT LEG
LONG CABLE/
FRONT LEG
2 DC AC
3 4 1 A2 A1
CABLE TRACKS
Red FRONT surface
Blue REAR surface
LONG CABLES
Use LONG cables to connect both
legs to ports #1 & #2 in controller box.
SWITCH
for FRONT surface use long 45˚ angle bracket.
Control switches connect to port A1.
CABLE CAB
(Optional) Place door towards user.
WIRE CLIP
A wire clip MUST be placed directly
behind switch to prevent cable droop
l
