G41D3+/G41D3G+ BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by a battery so that it retains the Setup information when the power

is turned o ff.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices s uch as keybo ard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide yo u through the options and s ettings in BIOS

Setup.

Plug and Play Support

This AMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This AMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Vers ion 1.1&1. 2 of the Advanced Power Management

(AP M) specific ation. Power management features are implemented via the Sys tem

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in the ACPI specification, developed by

Microsoft, Intel and Toshiba.

G41D3+/G41D3G+ BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect ) local bus spec ific at ion.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

Supported CPUs

This AMI BIOS supports the Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use thes e keys to select item and c hange

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default s ettings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is b eing continuously upd ated.

The BIOS information described in this manual is for your reference only. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible for any mistakes fo und in this user’s manual and any system damage that

may be c aused by wrong-s ettings.

General Help

Navigation Keys

G41D3+/G41D3G+ BIOS Manual

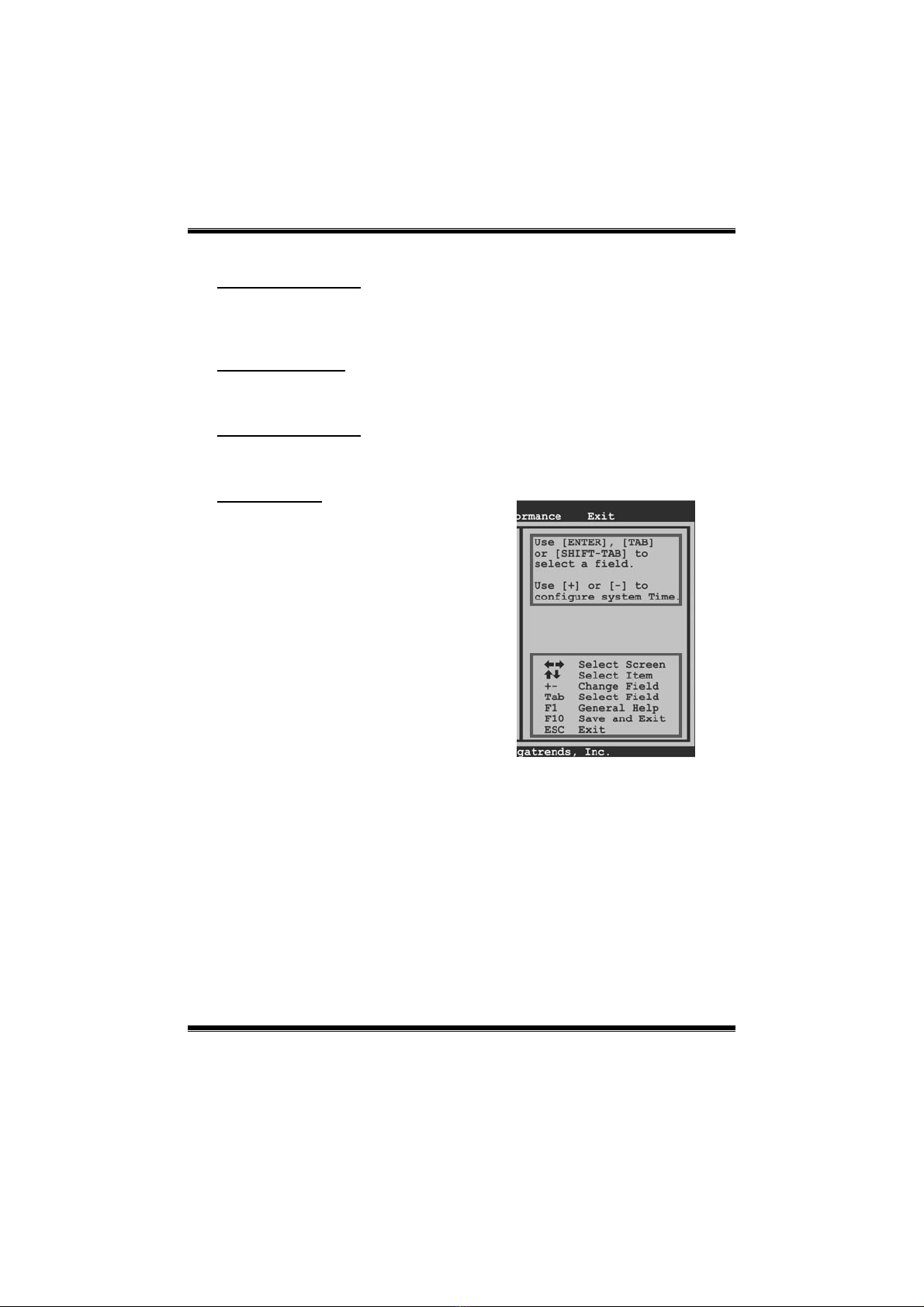

1 Main Menu

Onc e you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

[ :00:00]

System Date [Fri 01/01/2010]

Floppy A

> IDE Configuration

Version :01.01.01

Build Date:01/01/10

System Time 00

Exit

AMI BIOS

Shows system information including BIOS version, built date, etc.

System Memory

Shows system memory size, VGA shard memory will be excluded..

System Time

Set the system internal cloc k.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A (Only for G41D3+ V6.0/6.1)

Select the type of floppy disk drive installed in your system.

Optio ns: 360K, 5. 25 in / 1.2M, 5.25 in / 720K, 3.5 in / 1.44M, 3.5 in /

2.88M, 3.5 in / None

G41D3+/G41D3G+ BIOS Manual

IDE Configuration

The BIOS will automatically detec t the presence o f IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE Confuguration

Configure SATA Channels [Before PATA]

Legacy IDE Channels [SATA Pri, PATA Sec]

> SATA1 Device

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

SATA2 Device

> SATA3 Device

> SATA4 Device

> IDE Channel 1 Master

> IDE Channel 1 Slave

ATA/IDE Configuration [Enhanced]

Options

Disabled

Compatible

Enhanced

ATA/IDE Configuration

This item allows you to control the onboard IDE controller.

Options: Enhanced (Default) / Compatible / Disabled

Configure SATA Channels

This item allows you to control the SATA channel configuration sequence.

Options: Before PATA (Default) / Behind PATA

Legacy IDE Channels

This item appears only when “ATA/IDE Configuration” is set to “Compatible”.

Options: SATA Pri, PATA Sec (Default) / SATA Only / PATA Pri, SATA Sec /

PATA Only

G41D3+/G41D3G+ BIOS Manual

SATA1/2/3/4 Device; IDE Channel 1 Master/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective d evices, and these

informatio n and values are s ho wn below to the name of the sub-menu.

Type

Select the type of the IDE/SATA drive.

Options: Auto (Default) / CD/DVD / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIO Mode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

G41D3+/G41D3G+ BIOS Manual

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable devic e write protection. This will be effective only if the device

is acc essed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default) / 30 / 25 / 20 / 15 / 10 / 5 / 0

G41D3+/G41D3G+ BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILIT

Main Advanced PCIPnP Boot Chipset Performance

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> USB Configuration

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> Power Configuration

> CPU Configuration

Exit

CPU Configuration

This item shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Disable: Disable GV3

Enable: Enable GV3

Configure advanced CPU settings

Module Version:xx.xx

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Actual Value:

Intel(R) SpeedStep(tm) tech [Disabled]

Intel(R) C-STATE tech [Disabled]

CIE Support [Disabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Max CPUID Value Limit [Disabled]

Execute-Disable Bit Capability[Enabled]

PECI [Enabled]

Core Multi-Processing [Enabled]

G41D3+/G41D3G+ BIOS Manual

Intel(R) SpeedStep(tm) Tech

This item allows you to enable SpeedStep technology for better power saving.

SpeedStep is a technology built into some Intel processors that allows the c lock

speed of the processor to be dynamically changed by software.

Options: Disabled (Default) / Enabled

Intel(R) C-ST ATE Tech

This item allows you to control the C-State power management functions of the

processor.

Options: Disabled (Default) / Enabled

C1E Support

C1E is “ Enhanced Halt State” function, this function helps to save power and

decrease heat by lo wering CPU frequency while the processor is not wo rking.

Options: Disabled (Default) / Enabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches data and instructions from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hardware adjacent c ache line p refetch mechanis m that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cac he line. This reduces cache latency b y making the next cache line

immediately available if the processor requires it as well.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it mus t

first query the processor to find out the highest input value CPUID recognizes. This

determines the kind of basic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

G41D3+/G41D3G+ BIOS Manual

Execute-Disable Bit Capability

This item allows you to configure the Execute Disabled Bit function, which protects

your system from buffer overflow attacks.

Options: Enabled (Default) / Disabled

PECI

This item allows you to control the PECI function for the processor which s upports

Platform Environment Control Interface for better thermal management.

Options: Enabled (Default) / Disabled

Core Multi-Processing

This item allows multi-processing function for multi-core processors.

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Enable

or Disable Floppy

Controller

Configure ITE8721 Super IO Chipset

Onboard Floppy Controller [Enabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Restore on AC Power Loss [Power Off]

Onboard Floppy Controller (Only for G41D3+ V6.0/6.1)

Select enabled if your system has a floppy disk controller (FDC) installed on the

system board and you wish to use it. If you installed another FDC or the system uses

no floppy drive, select disabled in this field.

Options: Enabled (Default) / Disabled

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar P4 VTB Bedienungsanleitung

Biostar

Biostar P4SDP Bedienungsanleitung

Biostar

Biostar P4 TSE-D2 Bedienungsanleitung

Biostar

Biostar M6VSA Bedienungsanleitung

Biostar

Biostar BI94GS-IAC Benutzerhandbuch

Biostar

Biostar P4 TSV Bedienungs- und Montageanleitung

Biostar

Biostar H610MX-E Bedienungsanleitung

Biostar

Biostar TA890FXE - BIOS Benutzerhandbuch

Biostar

Biostar M6TSB Bedienungsanleitung

Biostar

Biostar M7VIP Pro Benutzerhandbuch

Biostar

Biostar A760G M2 PLUS - BIOS Bedienungsanleitung

Biostar

Biostar TFORCE 945P Bedienungsanleitung

Biostar

Biostar H310MHC2 Bedienungsanleitung

Biostar

Biostar M6TLD Bedienungsanleitung

Biostar

Biostar M7 VIK Bedienungsanleitung

Biostar

Biostar TA870 - BIOS Benutzerhandbuch

Biostar

Biostar B450MH Bedienungsanleitung

Biostar

Biostar M6TSU Bedienungsanleitung

Biostar

Biostar PT880 Pro-A7 DDR2 Bedienungsanleitung

Biostar

Biostar M7SXF Bedienungsanleitung

Biostar

Biostar P35D2-A7 Benutzerhandbuch

Biostar

Biostar M6VCH Bedienungsanleitung

Biostar

Biostar 865G MICRO 775 Benutzerhandbuch

Biostar

Biostar P4M900-M7 FE Benutzerhandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
