Wi-Fi Connection Manual

XM7-30

Ver. 1.00

http://www.bixolon.com

Wi-Fi Connection Manual

Ver.1.00

- 2 -

Table of Contents

Copyright ...................................................................................................................... 3

1. Manual Information ................................................................................................ 4

2. Precautions............................................................................................................... 4

3. How to Connect ........................................................................................................ 5

3-1 Android Soft AP mode (default) ..................................................................................8

3-2 iOS Soft AP mode (default) ..........................................................................................9

3-2 How to change infrastructure mode ........................................................................10

4. Factory Reset .......................................................................................................... 12

Wi-Fi Connection Manual

Ver.1.00

- 3 -

This user manual and all property of the product are protected under copyright law.

It is strictly prohibited to copy, store, and transmit the whole or any part of the manual

and any property of the product without the prior written approval of BIXOLON Co.,

Ltd.

The information contained herein is designed only for use with this BIXOLON product.

BIXOLON is not responsible for any direct or indirect damages, arising from or

related to use of this information.

• The BIXOLON logo is the registered trademark of BIXOLON Co., Ltd.

•All other brand or product names are trademarks of their respective companies or

organizations.

BIXOLON Co., Ltd. maintains ongoing efforts to enhance and upgrade the functions

and quality of all our products.

In the following, product specifications and/or user manual content may be changed

without prior notice.

Caution

Some semiconductor devices are easily damaged by static electricity. You should turn

the printer “OFF”, before you connect or remove the cables on the rear side, in order

to guard the printer against the static electricity. If the printer is damaged by the static

electricity, you should turn the printer “OFF”.

Wi-Fi Connection Manual

Ver.1.00

- 4 -

1. Manual Information

This WLAN manual provides information on the connection of wireless network with

the mobile printer.

2. Precautions

1) The printer has to be within 100m(Out door) from AP(Access point) to connect

WLAN. Although 35m is able to communicate in door, WLAN could be affected by

environment to be shorten.

The printer's LCD shows the connection status of the wireless LAN.

- Indicates that the wireless LAN is connected normally

- Indicates that the WLAN password is wrong

- Indicates that the AP of the set SSID is not nearby

2) The maximum separating distance may be shortened if transmission obstacles, such

as cement walls, are present

3) If a device (such as a microwave oven, wireless LAN, etc.) that uses the same

frequency is present, transmission may be interrupted. Separate the printer and

Bluetooth-enabled device from such interrupting devices by a distance of at least

5m.

Wi-Fi Connection Manual

Ver.1.00

- 5 -

3. How to Connect

WLAN can be configured through the printer’s WLAN interface. Likewise, WLAN can

also be configured though the printer’s Serial/USB interfaces.

(1) Connecting Printer

1) Serial / USB cable

Connect Serial/USB cable to Printer, PC device.

When Serial cable use, baudrate between Device and printer should be the same.

2) WLAN

Connect to the AP (Access Point) configured in Infrastructure mode in order to connect

to the LAN/wireless network

Infrastructure mode

A P

Wi-Fi Connection Manual

Ver.1.00

- 6 -

In order to configure the network between the wireless host device and the printer,

set the printer to Soft AP Mode.

Soft AP mode

Wi-Fi Connection Manual

Ver.1.00

- 7 -

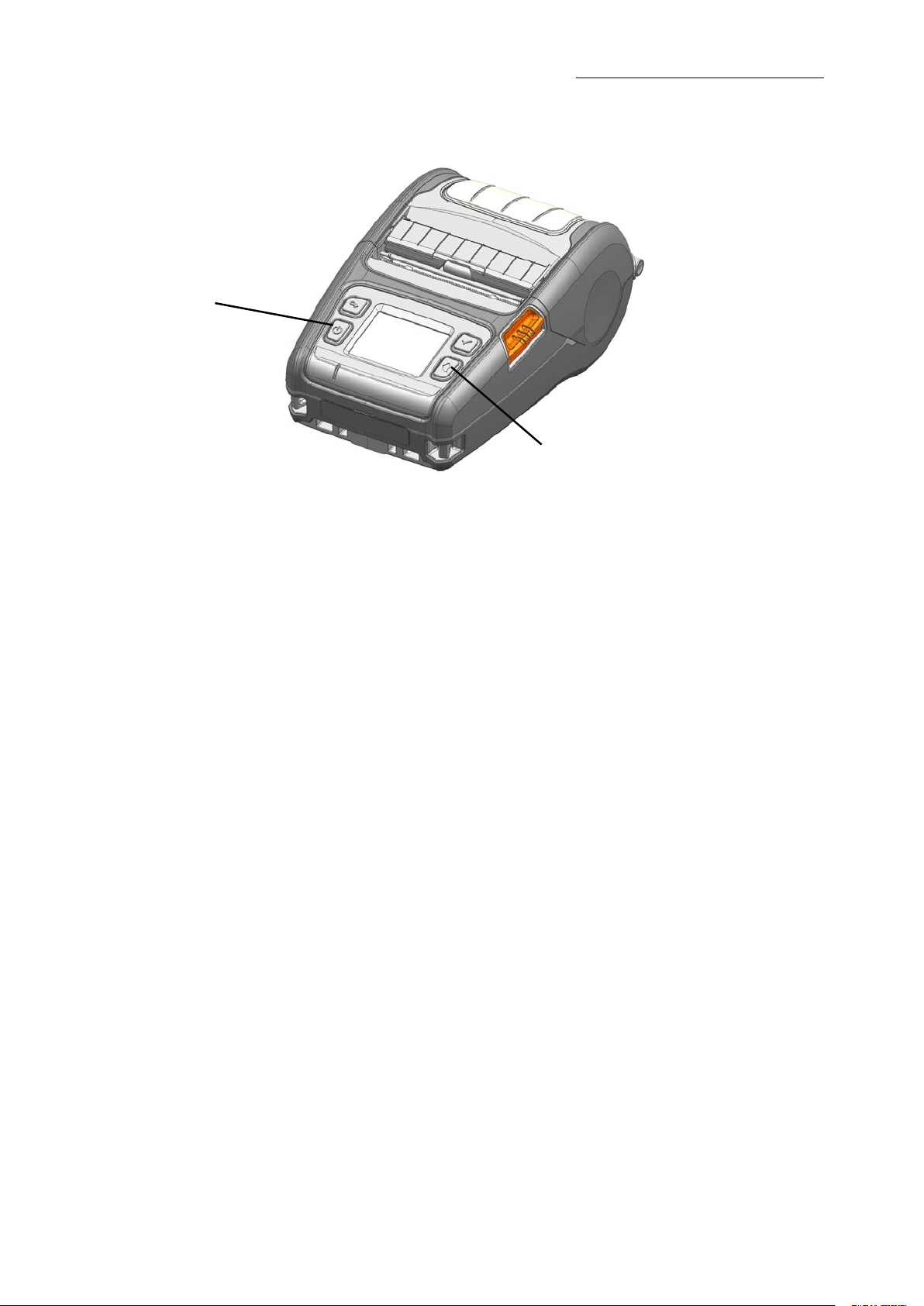

(2) Checking Network Setting

Self-test

While the printer is turned off, turn on the printer while pressing the feed button.

The printer setting values will then be printed.

Power

FEED

Wi-Fi Connection Manual

Ver.1.00

- 8 -

3-1 Android Soft AP mode (default)

1) Select “Wi-Fi”. 2) Select the printer to connect

3) Select “CONNECT”. 4) Wi-Fi communication is available.

Wi-Fi Connection Manual

Ver.1.00

- 9 -

3-2 iOS Soft AP mode (default)

1) Select “Wi-Fi”. 2) Wi-Fi ON and Select the printer to connect

3) Wi-Fi communication is available

Wi-Fi Connection Manual

Ver.1.00

- 10 -

3-2 How to change infrastructure mode

1) Enter the IP address of the printer in the address bar, and the following login window

will pop up. Enter the ID and Password set for the printer, and then click [LOG IN]

(Default User Name: admin, Password: password)

2) Select “Wireless” to change Wi-Fi mode.
