◆Refit the cover and let it click into place.

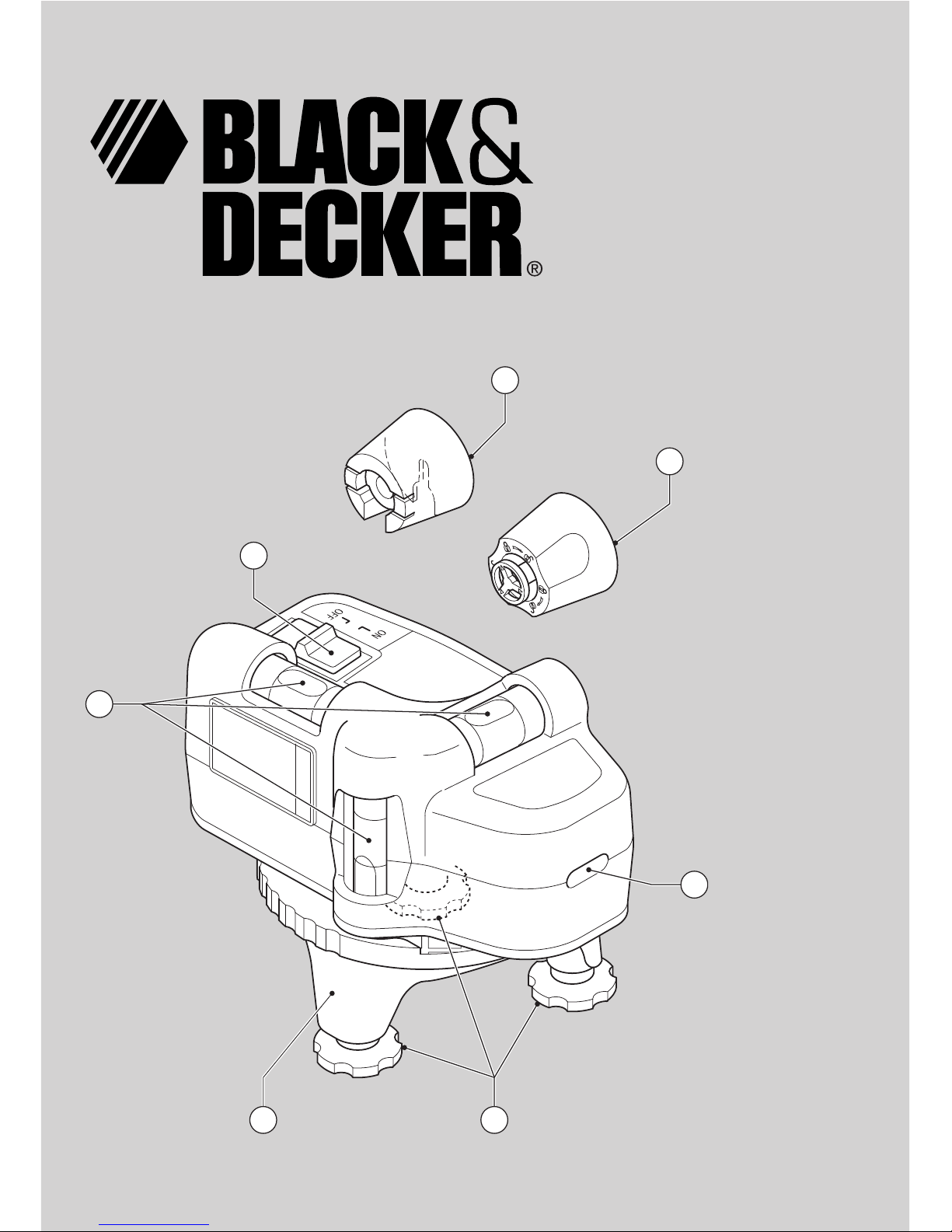

Installing the tool (fig. B - E)
The tool can be installed on a horizontal surface such as a floor
or a table. Alternatively, the unit can be mounted to a wall.

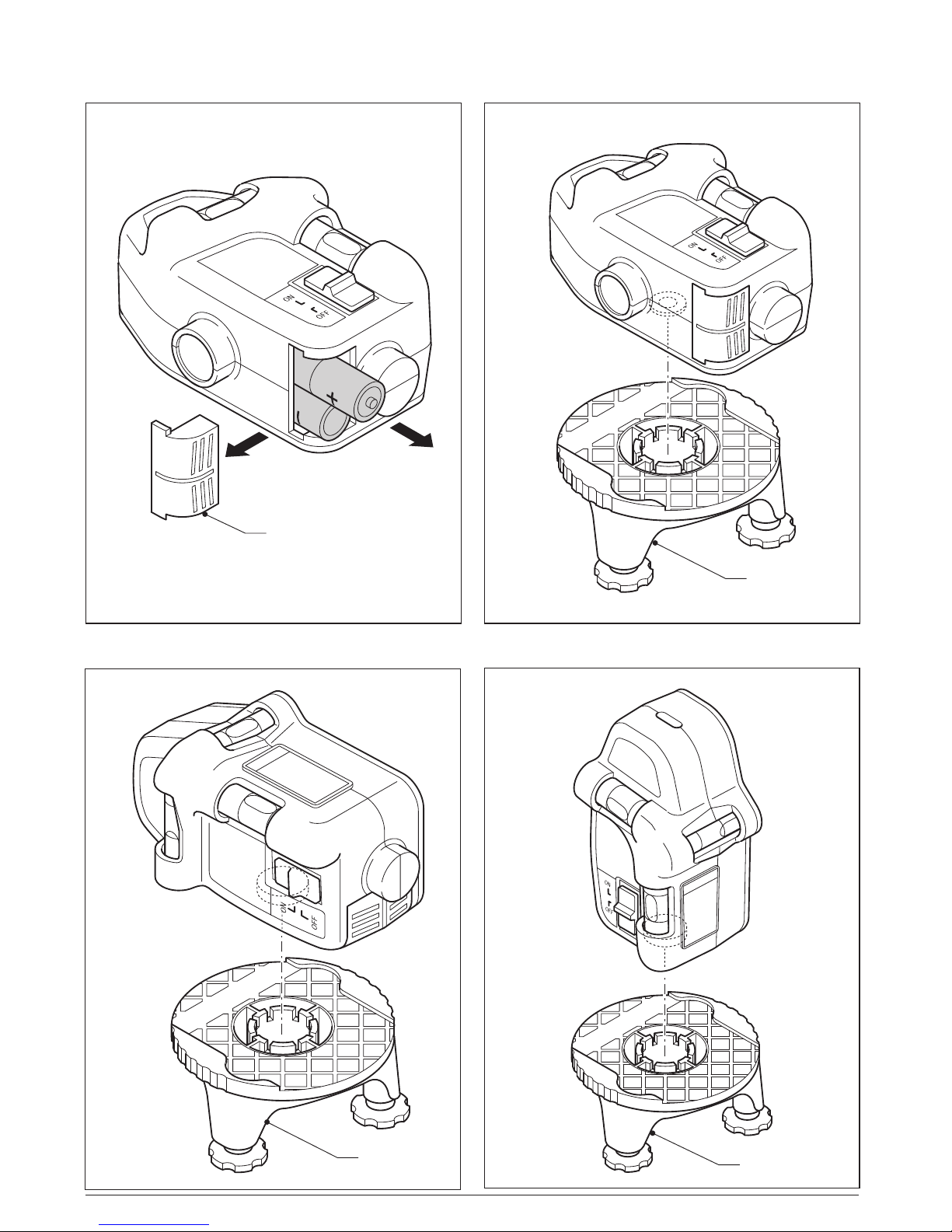

Fitting the tool to the stand (fig. B - D)
The tool can be installed on the adjustable stand (4),
both horizontally and vertically.
◆Choose a smooth and level surface to install the stand.
◆When projecting horizontal laser lines on walls, place the
tool on the stand horizontally, aligning the bottom of the
tool with the profile on the stand.
◆When projecting vertical laser lines on walls, place the
tool on the stand horizontally, inserting the protrusion on
the long side of the tool into the recess of the stand.
◆When projecting laser lines on ceilings, place the tool on
the stand vertically, inserting the protrusion on the short
side of the tool into the recess of the stand.

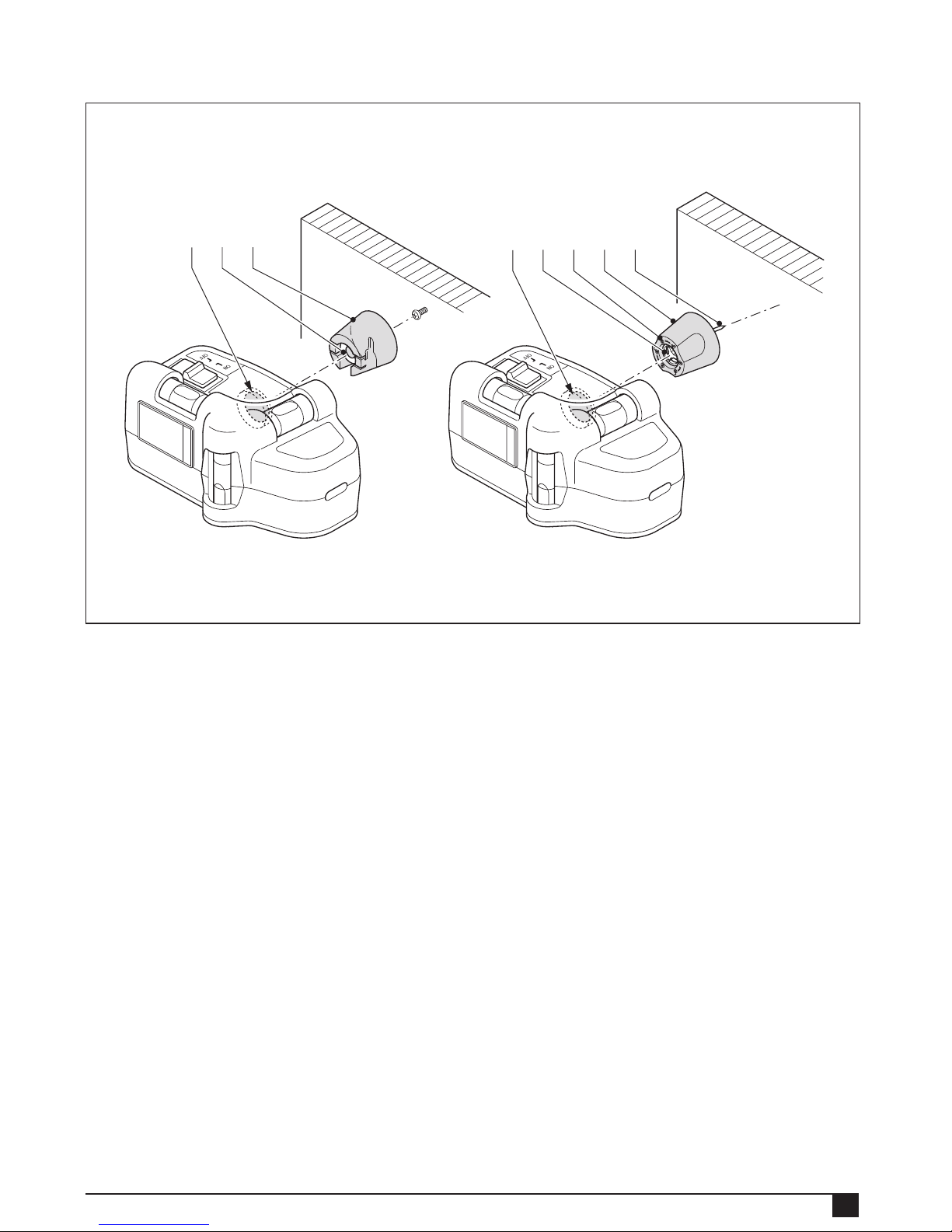

Fitting the tool to a wall (fig. E)
The unit can be mounted to walls using one of the wall mounts.
Warning! Keep the wall mounts in a safe place when not in
use.
The keyhole wall mount (7) is used for mounting to most wall
constructions.
◆Drive a screw or nail into the wall.
◆Hang the wall mount onto the fastener by the keyhole.
◆Fit the tool to the wall mount by clinging the magnet (8) to
the steel knob (9).
If the unit is mounted to drywall or other soft materials,
the wall pin (6) must be used:
◆Hold the bracket in front of a suitable location.
◆Twist the knob (10) to press the pin (11) straight into the wall.
◆Fit the tool to the wall mount by clinging the magnet (8) to
the steel knob (12).
Use
◆Install the tool as required.
◆To increase working distance and accuracy, place the
laser in the middle of your working area. Brightness of
area may affect line visibility.
◆If necessary, hang the unit on the wall using the
appropriate wall mount.
Switching on and off
◆To switch the tool on, slide the on/off switch (1) to the
‘ON’ position.
◆To switch the tool off, slide the on/off switch (1) to the
‘OFF’ position.
Adjusting the laser line (fig. B - E)
Using a wall set-up (fig. E)
◆Switch the tool on.
◆Hold the wall mount with one hand.
◆Adjust the tool with the other hand until the vial parallel
to the wall is level.
Using the adjustable stand (fig. B - D)
◆Switch the tool on.
◆Move the tool as necessary to position the laser line.
◆When projecting horizontal laser lines on walls, level the
vials on top of the unit.
◆When projecting vertical laser lines on walls, level the
vial on top of the unit.
◆When projecting laser lines on ceilings, level the vials on
the adjacent sides of the unit.
◆Adjust the wheels (5), until the line is level.
Protecting the environment
Separate collection. This product must not be
disposed of with normal household waste.
Should you find one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product
available for separate collection.
Separate collection of used products and packaging
allows materials to be recycled and used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the demand for
raw materials.
Local regulations may provide for separate collection of
electrical products from the household, at municipal waste
sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have reached
the end of their working life. To take advantage of this service
please return your product to any authorised repair agent who
will collect them on our behalf.
You can check the location of your nearest authorised repair
agent by contacting your local Black & Decker office at the
address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of our
after-sales service and contacts are available on the Internet
at: www.2helpU.com
