ATOM SL 3.0 / 4.0 / 5.0 / 6.0
Congratulations on the purchase of your new Blackburn Atom Series cyclometer.
Blackburn cyclometers are manufactured using only the highest quality materials
and production standards.
This manual is an integral part of your Blackburn
cyclometer. Please read it carefully and use it while
performing the initial programming and operating of the
unit. After you are fully familiar with all of the features
and functions of your Blackburn cyclometer, put this
manual in a safe location for future reference.
IntroductIon
ATOM SERIES FUNCTIONS SL 3.0 4.0 5.0 6.0
Speed
Avg speed
Max speed
Trip distance
Odometer
Ride time
Time of day
Wheel sizes
ETA
Temperature
Altimeter
Slope
Total altitude gain
Max altitude gain
2nd bike settings
Cadence
english
coMPonEntS
ATOM SL 3.0 / 4.0 / 5.0 / 6.0
coMPonEntS
ATOM SERIES FUNCTIONS SL 3.0 4.0 5.0 6.0
1. Cyclometer Unit
2. Front speed sensor
3. Rear speed sensor
4. Cadence sensor
5. Spoke Magnet
6. Crank Magnet
7. Wired Mounting Bracket
8. Wireless Mounting Bracket
9. Rubber Mount
10. Velcro
11. Zip-Ties
english
BAttEry
Blackburn Atom computers are powered by a CR2016 / CR2032 3v Lithium Battery. Under normal
conditions, this battery should last approximately one year.
INSTALLING/REPLACING THE COMPUTER BATTERY
Using a small Philips screwdriver, turn screws counter clockwise until the door comes free.
Use a small coin to remove the battery cover from wireless sensor.
LOW BATTERY INDICATOR
Cyclometer unit
Speed sensor
Cadence sensor
LOW BATTERY INDICATOR SL 3.0 4.0 5.0 6.0
1. Cyclometer unit
2. Speed sensor
3. Cadence sensor
ATOM SL 3.0 / 4.0 / 5.0 / 6.0
InStALLAtIon
The Blackburn Atom SL uses a single wired sensor attached to the front fork.
INSTALLING WIRED SPEED SENSOR AND BRACKET
1. Loosely attach the wheel sensor to either fork blade using the zip-ties. Do not fully tighten.
2. Attach the spoke magnet on same side of wheel as sensor.
3. Adjust the positions of sensor and magnet so the magnet passes 1– 3 mm from the sensor.
4. Make certain that the center of the magnet aligns with the “sensor” markings on the back
of the wheel sensor.
5. Route the remaining wire and bracket up the fork securing it with tape. Wrap the excess
wire around the front brake cable housing allowing enough slack for the bracket to reach
the handlebars. Attach the bracket to the handlebars or stem. Tighten magnet and zip-ties.
Atom SL
Front Wheel
Sensor
Magnet
Sensor
1–3 mm
english
The Blackburn Atom 3.0 / 5.0 uses a single wireless sensor attached to the front fork.
INSTALLING WIRELESS SPEED SENSOR AND BRACKET
1. Loosely attach the wheel sensor to either fork blade using the zip-ties. Do not fully tighten.
2. Attach the spoke magnet on same side of wheel as sensor.
3. Adjust the positions of sensor and magnet so the magnet passes 1– 3 mm from the sensor.
4. Make certain that the center of the magnet aligns with the “sensor” markings on the back
of the wheel sensor.
5. Tighten magnet and zip-ties.
6. Attach the bracket to the handlebars or stem.
Atom 3.0 / 5.0
InStALLAtIon
Max 22"
Front Wheel
Sensor
Magnet
Sensor
1–3 mm
ATOM SL 3.0 / 4.0 / 5.0 / 6.0
InStALLAtIon
The Blackburn Atom 6.0 uses speed and cadence sensors attached to the chain stay.
INSTALLING WIRELESS SPEED SENSORS AND BRACKET
1. Loosely attach the two sensors to the left chain stay using the zip-ties. Do not fully tighten.
2. Attach the spoke magnet on same side of wheel as sensor.
3. Adjust the positions of sensor and magnet so the magnet passes 1– 3 mm from the sensor.
4. Make certain that the center of the magnet aligns with the “sensor” markings on the back
of the wheel sensor.
5. Tighten magnet and zip-ties.
6. Attach the cadence magnet on
crank and adjust the position
of cadence sensor, so the
magnet passes 1– 3 mm from
the sensor. Tighten magnet
and zip-ties.
7. Attach the bracket to the
handlebars or stem. Cadence sensor Speed sensor
2 mm Max
Back Wheel
Sensor
Magnet
Sensor
1–3 mm
Max 40"
Atom 6.0 / Atom 4.0 follow steps 1– 5
english
ButtonS
Blackburn Atom cyclometers have 2 operating buttons located on the base of the unit.
SET
(RESET)
MODE
ATOM SL 3.0 / 4.0 / 5.0 / 6.0

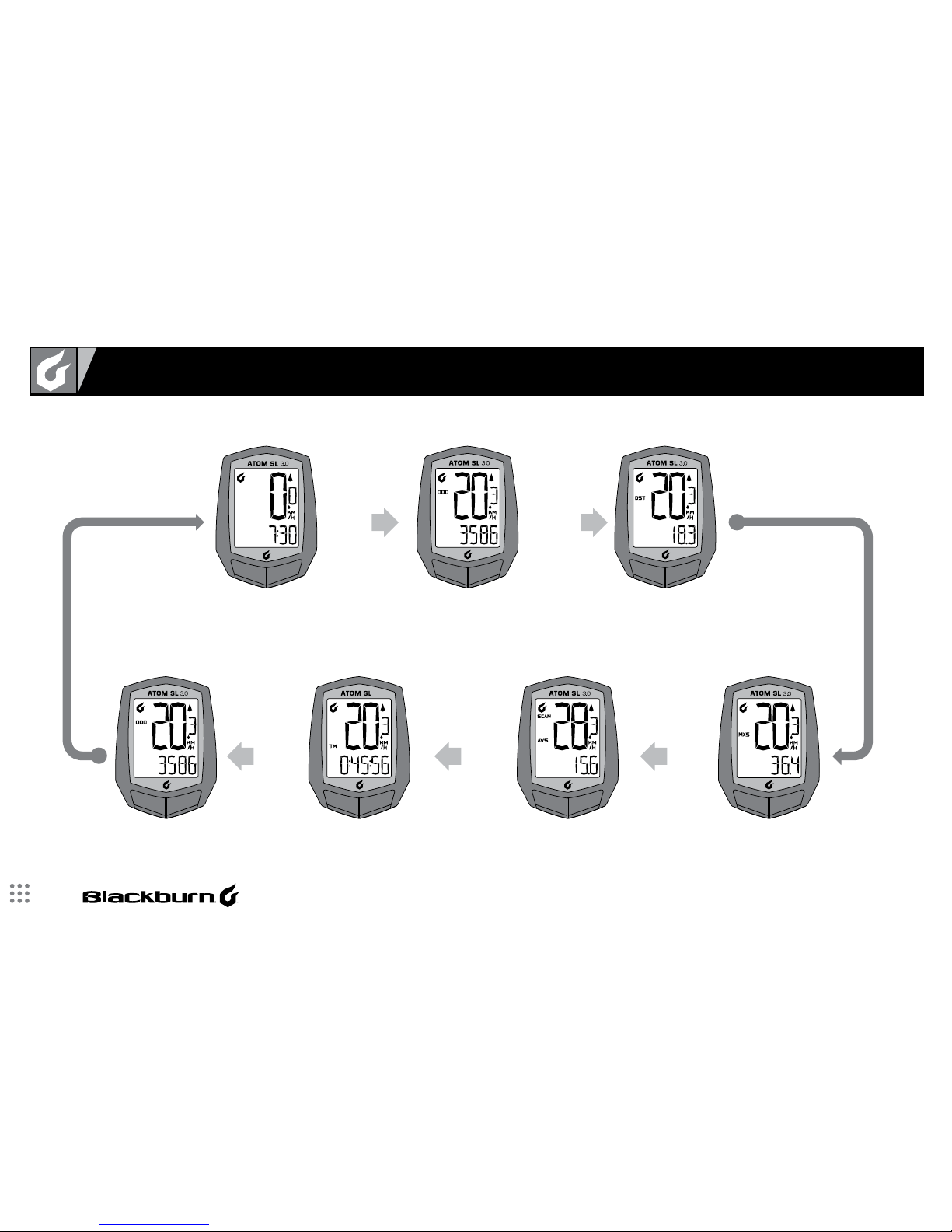

oPErAtInG ModES
Atom SL / 3.0 / 4.0 Operation
TIME OF DAY ODOMETER TRIP DISTANCE
SCAN RIDE TIME AVERAGE SPEED MAX SPEED
MODE MODE
MODEMODEMODE
