BlackVue CM100LTE Bedienungsanleitung

External Connectivity Module

CM100LTE

DR750X-2CH IR, DR900X-2CH IR

FCC ID: YCK-CM100LTE / Contains FCC ID: XMR201605EC25A / Contains IC ID: 10224A-201611EC25A

Declaration of Conformity

Pittasoft declares that this device complies with the essential requirements and relevant provisions of

Directive 2014/53/EU

Go to www.blackvue.com/doc to view the Declaration of Conformity.

CM100LTE

External Connectivity Module

instagram.com/blackvueofficial

Address 4F ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si,

Gyeonggi-do, Republic of Korea, 13488

2020

ENGLISH

BLACKVUE

CM100LTE

For manuals, customer support and FAQs go to www.blackvue.com

CM100LTE 3

ENGLISH

In the box

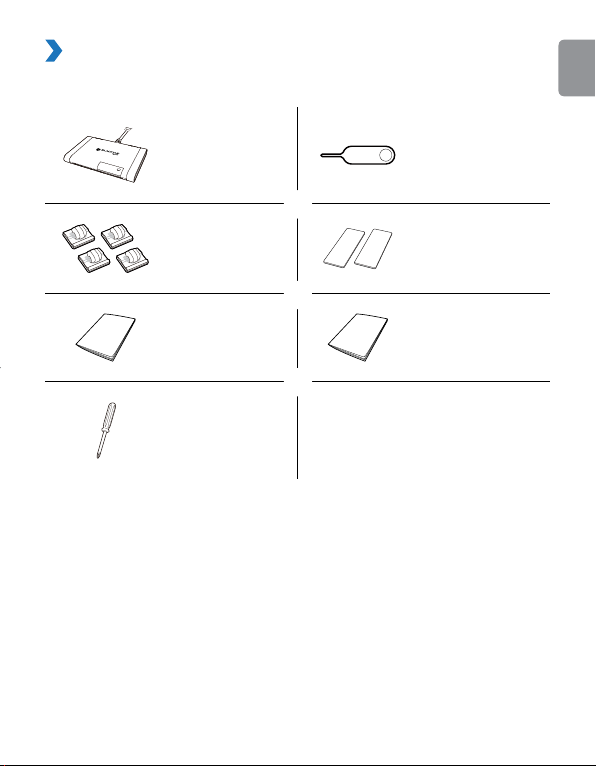

Check the box for each of the following items before installing the BlackVue device.

Connectivity module SIM eject tool

Cable Clips (4ea) Double-side tape

User guide SIM activation guide

Screw Driver

4BLACKVUE

At a glance

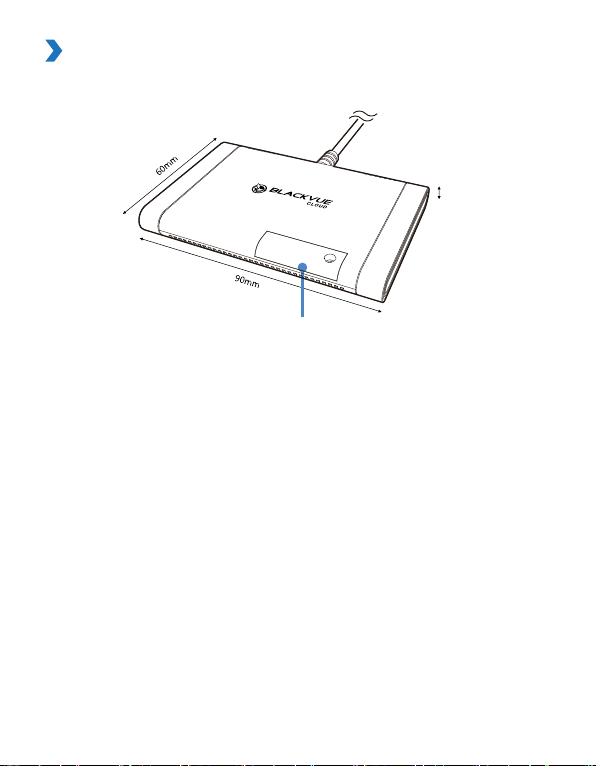

The following diagram explains details of the external connectivity module.

10mm

SIM slot cover

CM100LTE 5

ENGLISH

Install and power up

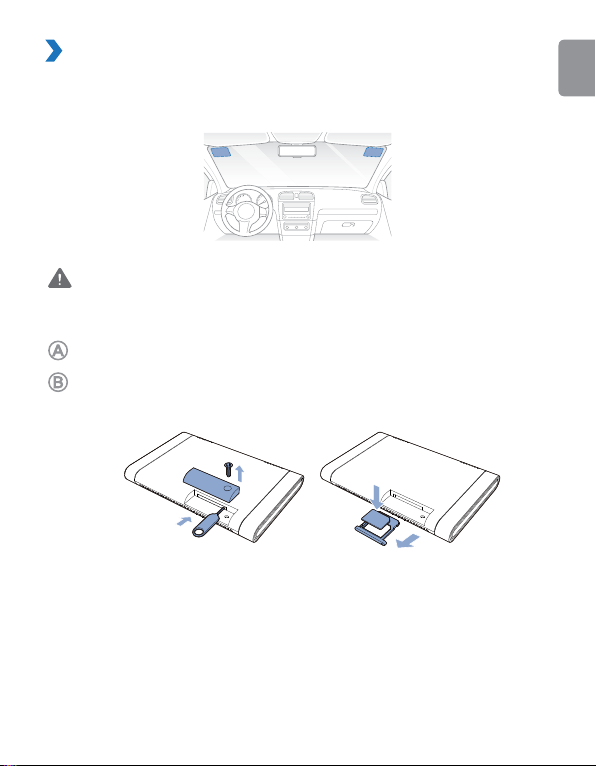

Install the connectivity module at top corner of the windshield. Remove any foreign matter

and clean and dry the windshield before installation.

Warning

yDo not install the product in a location where it can obstruct the driver's eld of

vision.

Turn o the engine.

Unscrew the bolt that locks the SIM slot cover on connectivity module. Remove the

cover, and unmount the SIM slot using the SIM eject tool. Insert the SIM card into the

slot.

6BLACKVUE

Peel o the protective lm from the double-sided tape and attach the connectivity

module to the top corner of the windshield.

Connect the front camera (USB port) and the connectivity module cable (USB).

Use the pry tool to lift the edges of the windshield trim/molding and tuck in the

connectivity module cable.

Turn on the engine. The BlackVue dashcam and connectivity module will power up.

Note

yFor full details on installing the dashcam on your vehicle, refer to the "Quick Start

Guide" that is included in the BlackVue dashcam package.

ySIM card must be activated to use LTE service. For details, refer to the SIM

Activation Guide.

CM100LTE 7

ENGLISH

Product specications

CM100LTE

Model Name CM100LTE

Color/Size/Weight Black / Length 90 mm x Width 60 mm x Height 10 mm / 74g

LTE Module

CM100LTE [GL] : Quectel EC25-E

CM100LTE [NA] : Quectel EC25-A

CM100LTE [JP] : Quectel EC25-J

CM100LTE [AU] : Quectel EC25-AU

LTE Supported Band

EC25-E : B1/B3/B5/B7/B8/B20

EC25-A : B2/B4/B12

EC25-J : B1/B3/B8/B18/B19/B26

EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28

LTE Features

Support up to Non-CA CAT. 4 FDD and TDD

LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL)

LTE-TDD : Max 130Mbps(DL) / Max 30Mbps(UL)

Transmitting Power Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands

Class 3 : 24dBm +1/-3dBM @ WCDMA Bands

SIM Type Support Nano SIM Card / 3.0V

Connector Type Micro USB Type-B Connector with Harness Cable

USB Interface Compliant with USB 2.0 specication(Slave Only), Reach up

to 480Mbps for data transfer rate

Antenna Type Fixed / Intenna (Main, Diversity)

Power Supply

USB Harness Cable : 3.0m

Typical Supply Voltage : 5.0V / 1A

Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A

Power Consumption Idle Mode : 20mA / Trac Mode : 570mA @ Max. Power

(23dBm)

Temperature Range Operation Temperature Range : -35°C ~ +75°C

Storage Temperature Range : -40°C ~ +85°C

Certifications PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS

8BLACKVUE

APPENDIX – PRODUCT SPECIFICATION

CM100LTE

Function Operating Frequency Output Power

UMTS FDD 1 1920-1980 MHz 24.00 dBm

UMTS FDD 8 880-915 MHz 24.00 dBm

E-UTRA FDD 1 1920-1980 MHz 23.00 dBm

E-UTRA FDD 3 1710-1785 MHz 23.00 dBm

E-UTRA FDD 7 2500-2570 MHz 23.00 dBm

E-UTRA FDD 8 880-915 MHz 23.00 dBm

E-UTRA FDD 20 832-862 MHz 23.00 dBm

Notes
