Blizzard Lighting Flurry EXA Bedienungsanleitung

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

Flurry EXA™ Moving Head Fixture 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The Flurry EXA™ Moving Head 5

Features 5

DMX Quick Reference 5

The Flurry EXA™ Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of Flurry EXA™ Fixtures 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Fixture Linking (Master/Slave Mode) 9

Mounting/Rigging 9

 UsingthisxturewiththewiCICLE®WirelessDMXSystem 10

4. Operating Adjustments 12

Navigating The Control Panel 13

Control Panel Menu Structure 13

Set The DMX Starting Address 14

Slave Mode 14

Auto Mode 14

Sound Active 14

Manual Adjustments 14

Menu Password Protection 14

System Reset 15

Restore Factory Settings 15

DMX Channel Values In-Depth 15-16

Photometric Data 16

5. Appendix 17

A Quick DMX Lesson 17

Troubleshooting 17

Keeping Your Flurry EXA™ As Good As New 18

Returns (Gasp!) 18

Shipping Issues 18

Tech Specs 19

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x Flurry EXA™ Moving Head Fixture

• An Ever-So-Handy Power Cord

• A Sweet Mounting Bracket

• This Lovely User Manual

Getting It Out Of The Box

CongratulationsonpurchasingFlurryEXA™,thefunsizedmovingspotheadxturethat

is small in stature, but big where it counts! Now that you’re the proud owner of a Flurry

EXA™ (or hopefully, Flurry EXA’s™!), you should carefully unpack the box and check the

contents to ensure that all parts are present and in good condition. If anything looks as if it

has been damaged in transit, notify the shipper immediately and keep the packing material

forinspection.Again,pleasesavethecartonandallpackingmaterials.Ifaxturemust

bereturnedtothefactory,itisimportantthatthexturebereturnedintheoriginalfactory

box and packing.

Powering Up!

Allxturesmustbepowereddirectlyoaswitchedcircuitandcannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythatthe

xtureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthextureor

refertothexture’sspecicationschartformoreinformation.Axture’slistedcurrent

ratingisitsaveragecurrentdrawundernormalconditions.Checkthextureordevice

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, please just visit our website at www.blizzardlighting.com

and open a support ticket. We’ll be happy to help, honest.

Blizzard Lighting

N16 W23390 Stoneridge Dr. Ste E

Waukesha, WI 53188 USA

www.blizzardlighting.com

414-395-8365

Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Henry 4/15/2015 J. Henry 4/20/2015

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the

decalorrearpanelofthexture.

• This product is intended for indoor use only.

•Topreventriskofreorshock,donotexposexturetorainormoisture.

•Makesuretherearenoammablematerialsclosetotheunitwhileoperating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

•ALWAYSsecurextureusingasafetychain.NEVERcarrythexturebyits

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized

technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

your unit may require service, please visit our support website at:

www.blizzardlighting.com/tickets.

Page 5

2. MEET THE FLURRY EXA™ MOVING HEAD

MAIN FEATURES:

• Ultra-bright 4x15W 6-in-1 RGBAW+UV LEDs

• Pan: 540º/ Tilt: 220º (8-16 Bit Resolution)

• 25° beam angle

•Excellent,portable,movingheadwashxture

• Built-in automated programs via master/slave

• Built-in sound activated programs via master/slave

• Ultra-smooth 16-bit dimming system

• Defeatable pan/tilt correction with trim adjustment

• Intelligent fan cooling system with temperature auto detect

•1-10Hz/secondstrobeeects

• 3-pin male input and 3-pin female output

• Compact, high quality housing

CONTROL:

• USITT DMX-512 (15-channels)

• Easy-to-use 4-button LCD control panel menu

DMX Quick Reference (15-Channel Mode)

Channel What is does

1Pan

2 Tilt

3 Fine Pan

4 Fine Tilt

5 Pan/Tilt Speed (Fast <--> Slow)

6 Dimmer (0% <--> 100%)

7 Red (0% <--> 100%)

8 Green (0% <--> 100%)

9 Blue (0% <--> 100%)

10 Amber (0% <--> 100%)

11 White (0% <--> 100%)

12 UV (0% <--> 100%)

13 Strobe (Slow <--> Fast)

14 Auto + Sound Active Mode

15 Motor Reset

Page 6

4x15W 6-in-1

RGBAW+UV LEDs

DMX Out Power InputDMX In

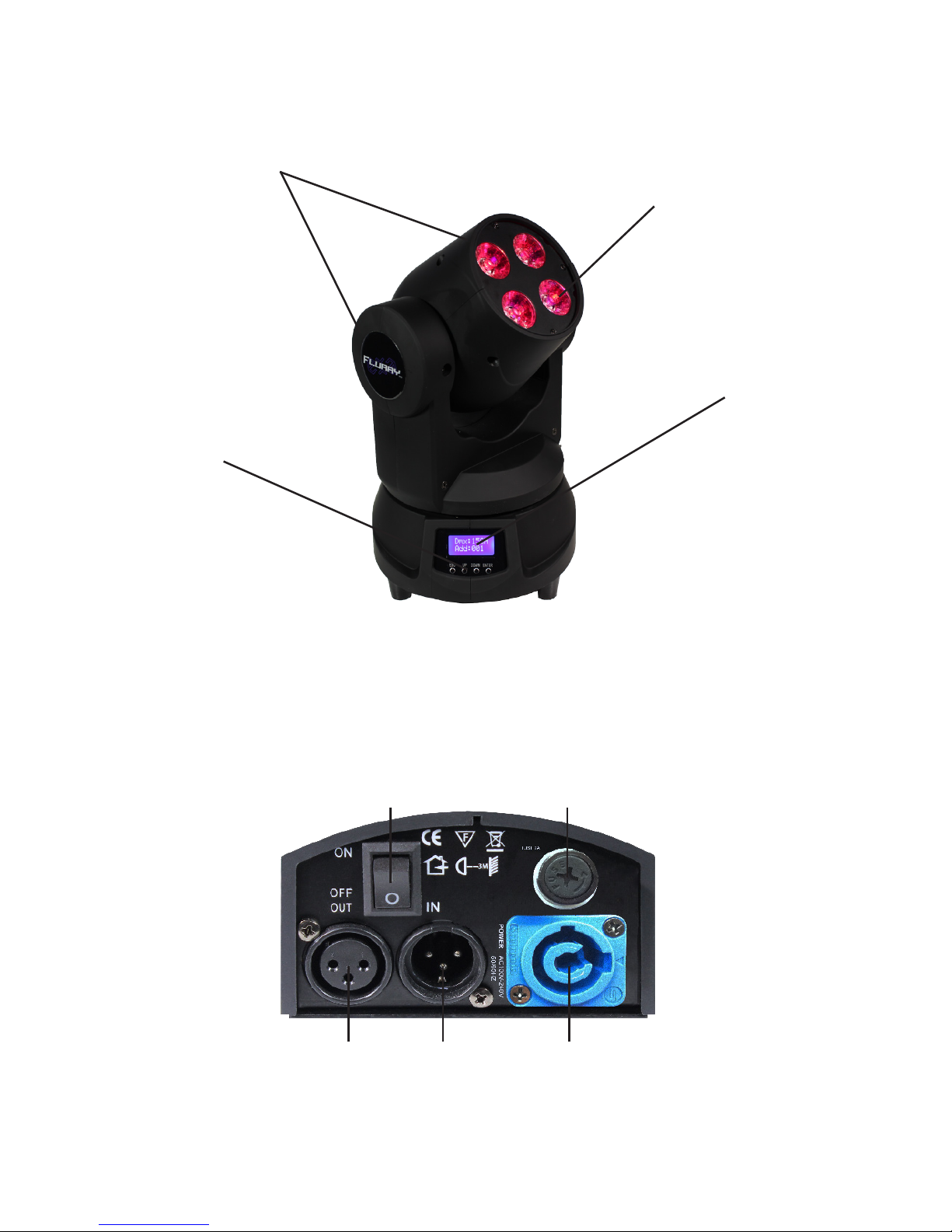

Figure 1: The Flurry EXA™ Pin-Up Picture

Figure 2: The Rear Connections

Head/Arms

4-Button

Control Panel

LCD Readout

Fuse HolderPower Switch

Page 7

3. SETUP

Fuse Replacement

Withaatheadscrewdriver,wedgethefuseholderoutofitshousing.

Remove the damaged fuse from its holder and replace with exact same

type fuse. Insert the fuse holder back in its place and reconnect power.

Connecting A Bunch of Flurry EXA™ Fixtures

You will need a serial data link to run light shows using a DMX-512

controllerortorunshowsontwoormorexturessettosyncinmas-

ter/slave operating mode. The combined number of channels required

byallthexturesonaserialdatalinkdeterminesthenumberofx-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also,connectingmorethan32xturesononeserialdatalinkwithout

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal.

The maximum recommended cable-run distance is 500 meters (1640

ft).Themaximumrecommendednumberofxturesonaserialdata

linkis32xtures.

Data/DMX Cabling

Tolinkxturestogetheryou’llneeddatacables.Youshouldusedata-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

Forinstance,Belden©9841meetsthespecicationsforEIARS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

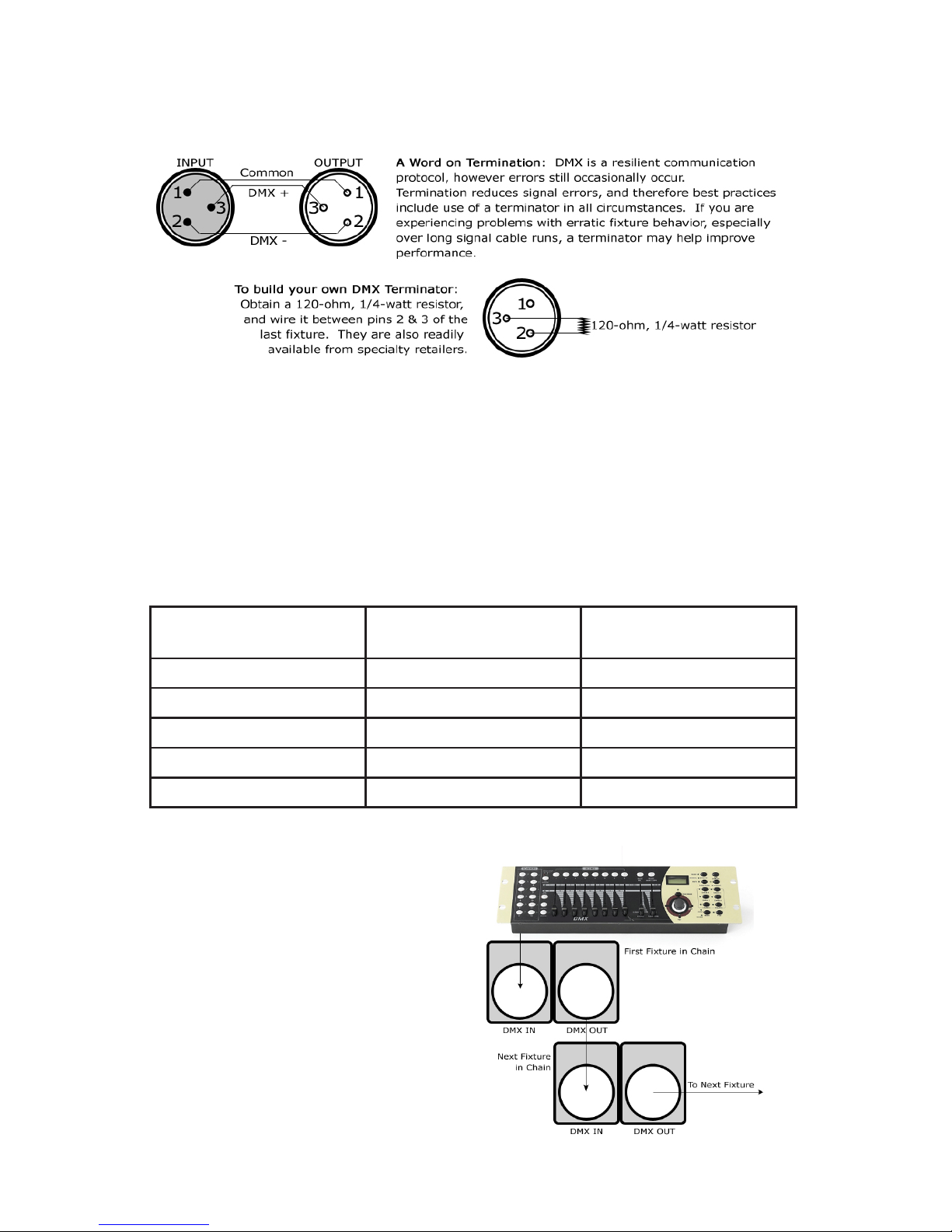

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’schassisground.Groundingthecommoncancauseaground

loop,andyourxturemayperformerratically.Testcableswithan

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

They are widely available over the internet and from specialty retailers. If you’d like to build your own,

the chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of

theDMXcabletotherstxture’smale

connector (input). Note: It doesn’t matter

whichxtureaddressistherstone

connected. We recommend connecting the

xturesintermsoftheirproximitytothe

controller, rather than connecting the lowest

xturenumberrst,andsoon.

Step 3:Connectotherxturesinthechain

from output to input as above. Place a DMX

terminatorontheoutputofthenalxture

to ensure best communication.

Page 9

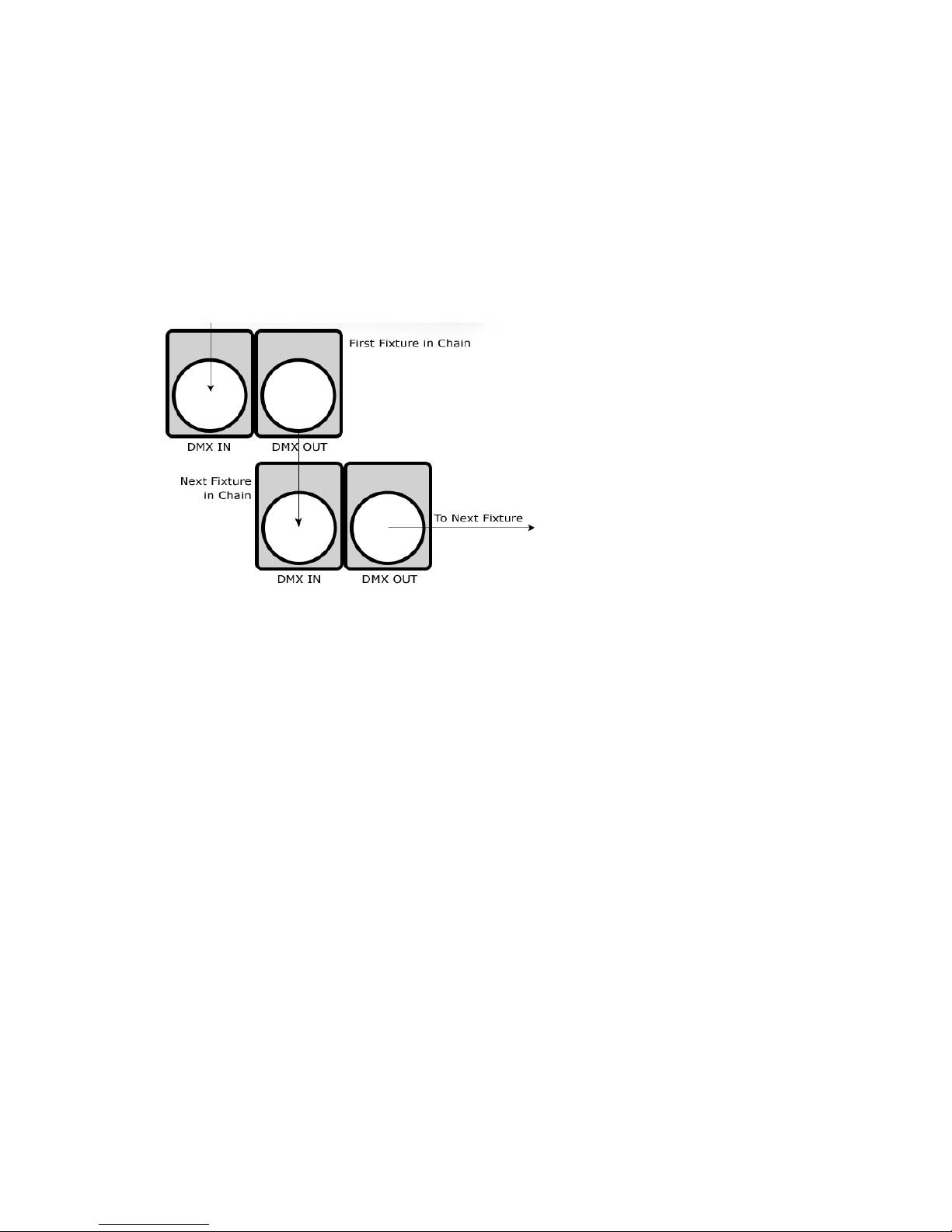

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the

DMX cable to the output (female) 3 pin connector of

therstxture.

2. Connect the end of the cable coming from

therstxturewhichwillhavea(female)3pin

connectortotheinputconnectorofthenextxture

consisting of a (male) 3 pin connector. Then,

proceed to connect from the output as stated above

totheinputofthefollowingxtureandsoon.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

therstxtureinthe

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily,thextures

that follow may also

require a slave setting.

Check the “Operating Adjustments” section in this manual for

completeinstructionsforthistypeofsetupandconguration.

Mounting & Rigging

ThisxturemaybemountedinanySAFEpositionprovidedthereis

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xtureusingasuitable“C”or“O”typeclamp.Theclampshouldbe

ratedtoholdatleast10xthexture’sweighttoensurestructural

stability. Do not mount to surfaces with unknown strength, and ensure

properly“rated”riggingisusedwhenmountingxturesoverhead.

Adjusttheangleofthexturebylooseningbothknobsandtiltingthe

xture.Afterndingthedesiredposition,retightenbothknobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

•Nevermountinplaceswherethexturewillbeexposedtorain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

USING THIS FIXTURE WITH THE wiCICLE® WIRELESS

DMX SYSTEM

In addition to the unbridled thrill you already

receivedthersttimeyoupluggedinyour

xture,you’llbedelightedtoknowthatThis

xturealsoworksseamlesslywithourwiCI-

CLE®Wireless DMX system, without additional power.

•ONLYxturesbearingthislogoarecertiedforusewiththewiCICLE®

without external power.

• Unauthorized modication and/or using the wiCICLE®with un-

approved xtures may cause damage to the wiCICLE® or xture.

UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPON-

SIBLE FOR ANY DAMAGE FROM SUCH OPERATION.

• Fixtures bearing the above logo MUST only use cable and connectors

which separate chassis/case ground from cable shielding. Cabling with

the shield connected to the connector’s case/chassis may cause malfunc-

tion and damage to the wiCICLE®orxture.

• wiCICLE®transmitters have additional power requirements and

thereforecannotbepowereddirectlyfromthexture.Youwill

need to utilize the supplied AC/DC adaptor to drive wiCICLE®

transmitters in your system.

WE HAD THIS SPACE, SO WE FIGURED WE’D DRAW

YOU A PICTURE:

Antenna Housing & 1/2-wave

Antenna

Antenna ferrule & articulation

joint

Stainless Steel Housing

Recessed Selector Button

Status LED

3-Pin XLR Connector

(Male on transmitter, Female

on receiver model)

Inhaltsverzeichnis

Andere Blizzard Lighting Beleuchtungsausrüstung Handbücher

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting RokBox Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HotStik 5 COB Mini Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Torrent Streak Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting PixelStorm COB Mini Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HUSH PAR Theatrik Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Pocket Rocket Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck Pro Zoom EXA Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Lo-Pro Flux Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting SnowBlind Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting ROCKER PANEL RGBAW Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting THE PUCK RGBA LED PAR Can Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck CSI Xtreme Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting HUSH PAR Infiniwhite 500 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting MAX L Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Switch Blade X3 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting PixlStik Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting the puck Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Torrent F3 Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Pocket Nebula Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Rocklite RGBAW Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Northstar Spec-Z Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting ToughPar V12 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
