Blomberg KWD 9440 X A+ Bedienungsanleitung

Instruction manual

Refrigerator

Réfrigérateur

Kühlschrank

KWD 9330 X A+

KWD 9440 X A+

IWD 1004 ET

IWD 1005 XT

IWD 1004 XT

KWD 9440 X

Frigorifero

Køleskab

Koelkast

Холодильник

Jääkaappi

لاچخی

Ψυγείο σας

KWD 9440 XA++

Ledusskapis

Kjøleskap

Frigorífico

Frigorifero Хладилник

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you an

effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

CONTENTS

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

Recycling

1Your Refrigerator 3

1Your Refrigerator 4

2 Important Safety Warnings 5

Intended use........................................ 5

General safety...................................... 5

Child safety.......................................... 7

HCA Warning....................................... 7

Things to be done for energy saving..... 8

3 Installation 9

Points to be considered when re-

transporting your refrigerator ................ 9

Before operating your refrigerator......... 9

Electric connection............................. 10

Disposing of the packaging ................ 10

Disposing of your old refrigerator........ 10

Placing and Installation....................... 10

Floor balance adjustment ................... 11

Adjusting the gap between the upper

door .................................................. 13

Installing Water Filter ......................... 14

Connection of the Water Pipe to the

Refrigerator........................................ 15

Connection of Water Hose to the Jug 17

Connection of the Water Pipe to the Cold

Water Mains Line .............................. 18

Prior to first use of Ice/Water Dispenser19

4 Preparation 20

5 Using your refrigerator 21

Setting the fridge compartment

temperature ....................................... 22

Setting the freezer compartment

temperature ....................................... 22

Fresh Freeze Function........................ 22

Quick Cool Function........................... 22

Vacation Button ................................. 23

Ionizer................................................ 23

Key Lock Button ................................ 23

Water Dispenser Illumination .............. 23

Water/Ice Type Selection.................... 23

Ice/Water Dispenser........................... 23

Using the Ice Dispenser....................... 24

Ice Off................................................ 24

Using the water spring ....................... 25

Spillage Tray ...................................... 25

Sliding Body Shelves .........................25

Blue light ........................................... 26

Ion: ................................................... 26

Egg tray............................................. 26

Fresh Freeze Compartment................ 26

Crisper humidity control sliders........... 26

Recommendations for preservation of

frozen food ........................................ 27

Defrosting .......................................... 27

Replacing the Interior Light Bulb......... 27

6 Maintenance and cleaning29

Protection of plastic surfaces ............ 29

Chill compartment.............................. 30

Icebox and Water Dispenser .............. 31

Minibar .............................................. 32

7 Recommended solutions for

the problems 33

25

*12

*19

6*

*10

*17 *2616

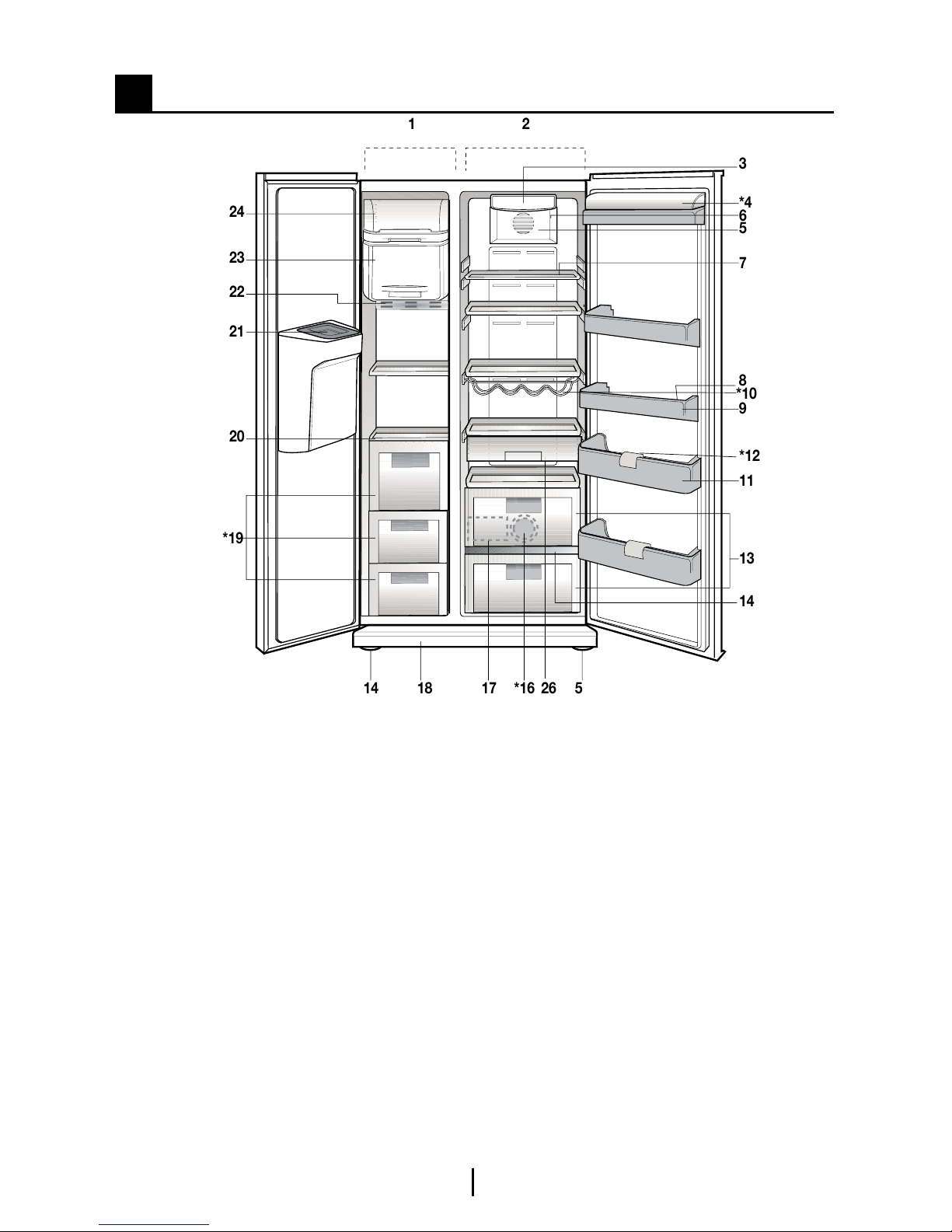

1 Your Refrigerator

1. Freezer compartment

2. Fridge compartment

3. Fridge compartment interior light

4. Butter and cheese lid

5. Fan

6. Ioniser

7. Fridge compartment glass shelves

8. Egg tray

9. Fridge compartment door racks

10.Wine cellar

11. Bottle shelves

12. Bottle holder

13.Crisper compartments

14.Crisper cover

15.Adjustable front legs

16. Blue light

17.Water reservoir

18.Ventilation lid

19.Freezer compartment drawers

20.Freezer Compartment glass shelves

21.Ice duct lid

22.Freezer compartment interior light

23.Fresh Freeze compartment

24.Ice container

25.Mini bar

26.Snack tray * OPTIONAL

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

*12

*19

6

*10

*16 2617

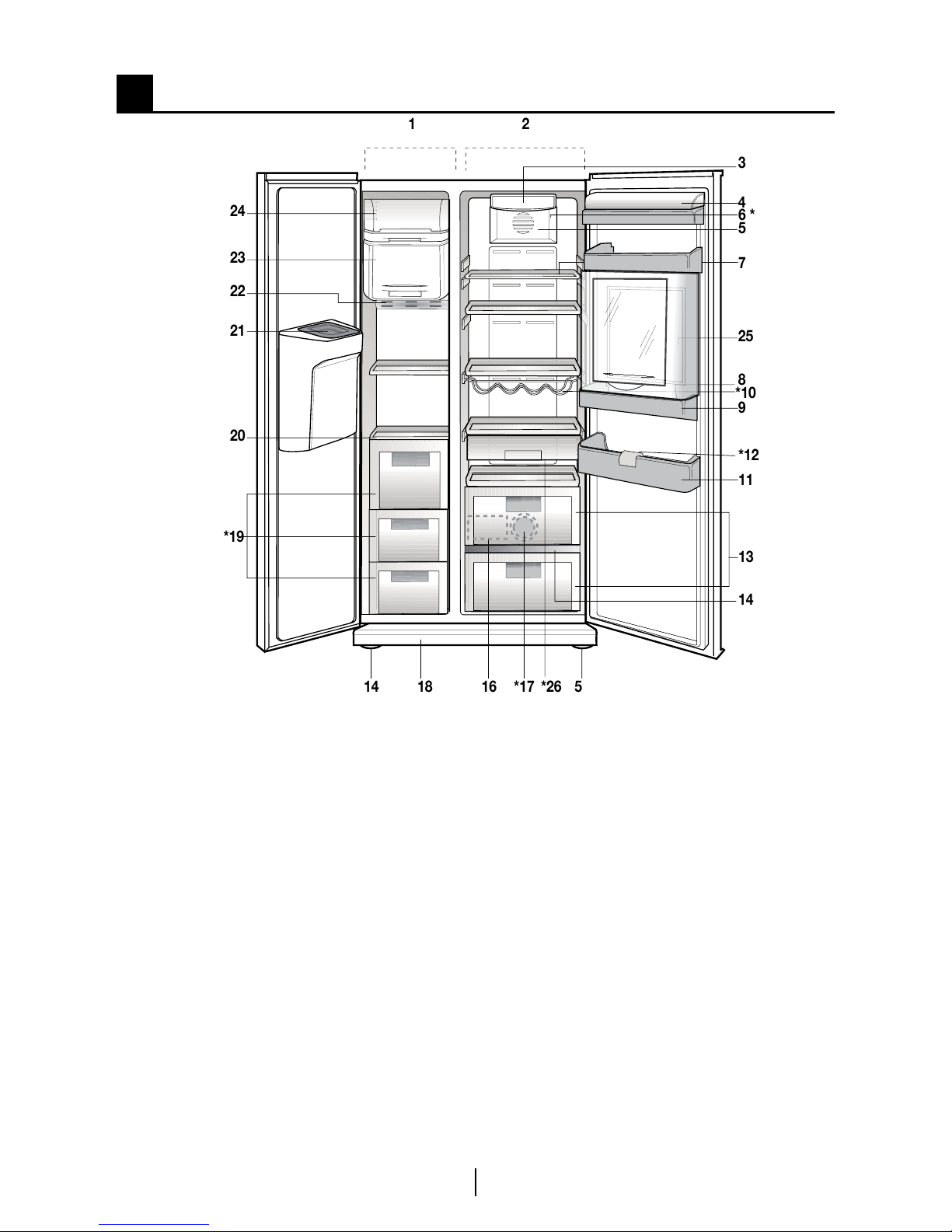

1 Your Refrigerator

1. Freezer compartment

2. Fridge compartment

3. Fridge compartment interior light

4. Butter and cheese lid

5. Fan

6. Ioniser

7. Fridge compartment glass shelves

8. Egg tray

9. Fridge compartment door racks

10.Wine cellar

11. Bottle shelves

12. Bottle holder

13.Crisper compartments

14.Crisper cover

15.Adjustable front legs

16. Blue light

17.Water reservoir

18.Ventilation lid

19.Freezer compartment drawers

20.Freezer Compartment glass shelves

21.Ice duct lid

22.Freezer compartment interior light

23.Fresh Freeze compartment

24.Ice container

25.Mini bar

26.Snack tray

* OPTIONAL

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

2Important Safety Warnings

Please review the following information. If

these are not followed, personal injury or

material damage may occur. Otherwise,

all warranty and reliability commitments

will become invalid.

The usage life of the unit you purchased

is 10 years. This is the period for keeping

the spare parts required for the unit to

operate as described.

Intended use

• This appliance is intended to be used in

household and similar applications such

– staff kitchen areas in shops, offices and

other working environments;

– farm houses and by clients in hotels,

motels and other residential type

environments;

– bed and breakfast type environments;

– catering and similar non-retail

applications.

• It should not be used outdoors. It is not

appropriate to use it outdoor even if the

place is covered with a roof.

General safety

• When you want to dispose/scrap the

product, we recommend you to consult

the authorized service in order to learn

the required information and authorized

bodies.

• Consult your authorized service for all

your questions and problems related to

the refrigerator. Do not intervene or let

someone intervene to the refrigerator

without notifying the authorized

services.

• Do not eat cone ice cream and ice

cubes immediately after you take them

out of the freezer compartment! (This

may cause frostbite in your mouth.)

• Do not put bottled and canned liquid

beverages in the freezer compartment.

Otherwise, these may burst.

• Do not touch frozen food by hand; they

may stick to your hand.

• Vapor and vaporized cleaning materials

should never be used in cleaning

and defrosting processes of your

refrigerator. In such cases, the vapor

might get in contact with the electrical

parts and cause short circuit or electric

shock.

• Never use the parts on your refrigerator

such as the door as a means of

support or step.

• Do not use electrical devices inside the

refrigerator.

• Do not damage the cooling circuit,

where the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured may cause skin irritations

and eye injuries.

• Do not cover or block the ventilation

holes on your refrigerator with any

material.

• Repairs of the electrical appliances

must only be made by qualified

persons. Repairs performed by

incompetent persons may create a risk

for the user.

• In case of any failure or during a

maintenance or repair work, disconnect

your refrigerator’s mains supply by

either turning off the relevant fuse or

unplugging your appliance.

• Do not pull by the cable when pulling

off the plug.

• Place the beverage with higher proofs

tightly closed and vertically.

• Do not store explosive substances

such as aerosol cans with a flammable

propellant in this appliance.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, others than those

recommended by the manufacturer.

• This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

• Do not operate a damaged refrigerator.

Consult your service if you have any

doubts.

• Electrical safety of your refrigerator shall

be guaranteed only if the earth system

in your house complies with standards.

• Exposing the product to rain, snow, sun

and wind is dangerous with respect to

electrical safety.

• Contact the authorized service when

there is a power cable damage and etc.

so that it will not create a danger for

you.

• Never plug the refrigerator into the wall

outlet during installation. Otherwise, risk

of death or serious injury may arise.

• This refrigerator is designed solely for

storing food. It should not be used for

any other purposes.

• The label that describes the technical

specification of the product is located

on the inner left part of the refrigerator.

• Do not hook up the refrigerator to

electronic energy saving systems as it

may damage the product.

• If the refrigerator has blue light do not

look at the blue light through optical

devices.

• If the power supply is disconnected

in manually controlled refrigerators

please wait for at least 5 minutes

before reconnecting the power.

• This product manual should be

passed to the next owner of the

refrigerator if the owner changes.

• When moving the refrigerator make

sure that you do not damage the

power cord. In order to prevent

fire the power cord should not be

twisted. Heavy objects should not

be placed on the power cord. When

the refrigerator is being plugged do

not handle the power outlet with wet

hands.

• Do not plug the refrigerator if the

electric outlet is loose.

• Do not splash water directly on the

outer or inner parts of the refrigerator

due to safety.

• Do not spray inflammable materials

such as propane gas etc near

refrigerator due to the risk of fire and

explosion.

• Do not place objects filled with water

on top of the refrigerator as it may

result in electric shock or fire.

• Do not overload the refrigerator with

excess food. The excess food may

fall when the door is opened resulting

in injuring you or damaging the

refrigerator. Do not place objects on

top of the refrigerator as the objects

may fall when opening or closing the

refrigerator door.

• Materials that require certain

temperature conditions such as

vaccine, temperature sensitive

medicines, scientific materials etc

should not be kept in refrigerator.

• If refrigerator will not be operated for

an extended period of time it should

be unplugged. A problem in electrical

cable insulation may result in fire.

• The tip of the electric plug should be

cleaned regularly otherwise it may

cause fire.

• The refrigerator may move when the

adjustable feet is not positioned firmly

on the floor. Using the adjustable feet

you can unsure that the refrigerator is

positioned firmly on the floor.

• If the refrigerator has door handle

do not pull the refrigerator via door

handles when moving the product as

it may disconnect the handle from the

refrigerator.

• If you must operate your appliance

adjacent to another refrigerator or

freezer, the distance between the

appliances must be at least 8 cm.

Otherwise condensation may occur on

the side walls facing each other.

• Water mains pressure must not be below

1 bar. Water mains pressure must not

be above 8 bars.

• Use only drinkable potable water.

Child safety

• If the door has a lock, the key should

be kept away from reach of children.

• Children should be supervised to

ensure that they do not play with the

appliance

HCA Warning

If your product is equipped with a

cooling system that contains R600a:

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the product

catch a fire and ventilate the room in

which the unit is placed.

Ignore the warning if your product is

equipped with a cooling system that

contains R134a.

You can see the gas used in production

of your product on the rating plate that is

located on the left inner part of it.

Never dispose the product in fire.

Things to be done for energy

saving

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

refrigerator.

• Do not overload your refrigerator so

that the air circulation inside of it is not

prevented.

• Do not install your refrigerator under

direct sunlight or near heat emitting

appliances such as ovens, dishwashers

or radiators.

• Pay attention to keep your food in

closed containers.

• Maximum amount of food can be put in

your refrigerator’s freezer compartment

when the freezer compartment shelf

or drawer is removed.Declared energy

consumption value of your refrigerator

was determined when the freezer

compartment shelf or drawer was

removed and under maximum amount

of food load.There is no risk in using a

shelf or drawer according to the shapes

and sizes of the foods to be frozen.

3Installation

CPlease remember that the manufacturer

shall not be held liable if the information

given in the instruction manual is not

observed.

Points to be considered

when re-transporting your

refrigerator

1. Your refrigerator must be emptied and

cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the rules of

transportation printed on the package

must be followed.

CAlways remember...

Every recycled material is an

indispensable source for the nature and

for our national resources.

If you wish to contribute to recycling the

packaging materials, you can get further

information from the environmental

bodies or local authorities.

Before operating your

refrigerator

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry and

can the air circulate freely in the rear of

it?

2. Clean the interior of the refrigerator as

recommended in the “Maintenance and

cleaning” section.

3. Insert the 2 plastic wedges onto the

rear ventilation as illustrated in the

following figure. Unscrew the existing

ones and use the screws given in the

same bag of wedges. Plastic wedges

will provide the required distance

between your refrigerator and the wall

in order to allow the air circulation.

Inhaltsverzeichnis

Andere Blomberg Kühlschrank Handbücher

Blomberg

Blomberg BRFB1920FBI Bedienungsanleitung

Blomberg

Blomberg DNE9840A+ Bedienungsanleitung

Blomberg

Blomberg BRFB 1450 SS Bedienungsanleitung

Blomberg

Blomberg SSM4543 Bedienungsanleitung

Blomberg

Blomberg SSM 1350 iF Bedienungsanleitung

Blomberg

Blomberg KGM 9530P Bedienungsanleitung

Blomberg

Blomberg KND 9950 XDA+ Bedienungsanleitung

Blomberg

Blomberg IWD 1004 ET Bedienungsanleitung

Blomberg

Blomberg BRFB1312SS Bedienungsanleitung

Blomberg

Blomberg SSM1420XN Bedienungsanleitung

Blomberg

Blomberg SSM1554P Bedienungsanleitung

Blomberg

Blomberg BRFB1812SSL Bedienungsanleitung

Blomberg

Blomberg DSM 1510 Stücklistenhandbuch

Blomberg

Blomberg BRFB 1150 Bedienungsanleitung

Blomberg

Blomberg FNT4550 Bedienungsanleitung

Blomberg

Blomberg KFI 1290 Bedienungsanleitung

Blomberg

Blomberg BRFB1045 Series Bedienungsanleitung

Blomberg

Blomberg KFD 9952 XA+ Bedienungsanleitung

Blomberg

Blomberg KWD 1330 X Bedienungsanleitung

Blomberg

Blomberg MDND 1880 Bedienungsanleitung

Blomberg

Blomberg DSM 9630 A++ Bedienungsanleitung

Blomberg

Blomberg DSM 1510 Bedienungsanleitung

Blomberg

Blomberg BFBF2413SS Bedienungsanleitung

Blomberg

Blomberg FNT 9550 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
