BluDot Dodu Bed Kurzanleitung

Dodu Bed Collection

DESIGNED IN 2006

ASSEMBLY NOTES | REV 00

@BLUDOT

We design all our pieces in our Minneapolis studio. Follow

along on Instagram for some sneak peeks into the process.

NEED A HAND?

844.425.8368 for assistance.

1 | 844.425.8368 DODU BED COLLECTION

Pt. 3001

Front Corner Bracket

Center Leg

Slats

Rear Corner Bracket

Center Rail

Footboard

Slip Cover

Side Rail

Headboard

Pt. 3002 Pt. 1604 Pt. 9016

20 20 1QTY

QTY

QTY QTY QTY

Parts & Hardware

SERVICE@BLUDOT.COM |2ASSEMBLY NOTES

Step 01

INSTALL CENTER LEG.

Assemble the bed on a soft, clean surface with the

assistance of another individual.

Attach leg to center rail by threading it into place as

shown.

Step 02

ATTACH SIDE RAILS TO HEADBOARD AND FOOTBOARD.

Carefully align and push down on side rails to engage

hooks into headboard and footboard.

3 | 844.425.8368 DODU BED COLLECTION

PT. 3002 x 10PT. 3001 x 10Rear Corner

Bracket x 2

PT. 1604 x 10 PT. 9016 x 1

Step 03

SECURE HEADBOARD.

Secure headboard and center rail in place using

provided hardware as shown. Do not fully tighten the

hardware until all of the bolt locations are aligned.

SERVICE@BLUDOT.COM |4ASSEMBLY NOTES

PT. 3002 x 10PT. 3001 x 10Front Corner

Bracket x 2

PT. 1604 x 10 PT. 9016 x 1

Step 04

SECURE FOOTBOARD.

Secure footboard and center rail in place using

provided hardware as shown. Do not fully tighten the

hardware until all of the bolt locations are aligned.

5 | 844.425.8368 DODU BED COLLECTION

Step 05

ATTACH SLIP COVER.

Starting at headboard, secure hook and

loop fasteners onto frame. Continue toward

footboard keeping edges smooth and in line

with frame edges.Turn adjustable glide on

center leg clockwise or counterclockwise as

needed to level bed.

SERVICE@BLUDOT.COM |6ASSEMBLY NOTES

Step 06

INSTALL SLATS.

Starting at the headboard, unroll slats along

frame. Ensure first and last slat are secured by

metal blocking.

BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN

Additional Information

CLEAN

Vacuum your upholstery regularly.

SPILLS

Act quickly with spills. Absorb the spill with a clean white

cloth or paper towel. Never rub the surface. Do not use water or other

liquids to clean, as they may stain the fabric. Consult a commercial

cleaning specialist for removal of stubborn stains.

AVOID

Keep upholstery & felt furniture out of direct sunlight and away

from heat sources; excessive exposure to sunlight may fade the

color of the upholstery. Avoid placing heavy or sharp objects on

the furniture surface for long periods of time; this can cause

permanent indentations in the fabric. For snags in the fabric,

tuck loose threads into fabric or carefully push to reverse side.

Never pull out or cut off loose threads.

Inhaltsverzeichnis

Andere BluDot Inneneinrichtung Handbücher

BluDot

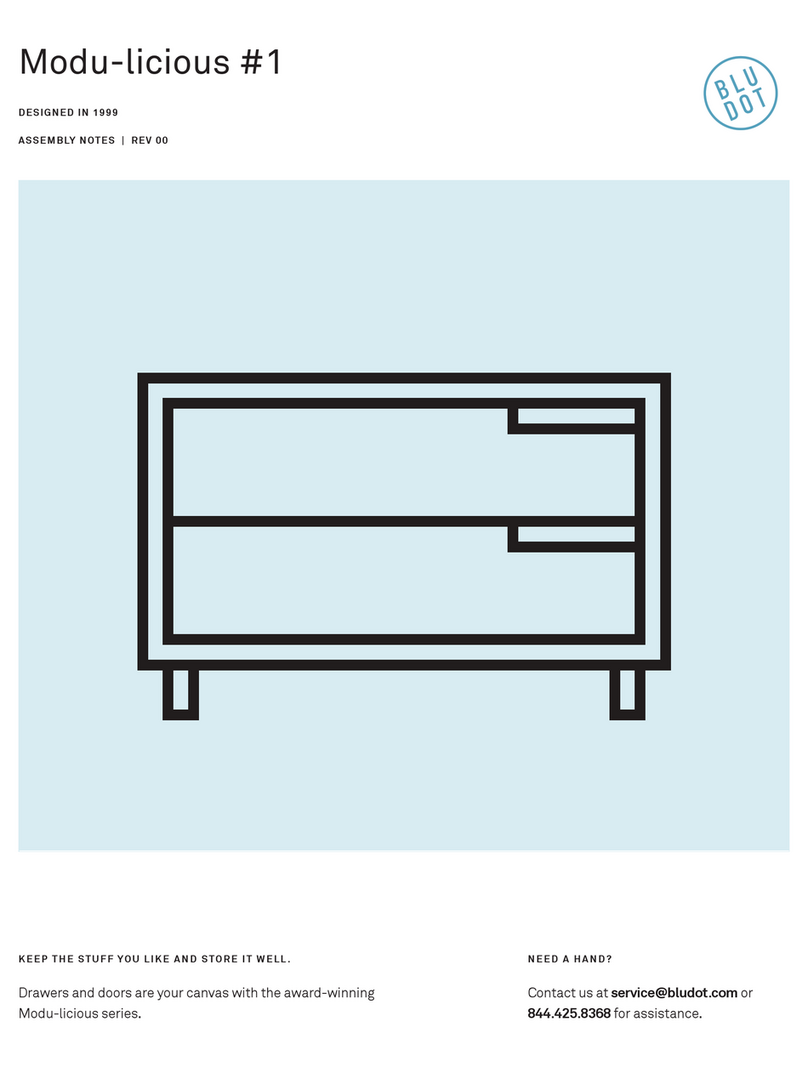

BluDot Modu-licious #1 Kurzanleitung
