Blue Sea Systems M2 OLED Bedienungsanleitung

M2 OLED Tank Monitor Instructions

PN 1839

Installation Checklist

• Check for components included

• Read Warning and Cautions

• Read QuickStart Installation Guide for mounting instructions

• Read System Overview, Mounting Considerations, Detailed Wiring,

and Sensing Description

• Read QuickStart Installation Guide for installation notes

• Follow Initial System Setup instructions

• Congure Displays

• Congure Alarms

• Congure Relays

Display Size 55mm x 28mm

Power Supply 7V–70V DC

Power Consumption 0.3W–1.0W*

* Variable with voltage, display intensity, and sleep mode

Regulatory

Monitor face is IP66 – protected against powerful water jets

when installed according to instructions

1839 Specications

Tanks

Senders North American 240Ω–33Ω

European 10Ω–180Ω

Blue Sea Systems Ultrasonic

Custom

Sender Resolution 1%

Custom Tank Shapes Auto Calibration

Warning and Caution Symbols

WARNING: The symbol refers to possible injury to the user or

signicant damage to the meter if the user does not follow the procedures.

CAUTION: The symbol refers to restrictions and rules with regard

to preventing damage to the meter.

WARNING

• If you are not knowledgeable about electrical systems, have an

electrical professional install this unit. The diagrams in these

instructions pertain to the installation of M2 Digital Meters and not

to the overall wiring of the vessel.

• If an inverter is installed on the vessel, its power leads must be

disconnected at the battery before the meter is installed.

• If an AC generator is installed on the vessel, it must be stopped

and rendered inoperable before the meter is installed.

• Verify that no other DC or AC sources are connected to the vessel’s

wiring before installing the meter.

CAUTION

• The back of the unit is not waterproof. Do not install where the back

of the meter is exposed to water.

Components Included

M2 Head Unit Surface Mount Gasket

Mounting Ring

Surface Mount Bezel

and Seal

Mounting Nut

Flat Mount Bezel

Screwdriver

Retail Package Only

Connector

Bezel

Mount

Footer

Header

Carrier

Mount

#6-32 x 1/4"

Flat Head

Machine Screws

(4X)

#6-32 x 3/8"

Flat Head

Machine Screws

(4X)

Surface Mount Cover Flat Mount Clamp

Panel

Frame

#8 x 1/2"

Flat Head Sheet

Metal Screws

(4X)

360 Panel Mounting Kit (PN 1525 sold separately)

Mounting Considerations

M2 Digital Meters have three mounting methods: surface mount, at panel mount, and 360 panel mount. When surface mounted per instructions the

unit face is waterproof to IP66. Flat panel and 360 panel mounting systems are not waterproof. The unit should not be at panel or 360 panel mounted

if used in an exposed location. For all mountings, the back of the unit is not waterproof and must be kept dry.

Installation

1. Make all connections to the meter’s terminal block before connecting the terminal block to the unit.

Keep hands away from the terminal block when applying power to the meter.

2. As the nal DC connection, insert a fuse into the in-line fuse holder on the wire to the positive (+) battery terminal.

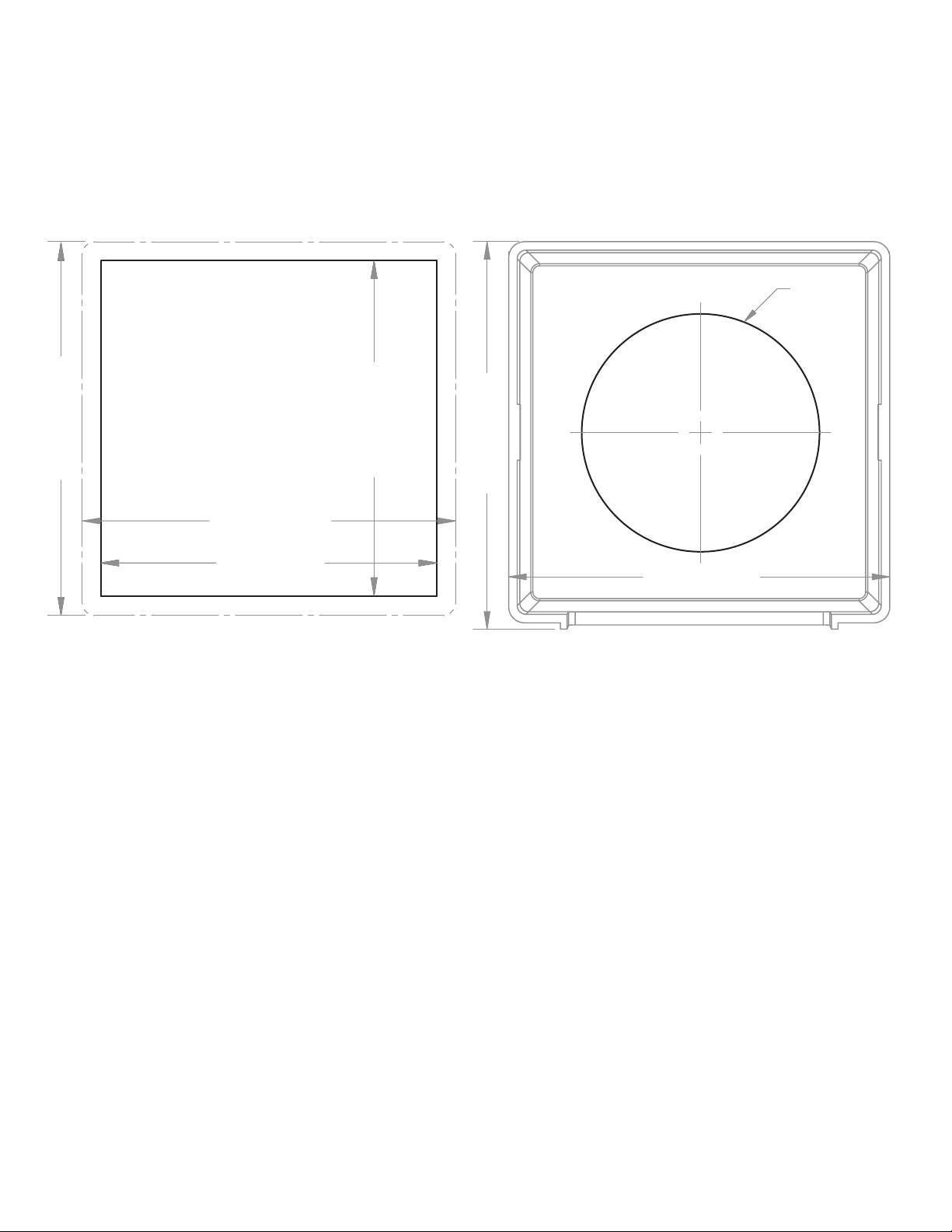

Mounting Templates

Flat Mount

3.34" (84.8mm)

3.00" (76.2mm)

3.34" (84.8mm)

Surface Mount

3.40" (86.5mm)

3.46" (87.9mm)

Ø2.125"

(54mm)

STEP 1

Panel

Frame

360 Panel

Mount

Carrier

Use 1/4"

Mounting

Screws

STEP 2

Footer

Panel

Frame

Bezel

Header

Snap header

and footer

into mounting

clips and post.

Snap the

mounting bezel

into place

with the ﬂat

edge up.

STEP 3

Panel

Frame

BezelFooter

Header

Head

Unit

Mounting

Ring and Nut

Mounting

Substrate

Clamp

Flat

Mount

Bezel

Head

Unit

Mounting

Ring and Nut

Mounting

Substrate

Head

Unit

Surface

Mount

Bezel

and Seal

Mounting

Ring and Nut

Surface

Mount

Gasket

Surface

Mount

Cover

NOTE: During

installation use cover

to align the bezel

and gasket

Flat Mount

Surface Mount

360 Panel Mount PN 1525

Tank Functions (1839)

Monitor up to four tanks. Provides High/Low level alarms for each channel.

Connections

IMPORTANT! The Sensing Description section of this manual gives important details to the location of sensors in the AC and DC electrical

systems of the boat. Improper location and conguration of sensors can result in erroneous readings and possible damage to components.

Pin-out Table

1839 Connector Pin Assignment Table

8 Pin Connector* Function

1 Required Connection

2 Required Connection

*The 8 pin low voltage connector supports wire sizes from 16-26 AWG

DC Negative

DC Supply

Relay DC Out to Load

Relay DC +

Tank 1

Tank 2

Tank 3

Tank 4

USB Micro USB Port

Meter Power Supply Connections

All meters must have pins 1 (DC Negative) and 2 (DC Supply) connected. These pins are used to provide power to the meter. Connect pin 1 to ground

and pin 2 to a 12V to 48V power source.

Tank Connections

North American Standard Senders

North American Standard senders are resistive type senders that have a resistance between 240 and 33 ohms. (With 240 ohms indicating empty).

European Standard Senders

European Standard senders are resistive type senders that have a resistance between 10 and 180 ohms. (With 10 ohms indicating empty).

Blue Sea System Ultrasonic Senders

Blue Sea Systems Ultrasonic sender use sound waves to measure the distance from the sender to the top of the liquid in the tank. Blue Sea Systems

has two different senders, one for gasoline (1800) and one for diesel, water, and waste (1810).

1839 Tank Monitor

OROR

12345678

Battery

Tank 1 Tank 2 Tank 3 Tank 4

Alarm

1070

Relay

7713, 12V

7717, 24V

LED 12/24V

8033, Amber

8171, Red

8172, Green

Resistive 2 Wire Sender

Blue Sea Systems Ultrasonic Sender 1810, 1811

Detailed Wiring

PINK WIRE

BLACK WIRE

12345678

PINK WIRE

BLACK WIRE

PURPLE WIRE

Fuse

(5 Amp)

12345678

Tank 1 Example

Relay Supply

Pin 4 voltage connections are only required if the

relay is used.

Optically isolated relay control

500mA DC Maximum current

M2 Relay Connections

M2 Meters contains an internal MOSFET relay that can drive external DC loads up to 0.5A. The input is protected with a thermally activated auto-reset-

ting fuse that will protect against shorts. In addition, an inline fuse rated at 5A should be used to protect against shorts. In typical applications, a power

source is connected to the Relay+ pin and a load is connected to the Relay Out to Load connection.

External LED

An external LED such 8171 can be connected to the Relay Output terminal. If the system is going to operate at

more than 24V nominal, an additional 4K Ohms of resistance should be placed in-line with the LED.

12345678

LED,

12V/24V

8033, Amber

8171, Red

8172, Green

LED

Supply

8 to 70V

Yellow Wire

Red Wire

12345678

NOTE: For optional SPST

switch connections

Wire connections are the same

as the SPDT, ON-ON except

the Ground is omitted.

No Connection

orange

green

brown

CONTROL (red)

GROUND (black)

LED OUTPUT (yellow)

12V or

24V DC

Refridgerator

External Relay

If you need to switch more than 0.5 A, you can use an external relay such as PN 7713, 12V or PN 7717, 24V Remote Battery Switch. Connect the

Relay+ terminal to the red control wire. Activating the internal relay will also activate PN 7713.

NOTE: 9012, 7700, 7701, 7702, & 7703 Remote Battery Switches

are not compatible with the internal relay.

12345678

External

Alarm

Supply

5 to 30V DC

+ Red

- Silver

1070

External Alarm (1070 Floyd Bell Turbo)

The Relay+ terminal can support an external audible alarm. Such as the Floyd Bell Turbo Alarm (1070).

Getting Started

Example Screens From PN 1839 Tank Meter

When an M2 Meter is initially powered up, it will display the Blue Sea Systems Logo,its serial number and its Software revision.

After a couple of seconds, the unit will display a high-level System Summary screen.

Pressing any button will display a temporary pop-up menu. Select an option by pressing the button beneath it. The pop-up menu will disappear after the

rst button is pressed.

The menu system is a two dimensional matrix. Pressing the UP ↑or DOWN ↓arrow buttons will transition the display between the System

Summary screen which displays summary information for each of the “tank” channels.

Press the Next button to display more detailed information about an input channel or to show a single parameter, such as “T1” in the display

(see example below).

Press the Menu button to bring up the Setup menus. Press the UP ↑and DOWN ↓arrow buttons to move the cursor over the options and press the

Select button to see a selected display. To return to the previous display, press the Back button.

Conguring the Meter

Meter settings can be congured from the Setup menu. This menu can be accessed by pressing the Menu button and then scrolling to and selecting

Setup. Press the UP ↑and DOWN ↓arrow buttons to move the cursor. The different setup options are described below.

Alarm Setup & Control

The meter’s alarm can be set to trigger for full or empty tanks. Alarms can be set from the Alarm Setup menu. To get there, rst navigate to the Setup

menu. Then scroll to Alarm Setup and press the Select button.

Setting Alarms

The M2 Meter family provides monitoring capability of input channels. Alarms are triggered if a channel is above or below a certain user selected

threshold value. The following example indicates how to setup a tank full alarm.

1. Go to the Alarm Setup menu.

2. Scroll to the desired input channel (i.e., Tank 1 Hi).

3. Press the Select button and the cursor should start blinking.

4. Set the tank level threshold using the ← and → buttons. (Holding down the buttons allows faster selection)

5. Press the Enter button to save the change or the Cancel button to cancel any change.

NOTE: A low tank level threshold cannot be set above a high tank level threshold. Likewise, a high tank level threshold cannot be set below the low tank

level threshold. The meter will automatically increase or decrease the tank level thresholds to enforce this.

In the above example, an alarm will set anytime Tank 1 is greater than or equal to 90% of the full scale rating. This could be used to monitor a holding

tank or to indicate that a tank is almost full while lling fuel. Note that the display can be changed from % to gallons or liters in Tank 1 Setup.

Tank Alrm Dly (Alarm Delay)

An alarm delay can be specied so that alarms don’t immediately trigger. This can be useful if tank sloshing is causing false alarms.

The hold off timer operates as a count-up/count-down timer. When the tank value exceeds the alarm value then the timer will start counting up until it

reaches the delay time. When it reaches the delay timer, an alarm will sound. If the alarm condition goes away before the delay timer has been met, then

the timer will count down until the timer is zero again. For example, if the Alarm Delay is set for 5 minutes and an alarm condition is active for 4 minutes

and then inactive for 1 minutes then if the alarm condition is active again, the alarm will sound in 2 minutes (5 minutes - 4 minutes + 1 minute). Note that

there is only one delay per channel.

Clearing Alarms

When an alarm occurs, the buzzer will sound, the red ALARM LED will light, and the screen will display which alarm was triggered, the Alarm set point

and the current value. Pressing any button silences the buzzer and another button press returns to the previous display.

Until the cause of the alarm is resolved, the ALARM LED will remain on and the channel that triggered the alarm will blink.

Viewing Alarms Status

For any active alarm, the parameter will ash if it is displayed. To view a complete list of active alarms, press Menu>Setup>Alarm Setup. Any active

alarm will ash. You may have to scroll through the menu to see all of the alarms.

Relay Setup & Control

M2 Meters provide an option to control an external relay. The M2 can trigger the relay based on high or low tank levels.

These relay options can be set from the Relay Setup menu. To get there, rst navigate to the Setup menu. Then scroll to Relay Setup and press the

Select button.

Relay Normally On/Off

This setting sets the normal operating state of the connected relay. The options are ON or OFF where ON means the relay is on (contacts closed) in

normal operation and OFF means it is normally off (open contacts). Scroll to Relay Normally, press Select (selection will ash), then press the

LEFT ←or RIGHT →arrow buttons to change the setting. Press Enter to save your selection. Press Cancel to cancel a change.

Notication

The Notication setting controls whether or not a notication is displayed when a relay is activated. Notications will show which relay threshold was

surpassed and for which channel. Scroll to Notication and press Select to change the setting. Press the LEFT ←or RIGHT →arrow buttons to choose

either ON or OFF. ON will display notications and OFF will not. Use this option if you don’t want to be notied that the relay is activating. Press Enter to

save the setting or Cancel to cancel a change.

Silence Relay

Turn this option on if you want the relay to de-activate after the user presses a key on the display. The key press will only de-activate the relay and

will not engage any functions on the meter. For example, this option could be used to silence an external buzzer. Scroll to Silence and press Select to
