Blue-White F-460 Bedienungsanleitung

Blue-White

Industries, Ltd.

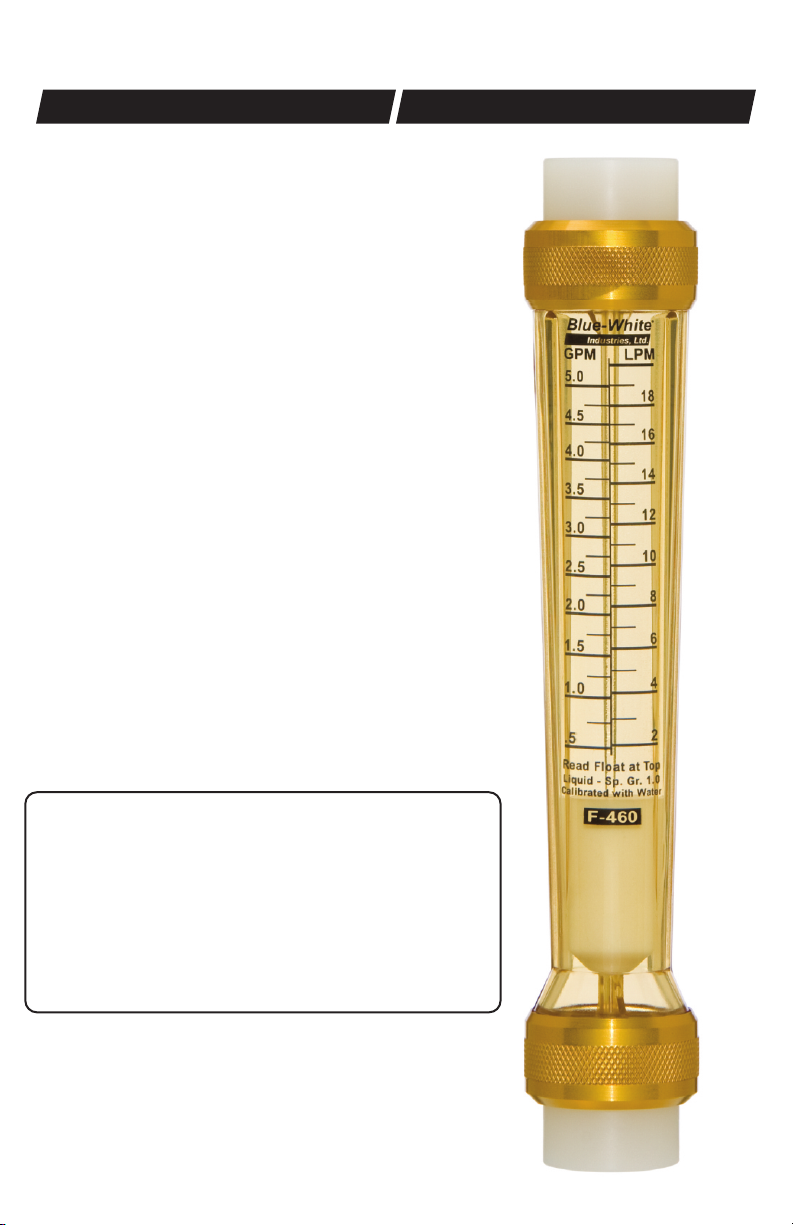

F-460 Flowmeter

Instruction Manual

Your Blue-White F-460 Series

In-Line Flowmeter

This flowmeter was designed to be easily

installed. Please read this Instruction guideline

before installing your flowmeter.

Do not install the meter in direct sunlight.

The meter can be damaged by UV light.

Building Reliable

Products that

Enhance the

Quality of Life

PSIg / BAR

Temperature

80°F / 26.7°C

100°F / 37.8°C

120°F / 48.9°C

140°F / 60.0°C

160°F / 71.1°C

180°F / 82.2°C

200°F / 93.3°C

220°F / 104.4°C

0 / 0 30 / 2.07 60 / 4.14 90 / 6.21 120 / 8.27 150 / 10.34

Catalog Number Description QtyItem

76001-012

90007-158

Union Nut (PVC)

Union Nut (ALUM)

76001-037 .50” FPT Adpapter (PVC) 2

76001-004 .50” FPT Adapter (PVDF) 2

- Body (PSF) 1

391001-146 Float Stop (PSF) 2

490003-023 O-ring (Viton)* 1

5- Float (PTFE) 1

76001-042 .75” FPT Adpapter (PVC) 2

76000-982 .75” FPT Adapter (PVDF) 2

Page 2 Page 3

F-460 F-460

PVC Fittings

PVDF Fittings

Scale

Permanent dual scale silkscreen

Max Pressure

See Temperature vs. Pressure chart*

Max Temperature

See Temperature vs. Pressure chart*

Height

10” (25.4 cm)

Width

1.75” (4.45 cm)

Accuracy

± 2.5% of full scale reading

1 The flowmeter must be installed in a

vertical plane to ensure accuracy.

Misalignment may damage the flowmeter

and also may cause the o-ring seals to leak.

2 Use only PTFE tape on the threaded

adapters. Pipe dope and glue will damage

the polysulfone meter body and fittings. Or

install the flowmeter after all glued fittings

have dried and fumes have been purged

from the system.

3 Mounts and supports must be sturdy

enough to support the plumbing and

prevent vibration. Vibration and heavy

loads will damage the meter.

4 Avoid imposing a sudden burst of flow

to the meter. Solenoid valves will damage

the meter. Such a burst will cause the float to

impact the top float stop with destructive

force.

5 The Maximum fluid temperature is

dependant on the working pressure. High

pressure and temperature with damage the

meter. (see temperature VS pressure chart)

TEMPERATURE vs PRESSURE

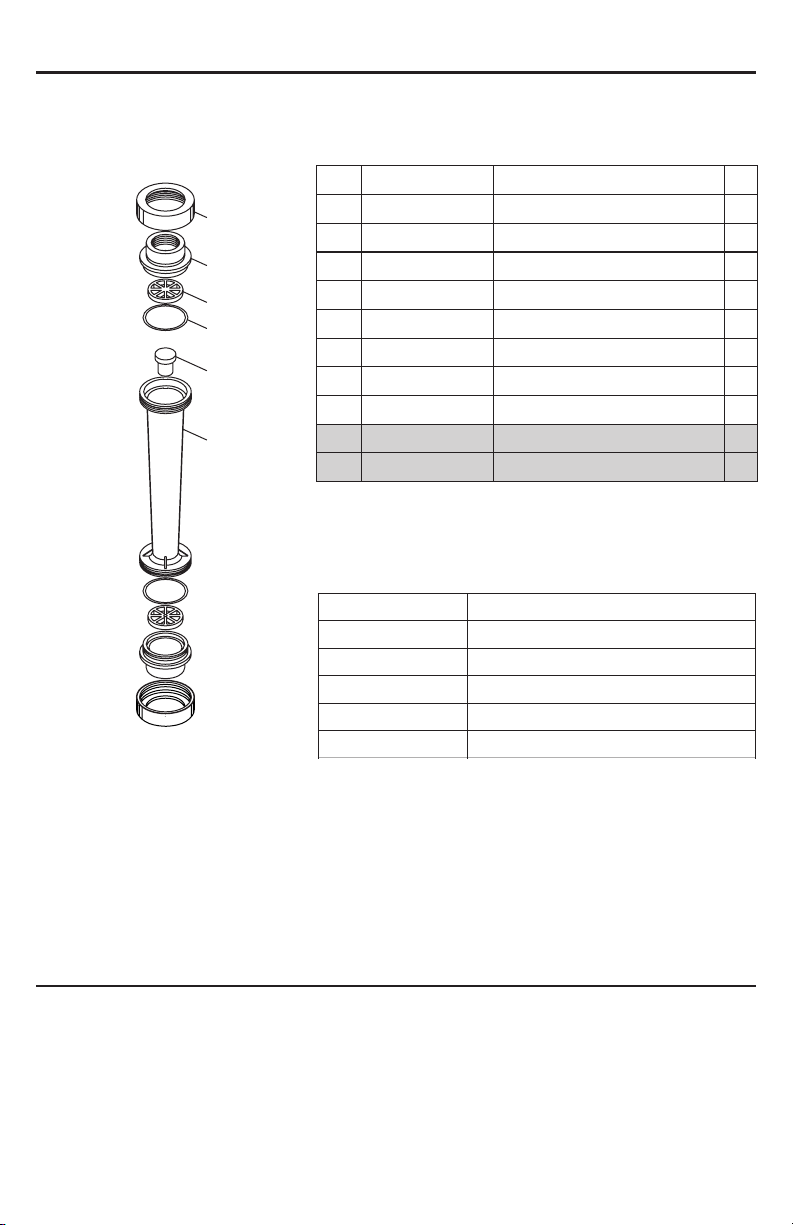

INSTALLATION GUIDE EXPLODED VIEW, PARTS LIST AND SPECS

METER SPECS

PARTS LISTEXPLODED VIEW

APPLICATION NOTES

Although meters may be suitable for other chemicals, Blue-White cannot

guarantee their suitability. It is the responsibility of the user to determine the

suitability of the flowmeter in their application. Flowmeters are tested and

calibrated for water only.

MAINTENANCE

The “Exploded View” drawing illustrates assembly of the F-460 series meter.

If your flowmeter needs to be cleaned refer to this drawing when

reassembling the unit. The tapered tube may be cleaned with a soft bottle

brush. Use a MILD soap and water solution for cleaning purposes. Note the

float’s “up” position.

*EP Option Available ALUM = Aluminum

PSF= Polysulfone

PVC = Polyvinyl chloride

PVDF = Polyvinylidene fluoride

PSIg / BAR

Temperature

80°F / 26.7°C

100°F / 37.8°C

120°F / 48.9°C

140°F / 60.0°C

160°F / 71.1°C

180°F / 82.2°C

200°F / 93.3°C

220°F / 104.4°C

0 / 0 30 / 2.07 60 / 4.14 90 / 6.21 120 / 8.27 150 / 10.34

Catalog Number Description QtyItem

76001-012

90007-158

Union Nut (PVC)

Union Nut (ALUM)

76001-037 .50” FPT Adpapter (PVC) 2

76001-004 .50” FPT Adapter (PVDF) 2

- Body (PSF) 1

391001-146 Float Stop (PSF) 2

490003-023 O-ring (Viton)* 1

5- Float (PTFE) 1

76001-042 .75” FPT Adpapter (PVC) 2

76000-982 .75” FPT Adapter (PVDF) 2

Page 2 Page 3

F-460 F-460

PVC Fittings

PVDF Fittings

Scale

Permanent dual scale silkscreen

Max Pressure

See Temperature vs. Pressure chart*

Max Temperature

See Temperature vs. Pressure chart*

Height

10” (25.4 cm)

Width

1.75” (4.45 cm)

Accuracy

± 2.5% of full scale reading

1 The flowmeter must be installed in a

vertical plane to ensure accuracy.

Misalignment may damage the flowmeter

and also may cause the o-ring seals to leak.

2 Use only PTFE tape on the threaded

adapters. Pipe dope and glue will damage

the polysulfone meter body and fittings. Or

install the flowmeter after all glued fittings

have dried and fumes have been purged

from the system.

3 Mounts and supports must be sturdy

enough to support the plumbing and

prevent vibration. Vibration and heavy

loads will damage the meter.

4 Avoid imposing a sudden burst of flow

to the meter. Solenoid valves will damage

the meter. Such a burst will cause the float to

impact the top float stop with destructive

force.

5 The Maximum fluid temperature is

dependant on the working pressure. High

pressure and temperature with damage the

meter. (see temperature VS pressure chart)

TEMPERATURE vs PRESSURE

INSTALLATION GUIDE EXPLODED VIEW, PARTS LIST AND SPECS

METER SPECS

PARTS LISTEXPLODED VIEW

APPLICATION NOTES

Although meters may be suitable for other chemicals, Blue-White cannot

guarantee their suitability. It is the responsibility of the user to determine the

suitability of the flowmeter in their application. Flowmeters are tested and

calibrated for water only.

MAINTENANCE

The “Exploded View” drawing illustrates assembly of the F-460 series meter.

If your flowmeter needs to be cleaned refer to this drawing when

reassembling the unit. The tapered tube may be cleaned with a soft bottle

brush. Use a MILD soap and water solution for cleaning purposes. Note the

float’s “up” position.

*EP Option Available ALUM = Aluminum

PSF= Polysulfone

PVC = Polyvinyl chloride

PVDF = Polyvinylidene fluoride

URL: www.Blue-White.com

E-mail: [email protected]

T[email protected]

Phone: 714-893-8529

Fax: 714-894-0149

BLUE-WHITE INDUSTRIES

LIMITED WARRANTY

FLOWMETERS are warranted to be free of defects in material and workmanship

for up to 12 months from the date of factory shipment. Warranty coverage is limited to

repair or replacement of the defective flowmeter only. Blue-White Industries does not

assume responsibility for any other damage that may occur.

This warranty does not cover damage to the flowmeter that results from misuse or

alterations, nor damage that occurs as a result of: meter misalignment, improper

installation, over tightening, use of non- recommended chemicals, use of non-

reccomended adhesives or pipe dopes, excessive heat or pressure, or allowing the

meter to support the weight of related piping. Flowmeters are tested and calibrated

with water only. Although meters may be suitable for other chemicals, Blue-White

cannot guarantee their suitability.

Flowmeters are repaired at the factory only. Call or write the factory to receive a

Return Authorization Number, carefully pack the flowmeter to be returned, including a

brief description of the problem. Note the RA number on the outside of the carton.

Prepay all shipping costs. The factory does not accept COD Shipments. Damage that

occurs during shipping is the responsibility of the sender.

Industries, Ltd.

Blue-White

Industries, Ltd.

80000-324 REV.01 08132020

ISO 9001:2015

CERTIFIED USA

MADE IN THE

We are not satisfied

until you are!
