BlueTrek METAL EVOLUTION Bedienungsanleitung
“Vol +” button
“Talk” button
“Vol -” button
English
BLUETREK METAL EVOLUTION I 1
Before using your headset for the first time
You must charge it continuously for about 2 hours, until the red indicator light turns o.
Please refer to the “Charging the BLUETREK® Metal Evolution” section of this manual.
Pair the headset with a mobile phone. Please refer to the “Pairing the BLUETREK® Metal Evolution”
section of this manual.
Introduction
The BLUETREK® Metal Evolution headset is a wireless headset based on the Bluetooth® tech-
nology. It complies with Bluetooth® 2.1 protocol, supporting Headset and Hands-free profile.
The BLUETREK® Metal Evolution headset has 3 buttons:
· “TALK” button (main button)
· “Vol +” button
· “Vol -” button
English
2 I BLUETREK METAL EVOLUTION
Charging the BLUETREK® Metal Evolution
Please insert the adapter in the main body. Then connect the USB connector to a powered
USB slot.
During the charge, the red Bluetooth indicator is switched on. The indicator light will turn
o when the charge is complete.
During subsequent charges, the charging should take approximately 2 hours.
When you hear a low-tone beep in your headset at regular intervals, and the indicator light
ashes in red, your headset needs to be recharged.
123
In some cases, you have to charge by the USB cable.
4
English
BLUETREK METAL EVOLUTION I 3
Switching the BLUETREK® Metal Evolution ON and OFF
Switching BLUETREK® Metal Evolution ON
When your headset is o, press and hold the TALK button for about 3 seconds until the blue
indicator light is on. A beep (3 tones) can be heard in the speaker.
Release the TALK button.
Switching BLUETREK® Metal Evolution OFF
When your headset is on, press and hold the TALK button for about 5 seconds until the red
indicator light is on. A beep (3 tones) can be heard in the speaker then release the TALK
button.
Pairing the BLUETREK® Metal Evolution
Before using the BLUETREK® Metal Evolution headset, you must
pair it with your Bluetooth® mobile phone.
Pairing is the process of linking 2 Bluetooth® devices, so that they
can communicate.
To initiate pairing:
Place the BLUETREK® Metal Evolution and your mobile phone
within 0.3 meter (1 foot) from each other.
Switch on your phone and select its Bluetooth® discover mode
(refer to the Bluetooth® mobile phone user manual).
1
2
Connect
Assign short name
Set as unauthorised
Delete
Select Cancel
“0000”
BLUETREK METAL EVO
BLUETREK METAL EVO
“Talk” button
English
4 I BLUETREK METAL EVOLUTION
When the BLUETREK® Metal Evolution is switched o, press and
hold the TALK button for about 5 seconds until the indicator light
ashes red and blue alternately. And a sound can be heard in the
speaker. (If the headset is swith on for the rst time, the headset will
go the pairing mode automatically.)
3
If you haven’t started the discovery mode within 5 minutes, the headset will go to the
standby mode. You must then switch o your headset and start the pairing again.
If pairing was successful, the indicator light will switch to blue and ashes slowly.
The headset will connect automatically to the mobile phone.
If the headset is not connected to the mobile phone for 20 minutes, the headset is switched
o automatically.
Once the mobile phone detects the headset, a “BLUETREK METAL” message will be dis-
played. Follow the phone instructions to accept the pairing. The PIN code (or passkey) is 0000,
then press “yes” or “ok”.
For some phones, you may need to select “Connect”.
4
5
BLUETREK METAL EVO
“Talk” button
English
BLUETREK METAL EVOLUTION I 5
Making a call
Mobile phone with voice recognition
• Make sure the voice recognition function on your mobile is activated and your voice tags
have been recorded with the phone. To enter these, please refer to your phone’s manual
• When there is no incoming or active call, press once on the TALK button
• Wait for the audio signal sent by the mobile phone (generally a short tone).
• Speak the name of person you wish to call.
Mobile without voice recognition
• Make sure both the headset and the mobile phone are ON and in stand-by mode.
• Dial the number on the phone keypad, after approximately 2 seconds the audio connection
will be established.
Answering a call
When the headset rings, press once on the TALK button to take the call.
Ending a call
Press once on the TALK button to end an active call.
This function may not be available on some phones, please refer to the trouble shooting
frequent asked questions in our website: www.bluetrek.com. to find out more.
English
6 I BLUETREK METAL EVOLUTION
Adjusting the volume
To increase the volume during an active call, press the “VOL+” button on the headset.
To decrease the volume during an active call, press the “VOL-“ button on the headset.
Muting the microphone
To mute the microphone during an active call
During an active call, press and hold the VOL+ or VOL - button for approximately 3 seconds.
A periodic tone can be heard in the speaker when the microphone is muted.
To end the mute function
When the microphone is muted, press and hold the VOL+ or VOL - button for approximately 3
seconds. The periodic tone will end.
Transferring a call from BLUETREK® Metal Evolution to the
mobile phone
With a phone in Headset Profile
During an active call, to transfer it to the phone, simply turn o your headset.
With a phone in Hands-Free Profile
During an active call, to transfer it to the phone, double click the TALK button.
English
BLUETREK METAL EVOLUTION I 7
Transferring a call from the mobile phone to the BLUETREK®
Metal Evolution
With a phone in Headset Profile
Switch on your headset.
With a phone in Hands-Free Profile
During an active call on the mobile phone, double click the TALK button.
This function may not be available depending on your phone.
Call waiting
When you hear a call waiting alert while you are on a call, press approx. 3 seconds on the TALK
button to accept the second call and place the current call on hold.
To switch between an active call and a hold call, press approx. 3 seconds on the TALK button.
To end the active call and take the hold call, press once on the TALK button.
This function may not be available, depending on your phone. However, you can always answer
the second call from your phone keypad.
Placing/Retrieving on active call on hold
Press about 2 seconds on the Talk button to place the single active call in hold. Press again
about 2 seconds on the TALK button to retrieve the held call.
This function may not be available depending on your phone.
English
8 I BLUETREK METAL EVOLUTION

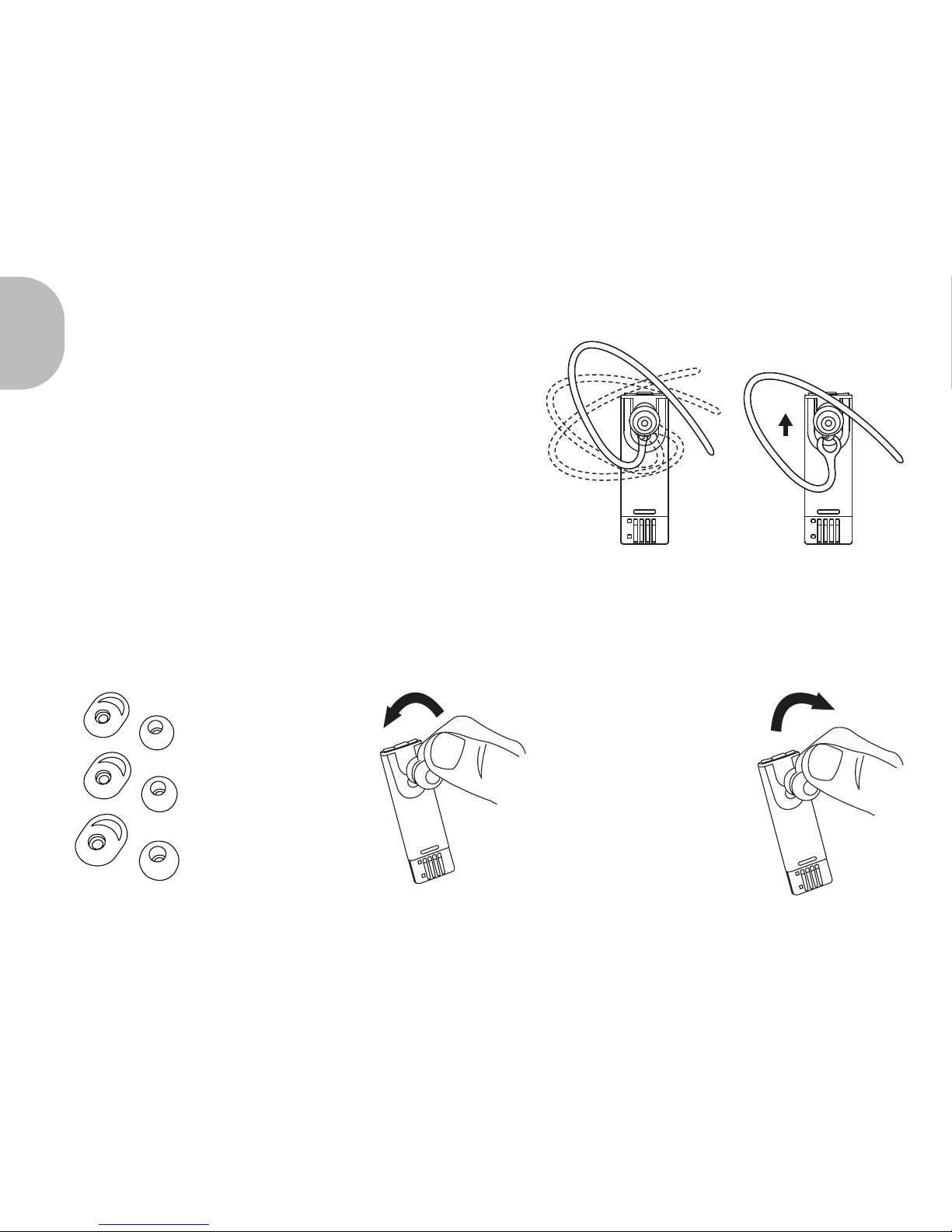

Wearing the BLUETREK® Metal Evolution
Two dierent sizes of ear hooks are included in the
pack to suit your ear size.
Fitting the Earbud
6 dierent sizes of Earbud are included in the pack to suit your ear size. You can
adjust the Earbud position that you feel the most comfortable.
To replace the
Earbud, remove the
speaker cover by
pulling gently out
from the speaker.
Place the Earbud
back onto the speaker
by inserting the
bottom part first.
English
BLUETREK METAL EVOLUTION I 9
Additional features with some phones
Rejecting a call
Press the TALK button for about 2 seconds to reject a call.
Redial the last number
When there is no incoming or active call, press the TALK button for about 3 seconds until you
hear a beep.
More information and Support
Features many vary depending upon your mobile phone. You can check the compatibility on
our website. You can also check with your phone manufacturer that your handset supports
either handsfree or headset Bluetooth proles.
To find out more, please refer to the trouble shooting frequent asked questions in our
website: www.bluetrek.com.
Please contact us before returning the product to your dealer and we will help you through
any diculty you may have.
Multi-point function
BLUETREK® Metal Evolution supports multipoint technology, which allows you to use one
headset with two dierent Bluetooth mobile phones. Please see the instructions as below:
1.Pair the headset to the mobile A(please refer to “pairing” section)
2. Turn o the headset, and then press and hold the Talk Button for about 5 seconds to enter
into paring mode, pair it to the mobile B(please refer to “pairing” section).
3. Turn o and turn on again the headset. The 2 mobiles will be connected automatically.
