Body Craft TR1120 Bedienungsanleitung

TR1120

OWNER’S MANUAL

IMPORTANT：

For maximum effectiveness and safety, please read this owner’s manual

before using your BodyCraft treadmill. Retain this owner’s manual for

future reference.

1. It is the responsibility of the owner to be sure that all users of this

treadmill are informed of all warnings and precautions.

2. Keep the treadmill indoors, away from moisture and dust. Do not put the

treadmill in a garage or covered patio, outdoors or near water.

3. Keep pets and small children away from the treadmill at all times.

4. Never start the treadmill while you are standing on the walking belt.

5. Always hold the handrails while using the treadmill.

6. The treadmill is capable of high speeds. To avoid sudden jumps in speed,

adjust the speed in small increments.

7. Regularly inspect and tighten all parts of the treadmill. Keep hands away

from all moving parts.

8. When folding or moving the treadmill, make sure that the safety lock is fully

engaged. Please refer to the folding instructions pages of this manual for

safety lock operation.

9. Always unplug the power cord before performing the maintenance and

adjustment procedures described in this manual. Do not remove the motor

cover unless instructed to do so by an authorized service representative.

Servicing other than the procedures in this manual should be performed by an

authorized service representative only.

10. Keep all electrical components, such as the motor and power cord, away from

water or other liquids to prevent shock. Do not set anything on the handrail,

computer console or belt. Never place liquids on any part of the unit.

11. Always insert the safety key and attach the clip to your clothing at your waist

before beginning your workout. If you should encounter problems and need to

stop the motor quickly, simply pull on the cord to disengage the safety key from

the console. To continue operation, simply reinsert the safety key into the

console.

12. Remove the safety key and store it away in a safe place when the treadmill is

not in use. Keep the safety key away from children.

13. Wear the proper exercise clothing and shoes for your workout. Do not

wear loose clothing or shoes with leather soles or heels. Be sure to tie

long hair back.

14. Keep all loose clothing and towels away from running surface. The belt will

not stop immediately if an object becomes caught in the rollers or belt.

Should an object become caught, turn the unit off immediately.

15. Proceed with caution when getting on or off the treadmill. Use the handrails

whenever possible. Only step onto the running surface only when the treadmill

is running at a very low speed. Do not step off the treadmill while the belt is

moving.

16. To get on or off the running surface, straddle the running surface by standing

on the right and left plastic platforms on each side of the belt. Use this

procedure before starting the belt (to begin your workout) and after it has

stopped (at the end of your workout).

17. Never attempt to turn around while on the treadmill with the belt running.

Keep your head and body facing forward at all times.

18. Never turn on the treadmill while someone is standing on the running surface.

19. Do not rock the treadmill, stand on the handrails or computer console at any time.

20. Be careful not to over exert yourself during your workout. Stop your workout

immediately, if you feel any pain or discomfort. Consult your physician

immediately.

21. Do not modify or attempt any service on the treadmill yourself other than

assembly and maintenance described in this manual.

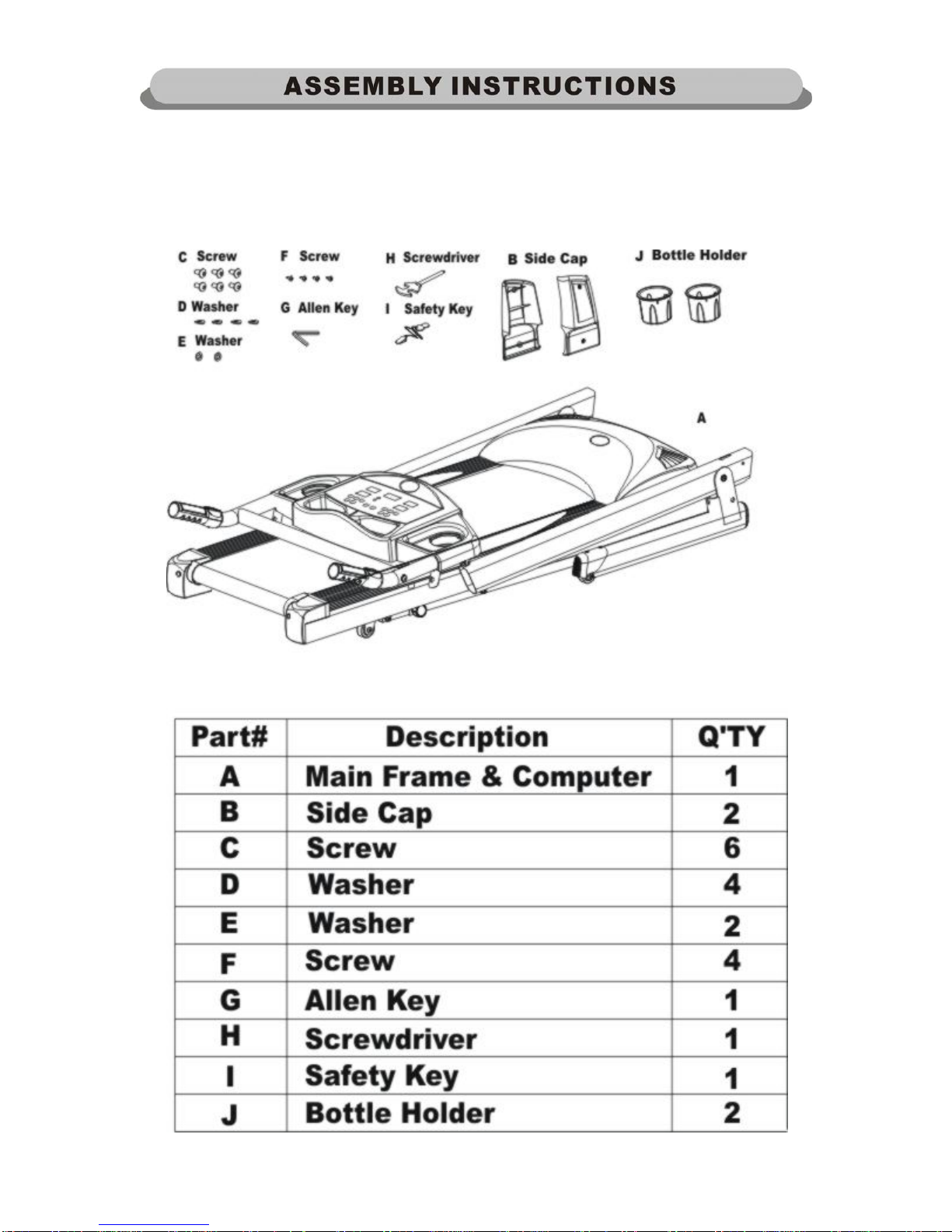

STEP 1

Do not move the treadmill out of the box until unit is assembled. Collapse box bottom

and lay sides down before assembly.

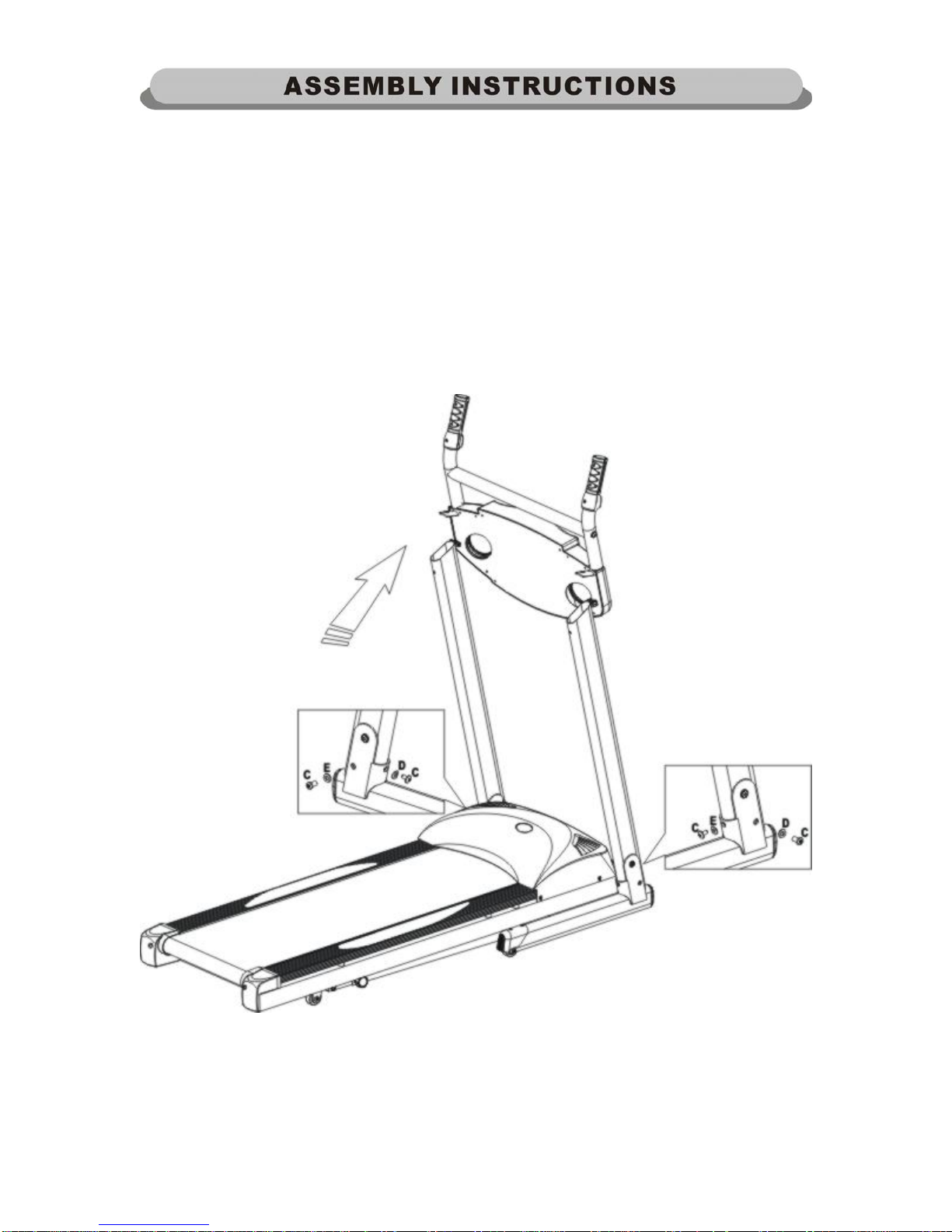

STEP 2

Lift up the upright handlebar, then fasten the screws (C) and washer (D, E) tightly at the

bottom of the upright handlebar. (Figure 2)

FIGURE 2

STEP 3

1. Attach the console to the upright by pressing both handlebars down.

Place the washers (D) and screws (C) on the handlebar as shown in Figure 3.

2. Place 2 Bottle Holders into left and right consoles.

FIGURE 3

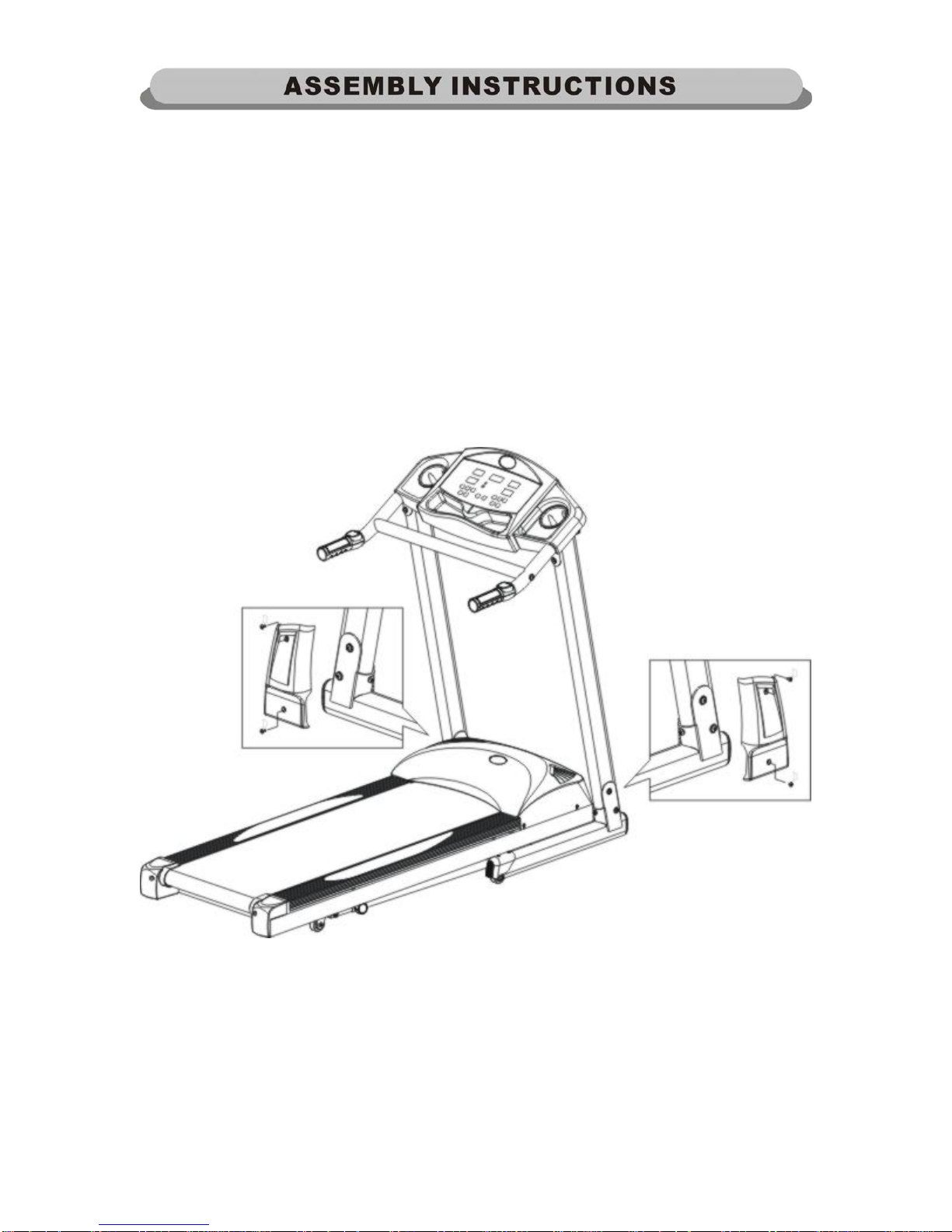

STEP 4

Attach upright side cap (B) with screws (D) at the bottom of the upright handlebar, and

tighten them well. (Figure 4)

FIGURE 4

FOLDING

After assembly is complete, you may fold the

machine into the upright position for storage.

To fold the machine, raise the deck and turn the

knob until it locks into position.

NOTE! Make sure you hear the click sound of the

deck locking into position. This is to ensure the

deck is locked in place and will not drop back

down.

NOTE! Make sure the treadmill’s elevation is at

lowest position before folding the deck. If the

elevation is not at lowest position, folding will

damage the mechanism.

TO RELEASE THE DECK

1. PULLAND TURN THE KNOB.

2. CAREFULLY LOWER THE DECK TO THE

FLOOR.

NOTE! This machine has a built-in safety

unfolding feature to help the deck lower slowly.

Please make sure there are no children or other

things under the deck when you lower it.

TO MOVE THE TREADMILL

Before moving the treadmill, be sure the power

cord is unplugged from the wall and the treadmill.

Fold up the deck until it is locked and push the

treadmill on the transportation wheels. Hold the

handlebars to move the treadmill.

To prevent malfunction of the treadmill, store it in

a dry place with as little temperature variation as

possible, protected against dust. Always unplug

the treadmill from the electrical outlet when not in

use.

*** THE TREADMILL CIRCUIT BREAKER WILL SHUT OFF POWER

WHEN THE ELECTRIC CURRENT IS OVERLOADED.

A. Pull out the plug from the electrical socket on the front of the treadmill.

B. Push in the circuit breaker switch.

C. Insert the plug back into the electrical socket.

Note：Do not push in the circuit breaker switch before you pull out the plug from the

treadmill.

NOTICE :

The treadmill should be placed on a level surface. If the treadmill is not level, the

belt will continuously track to low side of the treadmill.

WALKING BELT TENSION

As walking belts tend to stretch slightly with use, the belt may occasionally need to be

tightened. If belt is too loose, you may find the belt stops while running or walking,

while the motor continues to run. DO NOT OVERTIGHTEN THE BELT. This will

cause reduced motor performance and roller damage.

When properly tensioned, you should be

able to lift the side of the belt about 2-3

inches (5-7.5 centimeters). A quick test for

belt tension: you should be able to fit three

fingers under the edge of the belt.

To tighten belt:

Using the hex key provided with the treadmill,

place it in the hole in the left rear end cap and

into the socket of the adjustment screw. Turn

one full turn clockwise. Then place the hex key

in the hole in the right rear end cap and turn one

full turn clockwise. Check the tension of the

belt. Continue to do this until the belt is at the

correct tension. Make sure to adjust both sides

equally to ensure correct belt alignment.
