BodyCAP e-Celsius Performance Bedienungsanleitung
QUICK START GUIDE
TELEMETRIC SYSTEM FOR CONTINUOUS
GASTROINTESTINAL TEMPERATURE
DATA COLLECTION
SYSTEM DEDICATED TO NON-MEDICAL USES
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
3
Dear customers,
thank you for purchasing the system.
This quick start guide is designed to introduce you to the basic functions
of the system.
Hereby you will find some recommendations related to its first use.
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
4
This document does not replace the user manual.
For an optimal use of the device, we recommend that you take note of all
the instructions in the user manual.
The
eCelsius Performance
system is not claimed MRI compatible, it is imperative
that the subject ingesting an electronic capsule does not undergo any MRI.
The subject must wear the wrist band supplied with the system showing that
he is wearing an electronic device non compatible with the exposure to a strong
magnetic eld.
The wrist band is xed just before the ingestion and must only be removed after
the last electronic capsule ejection.
The User Guide is available as a PDF version (Adobe Reader needed) on the USB
memory stick provided with the system.
BodyCAP may provide the user manual in paper format within 7 days if necessary.
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
5
SYSTEM COMPONENTS
Up
Down Ok
Back
Collect, record and display temperature data from
eCelsius
Performance
electronic capsules.
electronic capsule
After activation, it collects and sends data to
eViewer
Performance
monitor.
Micro USB
Connector
Switch on / off
the screen and
the monitor
Temperature
Menu
eViewer Performance
monitor
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
6
Activator
Allows to activate
electronic capsules.
BodyCAP USB memory stick
The user guide and installer of
ePerformance
Manager
software are included on the USB
stick.
USB adapter and 2 micro USB /
USB cables
Allows to supply Activator or
eViewer
Performance
monitor and allows the
connection to
ePerformance Manager
software through the USB port.
The power supply module is provided as an option.
Signaletic bracelet
It is attached to the wrist before ingestion of an electronic capsule and then
removed after the expulsion of the last electronic capsule.
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
7
First Use
Basic Instructions
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
8
These instructions will allow you to boot your system.
To be aware of all the features, the use claims and contra-indications, please refer
to the user manual included on the USB memory stick.
Before the rst use of your system, you have to perform a set of operations.
1.
ePerformance Manager
SOFTWARE INSTALLATION
You must install your HMI before using your system.
It is the essential tool to set your monitor
eViewer Performance
.
To install the
ePerformance Manager
software, please run e- Performance_
Manager_X.X.X.X.exe or MAC-e-Perf Manager_X.X.X.X.exe and
Mac driver
les
stored on the USB stick supplied with the system.
Minimum System Requirements:
- Processor 1GHz
- 500 Mo of disk space
- Windows 7
®
or higher Microsoft
®
operating system (32 or 64 bits)/ Mac
OS X (10.9 Lion) or higher
- 1024x768 for screen resolution
2. MATERIAL
- PC or Mac including the
ePerformance Manager
software
-
eViewer Performance
monitor provided with protection pouch and USB
cable
-
eCelsius Performance
electronic capsule
- Activator provided with USB cable and ferrite
- Power supply adapter (in option)
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
9
3. SET UP
Please follow these steps before swallowing the electronic capsule:
- To switch on the monitor, press and hold the button .
- Connect the monitor to a power supply source if needed.

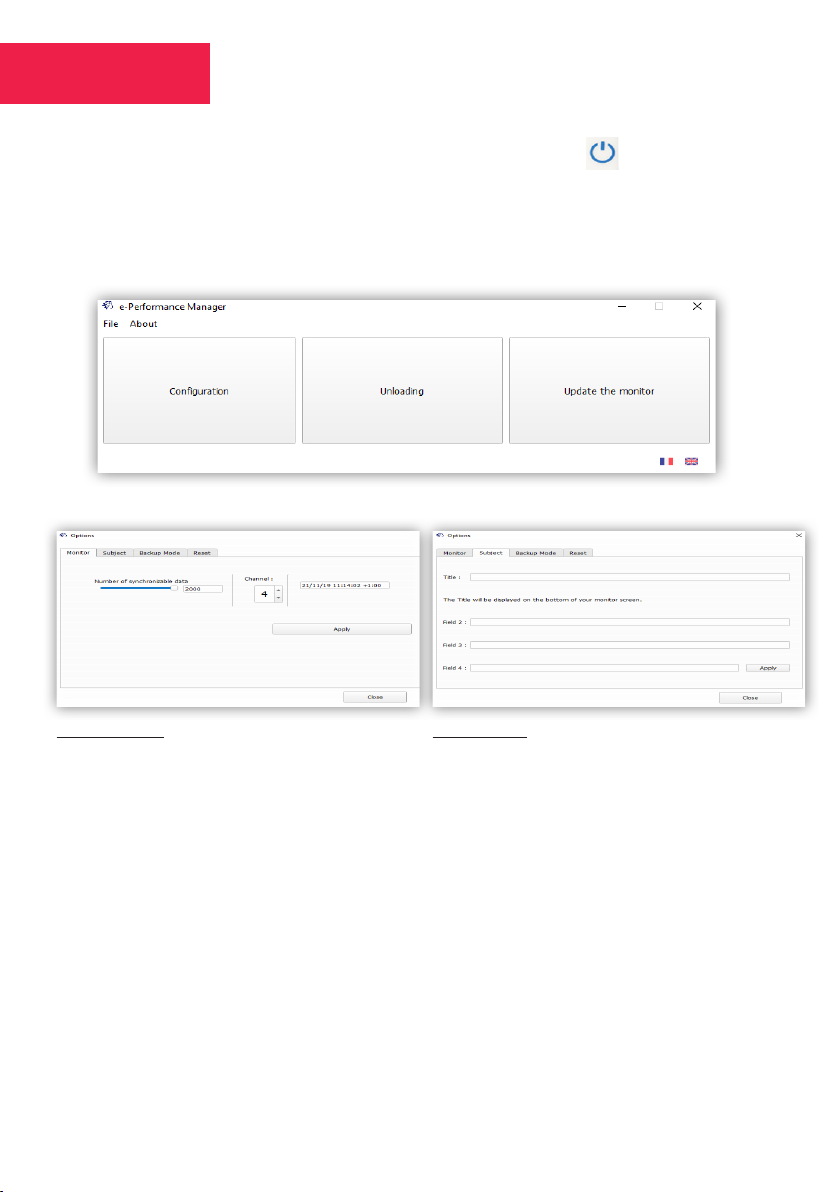

- Connect the monitor to a PC using the USB cable provided and run the
ePerformance Manager
software.
Select Conguration item :
Set up the monitor :
- Shutdown the software and unplug the monitor.
- Connect the activator to a power supply.
- On the Monitor, Select the Menu ‘‘Capsule’’ and select ‘‘Capsule Activation’’.
- The monitor will guide you, step by step until the association of the electronic
capsule to the monitor.
- It is required to rotate the electronic capsule into the hole of the activator after
pushing the activator button.
- Note the ID of the electronic capsule, and the monitor channel displayed on the
monitor screen (May be useful for Backup mode).
- The electronic capsule is now associated with the monitor and can be swallowed
after positionning the bracelet.
Monitor tab:
Congure the communication channel
and synchronization settings.
Subjet tab:
Fill in the identication elds of the
monitor according to the desired criteria.
P060GUI002 - Quick Start eCelsius Performance system.7 - EN
10
4. DATA COLLECTION
The monitor collects the data from the associated electronic capsules.
During a measurement cycle:
- It is possible to follow the temperature data in real time if the electronic
capsule is in the communication range (about 1m).
- For this, press the button .

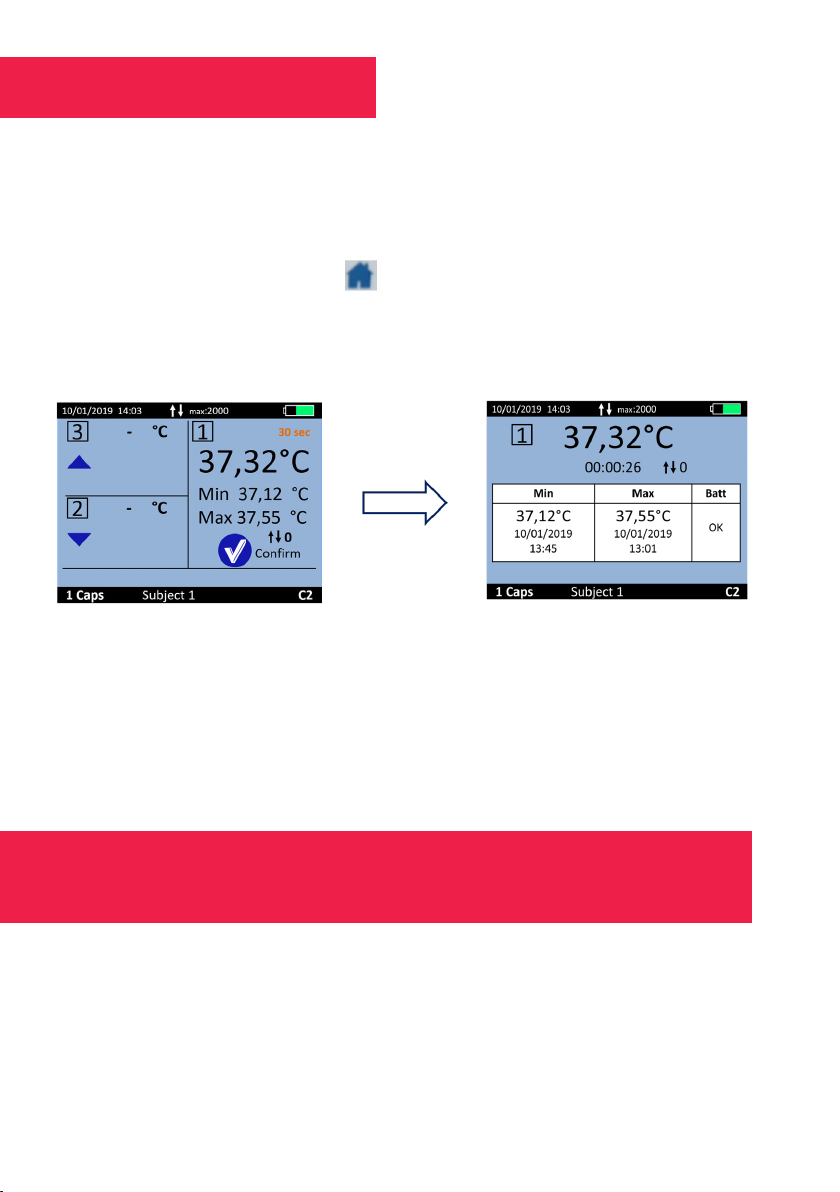

- When pressing the button OK on the main screen displaying the data of
the 3 electronic capsules, the detailed information of the selected electronic
capsule is displayed.
It is possible to add Markers by selecting the menu ‘‘Marker’’ in the ‘‘Main Menu’’
of the monitor. Those markers are used to identify a specic event and are plotted
on the graph of the ePerformance
Manager
and in the .CSV le after export.
An automatical synchronization of the data is possible between the monitor and
the associated electronic capsule if the data are not received in real time.
More information are provided in the le
eCelsius Performance
user guide.
5. VISUALIZATION OF THE DATA AFTER A MEASUREMENT
CYCLE
To retrieve the data stored in the monitor:
- Plug the monitor to the PC/Mac and select ‘‘Unloading‘‘. The curve
displayed is not saved by the application.
- You have to Export the curve as a PDF or the data as a .CSV le and save
it on your PC/Mac disk.
As you want you can visualize the data curves during a measurement cycle.
