Bodyworx AM900 Bedienungsanleitung

Commercial

Retain this owner’s manual for future reference

Read and follow all instructions in this owner’s manual

Version A

Owner’s Manual

Model No: AM900

Magnetic Spin Bike

BODY WORX

AM900 - INSTRUCTIONS FOR USE

1) The model AM900 is designed to be used as a “spin” cycle in fitness studios and

health clubs. It has a fixed wheel driven flywheel and should only be used under

professional supervision.

2) Installation - it is important that the AM900 is correctly assembled and we recommend

that installation and assembly be carried out by suitably qualified personnel.

3) Handlebar and seat adjustment. It is important that the handlebar and seat are set at

the correct height for your body. Ask your instructor for assistance. Adjusting the

handlebar stem and seat post height - Make sure it is securely tightened and that

there is no lateral or vertical movement of the handlebar stem and seat post. Undo

the Quick Release lever which is located in front of head tube. Slide the handlebar

stem up or down to the required height and then retightened.

The handlebar / stem position can also be adjusted forwards or backwards. Undo the

Quick Release lever located on below the slider. Slide the handlebar / stem assembly

forwards or backwards until you reach the required position. Then securely retighten

the Quick Release lever.

Adjusting the seat height - refer to above mention.

NOTE: There is a safety line engraved on the handlebar stem and seat post. On

no account should the handlebar stem and seat post ever be raised

above this line.

4) Pedals and toe straps - your feet should be securely positioned in the toe clips during

the exercise. Put your foot as far forward as you can into the toe-clip and then pull the

strap tight.

5) Resistance system - AM900 biek is with durable belt direct drive transmission system,

to adjust the exercise resistance on the completed spinning bike, please refer to gear

cable assembly.

6) The AM900 should operate on a level surface with no lateral movement. There are

height adjuster caps located on either side underneath the rear foot. Turn these caps

clockwise or anti-clockwise until the bike is totally stable on the ground.

7) Maintenance - like any other mechanical cycling device, the AM900 should be

regularly maintained. Ask your supplier for a detailed maintenance programme.

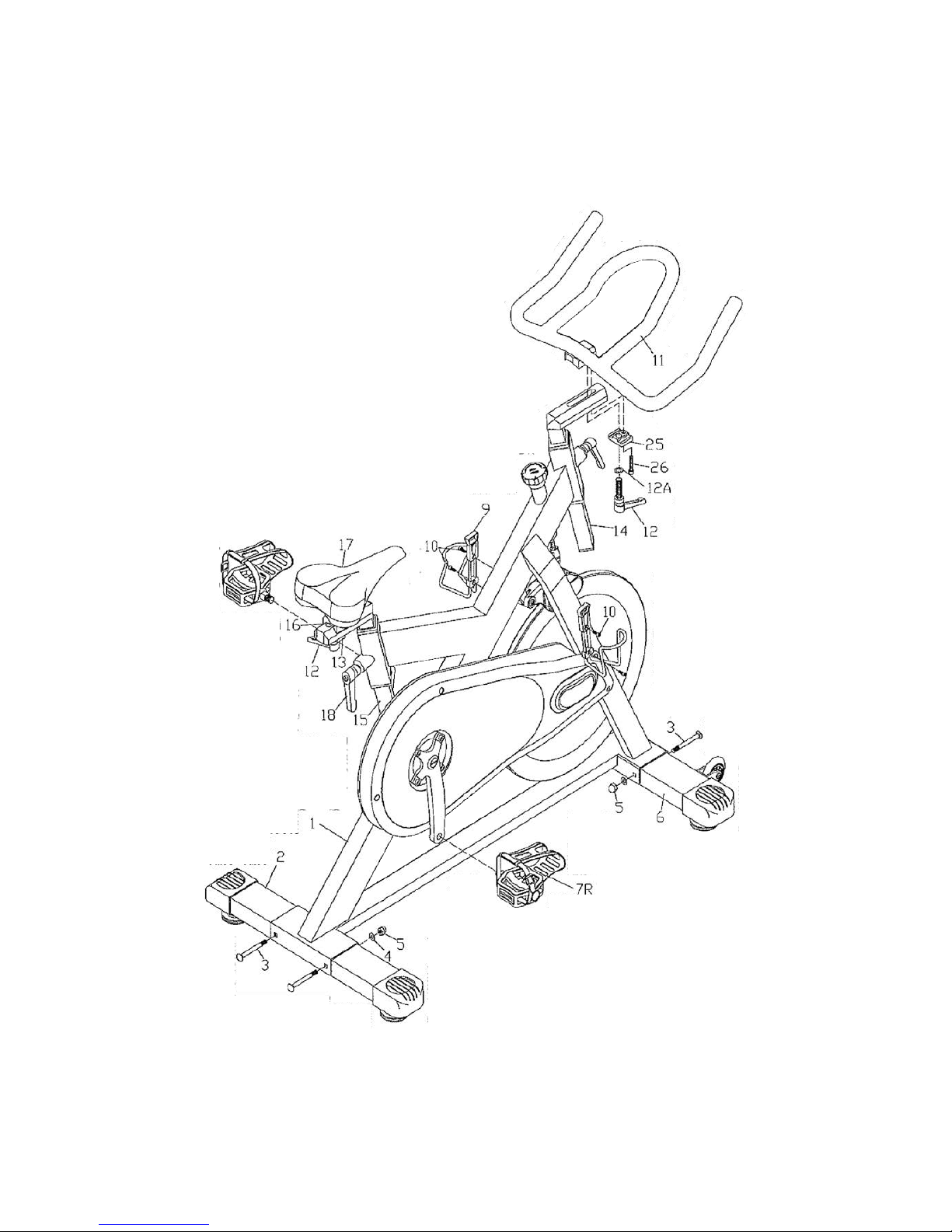

AM900 - Assembly Diagrams

AM900 - Assembly

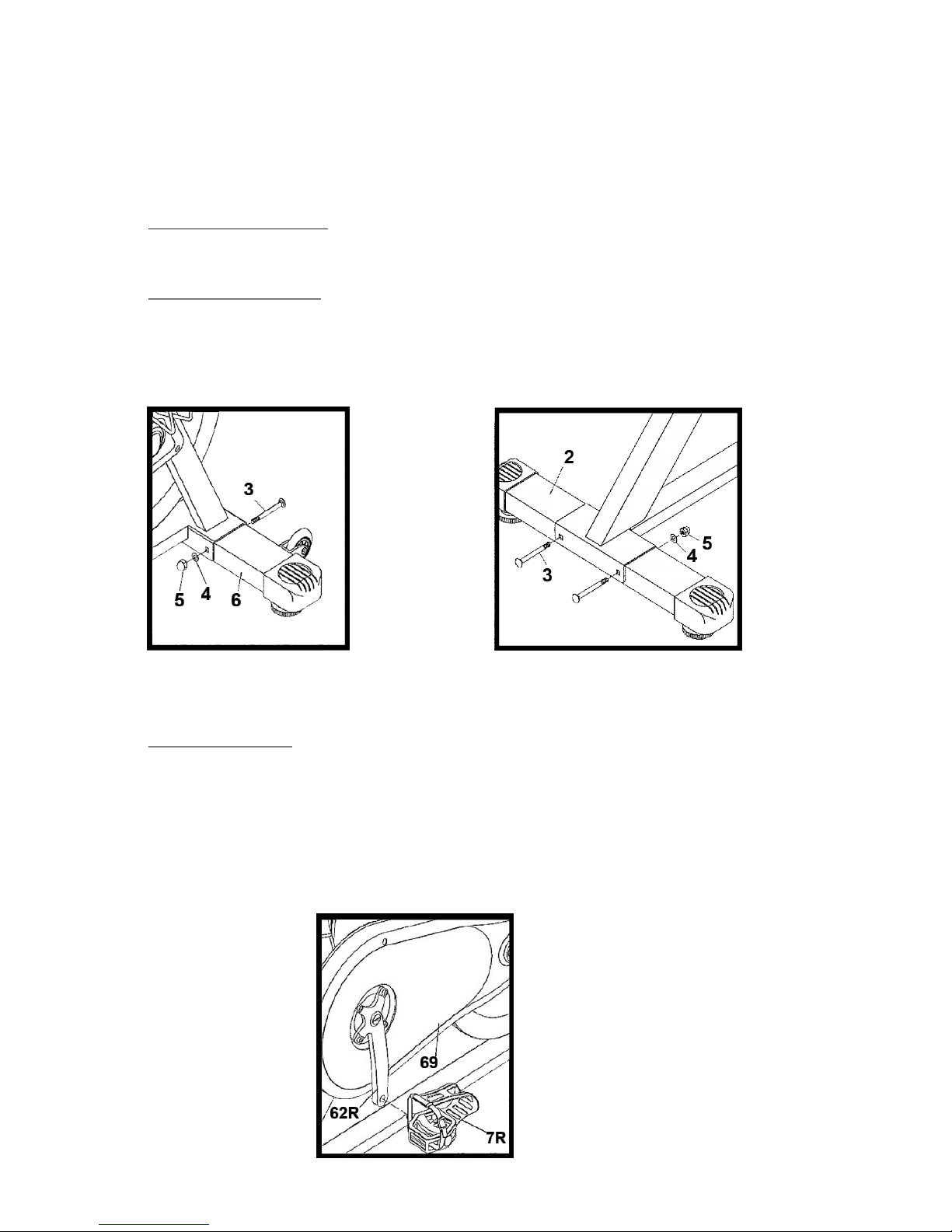

Step 1 (Front Foot)

Attach the front foot (6) to the frame using the bolt (3), washer (4) and nut (5).

Step 2 (Rear Foot)

Attach the front foot (2) to the frame using the bolt (3), washer (4) and nut (5).

STEP 1 STEP 2

Step 3 (Pedals)

Attach the front foot (7R / 7L) into the crank arms (62R / 62L), each pedal is marked with the

letter R (right) or R (right) to denote the side of the bike they are on. NOTE: The right hand

crank is on the same side as the belt cover (69). Be careful to align the threads correctly to

avoid any damage. A little grease on the thread should help the pedals to screw in easily and

correctly, tighten using a 15mm spanner, both pedals threads should tighten towards the front

of the bike.

STEP 3

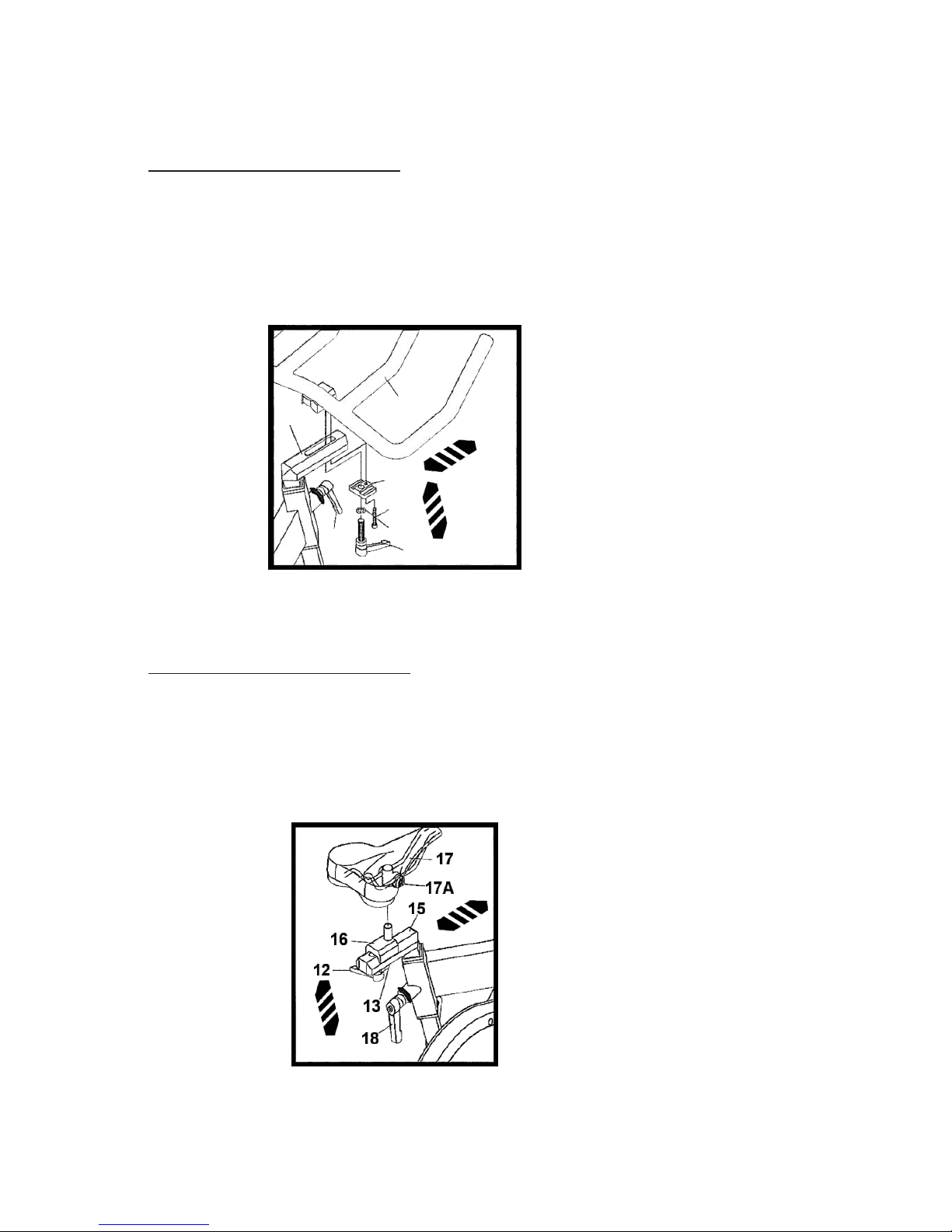

Step 4 (Handlebar & Stem)

Attach handlebar (11) onto handle bar stem (14), assembly down plate (25), washer (12a) bolt

(26) and lock lever (12), slide the handlebar (11) until reach your required position. Using lock

lever for tightening. And then put the handlebar-stem set onto front tube, adjust to your ideal

position., and then using lock lever (18) to tighten. NOTE: Do not arise above safety line.

STEP 4

Step 5 (Saddle & Seat Post)

Insert seat post (15) into frame’s seat tube, assembly saddle (17) on saddle top slider (16).

Adjust slider using lock lever (12) for forwards or backwards and then tighten until reach the

proper position. Using lock lever (18) adjust seat post (15) and tighten in proper position.

NOTE: Do not arise above safety line.

STEP 5

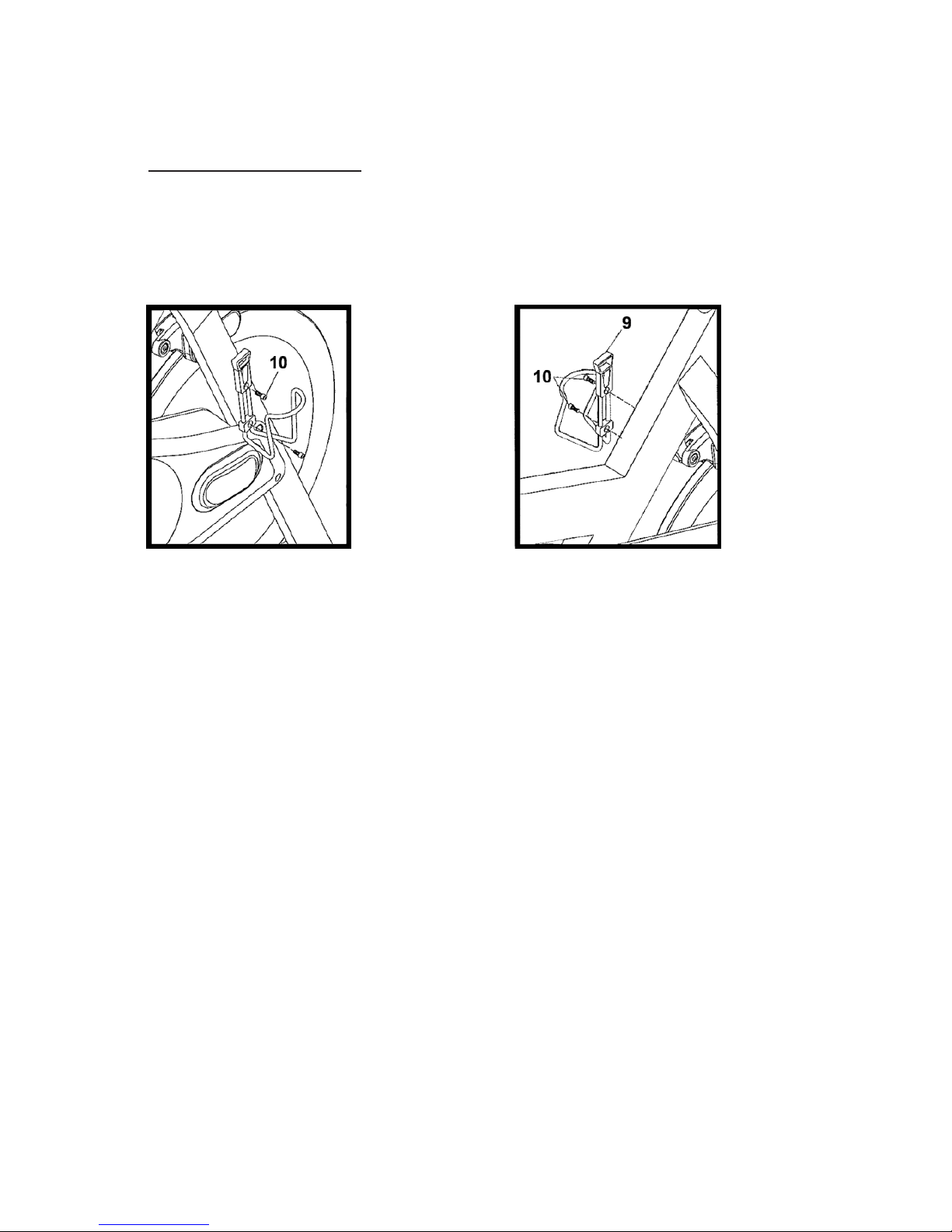

Step 6.7. (Bottle Cage)

Attach screw (10) into bottle cage (9) on front fork in required position using a 4mm allen key

STEP 6 STEP 7

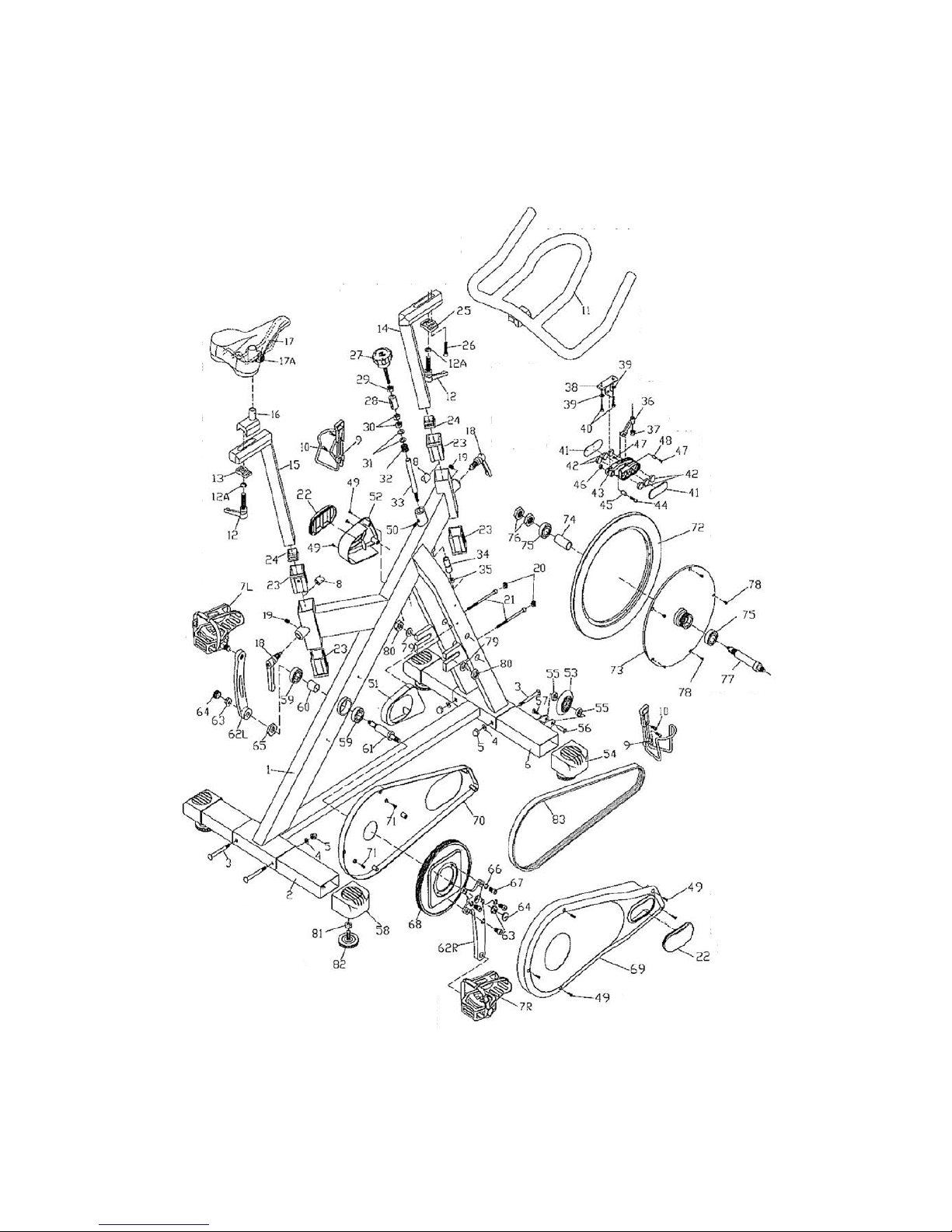

AM900 Diagrams

PARTS NO

DESCRIPTION

QTY

PARTS NO

DESCRIPTION

QTY

Main Frame

Plastic Brake Bass

Rear Ground Tube

Bolt M8 x P1.25 x 20L

Ground Tube Fixed Bolt

Sleeve 8mm x 11mm x 12L

Washer

Nut M8 x P1.25

Nut

Screw M5 x P0.8 x 6L

Front Ground Tube

Sleeve 8mm x 15L

7 R/L

Pedal

Screw M5 x P0.8 x 15L

V Block

Screw M8 x P1.25 x 8L

Bottle Cage

Left Inner Cover

Bottle Cages Fixed Screw

Left Out Cover

Handle Bar

PU Moving Wheel

Handle Bar and Seats Lock Lever

Front Ground Tubes End Cap

12A

Spring Washer

Bearing 608ZZ

Bottom Plate For Saddle Slider

Nut 8 x 30L W/M6 x P.10

Stem

Nut M6 x P1.0 x 12L

Seat Post

Rear Ground Tubes End Cap

Saddles Slider

BB Axles Bearing SKF 6004ZZ

Saddle

Sleeve 24OD x 2.1ID x 27L

17A

Saddle Clamp

BB Axle 25mm x 20mm x 128L

Lock Lever For Stem and Seat

62L

Left Crank 175L

Set Screw - M6xP1.0x8L

62R

Right Crank 175L

Plastic Seal Cover

Flange Nut

Axles Adjust Screw - M6xP1.0x95L

Dusty Cover

POP Cover

Lock Nut M20 x P1.0

Plastic Sleeve

Spring Washer

Stem & Seat Post End Cap

Bolt M10 x P1.5 x 15L

Bottom Plate for Handle Bar

Pulley 265mm x 5PK x 21T

Safety Bolt

Right Out Cover

Adjust Knob

Right Inner Cover

Moving Part 20 ODx34L

Screw M5 x P0.8 x 10L

Lock Nut 3/8" x 16T x 6T

Out Alloy Ring of Fly Wheel

Nut

Inner Cast Iron Fly Wheel

Washer - 18mm x 8.5mm x 1.5T

Sleeve For BB Axle

Spring - 18mm x 2mm D x 65L x 9

Bearing for Fly Wheel SKF 6004ZZ

Study 12.7mm x 160L

Nut M17 x P1.0 x 8t

Nylon Plug

Fly Wheels Axle

Nut

Screw M5 x P0.8 x 6L

Brake Set Adjuster

Nut M12 x P1.25

Nut M8 x P1.25

Washer 27mm x 13mm x 3t

Brake Set Fix Bracket

Nut 3/8" x 16t x 6T

Washer

Rear Ground Stabilise Adjuster

Screw M6 x P1.0 x 15L

Belt 5PK

Magnetic Side Cover

Magnetic

M900 Parts List

BODY WORX
